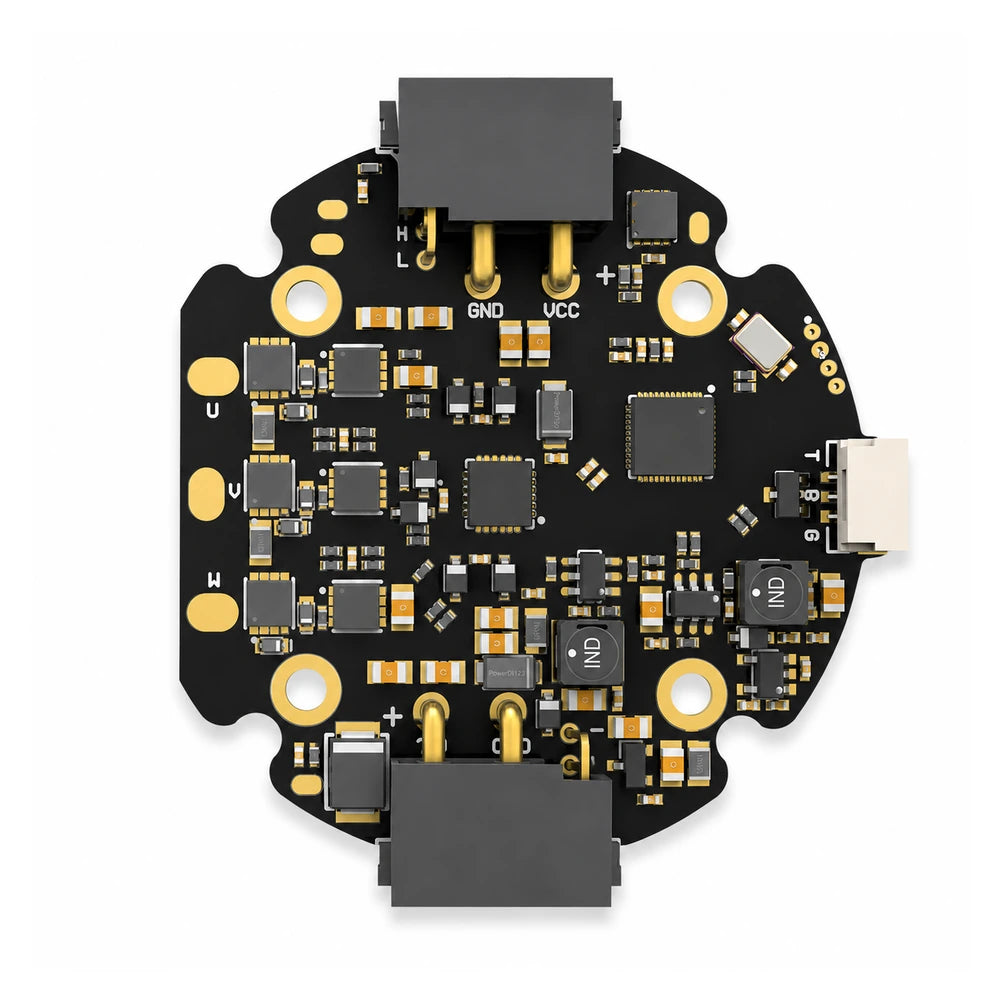

• DM40-2E brushless motor driver board front view
  • DM40-2E motor driver power, encoder and CAN feature overview
  • DM40-2E brushless motor driver board and connector layout
  • DM40-2E brushless motor driver 24V 4A parameter table
  • DM40-2E brushless motor driver specifications, interfaces and dimensions
  • DM40-2E brushless motor driver product overview with 24V input and 4A continuous current
  • DM40-2E brushless motor driver specifications with 24V input, Cortex-M4, CAN, FOC, 4A continuous and 10A peak current

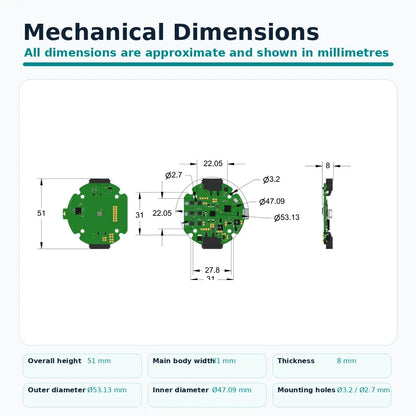

  • DM40-2E brushless motor driver mechanical dimensions including 51 mm height, 53.13 mm outer diameter and 8 mm thickness
  • DM40-2E motor driver control and debugging functions including motor identification, MIT control, speed and position loops and USB to CAN tuning

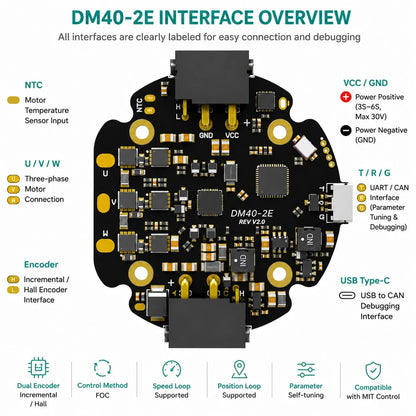

  • DM40-2E interface overview for VCC GND U V W NTC H L encoder and T R G CAN UART tuning

DAMIAO DM40-2E BLDC Motor Driver 24V 4A CAN FOC Dual Encoder

DAMIAO DM40-2E BLDC Motor Driver 24V 4A CAN FOC Dual Encoder

LB-motor-00028

20 in stock
$45.00 USD
$45.00 USD

Key Features

Key Features

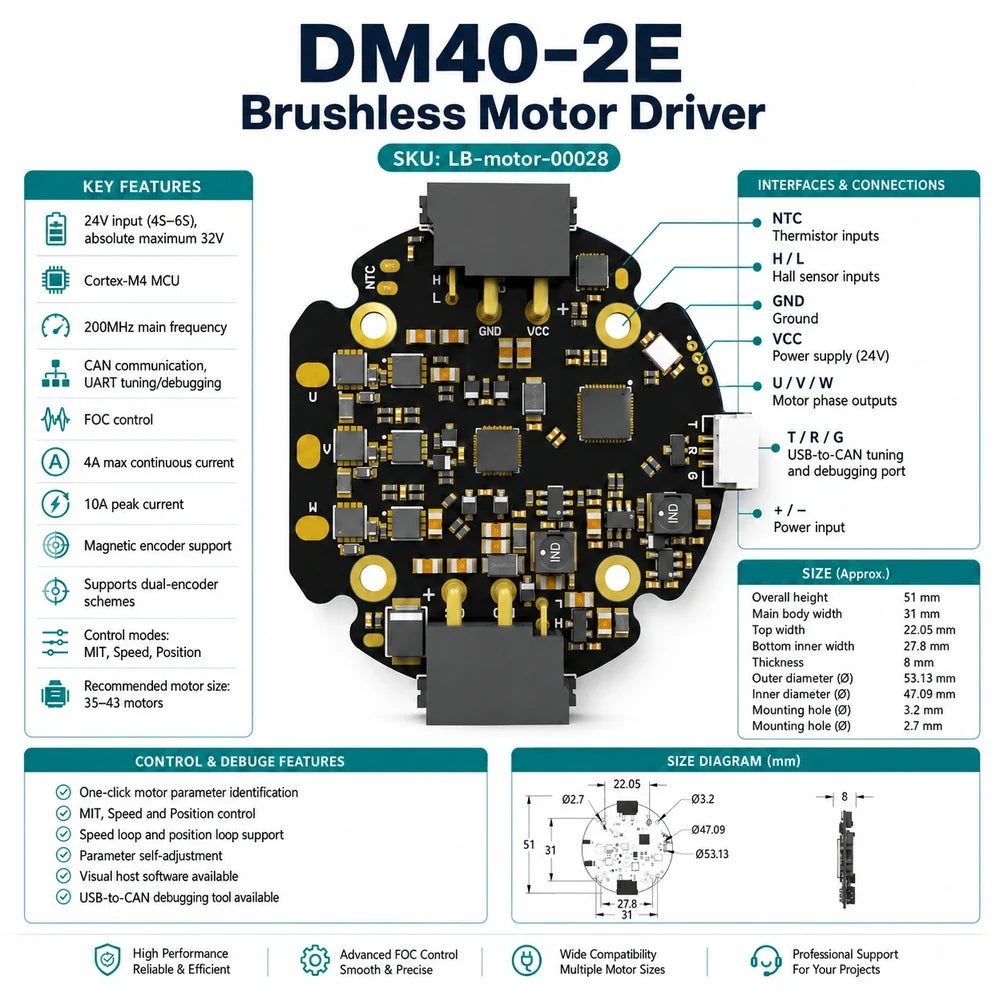

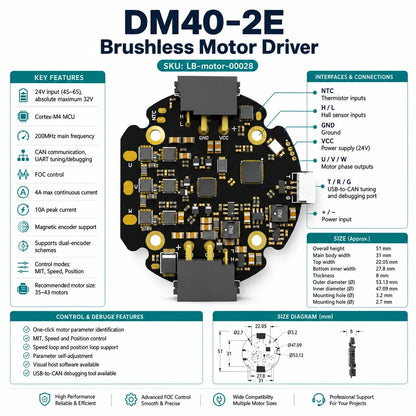

  • Exact model: DM40-2E three-phase brushless motor driver board.

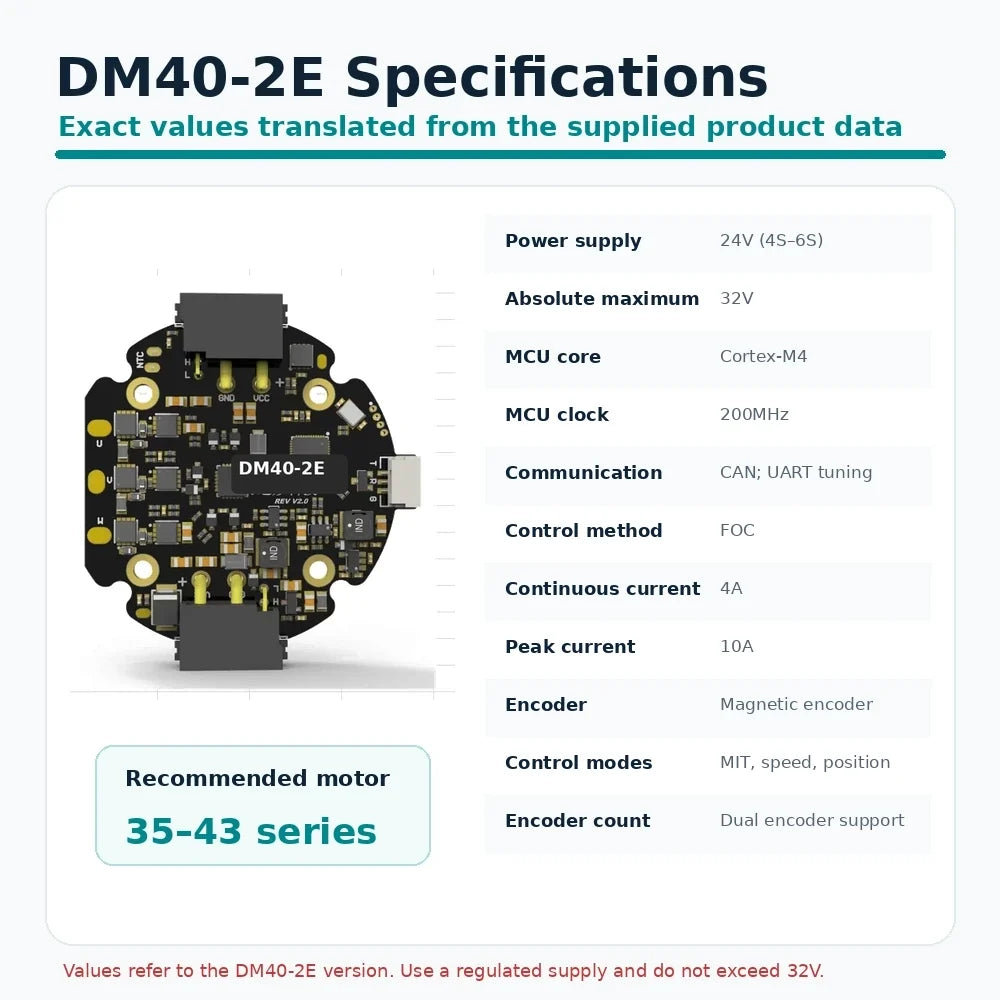

  • Power range: 24V nominal for 4S-6S systems; the model-specific table lists 32V as the absolute maximum.
  • Motor current: 4A maximum continuous current and 10A peak current as stated in the supplied DM40-2E parameter table.
  • Control processor: 200MHz Cortex-M4 MCU.
  • FOC control: Field-oriented control for three-phase BLDC motor operation.
  • Communication: CAN control with UART tuning and debugging support.
  • Encoder support: Magnetic encoder and dual-encoder schemes, including dual magnetic encoders or one magnetic encoder plus Hall sensing.

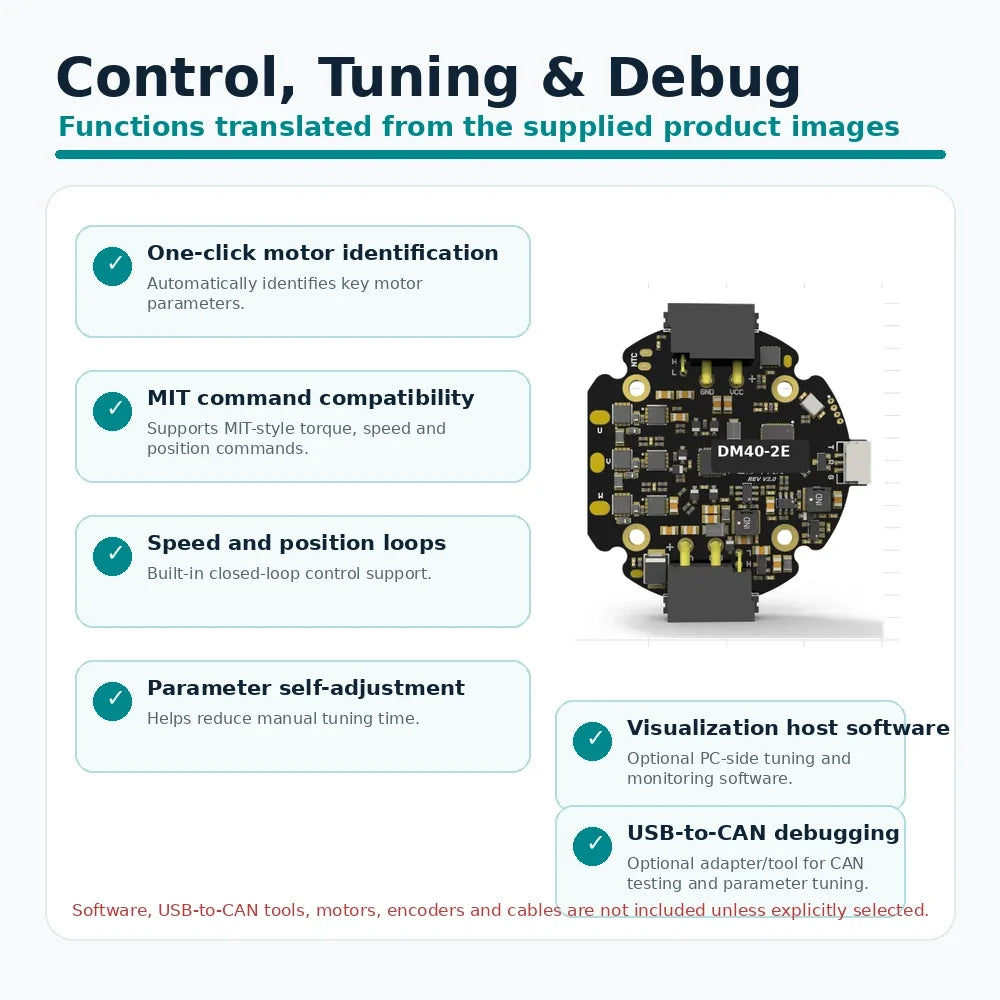

  • Control modes: MIT, Speed and Position modes with speed-loop and position-loop support.
  • Motor setup: One-click motor parameter identification and parameter self-adjustment are stated in the supplied product material.
  • Debugging ecosystem: Optional visualization host software and USB-to-CAN tools can be used for tuning and testing.

DM40-2E BLDC Motor Driver

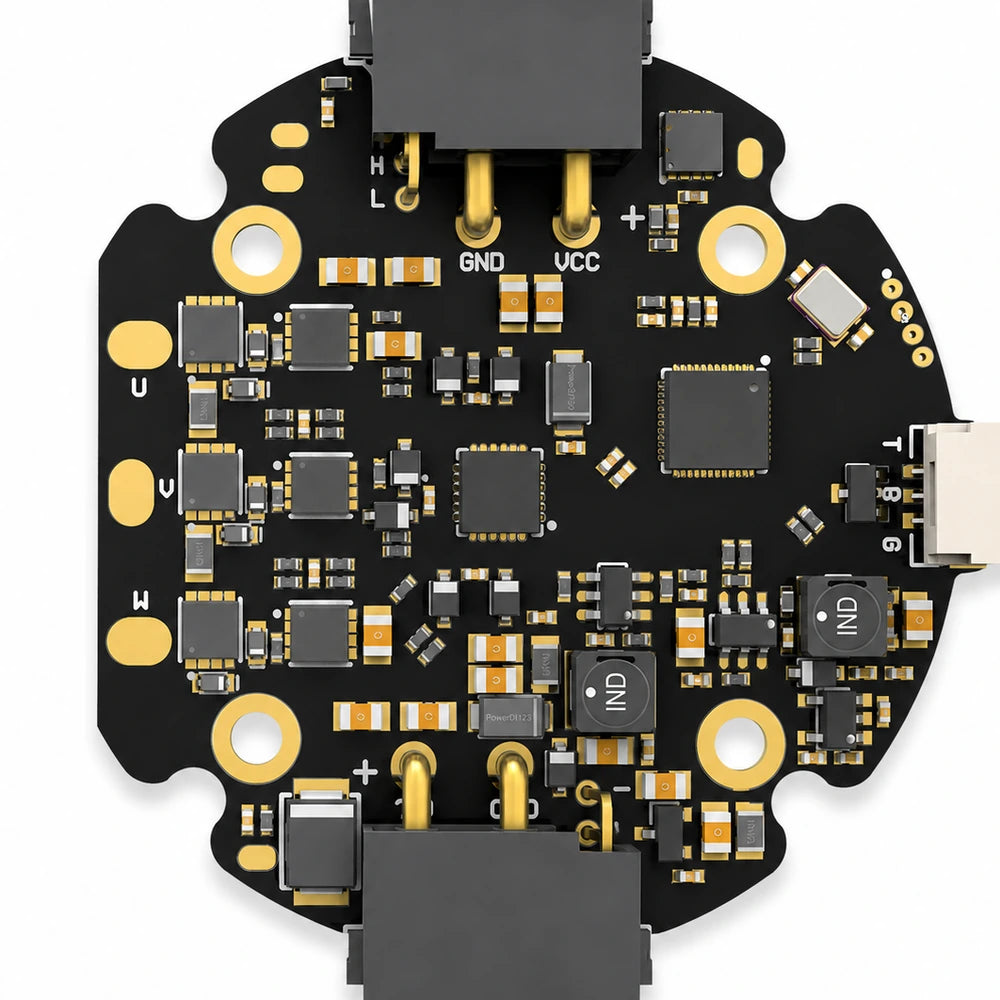

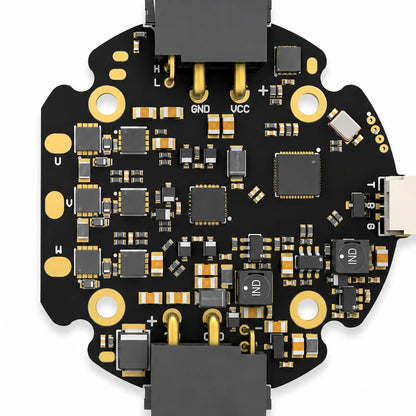

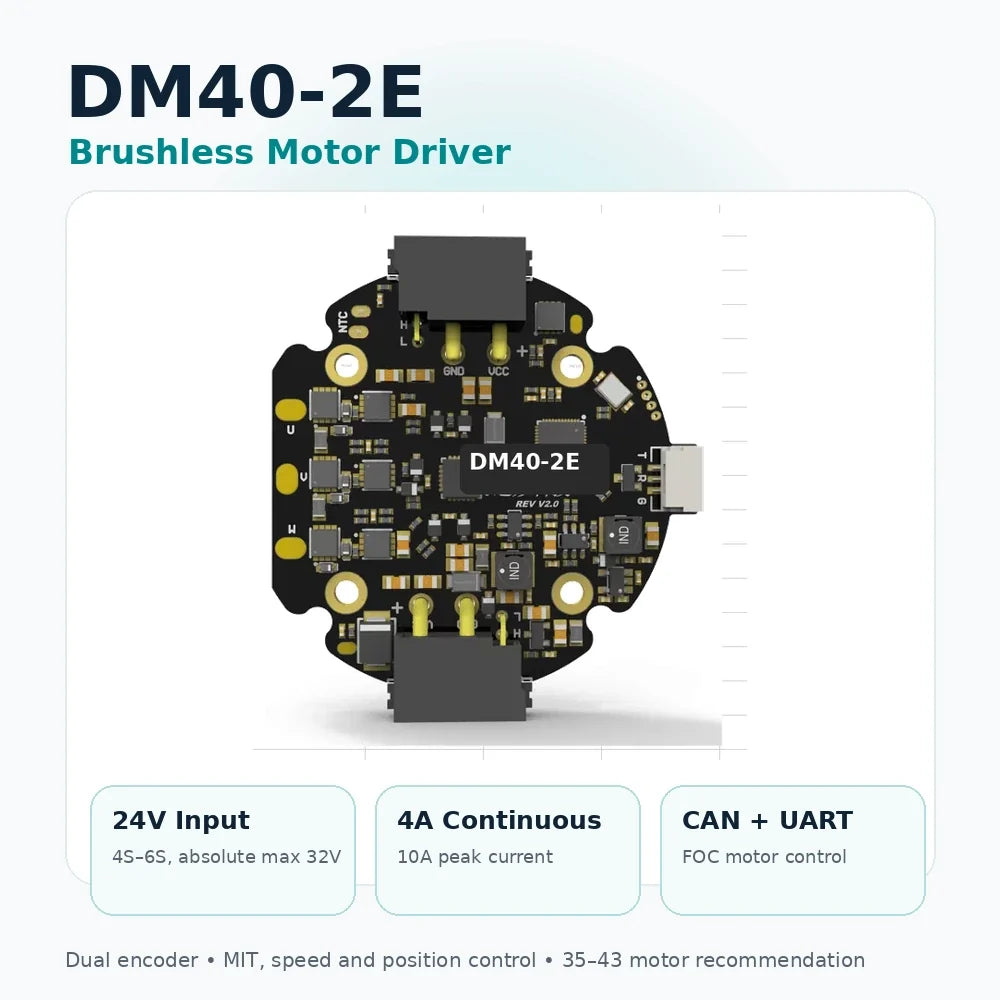

The DM40-2E is a compact three-phase BLDC motor driver for 24V robotic joints, actuators and embedded motion-control systems. The model-specific product table states a 24V (4S–6S) supply, 4A maximum continuous current and 10A peak current. This brushless motor controller combines a 200MHz Cortex-M4 controller, CAN communication, UART tuning, FOC, dual-encoder support and MIT, Speed and Position control modes.

Compatibility and Setup Notes

  • Power: Use a regulated 24V-class supply within the 4S–6S range. The supplied DM40-2E table states 32V as the absolute maximum; this is not a recommended operating voltage. Leave suitable design margin and verify the received board revision before power-up.

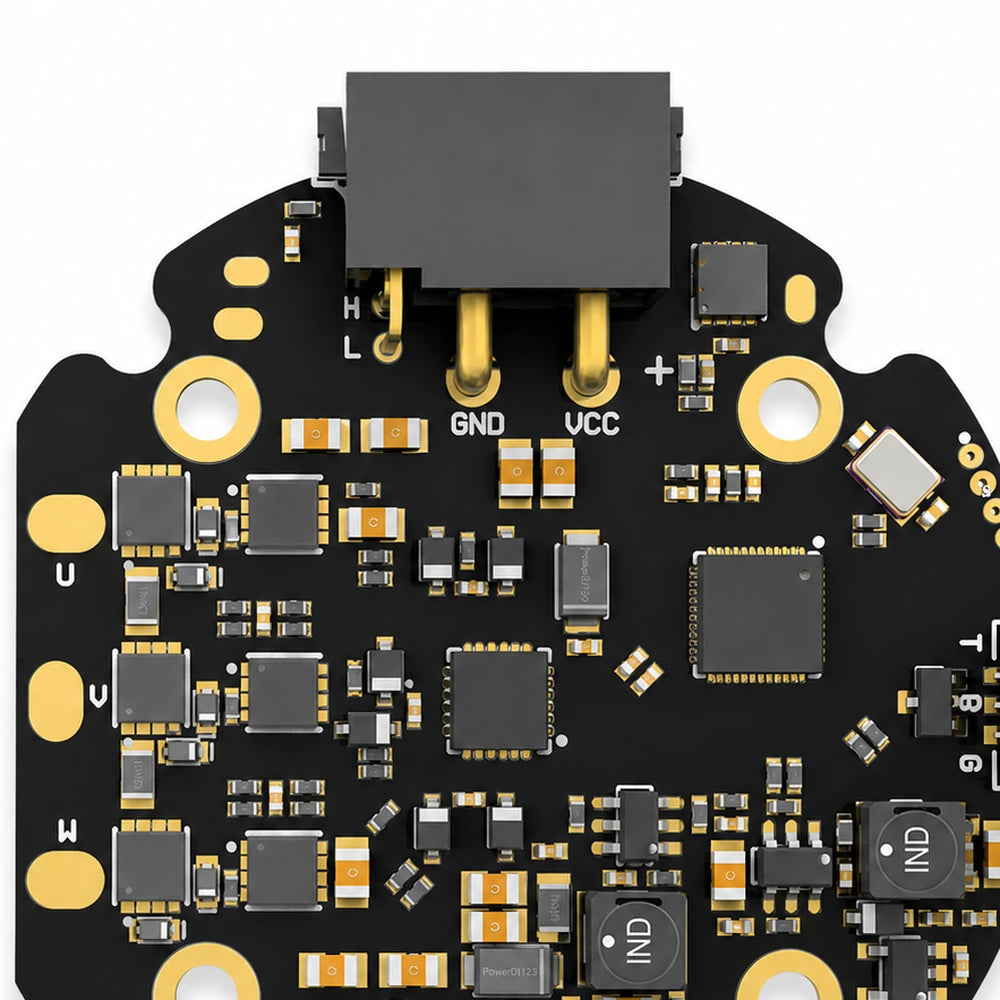

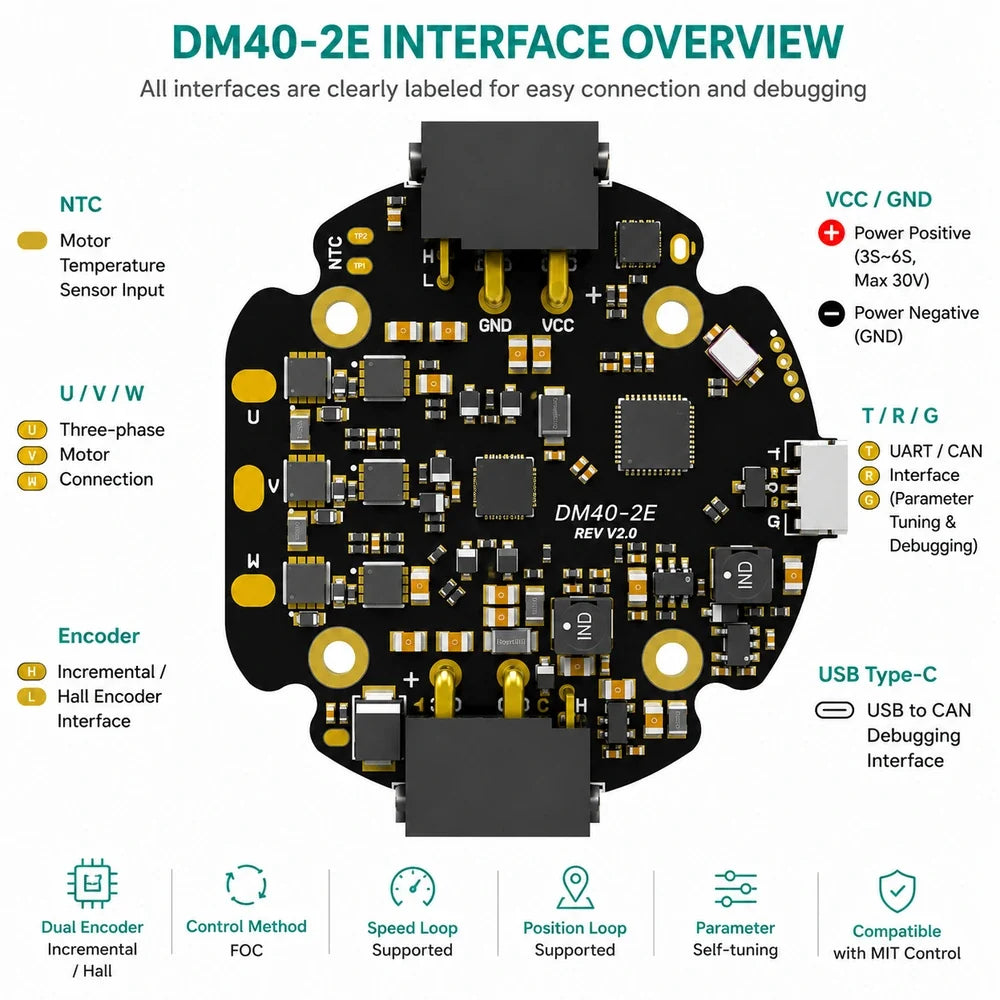

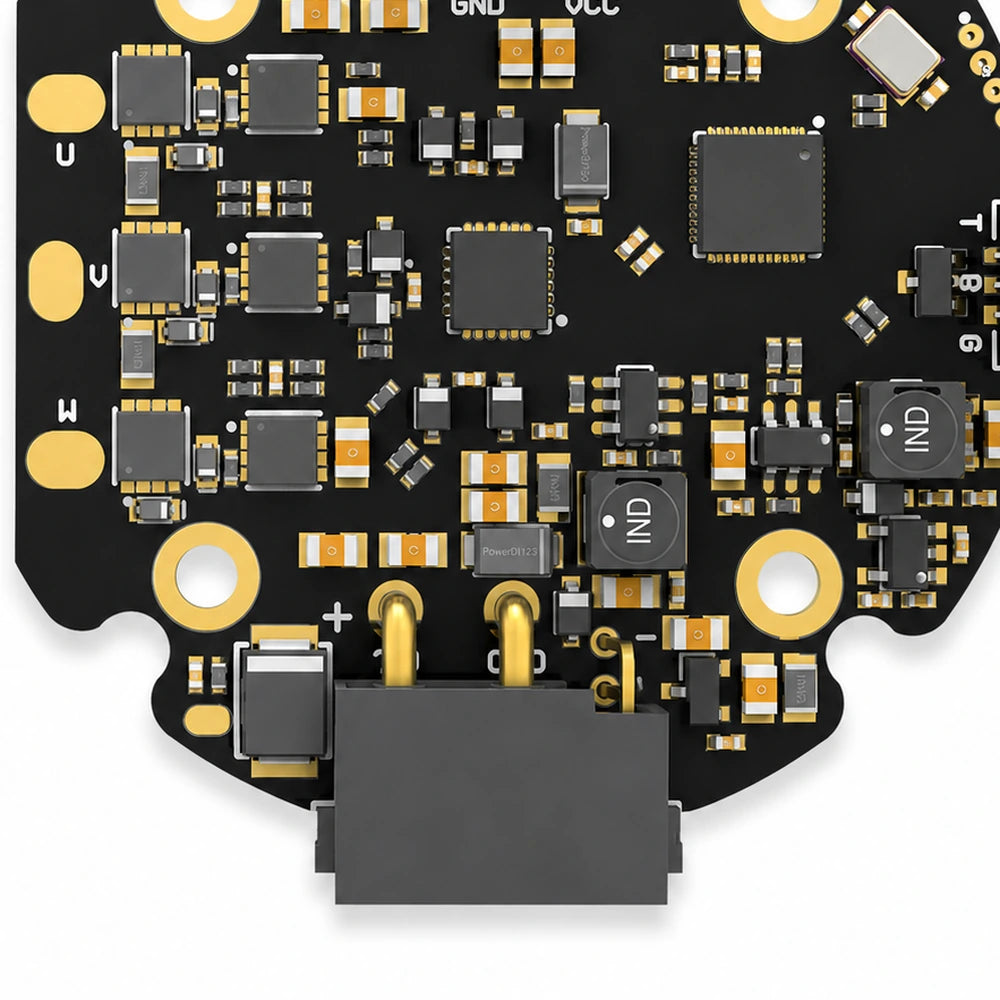

  • Motor connection: Connect the three motor phases to U, V and W. Do not connect or disconnect the motor, encoder or power wiring while the board is energized.
  • Encoder configuration: The supplied information describes magnetic-encoder support and dual-encoder configurations, including dual magnetic encoders or one magnetic encoder plus Hall sensing. Confirm sensor voltage, connector order and firmware settings before use.
  • Temperature input: NTC is intended for motor-temperature sensing. Confirm the required thermistor value and protection thresholds for the selected firmware.
  • Communication: CAN is used for control, while UART is identified for tuning. The product images show a T/R/G tuning connector; confirm the CAN ID, bitrate, termination, protocol version and connector order before integration.
  • Control setup: MIT, Speed and Position modes, one-click identification and parameter self-adjustment require compatible firmware, correct motor data and a safely restrained test setup.
  • Optional tools: Visualization software and USB-to-CAN debugging hardware are reference tools and are not included unless explicitly selected.

Development Environments and Technical Resources

These links are provided as technical references. Firmware, connector assignments and tool compatibility can vary by board revision and supplier package.

Integration note: This is an embedded motor-control board, not a plug-and-play consumer drive. Use current limiting, appropriate fusing, adequate cooling, secure wiring and an emergency-stop method during commissioning.
