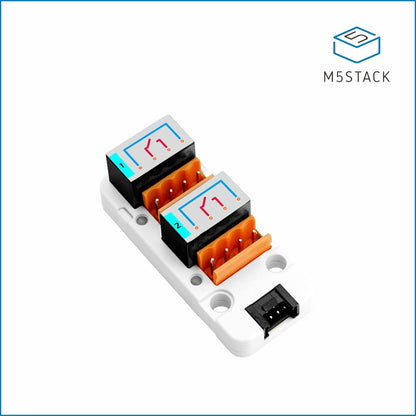

• M5Stack Unit 2Relay front product view
  • M5Stack Unit 2Relay connector and control detail
  • M5Stack Unit 2Relay feature overview
  • M5Stack Unit 2Relay rear hardware view
  • M5Stack Unit 2Relay side profile
  • M5Stack Unit 2Relay installation example
  • M5Stack Unit 2Relay dimensions and interface diagram

M5Stack 2Relay Unit – Dual SPST Relay Module | U131

M5Stack 2Relay Unit – Dual SPST Relay Module | U131

LB-M5-U131

20 in stock
$8.50 USD
$8.50 USD $6.50 USD

Key Features

  • 2 independent SPST normally open relays

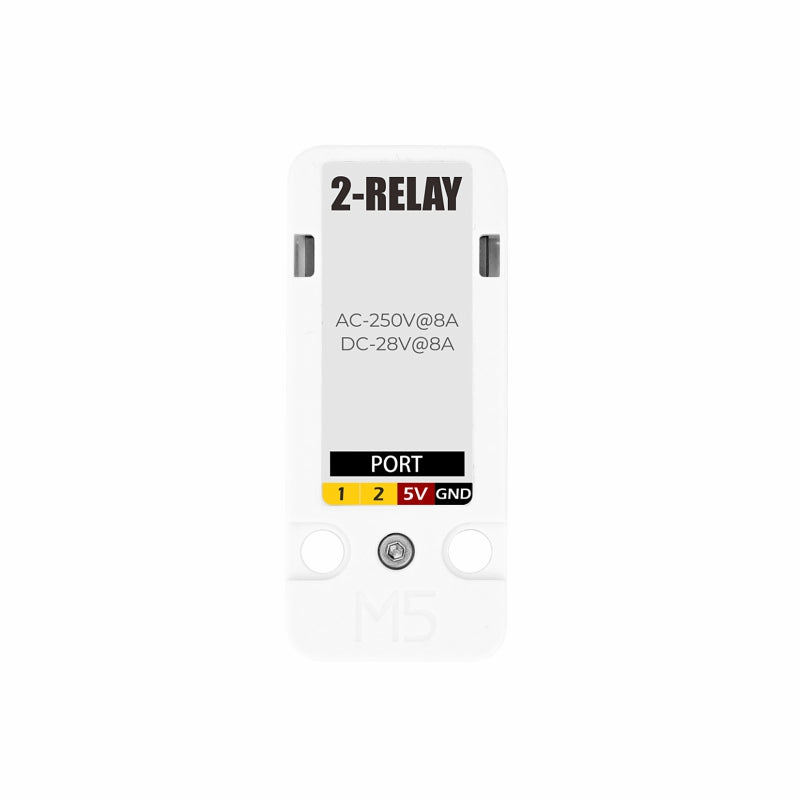

  • Contacts rated up to 250 VAC or 28 VDC reference
  • 8 A rated-current reference per relay
  • 2 blue channel-status LEDs
  • Separate terminal connections for both loads

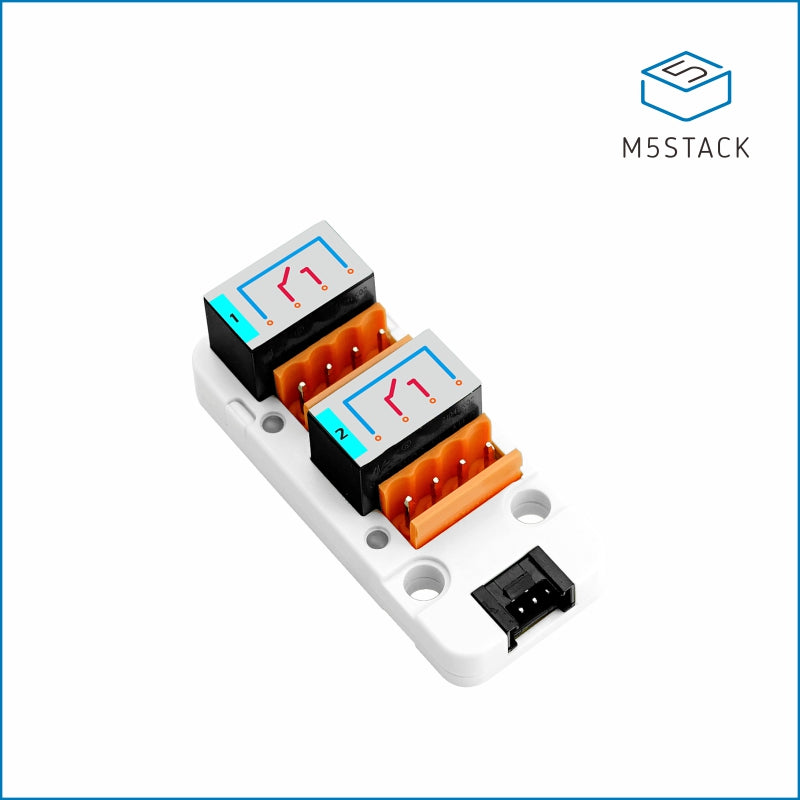

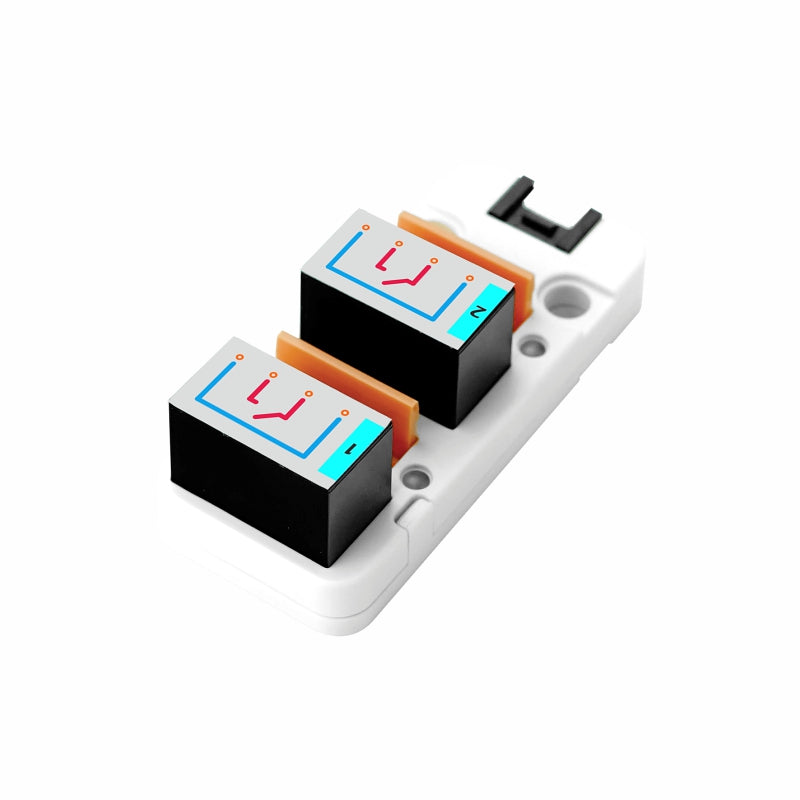

The M5Stack 2Relay Unit lets a controller switch two independent normally open circuits for pumps, valves, lamps, signal lines, and power-sequencing prototypes. Each SPST mechanical relay has a blue status LED and separate terminal wiring. The module is useful when two low-frequency loads need isolated contact switching, but the final design must still account for inrush current, fusing, conductor size, enclosure safety, switching life, and independent feedback.

Switch Two Loads with the M5Stack 2Relay Unit

Control Two Independent Normally Open Channels

Each SPST relay closes its own normally open contact when commanded by the corresponding digital output.

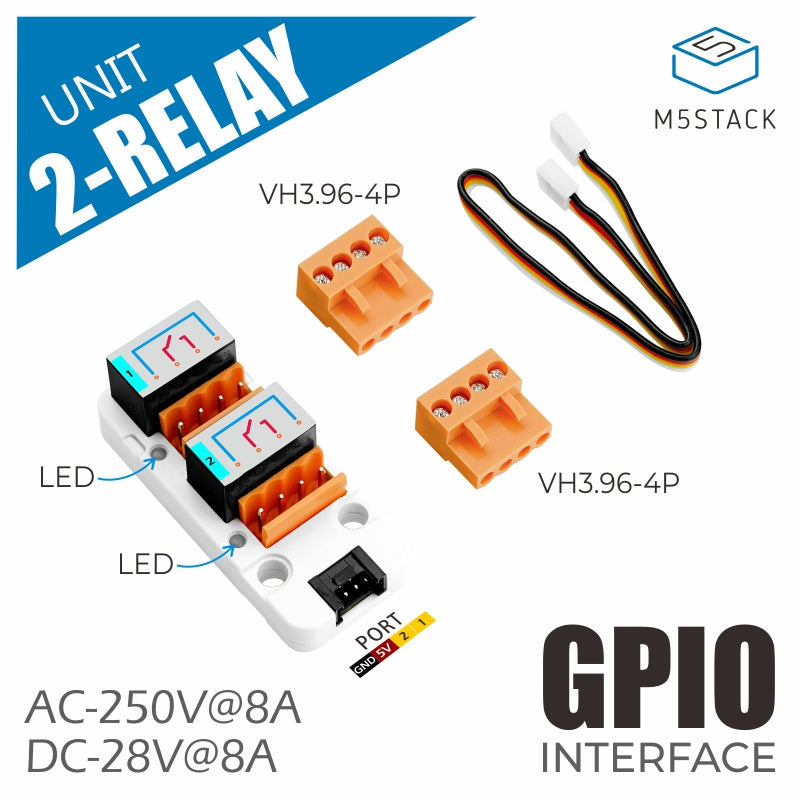

Check Channel State with Blue Indicators

Two blue LEDs show the electrical command state, helping with setup and troubleshooting.

Design Load Wiring for the Real Application

Evaluate voltage, steady current, inrush, switching frequency, protection, and terminal wiring before connecting the load.

What You Can Build with M5Stack 2Relay Unit

  • Pump and valve control
  • Appliance switching prototypes
  • Two-channel power sequencing
  • Industrial signal switching
  • Test-fixture load control

Integration and Workflow

  1. Confirm that both selected host pins support digital output mode.
  2. Complete all load-side wiring with power removed and use suitable fusing, conductors, terminals, and enclosure protection.
  3. Initialize both relay commands to off, then test one channel at a time with a low-risk load.
  4. Apply maximum on-time limits and use independent sensors when the physical result must be confirmed.

Deployment Notes

  • The contacts are SPST normally open and do not provide mechanical position feedback.
  • The 8 A reference depends on load type, inrush current, wiring, temperature, and switching life.
  • Mechanical relays have finite contact life and produce switching transients.
  • The module is not a certified safety relay, emergency stop, or protective disconnect.
