M5Stack 8Encoder Unit – STM32F030 8 Rotary Encoders | U153

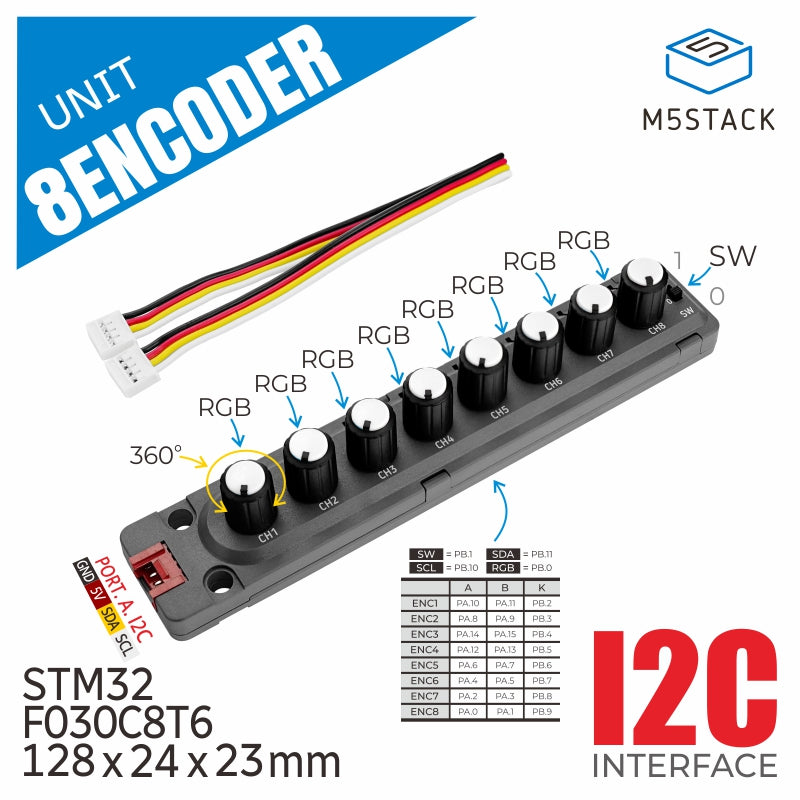

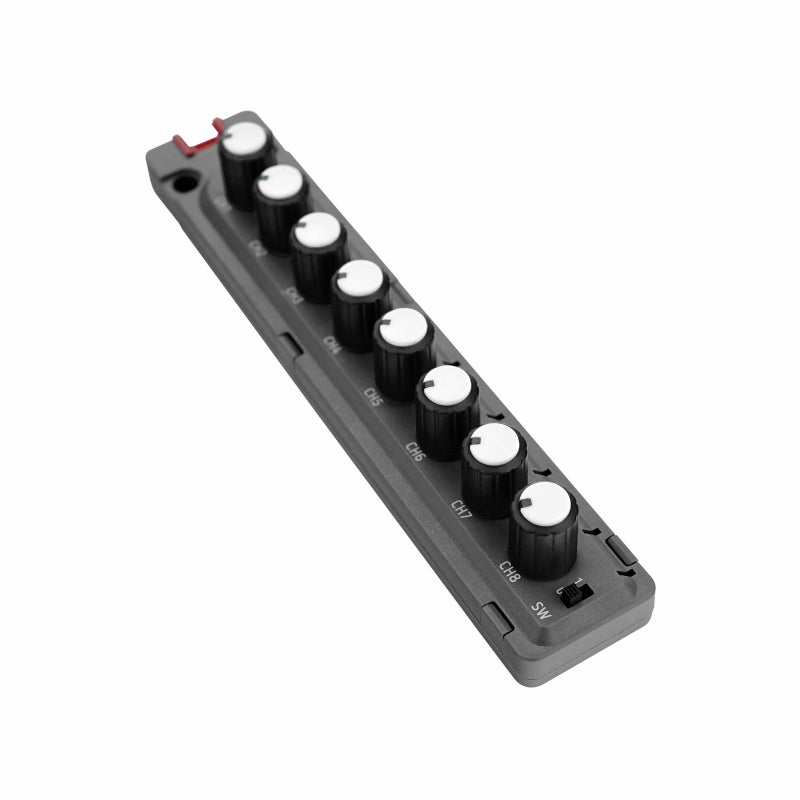

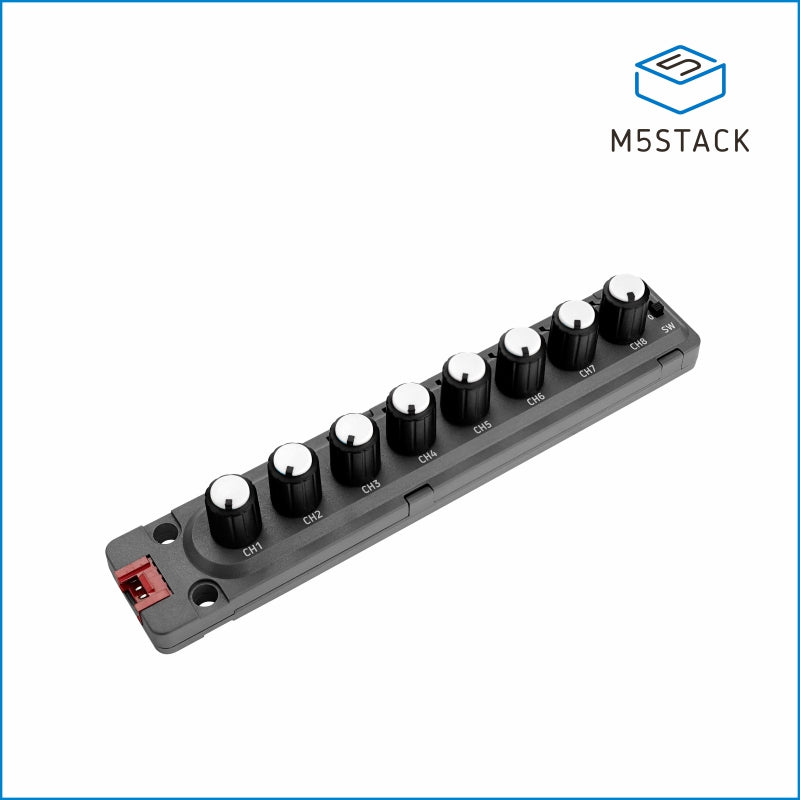

The M5Stack 8Encoder Unit creates a compact multichannel control surface for lighting consoles, robot joints, audio mixers, test equipment, and parameter-entry panels. An STM32F030C8T6 reads eight rotary encoders with push actions, while one RGB LED per channel provides immediate feedback. A separate toggle supports mode selection, and the complete panel communicates through I2C address 0x41. Reliable interfaces require software debounce, bounded values, encoder acceleration, and practical RGB brightness limits.

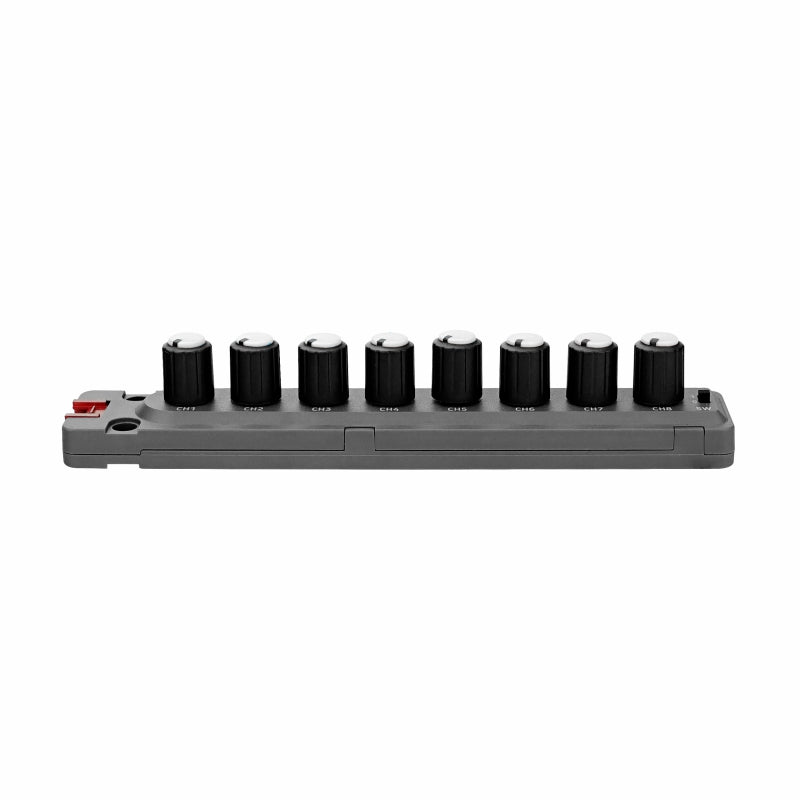

8Encoder Unit: Core Functions and Control

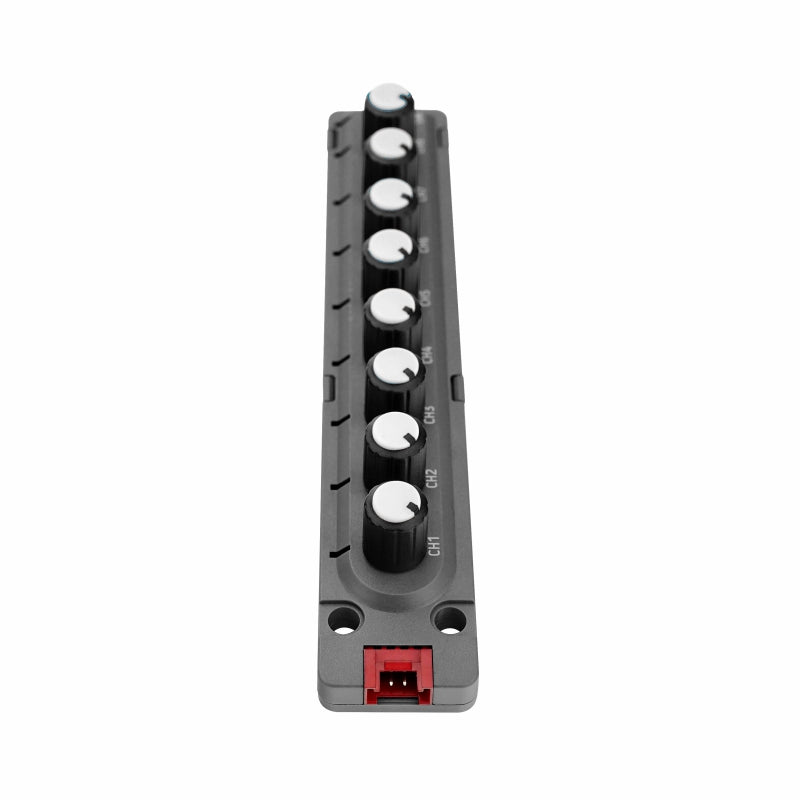

Adjust Eight Independent Parameters

Each encoder reports relative clockwise or counterclockwise movement for values such as speed, brightness, volume, position, or menu settings.

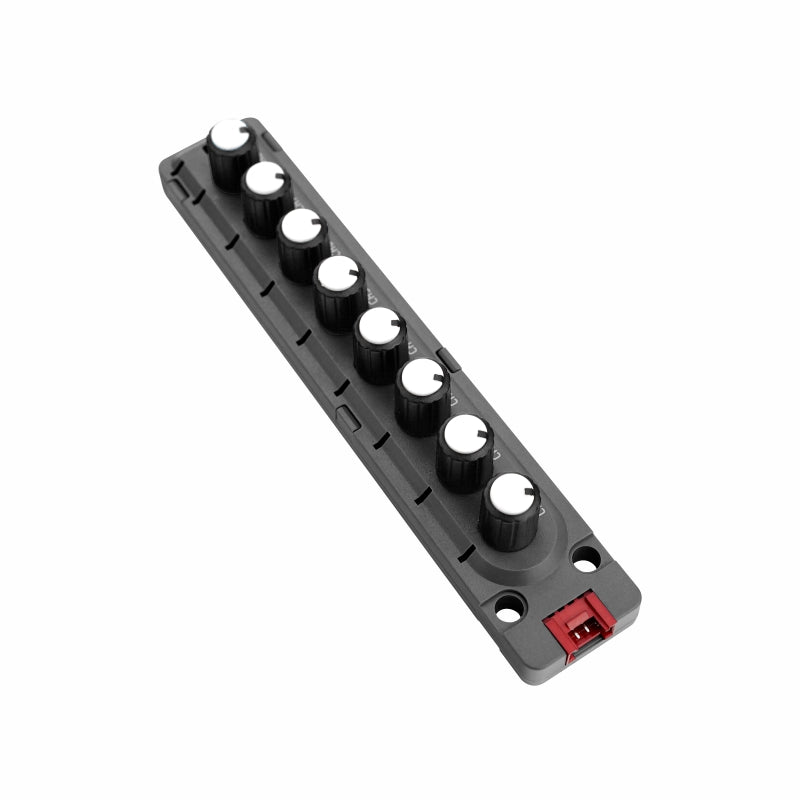

Use Encoder Push Actions for Secondary Commands

The radial push input can confirm a value, select a channel, reset a parameter, mute an output, or switch between coarse and fine adjustment.

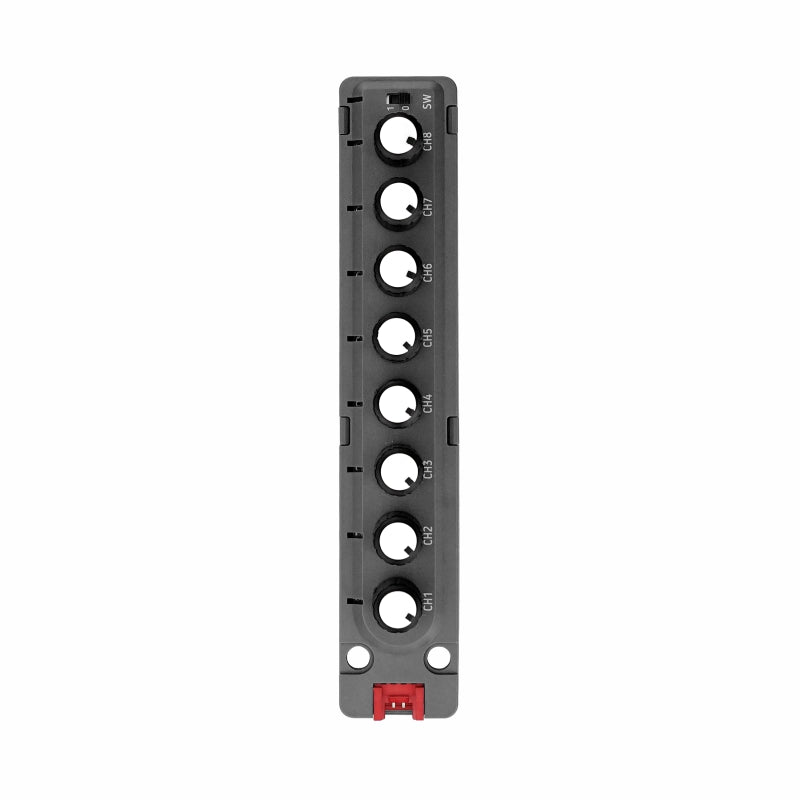

Show Channel State with RGB LEDs and a Toggle

Eight WS2812C-2020 LEDs provide per-channel feedback, while the physical toggle can select a mode, bank, or operating layer.

8Encoder Unit Applications

• Multichannel lighting and dimmer control
• Robot joint and actuator command panels
• Audio mixer and MIDI control surfaces
• Laboratory equipment parameter entry
• Interactive exhibits and menu interfaces

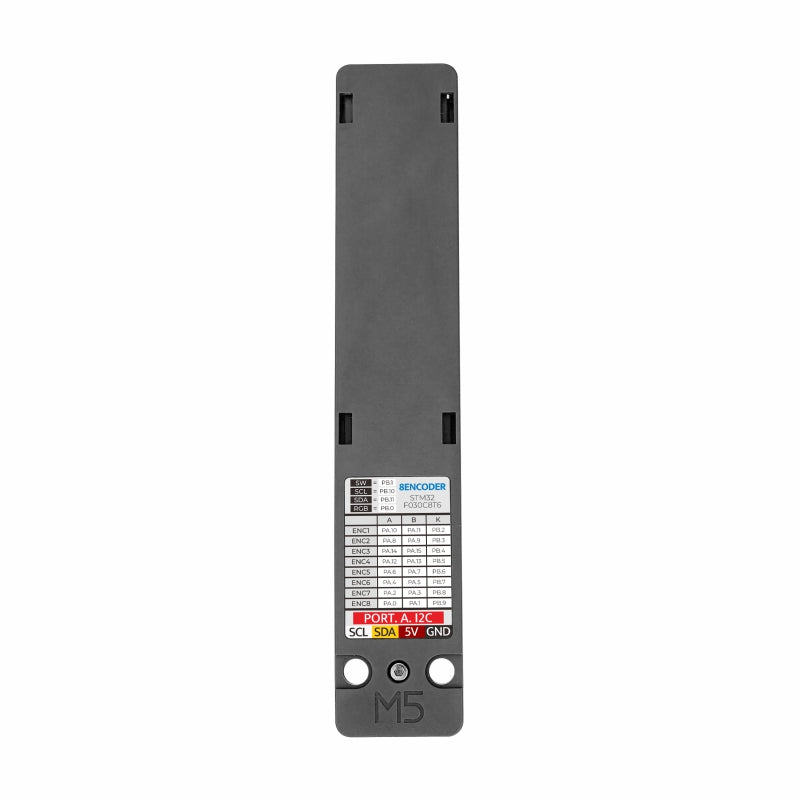

How to Integrate the 8Encoder Unit

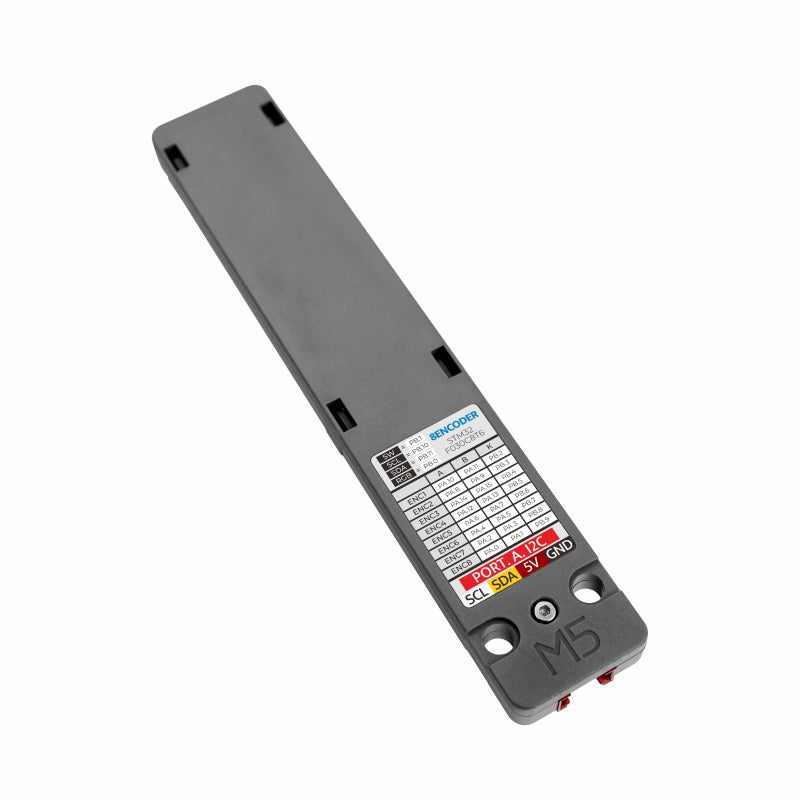

1. Connect the Grove cable to an I2C host and confirm that address 0x41 is free.
2. Read encoder deltas, push states, and the toggle in a fixed polling loop.
3. Implement debounce, direction handling, acceleration, and minimum and maximum limits.
4. Map clear RGB colors and brightness levels to selected, active, warning, and fault states.
5. Test rapid rotation, simultaneous input, host restart, and communication loss.

8Encoder Unit Deployment Notes

• Encoder movement is relative, so the host must store or restore absolute application values.
• Rapid rotation or slow polling can cause missed steps.
• Mechanical push inputs require debounce.
• High combined RGB brightness increases current consumption and heat.
• This panel is not a safety-rated machine control or emergency-stop interface.
