M5Stack 8Servos Unit – 8-Channel I2C Servo Driver | U165

The M5Stack 8Servos Unit gives robot builders, educators, and prototype engineers a practical way to coordinate up to eight hobby servos through one I2C connection. It is designed for robot arms, pan-and-tilt rigs, animatronics, smart toys, and automated mechanisms where the host needs to set positions, control the servo power rail, and monitor the combined load current without maintaining eight timing-critical PWM outputs.

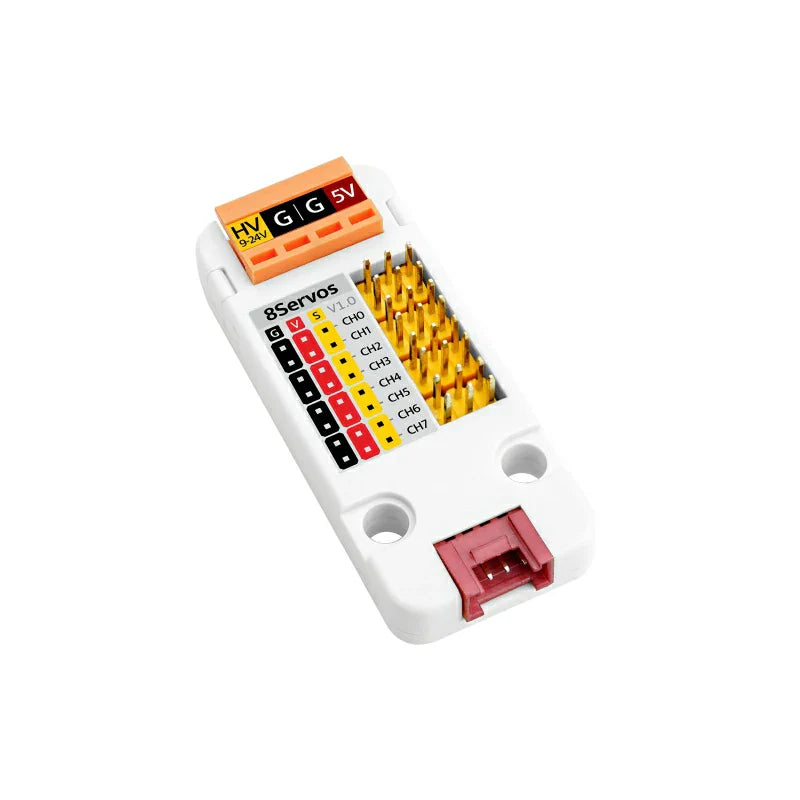

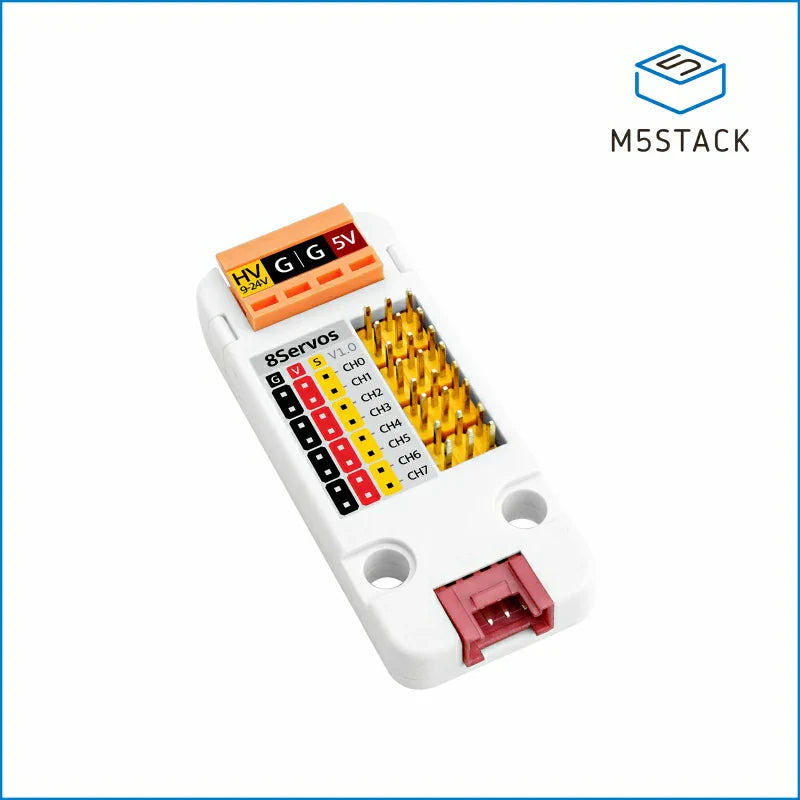

Control Eight Servos with the M5Stack 8Servos Unit

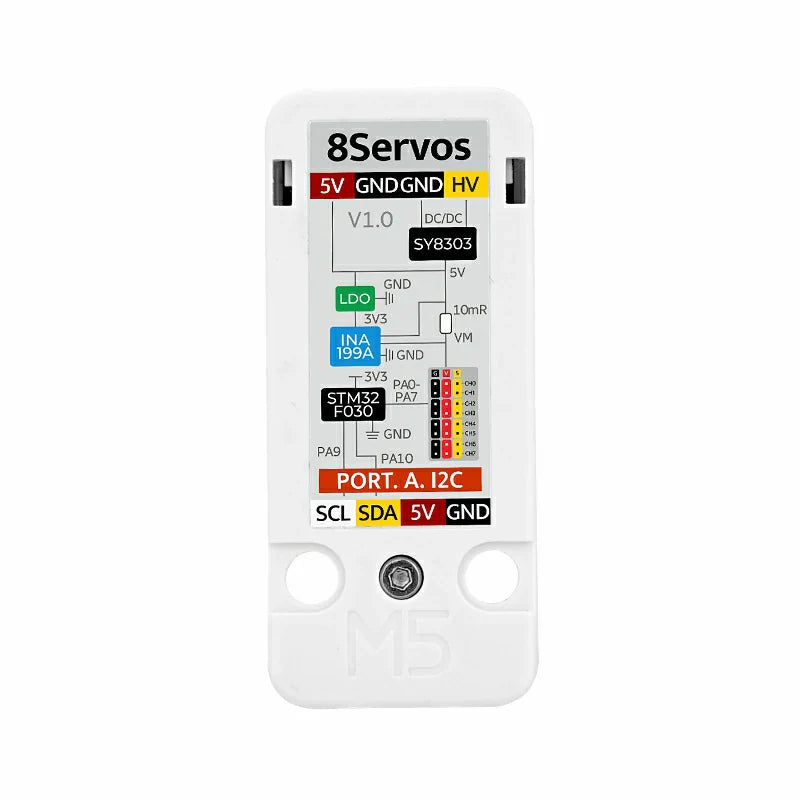

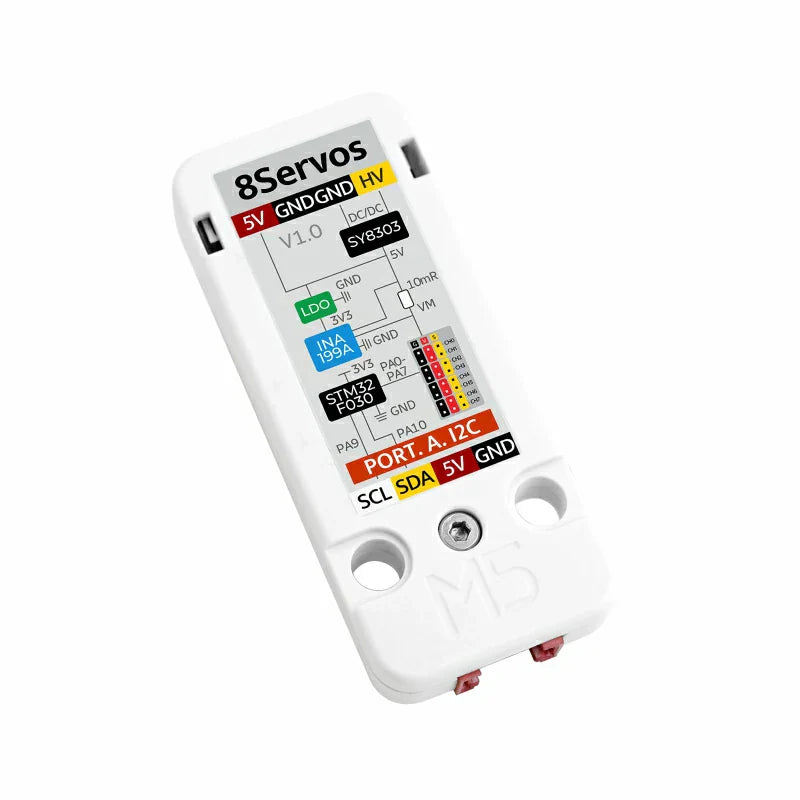

An onboard STM32F030 generates the servo PWM signals, allowing the host to focus on motion sequencing and application logic. The programmable servo-power switch can keep mechanisms released during initialization, energize the rail after safe limits are loaded, and remove power when a persistent fault is detected.

Robot Arms, Pan-Tilt Rigs and Animatronics

For a multi-joint robot arm, each joint can use a separate channel while the host coordinates a verified movement sequence. The combined-current reading can help identify stalled joints, mechanical collisions, overloaded linkages, or an undersized power supply. The same approach supports synchronized movement in camera platforms and animated displays.

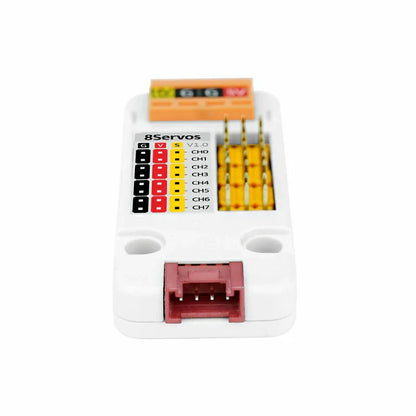

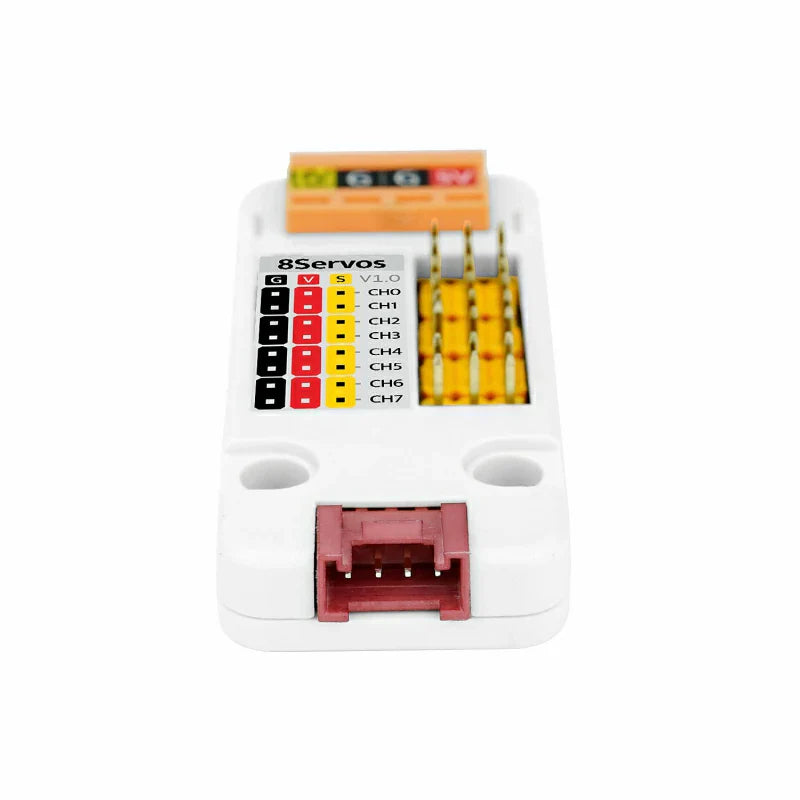

Connect the M5Stack 8Servos Unit

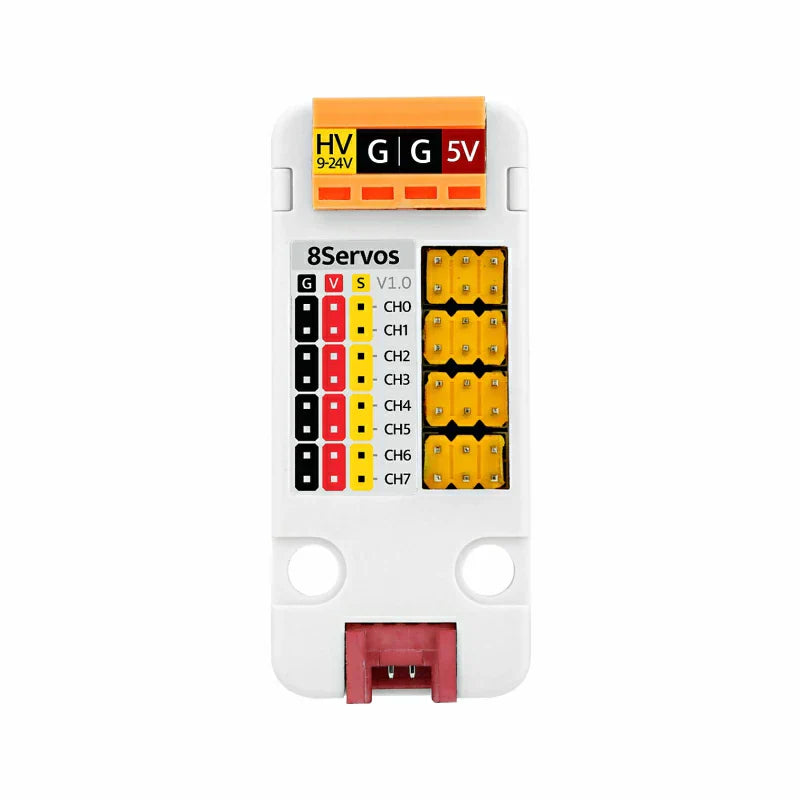

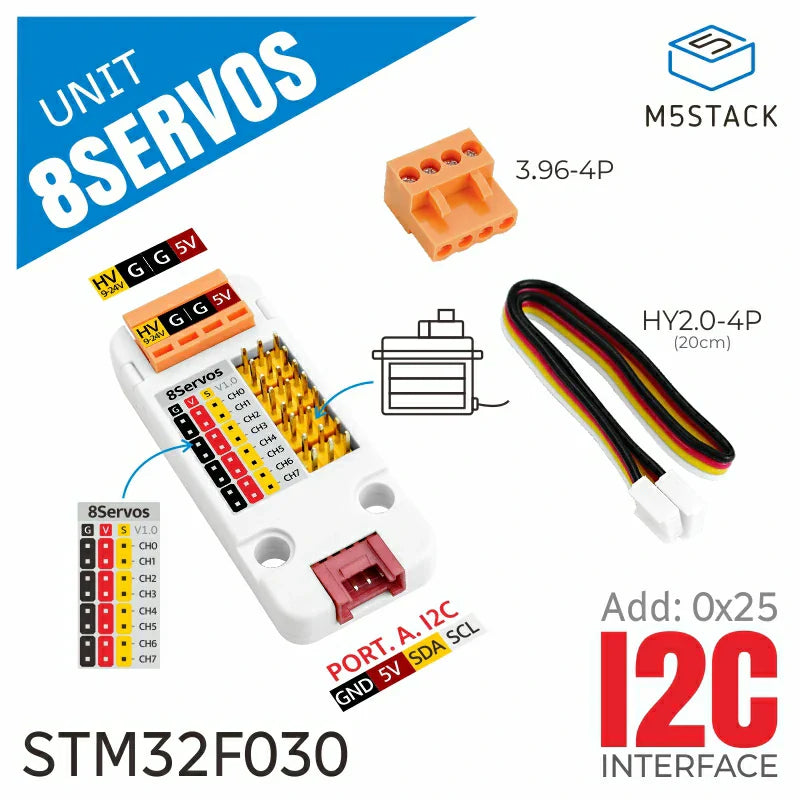

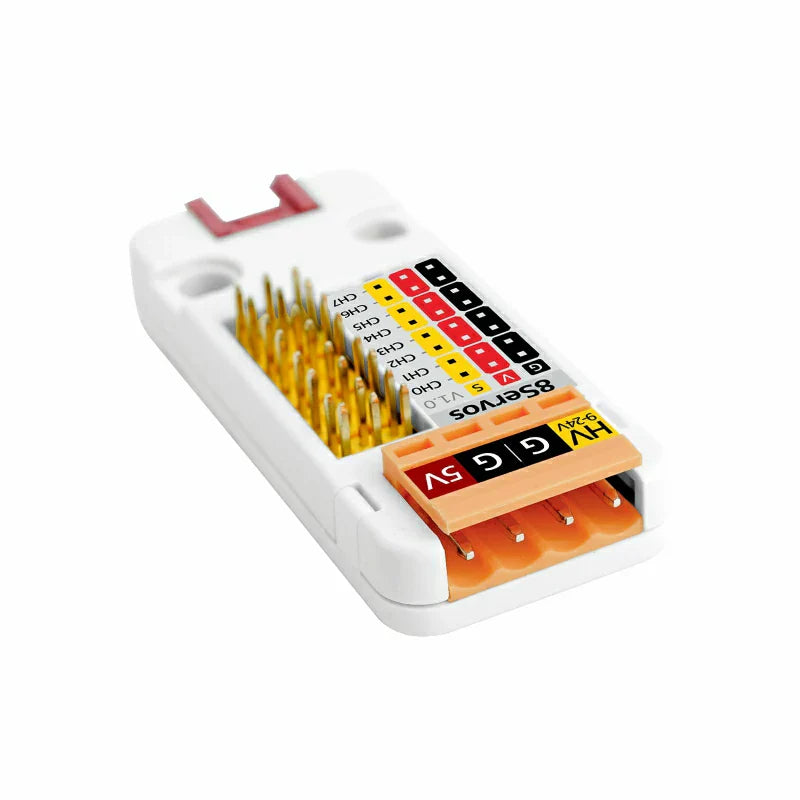

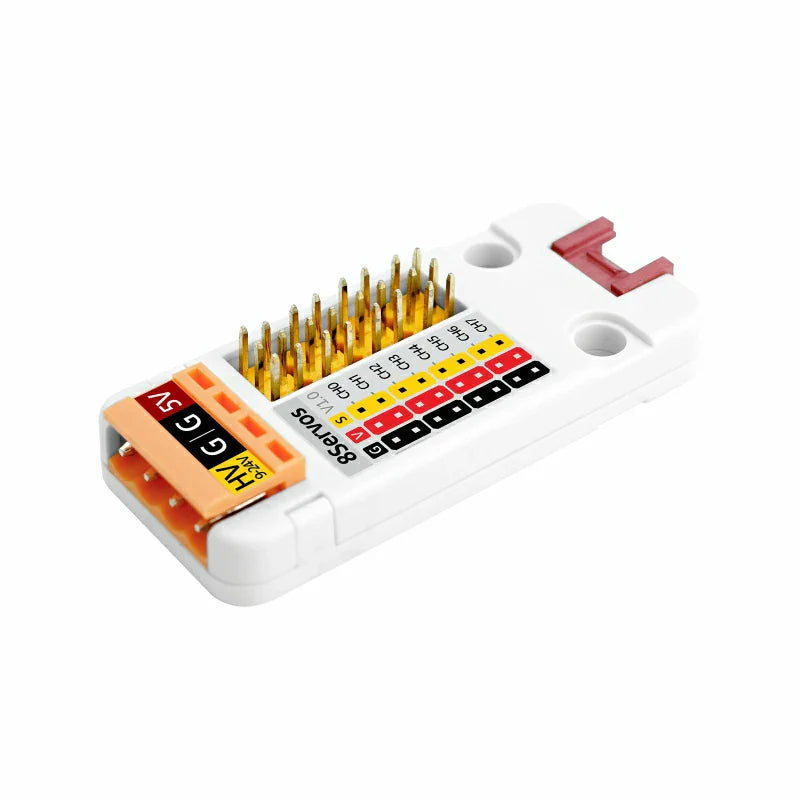

External Servo Power and Channel Wiring

1. Keep the servo rail disabled and disconnect power before wiring.
2. Select the documented external-power arrangement and size the supply for simultaneous startup and stall current.

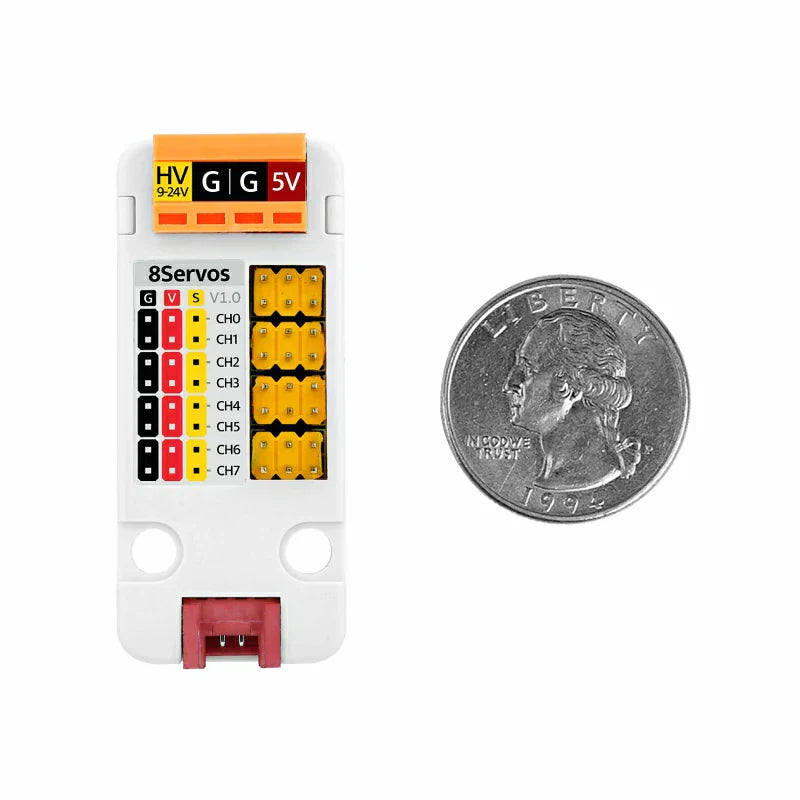

3. Connect every servo with the correct polarity, then attach the Grove I2C cable to the host.
4. Do not route high servo current through the host controller power path.

I2C Address, Pulse Limits and Current Monitoring

1. Initialize the unit at I2C address 0x25 and confirm that no other device uses the same address.
2. Load conservative pulse-width limits, neutral positions, and speed limits before enabling servo power.
3. Test one channel at a time with the mechanism unloaded, then add the remaining channels gradually.
4. Read total current during motion and define a timeout for persistent overcurrent rather than reacting to every normal startup peak.

Example Robot-Arm Control Workflow

1. Start the host with servo power disabled.
2. Load joint limits, neutral positions, motion speed, and the overcurrent threshold.
3. Enable the servo rail and move each joint slowly through its verified safe range.
4. Run the coordinated path while sampling combined current after each movement.
5. Stop motion and disable servo power when current remains above the fault threshold or commands become stale.

M5Stack 8Servos Power and Mechanical Notes

• Startup and stall current can be much higher than normal running current; use a dedicated supply, adequate wiring, and suitable protection.
• Incorrect pulse limits, reversed connectors, or mechanical collisions can damage servos and linkages.
• The current monitor reports the aggregate servo load rather than individual channel current.
• Return the mechanism to a safe position before shutdown or maintenance.
• This development module is not a certified functional-safety motion controller.
