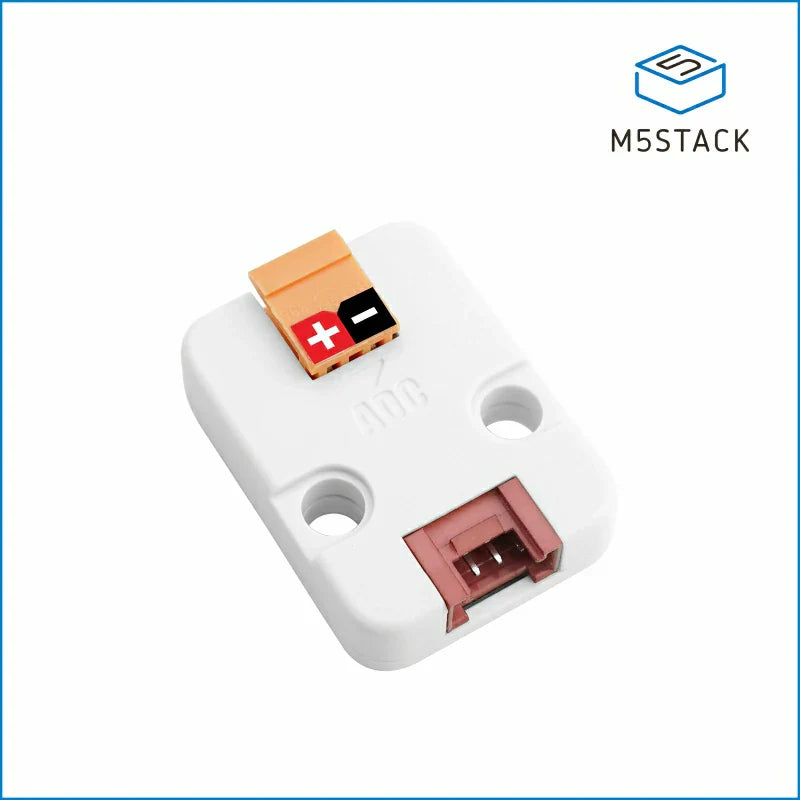

The M5Stack ADC V1.1 Unit adds high-resolution analog acquisition to embedded systems through an ADS1110 16-bit analog-to-digital converter. The host reads converted data through I2C at address 0x48, while the onboard programmable gain amplifier supports gains of 1, 2, 4, or 8 for signals with different amplitudes.
The unit is useful for sensor outputs, process-control signals, portable instruments, factory automation prototypes, and measurement systems that need more resolution than a typical microcontroller ADC.
The PGA can increase sensitivity for smaller input signals, but gain selection also reduces the allowable full-scale input range. Choose gain only after checking the expected signal amplitude and source impedance, and prevent the analog input from exceeding the supported electrical limits.
Using I2C lets the host collect high-resolution data without implementing the converter timing directly. Check address conflicts, bus pull-ups, cable length, grounding, and noise coupling before combining the ADC with other peripherals.
A 16-bit converter provides fine digital resolution, but final measurement accuracy also depends on reference stability, analog front-end design, source impedance, gain setting, calibration, temperature drift, grounding, and electrical noise. Validate the assembled measurement chain against a suitable reference when accuracy matters.
The existing product specification lists a DC input range up to 12V for the complete unit. Confirm wiring and signal limits before connection, and add appropriate protection when the source can generate transients or fault voltages.
