M5Stack Crypto Authentication Unit (ATECC608B)

Keep Device Credentials Out of Easily Copied MCU Flash

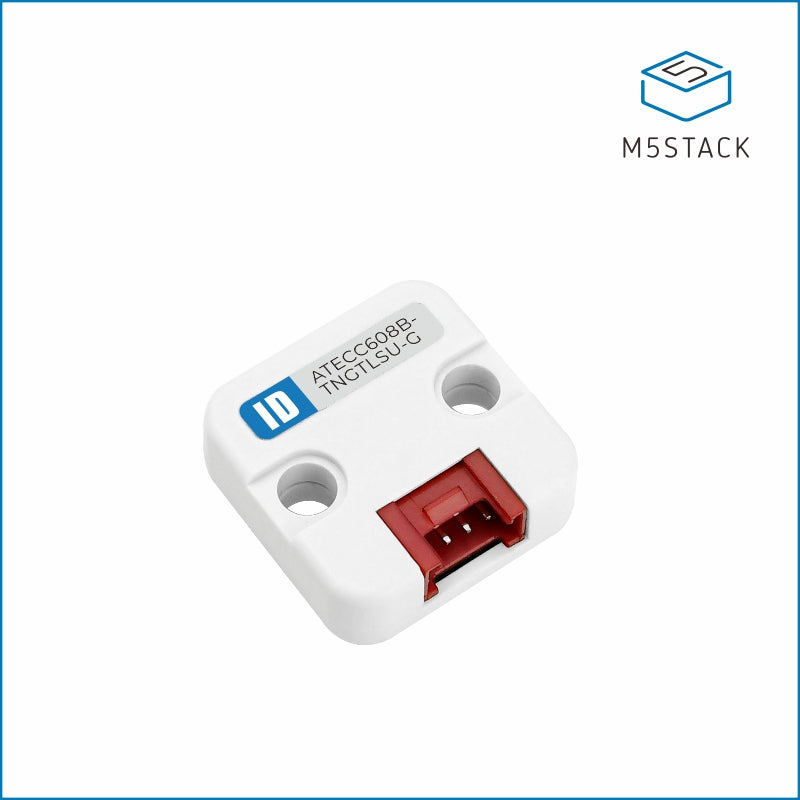

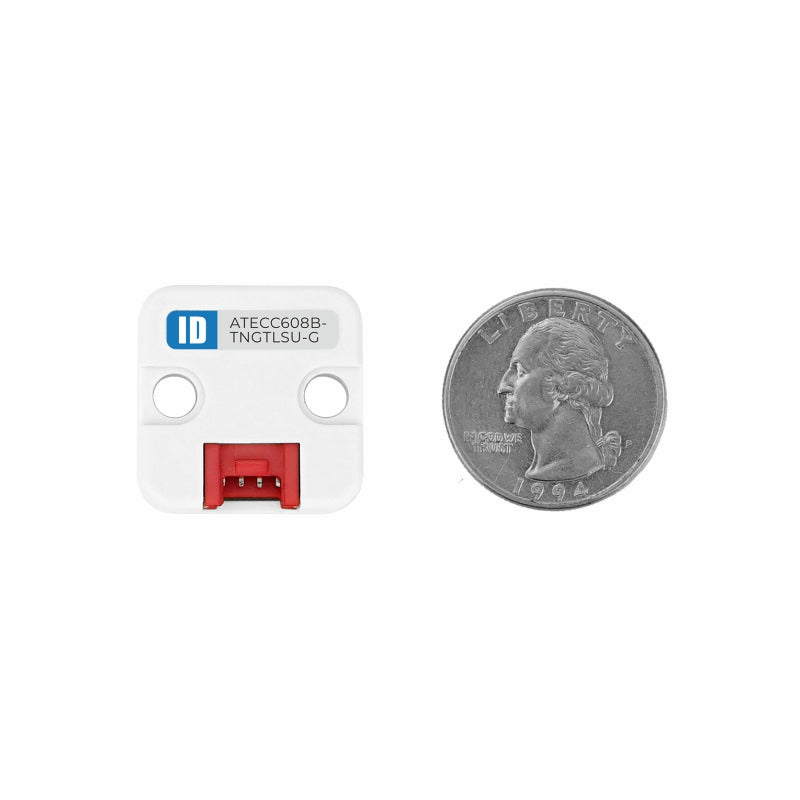

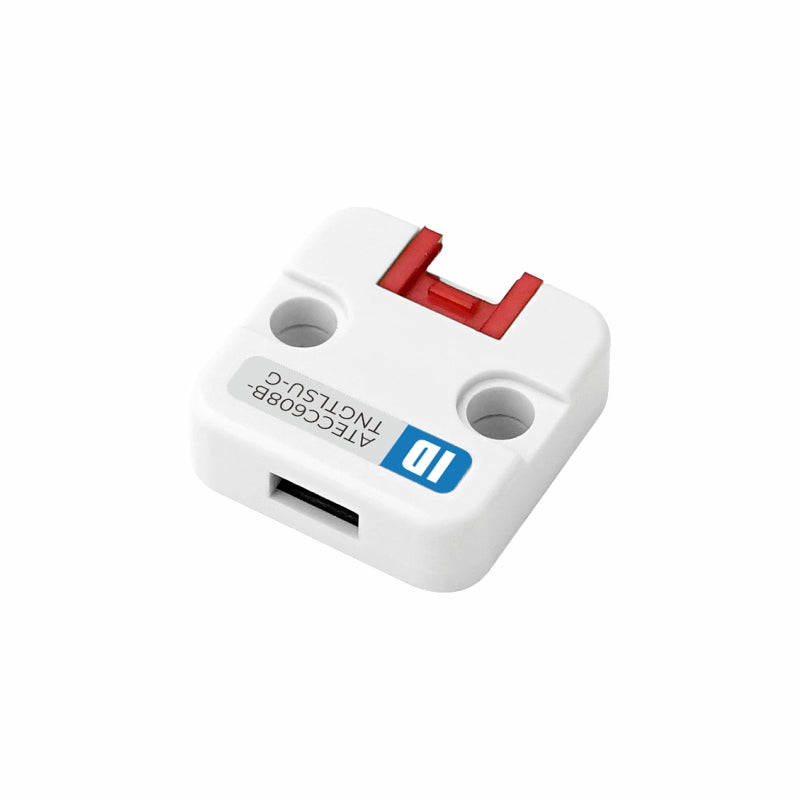

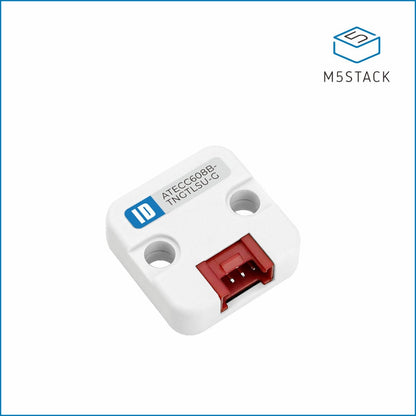

When hundreds of sensors, controllers, or gateways share cloud access, one leaked private key can create a fleet-wide problem. Storing credentials as readable firmware data also makes cloning and unauthorized replacement devices harder to control. The M5Stack Unit ID adds an ATECC608B-TNGTLSU-G secure element so private keys and certificates can be protected by dedicated hardware instead of relying only on the host MCU.

The secure element can perform supported cryptographic operations without exposing the private key to application firmware. A guaranteed unique 72-bit serial number also gives each device a hardware identity that can be tied to manufacturing records, cloud accounts, service permissions, or ownership data.

Provision IoT Devices Without Manually Handling Every Private Key

During production, manually generating, copying, and tracking credentials creates opportunities for mistakes and disclosure. The Trust&GO version is preconfigured for the Microchip Trust Platform and can support certificate-based onboarding workflows. This can simplify the path from assembly line to cloud registration when the certificate chain, account configuration, and target platform are planned around the supplied credentials.

Before selecting the unit for AWS IoT, Azure, Google Cloud, a private MQTT broker, or another TLS service, confirm that the server trusts the relevant certificate chain and that the onboarding process can use the preconfigured device identity. A preloaded certificate does not automatically register the device with every cloud service.

Make Cloned Hardware Fail the Authentication Check

For access panels, industrial sensors, licensed accessories, and field-service equipment, a server or host can send a challenge that must be signed by the protected key. A copied firmware image alone cannot reproduce the same hardware-backed identity. ECC-P256, SHA-256, AES-128-GCM support, a hardware random-number generator, and protected storage for up to 16 keys, certificates, or data objects provide building blocks for authentication and secure provisioning.

Plan the Memory Slots Before Locking the Device

The most expensive mistake often happens after the prototype works: configuration zones or key slots are locked before the production layout is final. Locking can be irreversible. Define slot purpose, certificate storage, permissions, test credentials, manufacturing states, field-recovery rules, and replacement procedures before applying permanent settings.

Secure Element Does Not Replace the Rest of the Security Architecture

The unit can protect selected secrets, but it does not automatically provide secure boot, firmware-update signing, encrypted application traffic, server authorization, physical tamper resistance, or safe manufacturing controls. Treat it as the hardware root for a larger security design.

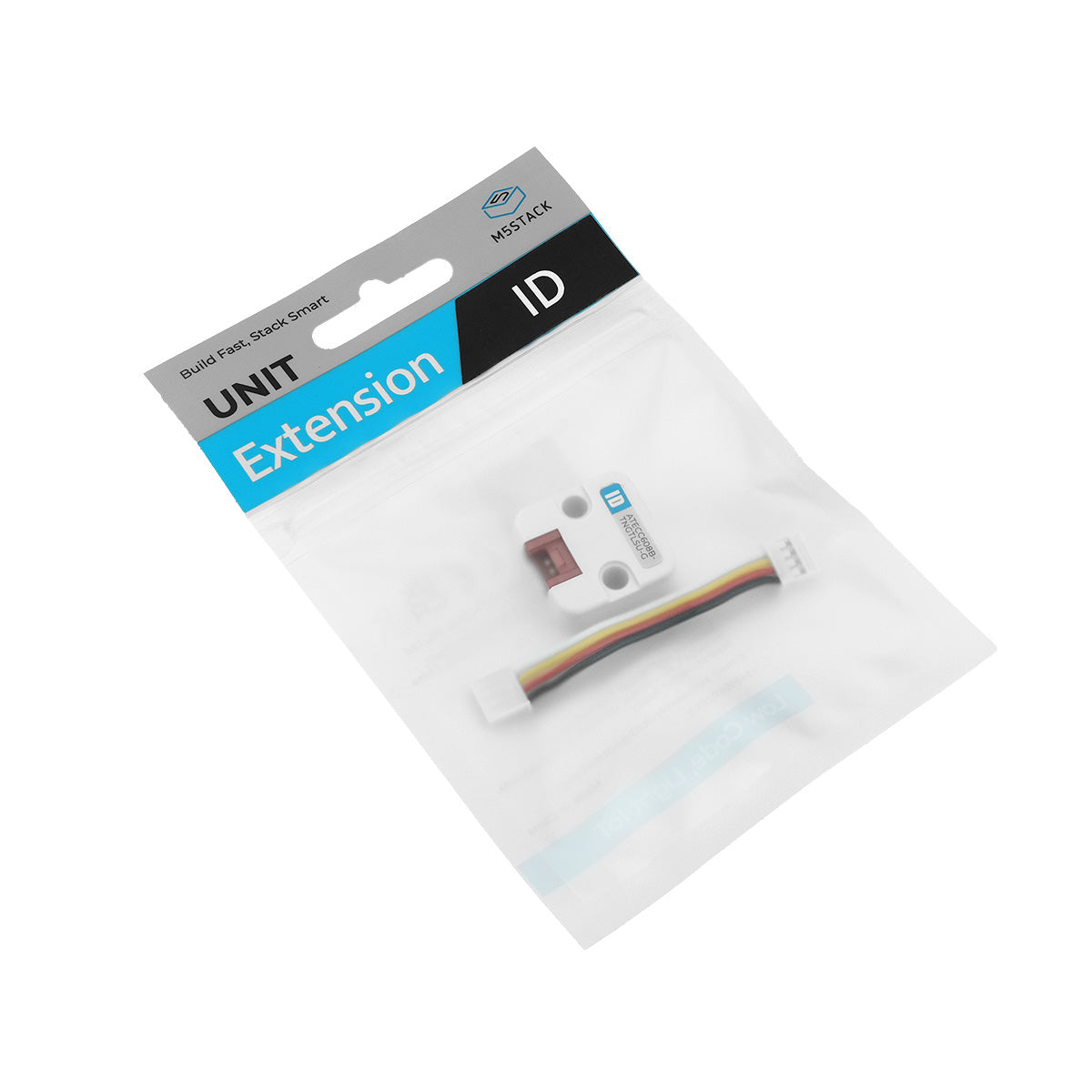

Add Hardware Authentication Through the Existing Grove Bus

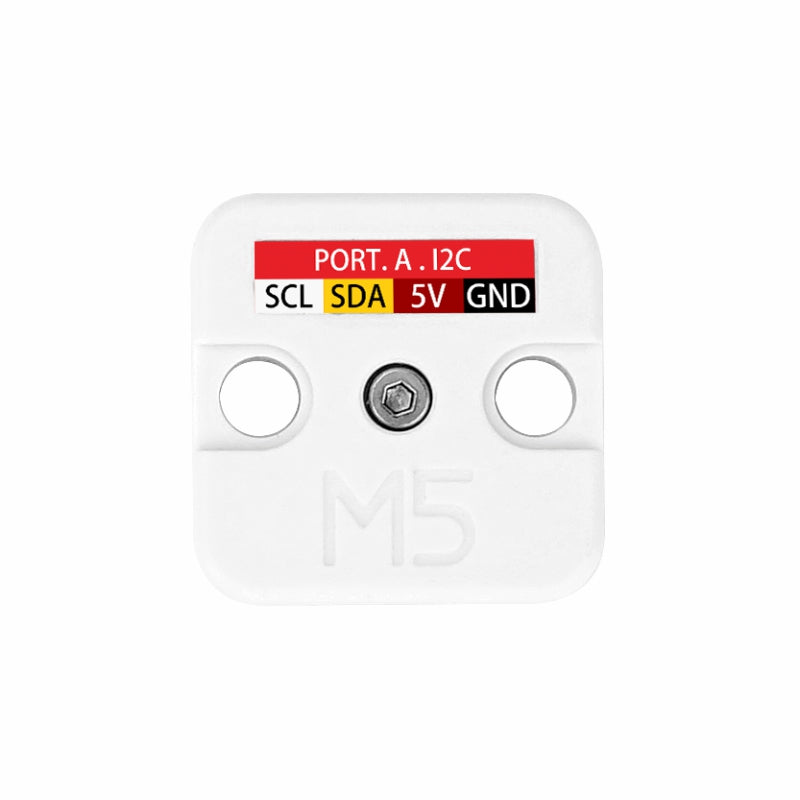

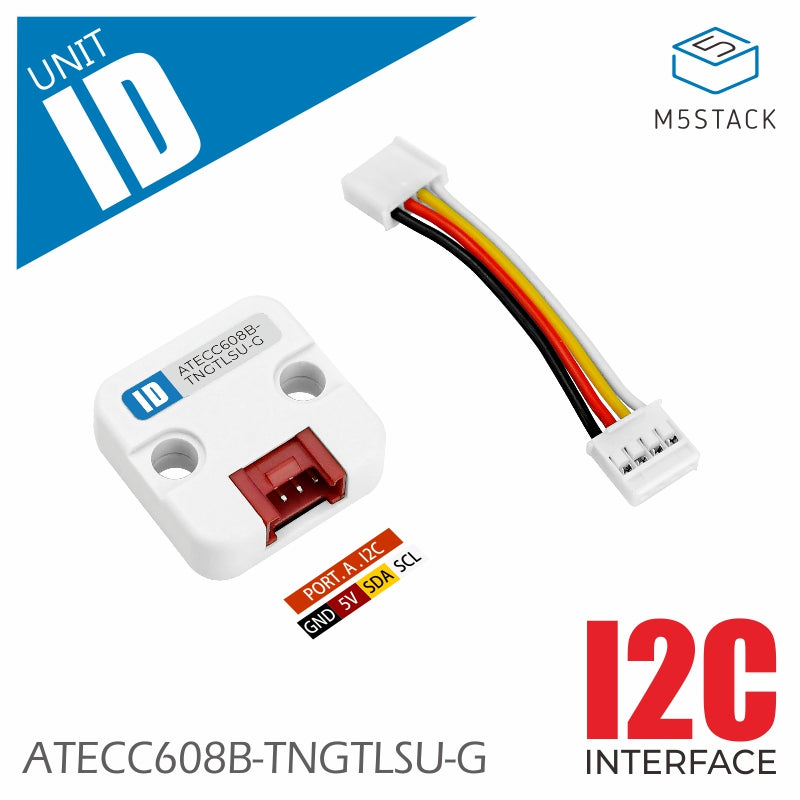

The unit connects through I2C at address 0x35 and supports bus speeds up to 1Mbps under the product specification. Check address conflicts, pull-up resistance, cable length, power sequencing, error handling, and host-library compatibility before adding it to a shared I2C bus.

Integration references are available in the M5Stack Unit ID documentation and the Microchip Trust&GO product page.
