M5Stack BLDC Motor Driver Unit (STM32)

M5Stack BLDC Motor Driver Unit for Compact 5V Motors

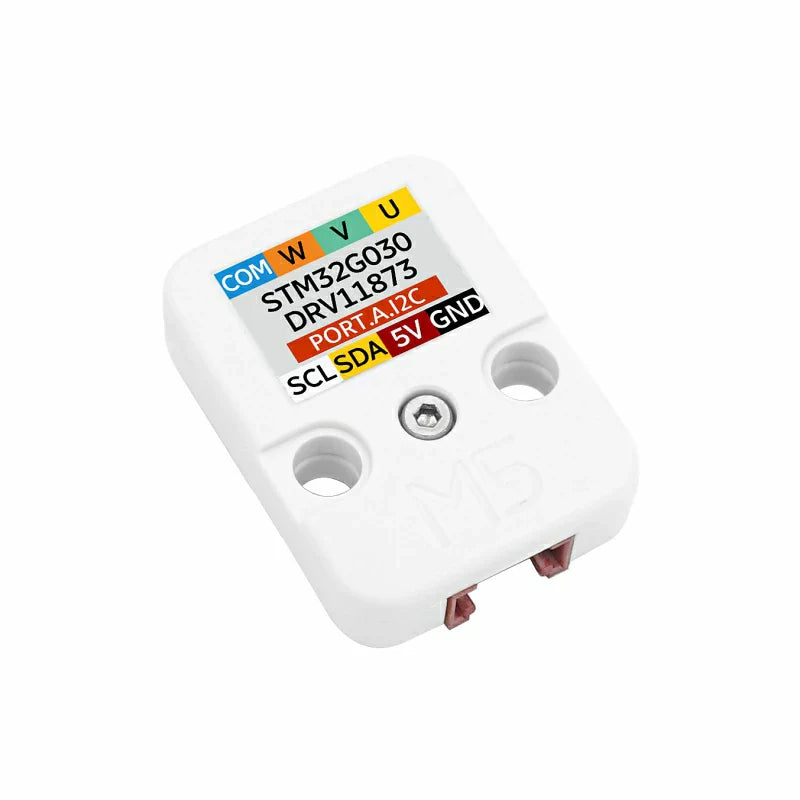

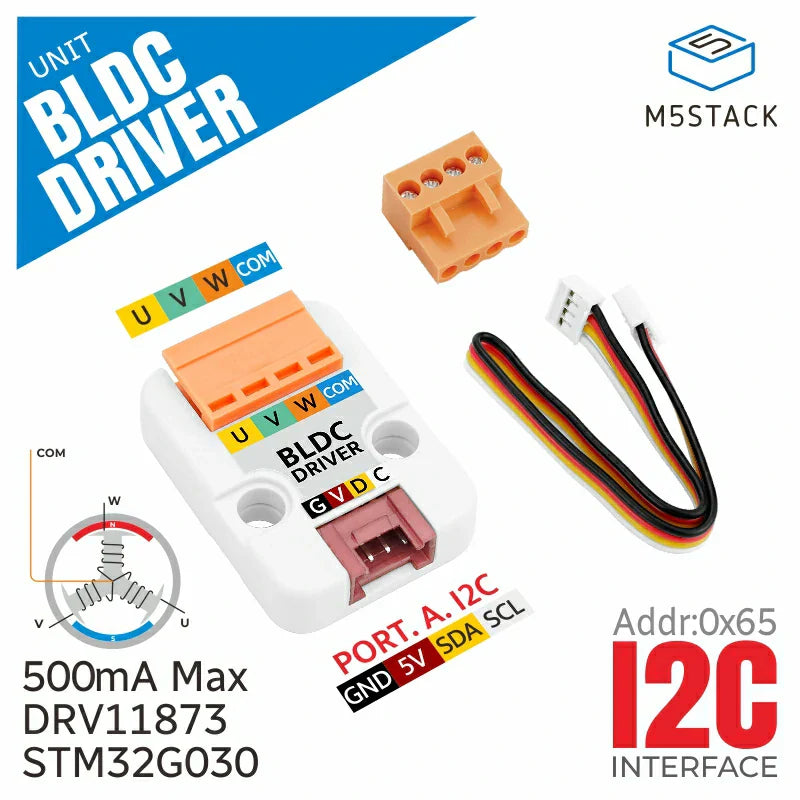

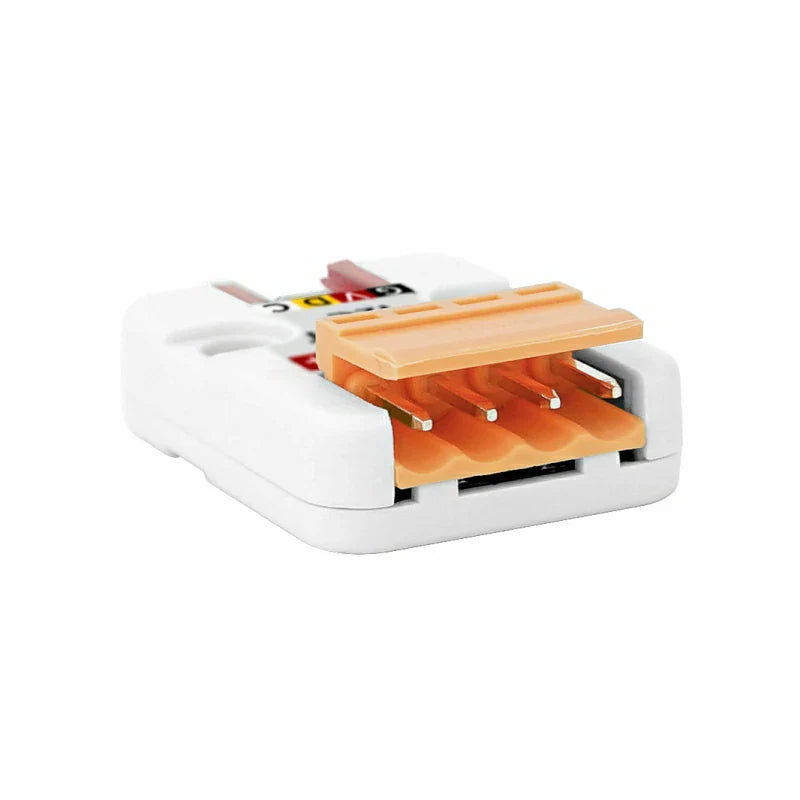

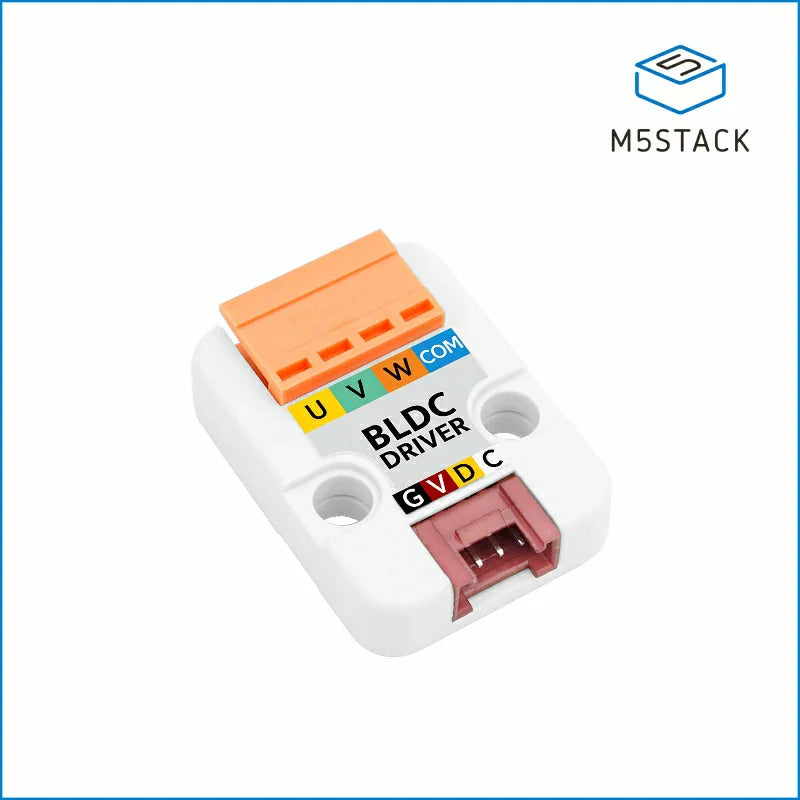

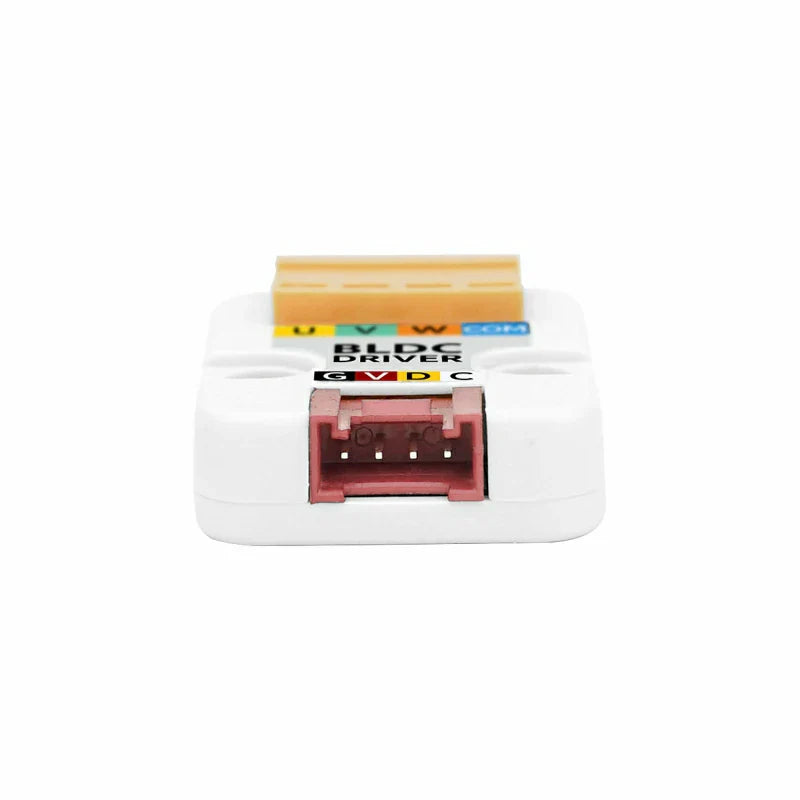

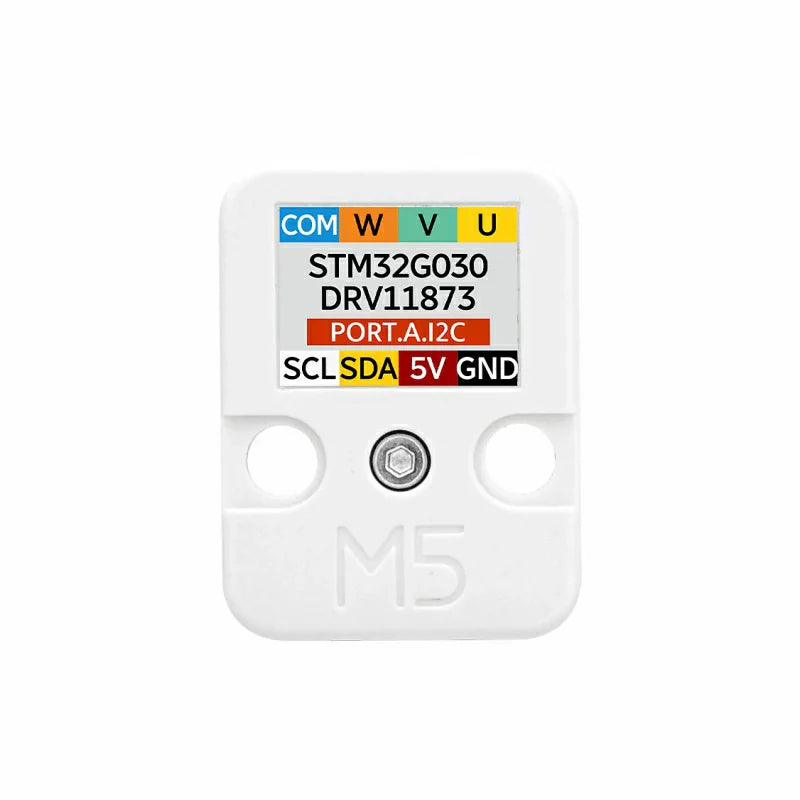

The M5Stack BLDC motor driver Unit combines an STM32G030 controller with the DRV11873PWPR driver chip to control small three-phase sensorless brushless DC motors. The host communicates through I2C at address 0x65, allowing firmware to set PWM speed and motor direction through a compact Grove-connected module rather than dedicating multiple host control lines to the motor stage.

The motor drive is powered at 5V through the Grove port, with a stated output load capacity of DC 5V at 508mA. This makes the unit suitable for appropriately sized low-voltage BLDC motors. Confirm the target motor's phase configuration, startup behavior, current demand, and mechanical load before connection; a motor that exceeds the driver's electrical capability can cause unstable startup, protection events, or overheating.

I2C Control for PWM Speed and Direction

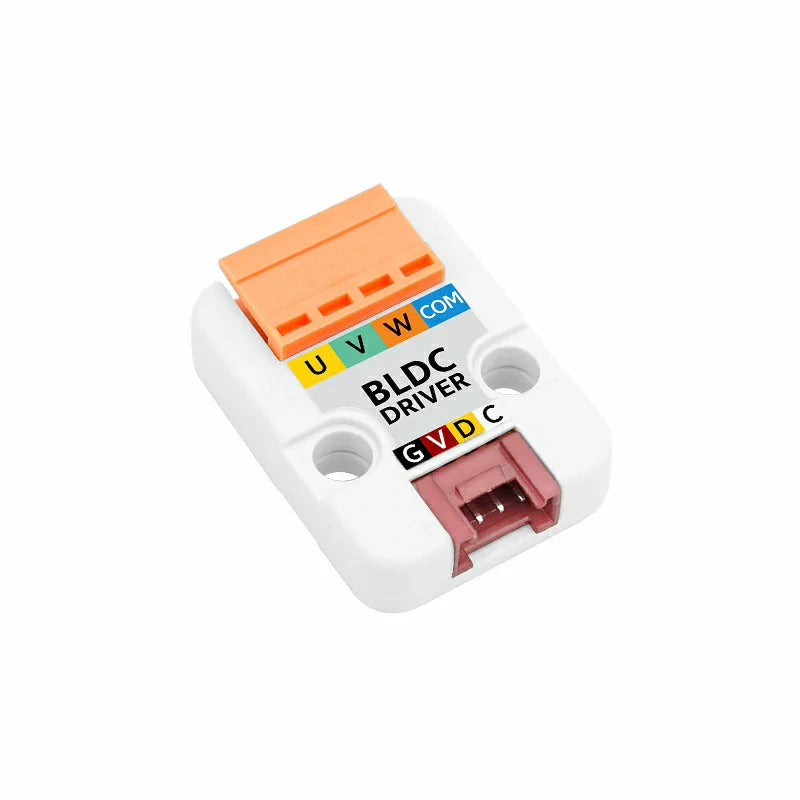

The onboard STM32 handles communication and local control of the DRV11873PWPR. A host can integrate speed commands and direction switching over I2C while keeping the application firmware focused on higher-level behavior such as robot movement, airflow control, rotating mechanisms, or instrument sequencing.

Built-In Stall Protection

The driver architecture includes stall protection for improved robustness when the motor cannot rotate normally. Protection does not replace mechanical design or system-level fault handling. Jammed mechanisms should still be tested under worst-case load, and the final system should define how firmware responds after a stall, including retry limits, shutdown behavior, and fault reporting.

Firmware Upgrade Path for the Local Controller

An STM32 firmware upgrade interface is provided for development and functional expansion. This is useful when the local control behavior needs to evolve with the application. Record firmware versions in production projects so motor behavior remains repeatable across deployed devices.

Integration Checklist

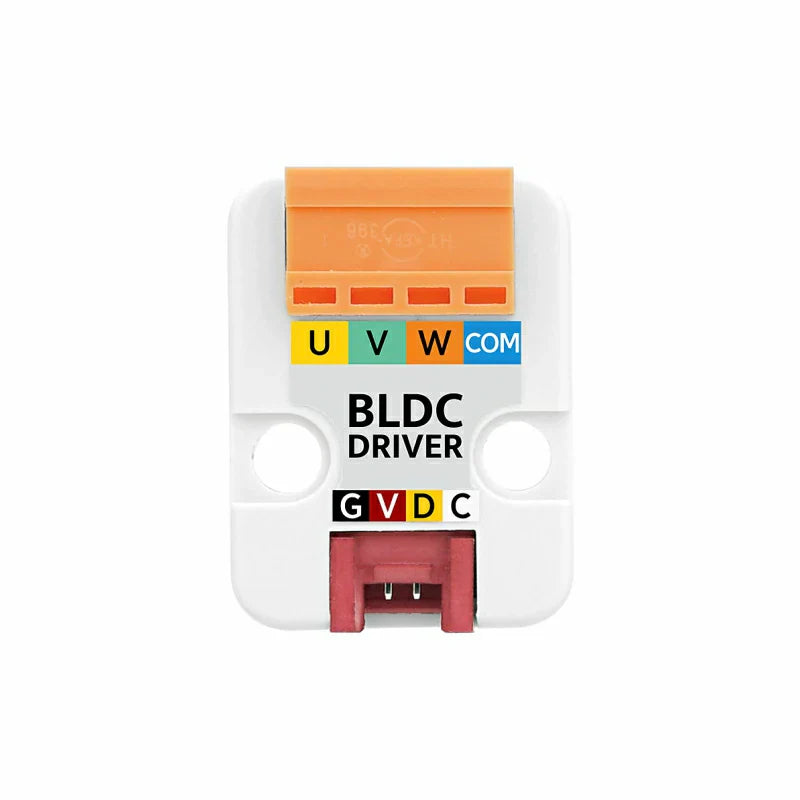

Before first power-up, verify motor compatibility, terminal wiring, Grove 5V supply capacity, I2C address conflicts, and the mechanical direction expected by the application. Start with a conservative PWM command and test direction before coupling the motor to a high-inertia mechanism. The stated standby current is 10.62mA at 5V and operating current is 13.20mA under the product's specified test conditions; total system current also includes the connected motor and host.

The unit fits industrial automation prototypes, compact robotics, precision instruments, small rotating mechanisms, and embedded motor-control experiments. Technical setup details are available in the M5Stack BLDC Driver Unit documentation.
