M5Stack C6L Unit – ESP32-C6 SX1262 Meshtastic Node | U202

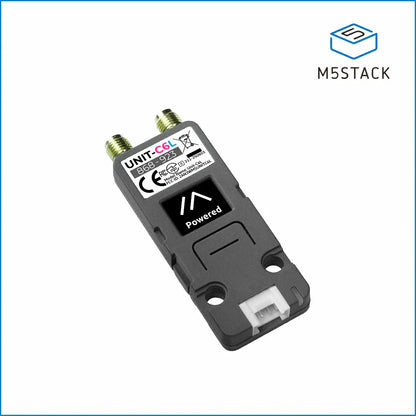

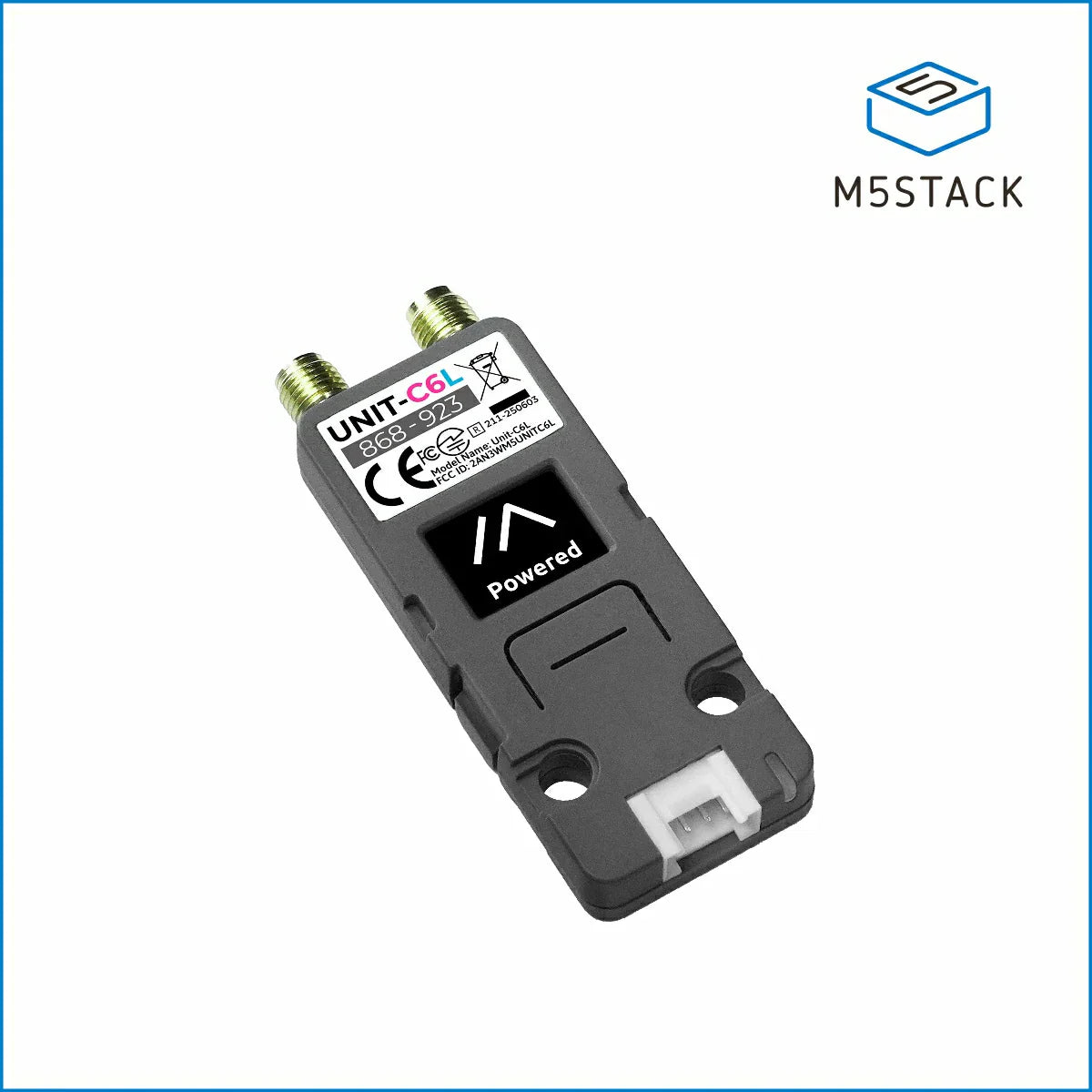

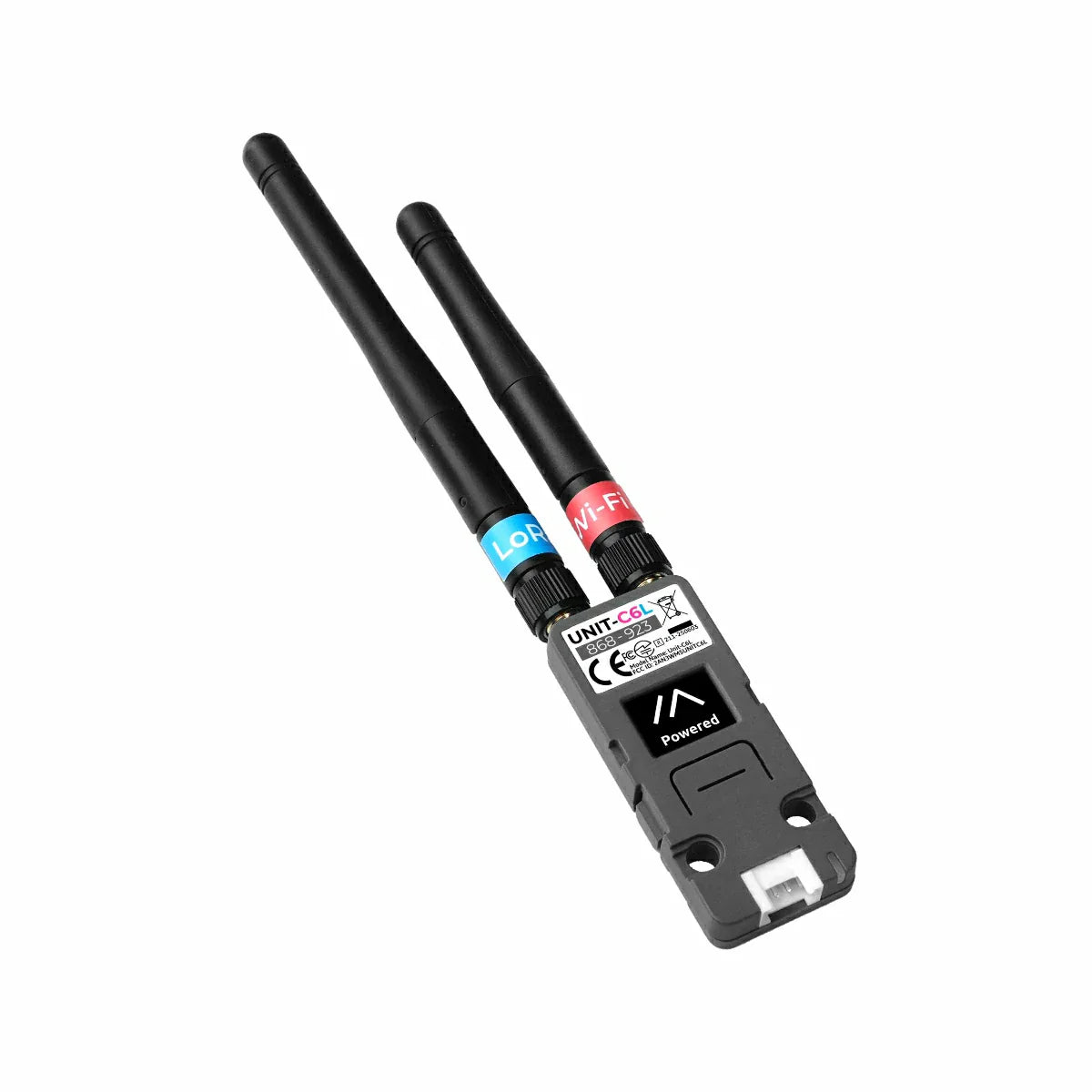

The M5Stack C6L Unit combines an ESP32-C6 wireless controller, SX1262 sub-GHz LoRa radio, 0.66-inch OLED, button, buzzer, and RGB LED in a compact node designed for Meshtastic and custom long-range communication projects. It supports 2.4 GHz Wi-Fi 6 and a documented 868–923 MHz LoRa range, with separate antennas included for the two radio bands. The integrated interface makes it suitable for mesh messaging, telemetry, alerts, remote sensors, and field experiments. Actual range and legal operating channels depend on region, antenna placement, terrain, interference, transmit settings, and local radio regulations.

Meshtastic and LoRa Networking with the M5Stack C6L Unit

Run Meshtastic or Custom ESP32-C6 Firmware

The ESP32-C6 provides RISC-V processing, 2.4 GHz Wi-Fi 6, and programmable control for Meshtastic-compatible operation or custom sensor, gateway, and messaging applications.

Transmit through the SX1262 Sub-GHz Radio

The SX1262 transceiver supports long-range, low-data-rate communication across the documented 868–923 MHz hardware range. Firmware settings and the installed antenna must match the locally permitted band.

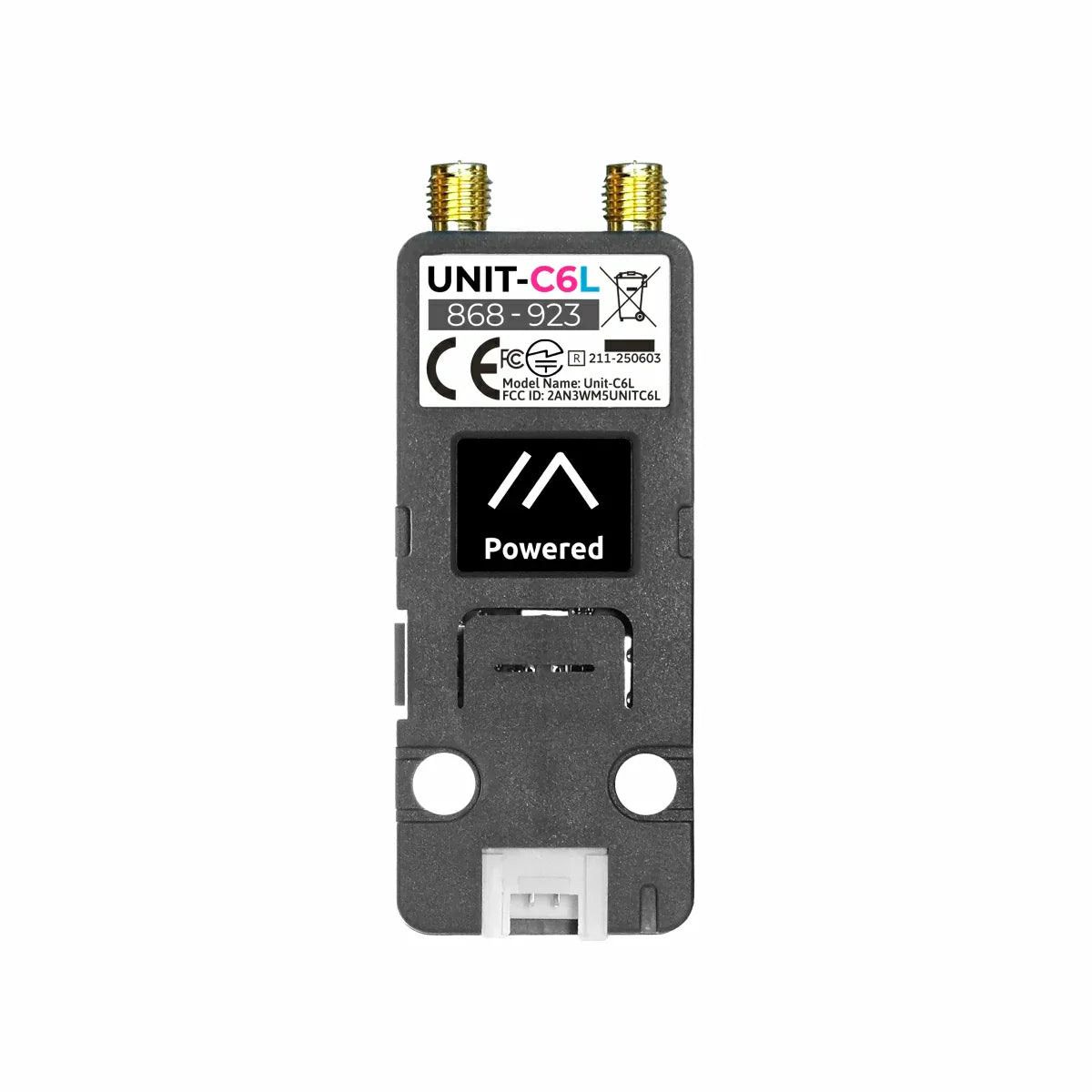

Use OLED, Button, Buzzer and RGB Status Feedback

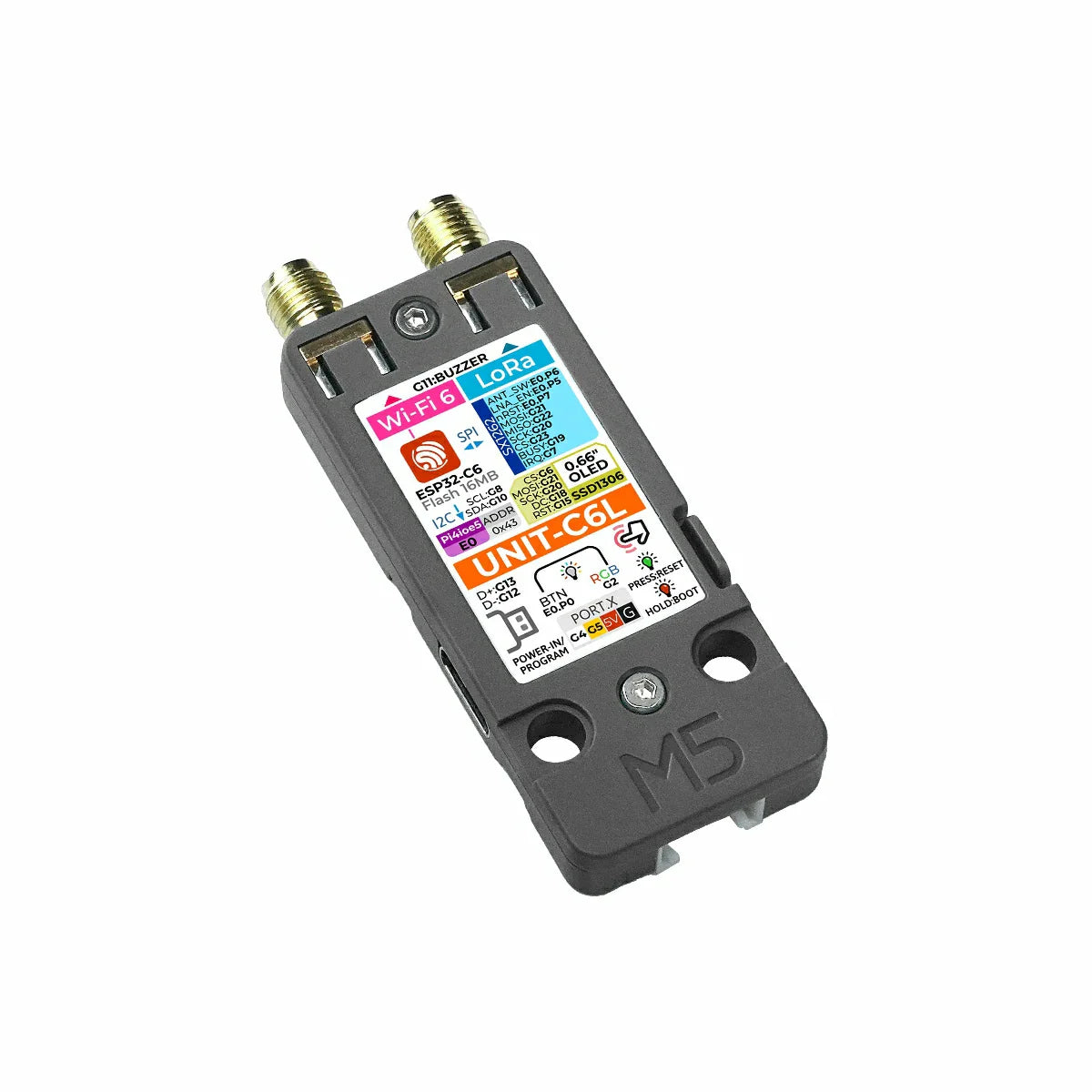

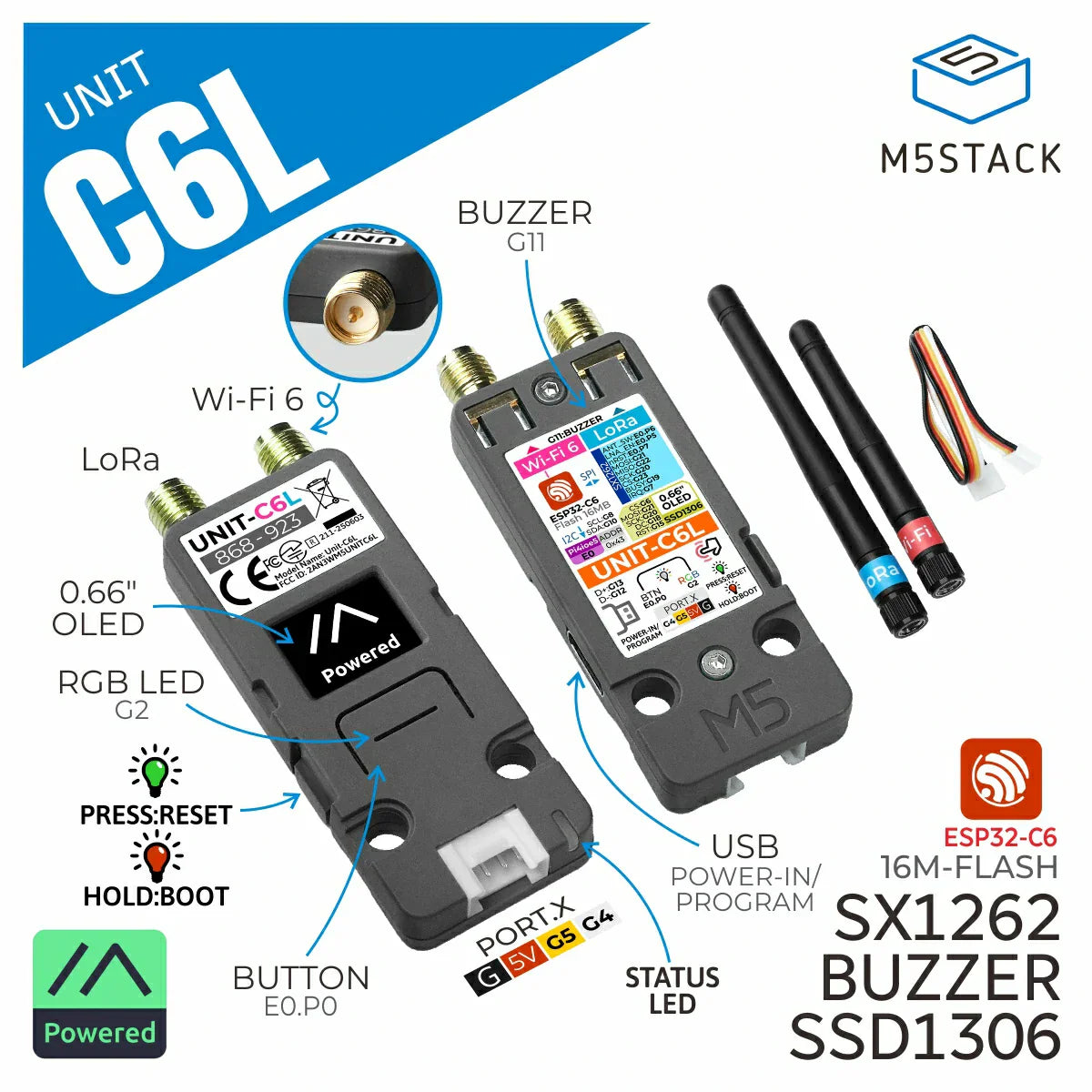

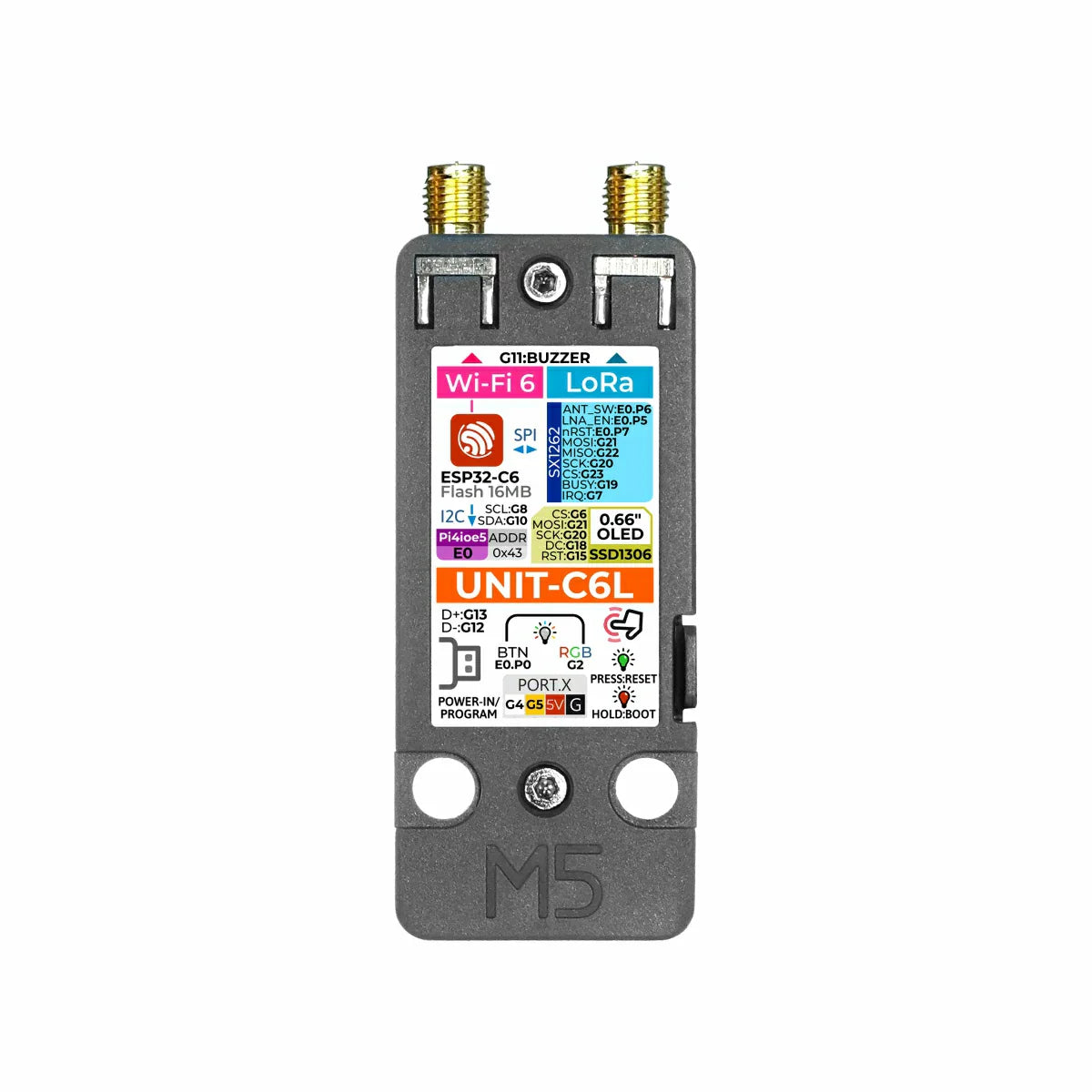

The onboard 64 × 48 OLED, push button, buzzer, and WS2812C RGB LED allow a standalone node to display status, accept input, and signal incoming messages or system events.

M5Stack C6L Unit Applications

• Meshtastic mesh communication nodes
• Long-range sensor and telemetry links
• Outdoor team and event messaging
• Remote alarms and status beacons
• LoRa and Wi-Fi 6 development projects

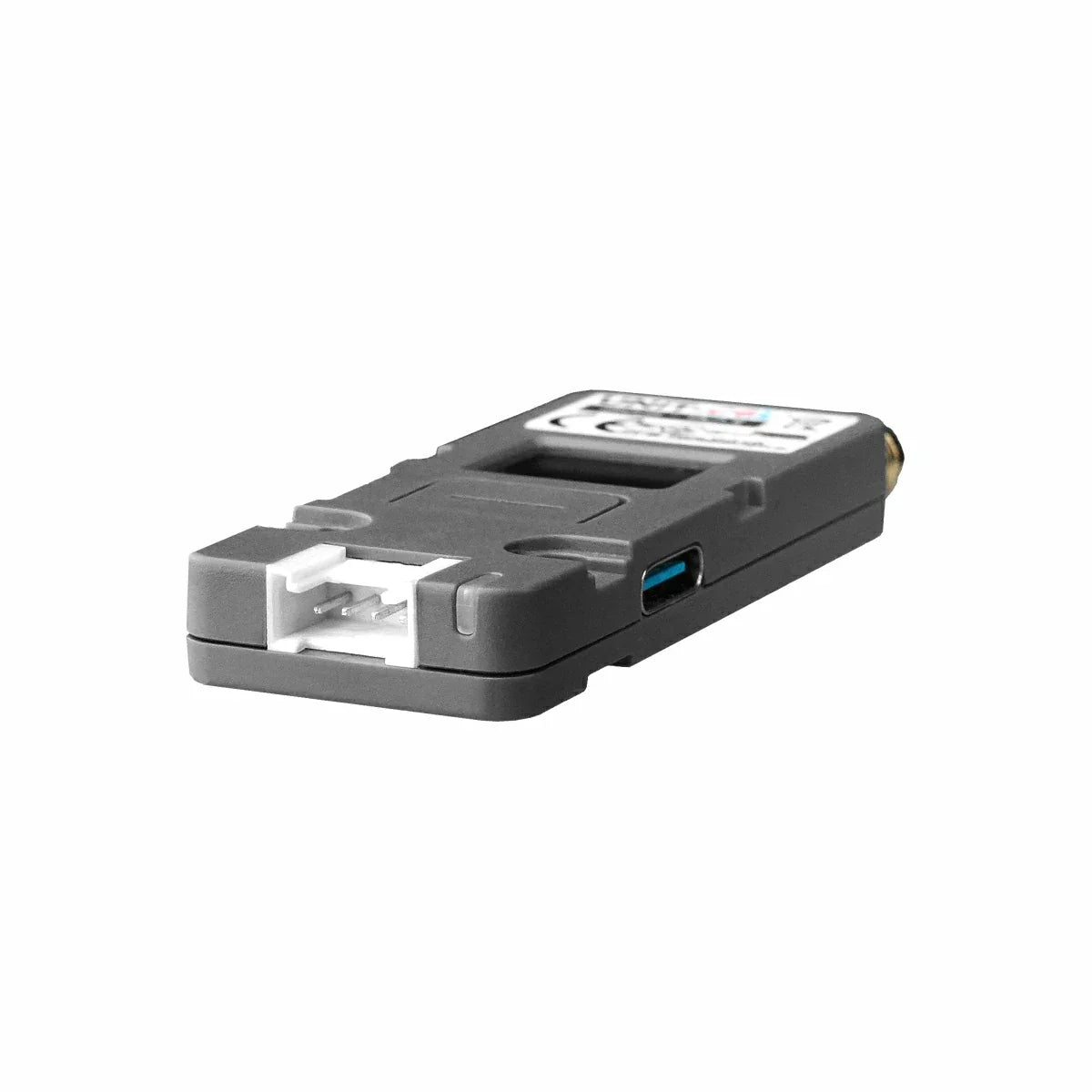

How to Integrate the M5Stack C6L Unit

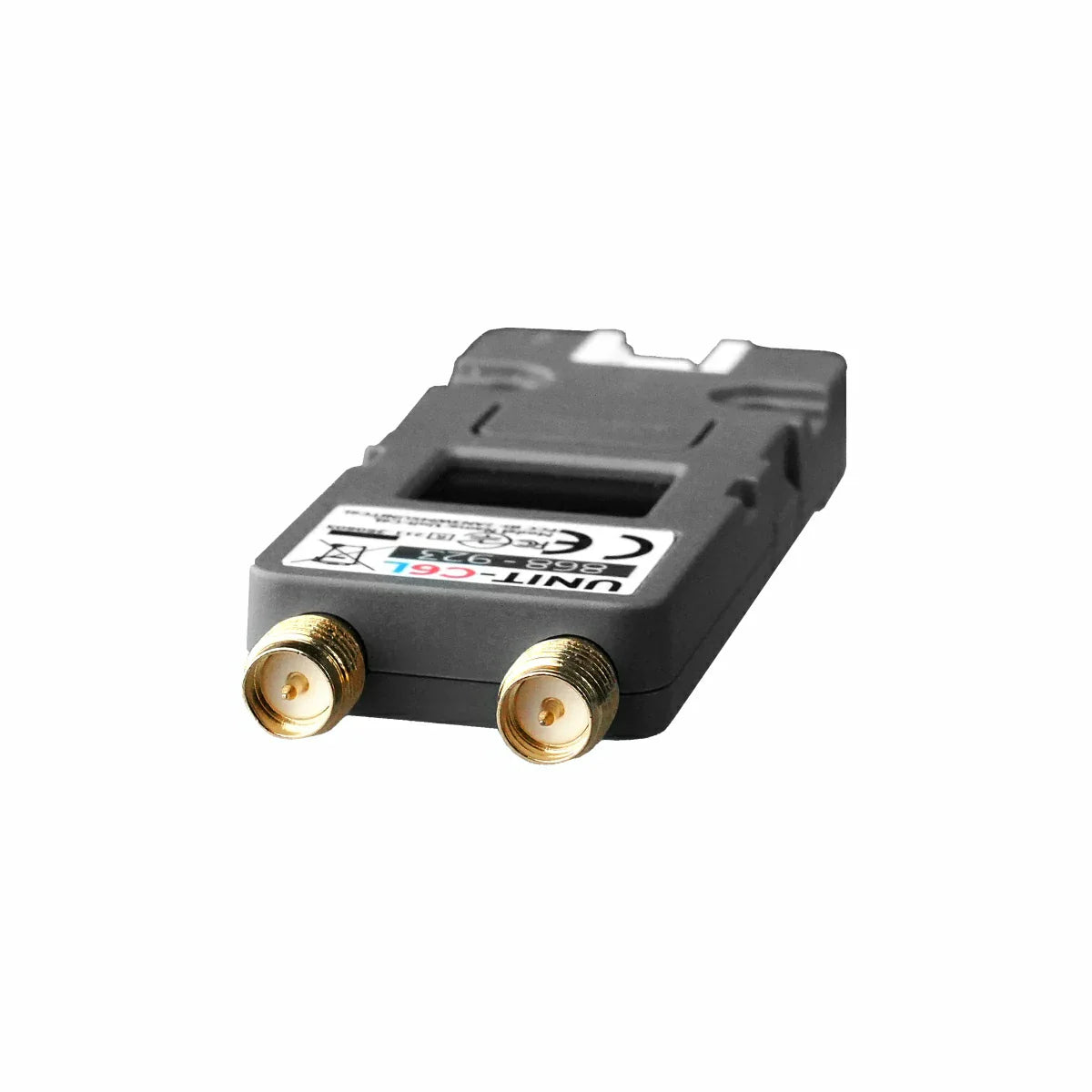

1. Attach the correct 2.4 GHz and sub-GHz antennas before enabling the corresponding radios.
2. Confirm the legal LoRa frequency plan, transmit power, duty cycle, and channel settings for the deployment region.
3. Install Meshtastic-compatible or custom firmware and verify the selected board, radio, display, button, and buzzer configuration.
4. Test communication at short range first, then evaluate antenna orientation, enclosure loss, terrain, interference, and power stability.
5. Provide recovery access, configuration backup, and a watchdog strategy before installing the node remotely.

M5Stack C6L Unit Deployment Notes

• The documented 868–923 MHz hardware range does not mean every frequency is legal in every country.
• Always connect a suitable antenna before transmitting to avoid poor performance or possible RF-stage damage.
• Maximum transmit power and receiver sensitivity are reference values and do not guarantee a particular field range.
• Buildings, terrain, antenna height, polarization, enclosure materials, interference, and network settings strongly affect communication.
• The unit does not include GNSS positioning and is not a certified emergency-communication or life-safety device.
