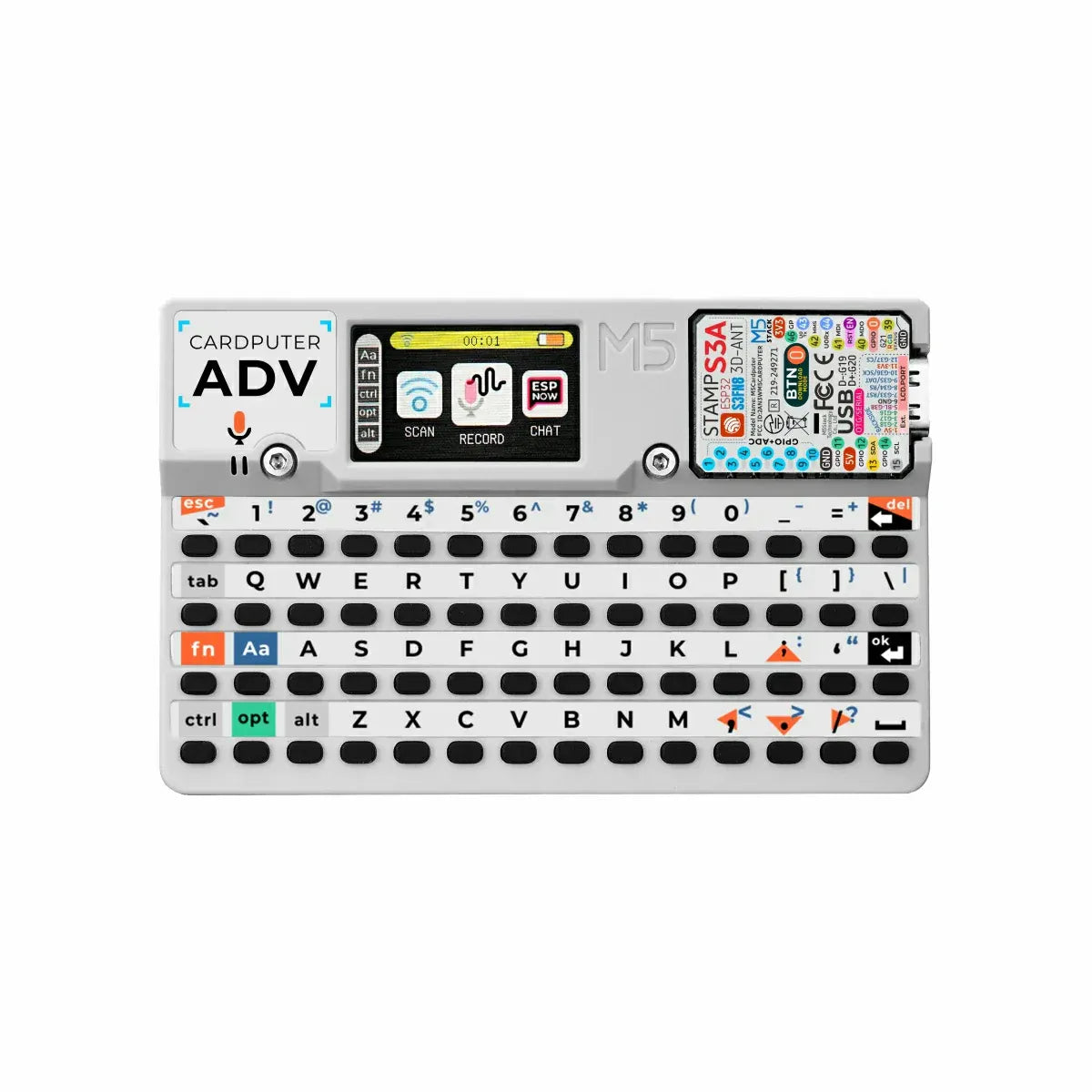

• op view of M5Stack Cardputer Adv Version featuring the 56-key tactile keyboard layout, ST7789V2 LCD screen, and Stamp-S3A module interface.

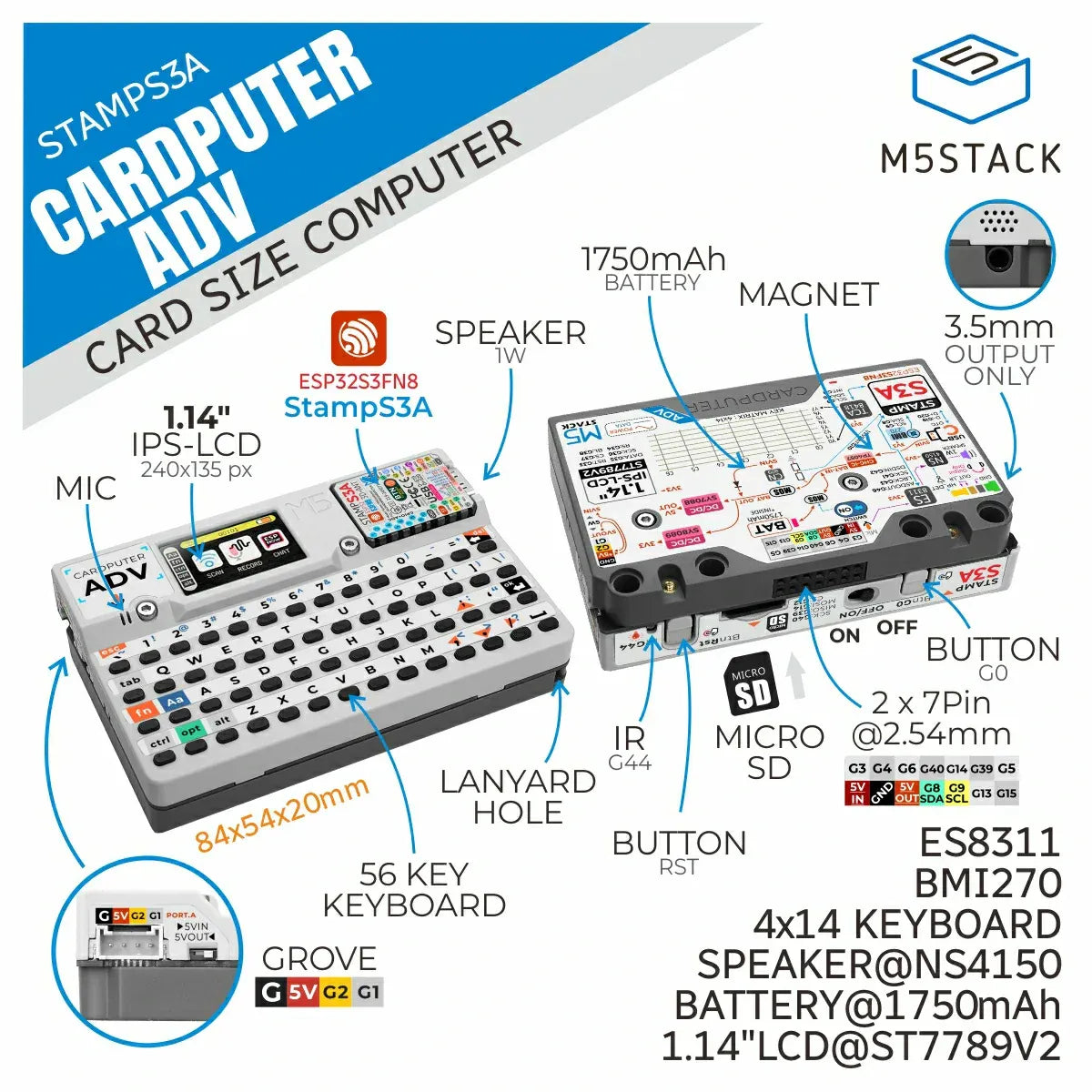

  • M5Stack Cardputer Adv Version hardware diagram showing ESP32-S3FN8 Stamp-S3A core, 56-key tactile keyboard, 1.14-inch IPS LCD, and internal 1750mAh battery for mini computer development.

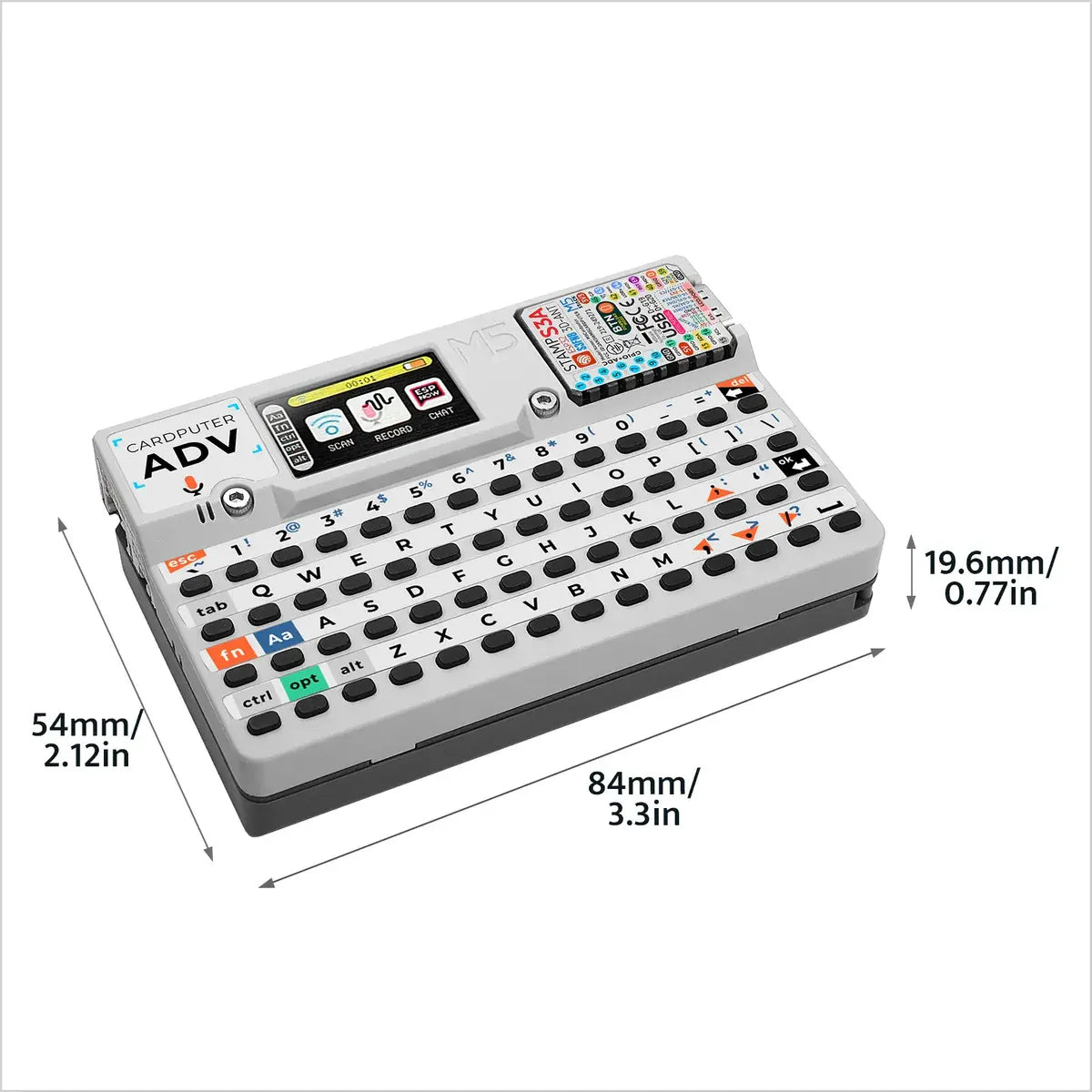

  • Portable M5Stack Cardputer Adv dimensions illustration: 84mm x 54mm x 19.6mm, pocket-sized ESP32-S3 mini computer with full QWERTY keyboard for IoT prototyping.

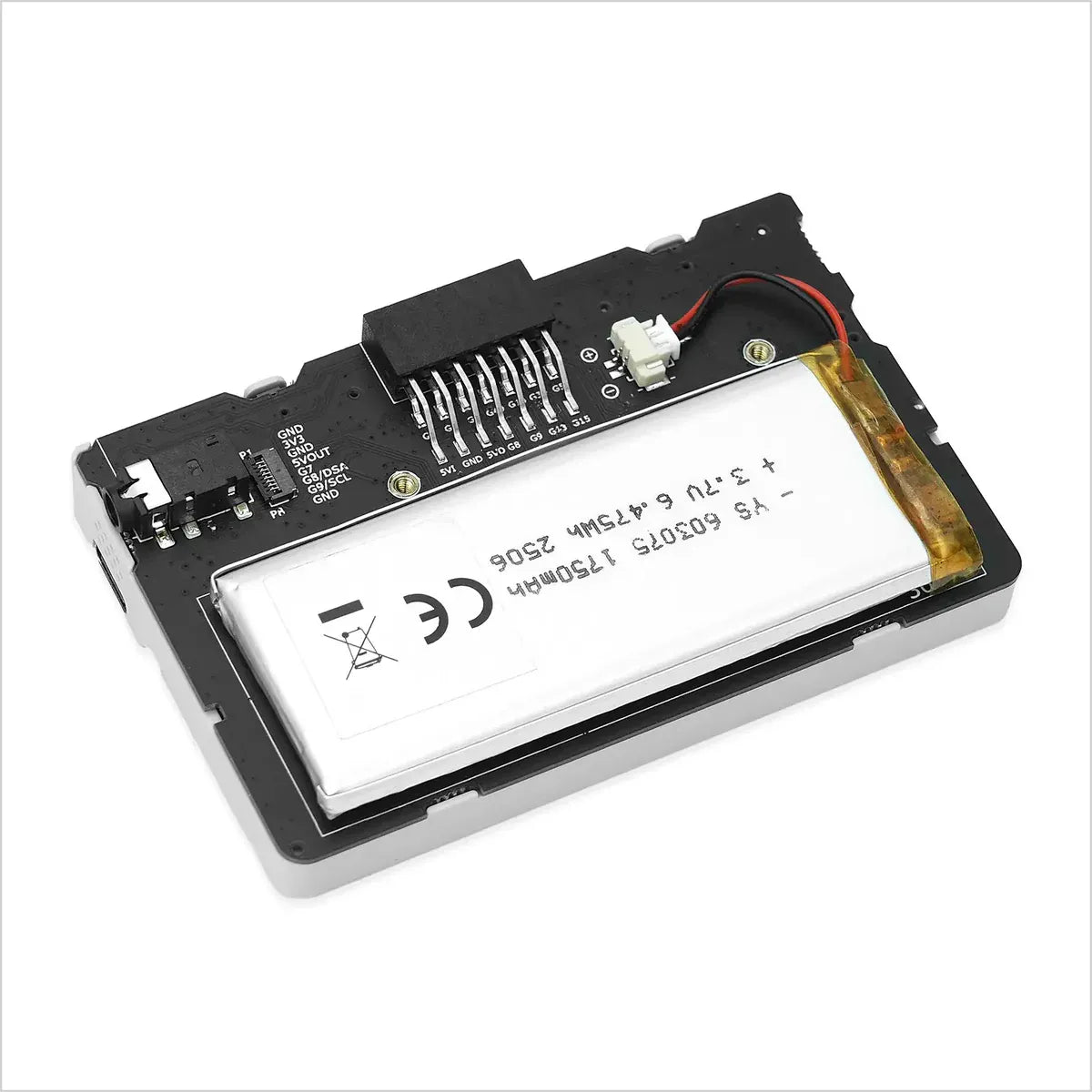

  • Internal view of M5Stack Cardputer Adv with 1750mAh large capacity lithium battery and ES8311 audio hardware integration.

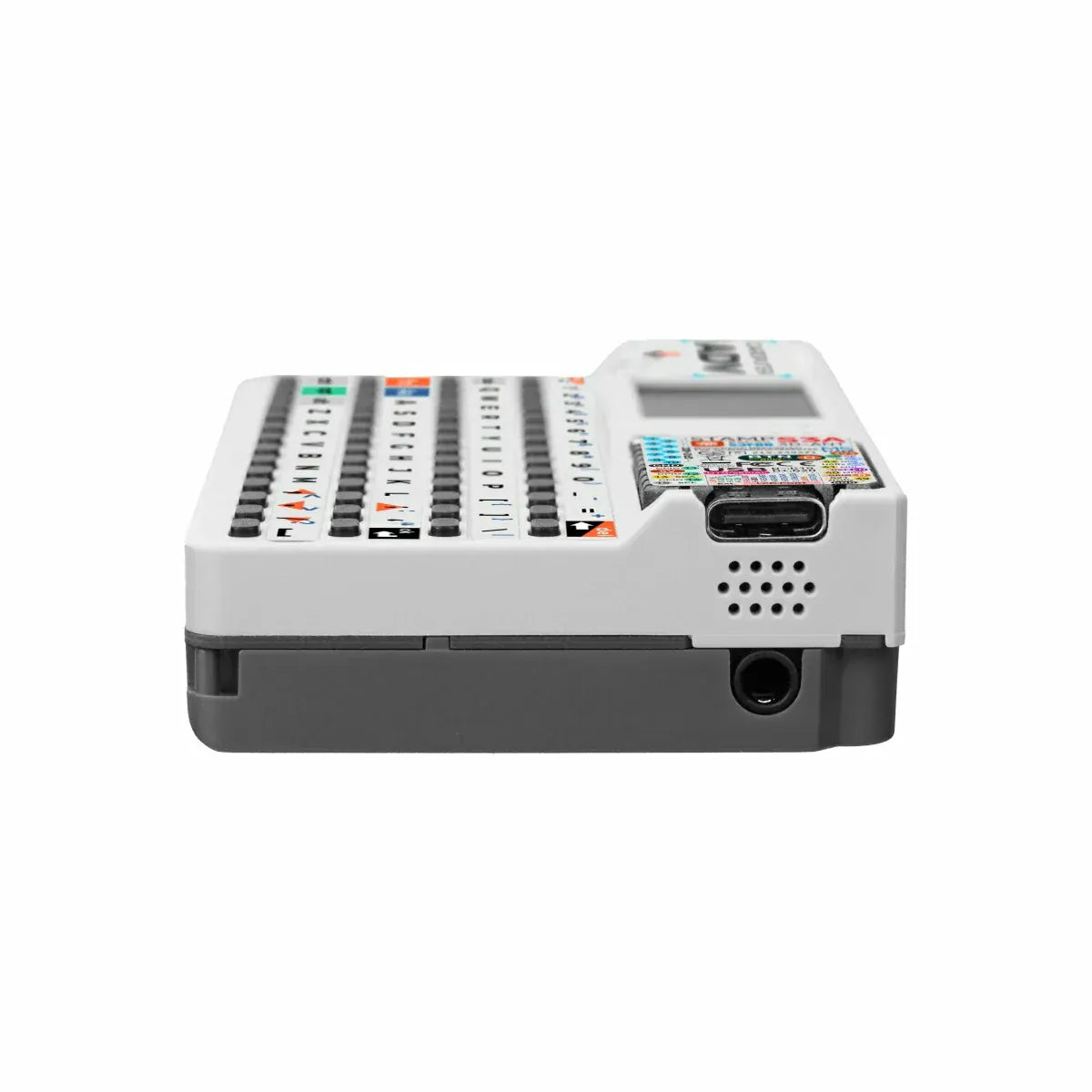

  • Side view of Cardputer Adv Version highlighting the 3.5mm headphone jack, USB-C charging port, and microphone hole for advanced audio projects.

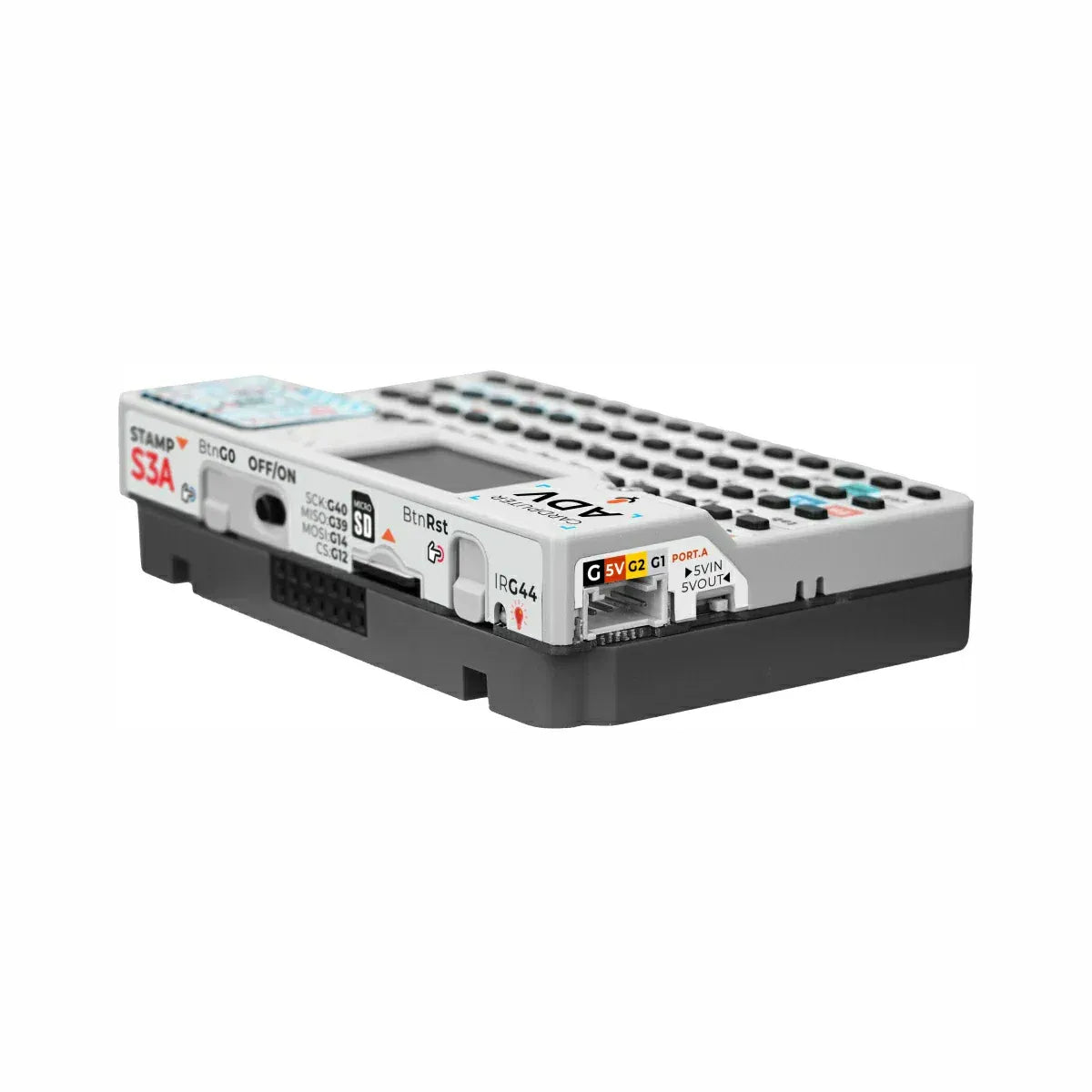

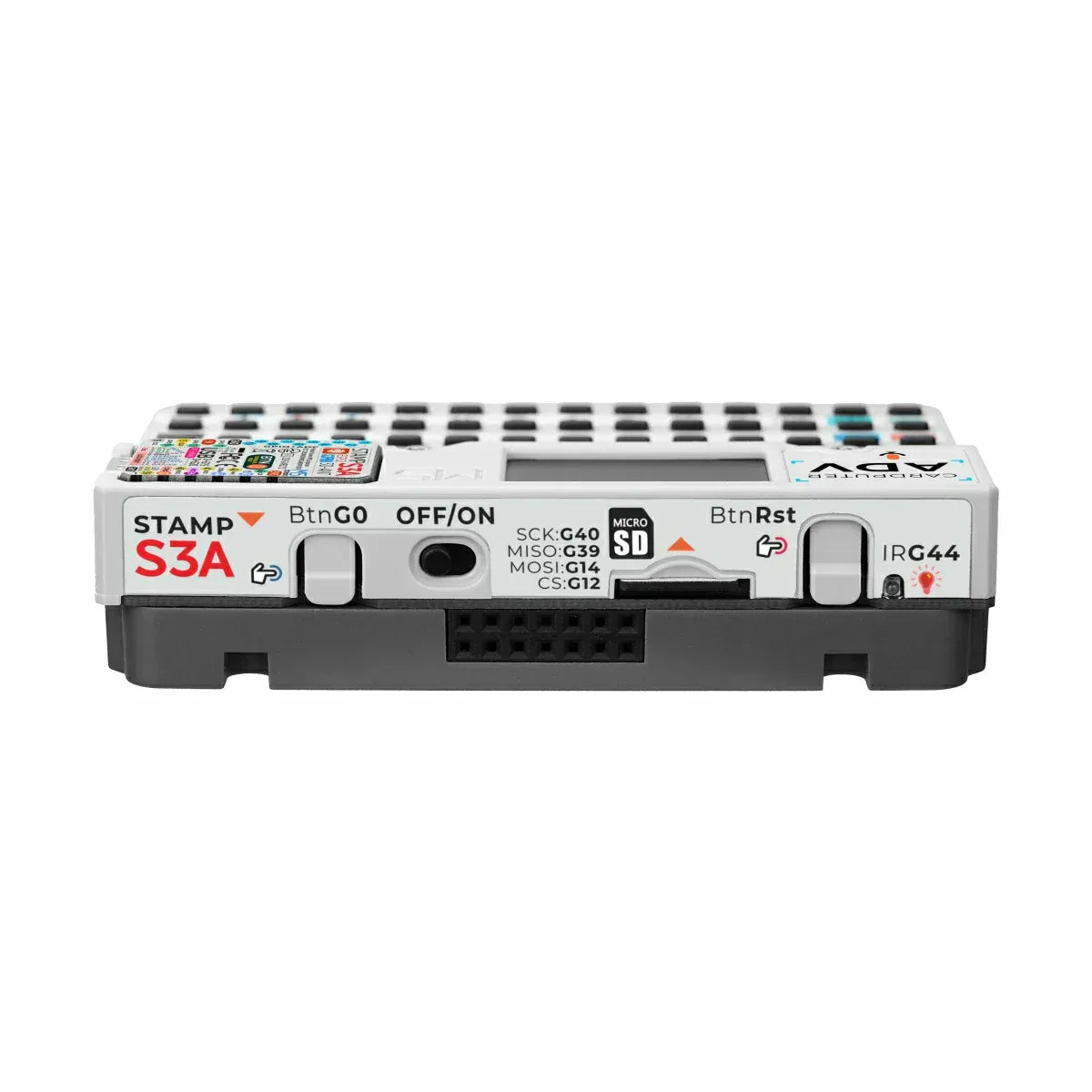

  • M5Stack Cardputer Adv side view showing microSD card slot, power switch, and infrared (IR) emitter functionality.

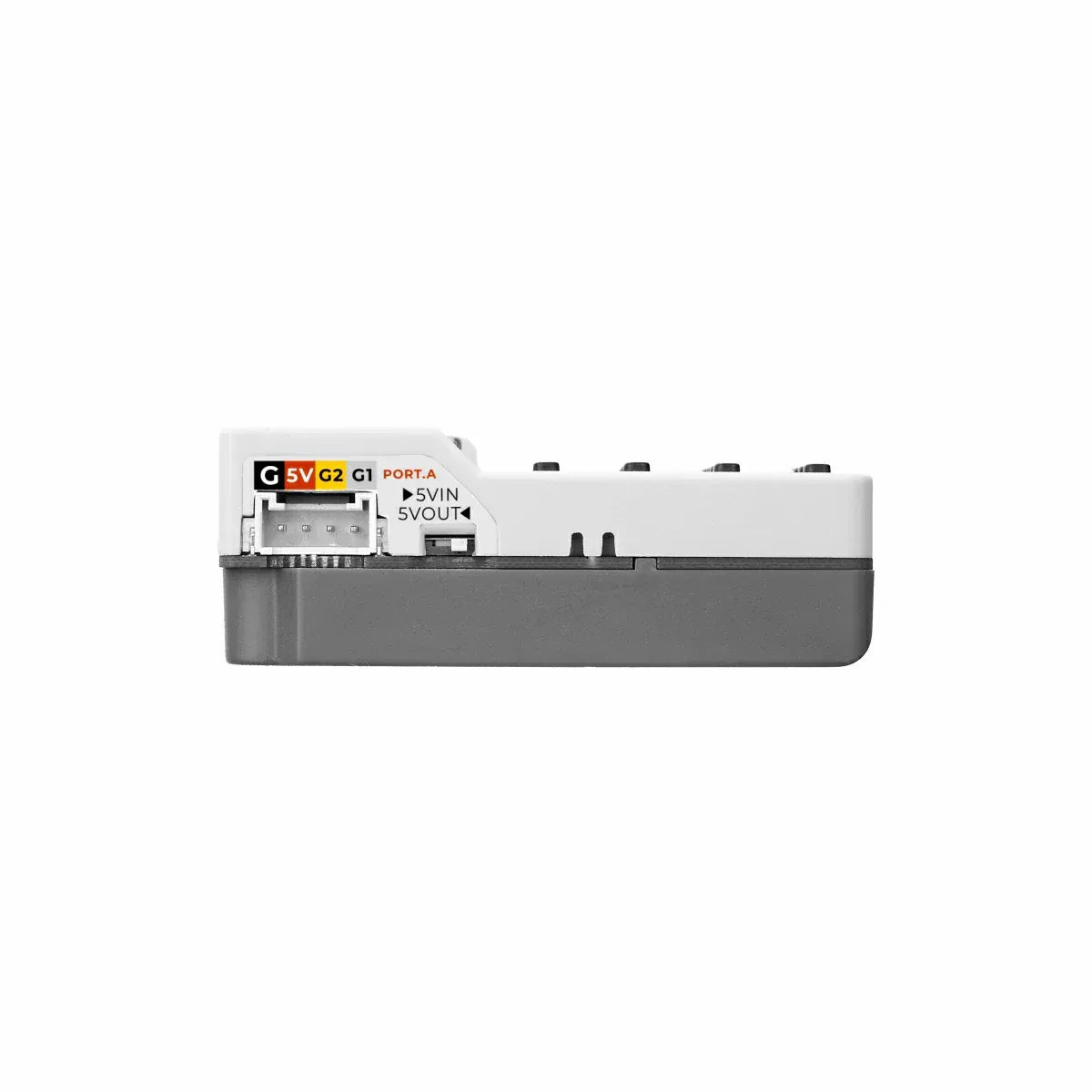

  • M5Stack Cardputer Adv side view showing Grove Port.A interface for ESP32-S3 Kit sensor expansion and 5V power input.
  • Detailed bottom view pinout of Cardputer Adv Version featuring ES8311 audio codec, BMI270 IMU, TCA8418 Keyboard expander, and magnetic back.

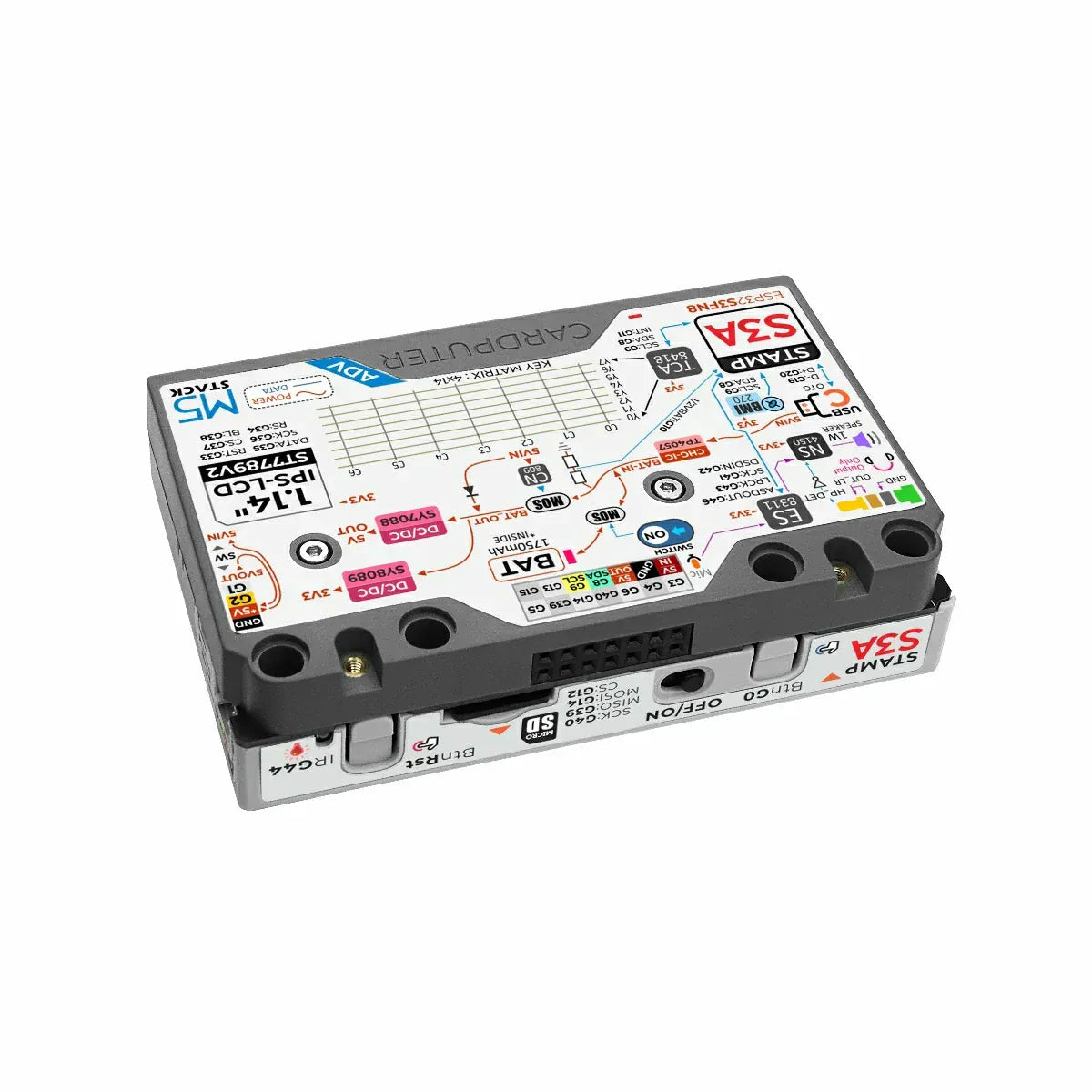

  • Internal view of M5Stack Cardputer Adv showing the high-capacity 1750mAh Lithium-ion battery and PCB assembly for stable Mini Computer power.

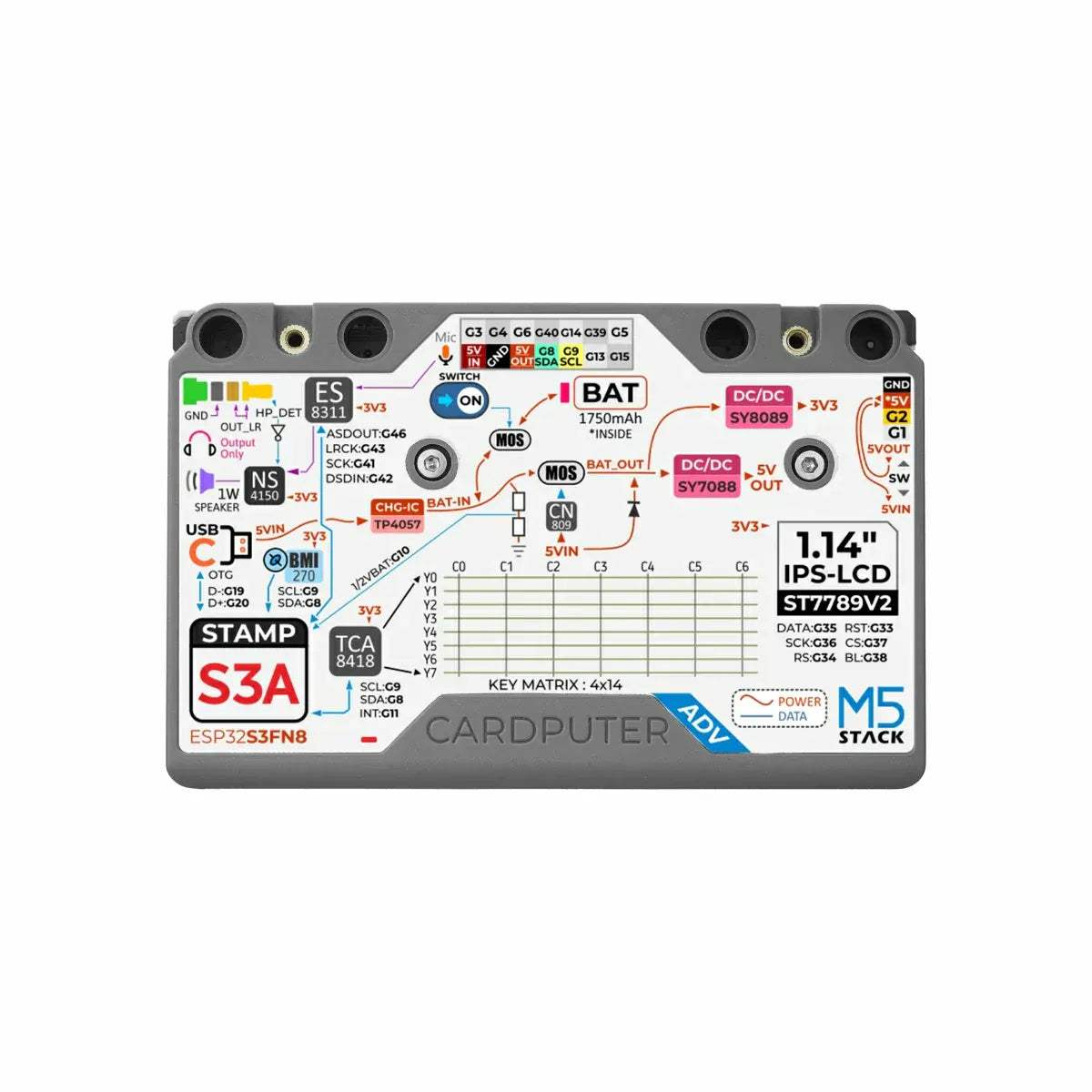

  • Bottom view of M5Stack Cardputer Adv showing detailed PCB pinout, ES8311 audio codec, BMI270 IMU, and magnetic back design for hardware expansion.
  • M5Stack Cardputer Adv Version ESP32-S3 Portable Computer Kit - For Coding, Terminal & IoT Control

M5Stack Cardputer Adv Version ESP32-S3 Portable Computer Kit - For Coding, Terminal & IoT Control

M5Stack Cardputer Adv Version ESP32-S3 Portable Computer Kit - For Coding, Terminal & IoT Control

LB-M5-K132-Adv

20 in stock
$35.00 USD
$35.00 USD

The M5Stack Cardputer represents a breakthrough in the world of the ESP32-S3 Kit. Designed as a card-sized, versatile programmable platform, this Mini Computer empowers developers to carry an entire development environment in their pocket. Whether you are using the standard model or the high-performance M5Stack Cardputer Adv Version, you gain access to a tactile Keyboard and a rich ecosystem of sensors that make it the 'Swiss Army Knife' of the IoT world.

Why Choose the M5Stack Cardputer Adv Version?

The M5Stack Cardputer Adv Version is the specialized evolution of the original ESP32-S3 Kit. Powered by the Stamp-S3A module with an ESP32-S3FN8 core processor, it provides the raw power needed for complex embedded prototyping. The Adv Version is specifically tuned for developers who require superior audio fidelity and precise motion sensing in a compact Mini Computer form factor.

Key Technical Specifications of the ESP32-S3 Kit

The heart of every M5Stack Cardputer is its modular efficiency. The Keyboard integration allows for on-the-go terminal commands and coding without needing a bulky laptop.

  • Processor Core: High-speed ESP32-S3 Kit logic for seamless multitasking.
  • Visual Interface: A 1.14-inch LCD display for real-time data visualization.
  • Input Precision: An intuitive 56-key Keyboard designed for smooth command entry.
  • Audio Excellence: The M5Stack Cardputer Adv Version features an ES8311 codec, MEMS microphone, and an NS4150B amplifier with a 1W speaker.
  • Expanded Sound: Includes a 3.5mm headphone jack for high-fidelity external audio output.

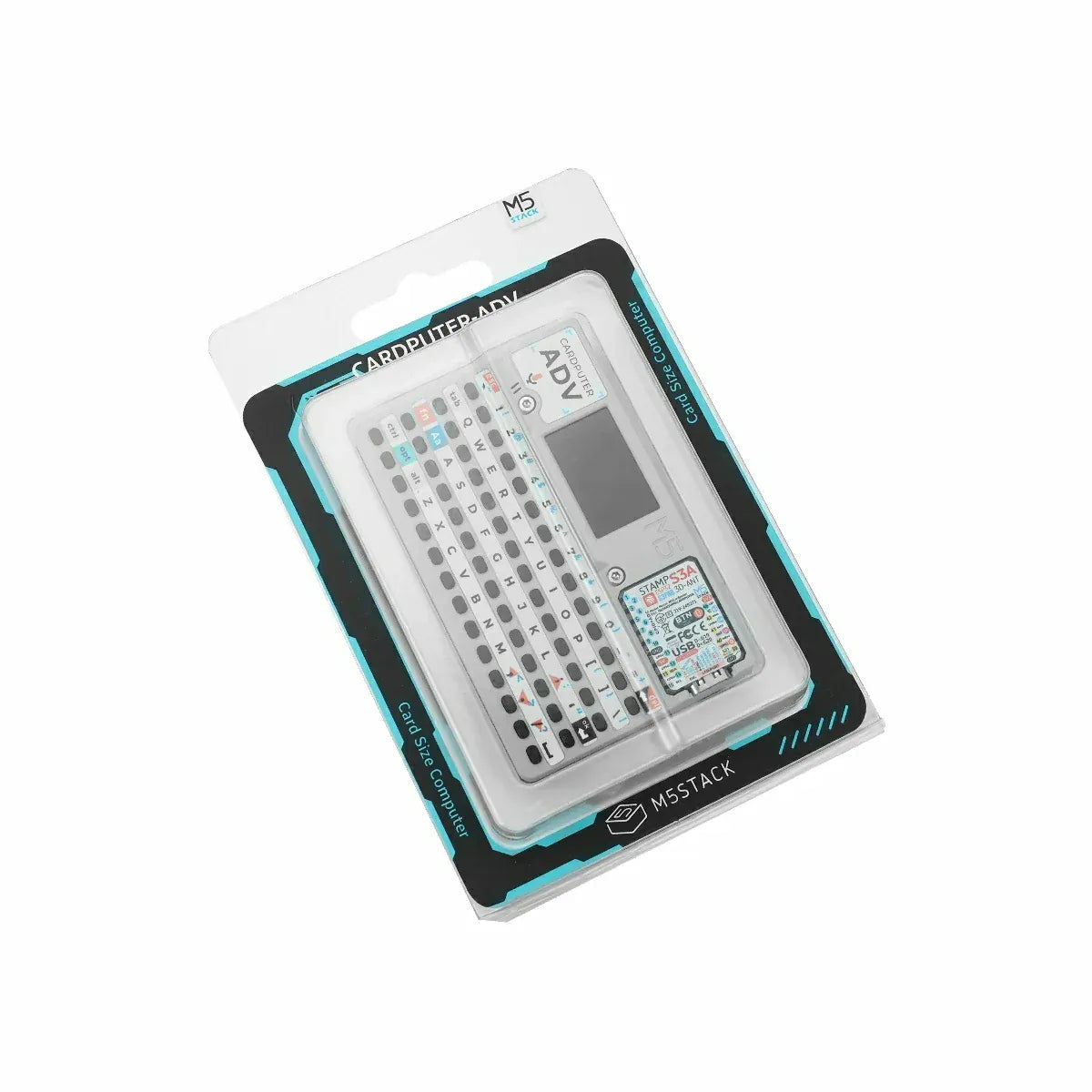

Official retail packaging of M5Stack Cardputer Adv Version, an all-in-one ESP32-S3 Kit for professional developers and makers.

Designed for Portable Power and Connectivity

A true Mini Computer is only as good as its battery life and expandability. The M5Stack Cardputer Adv Version excels in Efficient Power Management, featuring a massive 1750mAh lithium battery and independent power switching to ensure your Home Automation projects stay online longer.

For connectivity, this ESP32-S3 Kit is unmatched. It features:

  • Infrared Transmission: Control TVs and AC units directly from your M5Stack Cardputer.
  • Motion Sensing: Integrated BMI270 6-axis accelerometer for gesture-based applications.
  • Expandable Storage: Dedicated microSD card slot for logging industrial data or storing scripts.
  • Modular Growth: Dual HY2.0-4P Grove connectors and EXT 2.54-14P headers for easy sensor integration.
Cardputer Adv Version applications: Industrial control, wireless IoT projects, embedded systems learning, and rapid prototyping using ESP32-S3 Kit.

M5Stack Cardputer Adv Version | Key Features & Highlights

The M5Stack Cardputer Adv Version is a powerful, card-sized Mini Computer designed for advanced developers. Built on the versatile ESP32-S3 Kit ecosystem, it combines high-performance hardware with a tactile interface for a seamless IoT development experience.

  • Advanced Core Performance: Features the Stamp-S3A core controller powered by the ESP32-S3 Kit for high-speed dual-core processing.
  • Tactile Input: Integrated 56-key Keyboard for standalone command entry and Mini Computer terminal operations.
  • Vibrant Display: High-clarity 1.14-inch LCD display for real-time data visualization and UI interaction.
  • Premium Typing Experience: Ergonomic design with a 160gf comfortable keypress feel, ideal for on-the-go coding.
  • Pro-Grade Audio Path: Equipped with an ES8311 audio codec and high-fidelity 3.5mm audio output interface (Adv Exclusive).
  • Voice & Sound: High SNR MEMS microphone paired with an NS4150B amplifier + 1W speaker for clear audio communication.
  • Interactive Controls: Built-in Infrared (IR) emitter to transform your Mini Computer into a universal remote.
  • Motion Sensing: Integrated 6-axis motion sensor BMI270 for gesture-based control and orientation sensing.
  • Massive Expandability: Features an HY2.0-4P Grove port and EXT 2.54-14P expansion bus for modular ESP32-S3 Kit sensors.
  • Mass Storage: Dedicated microSD card slot for logging industrial data or storing Mini Computer application assets.
  • Long-Lasting Power: Built-in 1750mAh Li-ion battery ensures your portable Mini Computer stays powered in the field.
  • Smart Mounting: Features a Magnetic back design and LEGO hole compatibility for versatile mechanical configurations

Multi-Platform Development Ecosystem

This ESP32-S3 Kit is fully compatible with the industry's leading development environments, allowing you to program your Mini Computer with ease:

Development Platform Compatibility
Arduino Full support for C++ library integration
UIFlow 2.0 Graphical programming for rapid IoT prototyping
ESP-IDF Native Espressif framework for professional firmware
PlatformIO Streamlined VS Code integration for the ESP32-S3 Kit



Product Comparison

Feature Cardputer Adv (Latest) Cardputer v1.1 Cardputer (Classic)
Main Controller Stamp-S3A (ESP32-S3 Kit) Stamp-S3A Stamp-S3
Audio Path ES8311 Codec + 3.5mm Jack NS4168 + Mic Standard Audio
Keyboard Control TCA8418 (Pro Keyboard Expander) 74HC138 74HC138
Motion Sensing BMI270 IMU (Included) None None
Battery System Unified 1750mAh Lithium Dual (120mAh + 1400mAh) Dual (120mAh + 1400mAh)
Antenna Design Optimized Mini Computer signal Optimized Standard
Expansion Grove + EXT 2.54-14P Grove Only Grove Only
