LB-M5-U105
Couldn't load pickup availability

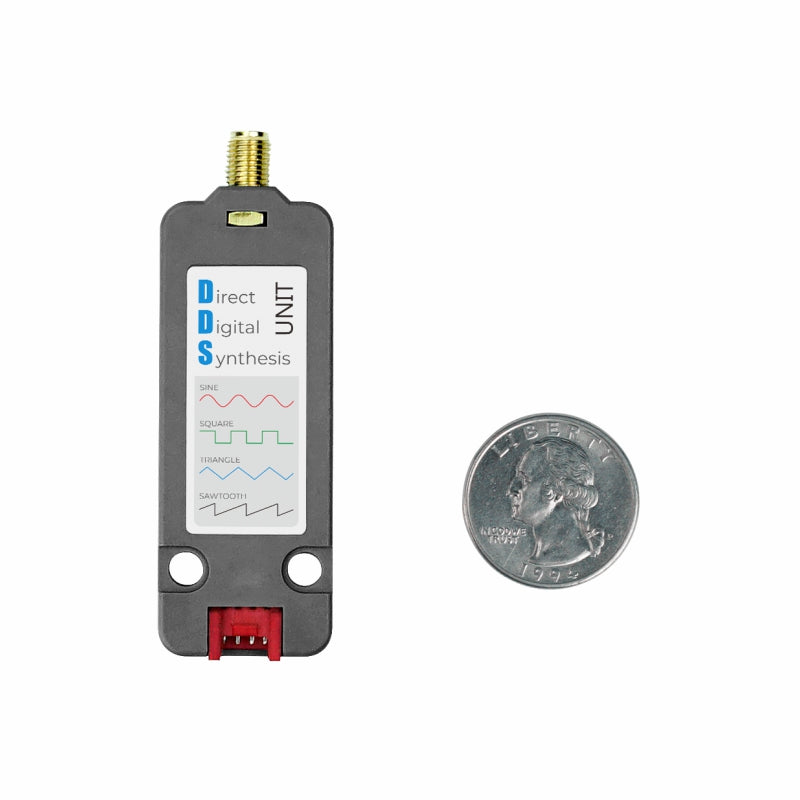

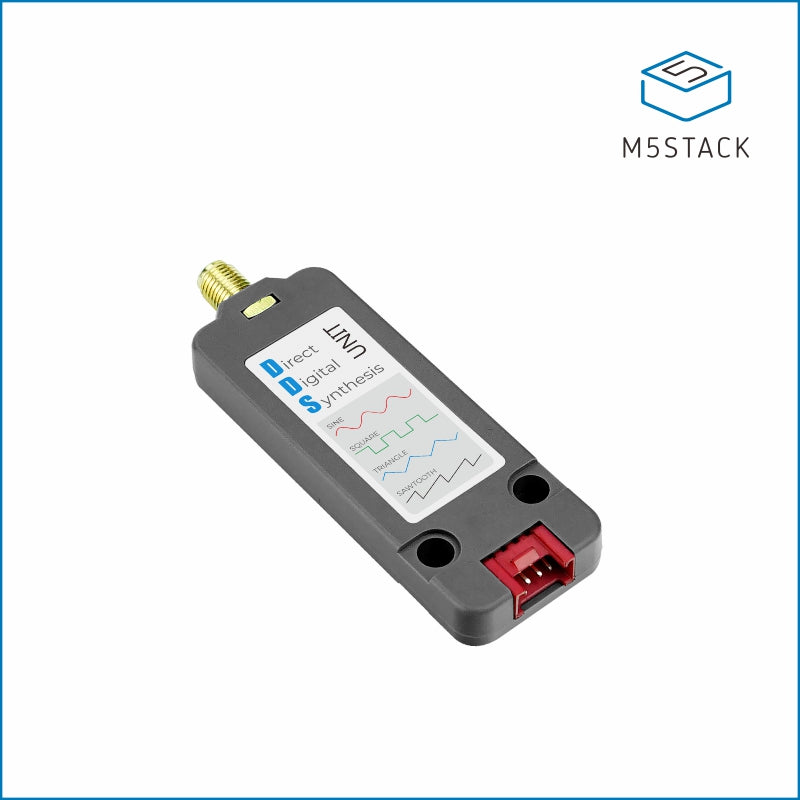

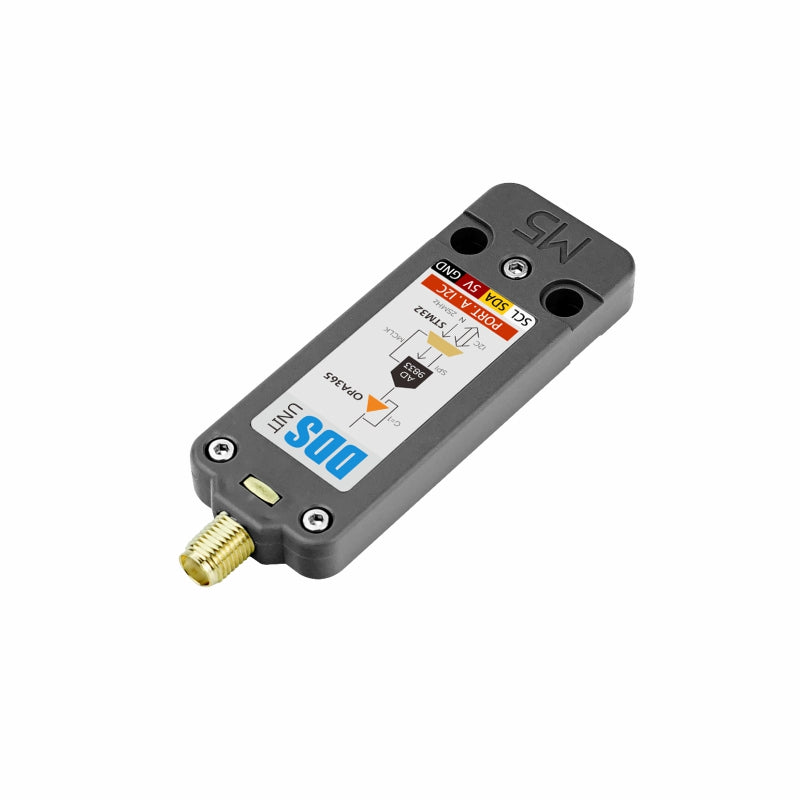

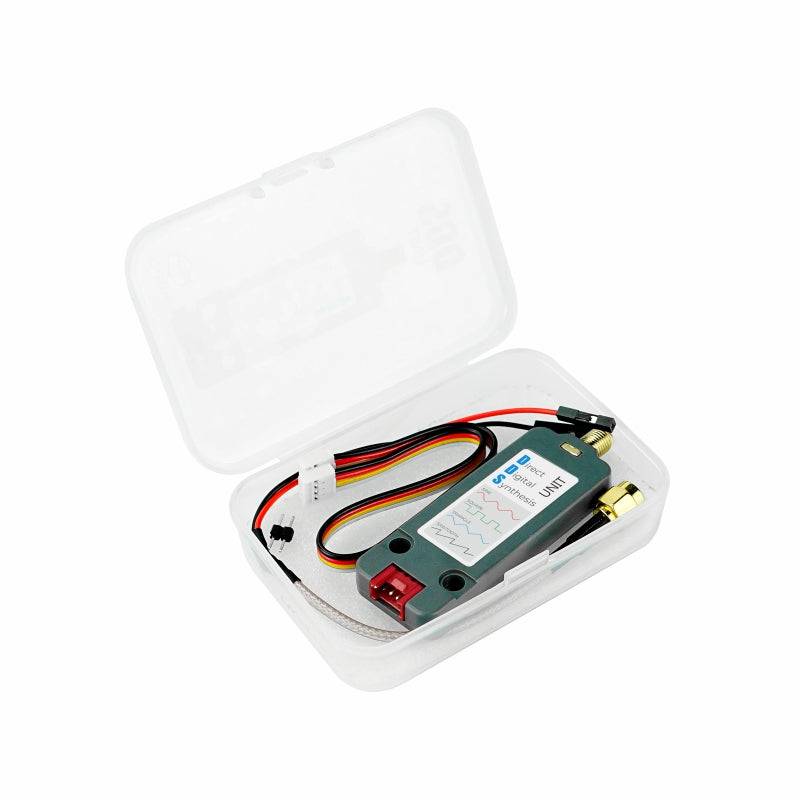

The M5Stack DDS Unit combines an AD9833 programmable waveform generator with an STM32F031 controller to provide a compact signal source for embedded prototypes, test fixtures, and educational instrumentation. It connects to an M5Stack host through I2C at address 0x31, allowing firmware to set waveform behavior, frequency, and phase without building a separate benchtop generator into the project.

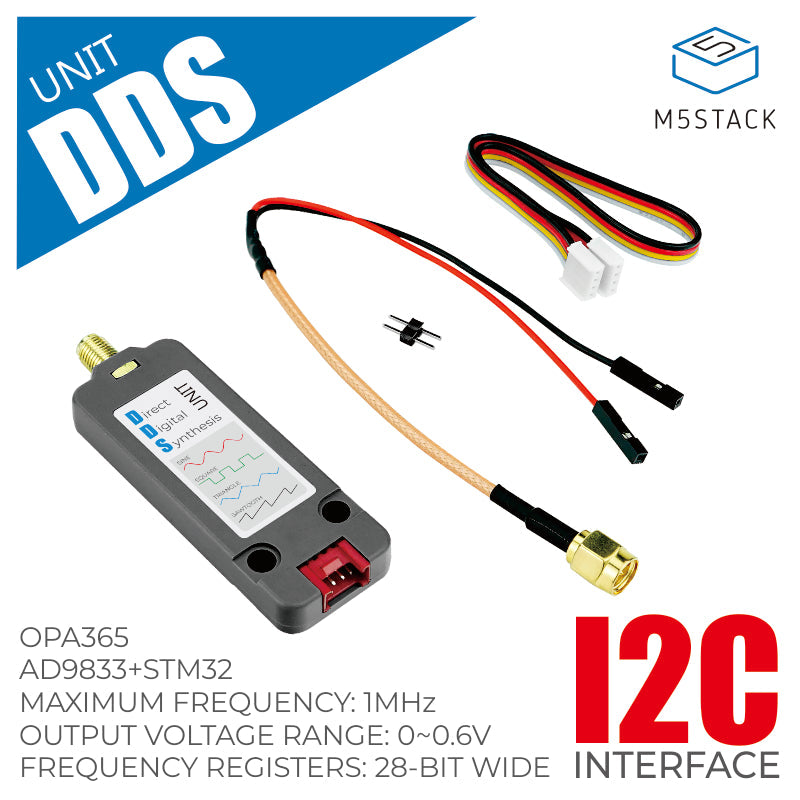

The unit supports sine, triangle, square, sawtooth, and DC output modes. The sawtooth output is specified at a fixed 13.6kHz. Signal amplitude is 0–0.6V, so this module should be treated as a low-level signal source rather than a high-power output stage. Add appropriate buffering, amplification, filtering, or protection when the target circuit requires different voltage, current, or impedance conditions.
With a 10MHz reference clock, the specified output-frequency range extends up to 1MHz. The AD9833 architecture provides 28-bit frequency resolution and 11-bit phase resolution, supporting fine digital control for sweeps, clocks, excitation signals, and repeatable test sequences.

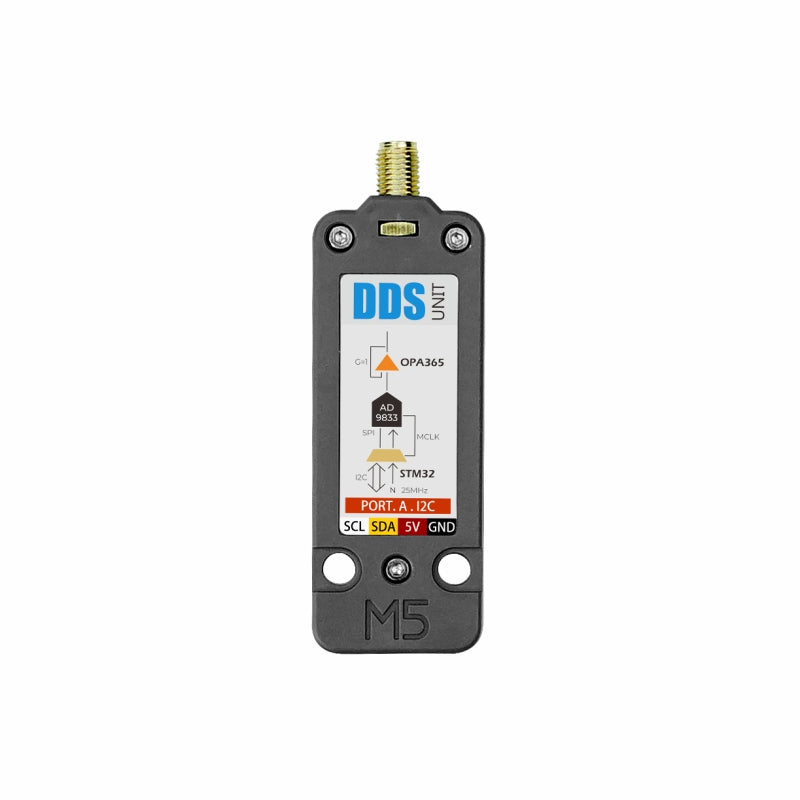

The STM32F031G4U6 handles the local control path and exposes I2C integration to the host. This is useful when a controller already manages sensors or a display and needs to add programmable signal generation through the same embedded system. Register configuration can be wrapped in application-specific presets such as startup frequency, sweep range, phase offset, waveform selection, and idle behavior.
Before connecting the output to a target circuit, confirm the required amplitude, bias, load impedance, and allowable input range. The 0–0.6V output may be suitable directly for some measurement or excitation tasks, while other systems will need an op-amp stage, attenuator, level shift, filter, or isolation circuit.
Typical applications include waveform generation, liquid and gas flow measurement, proximity or motion experiments, defect detection, line-loss testing, sweep or clock generation, time-domain reflection experiments, and prototypes for test or medical equipment. Final use in regulated equipment requires appropriate system-level validation.
Technical setup details are available in the M5Stack DDS Unit documentation.
