M5Stack PSRAM Camera Module (OV2640)

Product Status Notice: This product is EOL (End of Life). It is best suited to legacy maintenance, existing designs, education, and short-term prototypes where future replacement risk is acceptable.

Get a Wi-Fi Camera Prototype Running Before Building the Full System

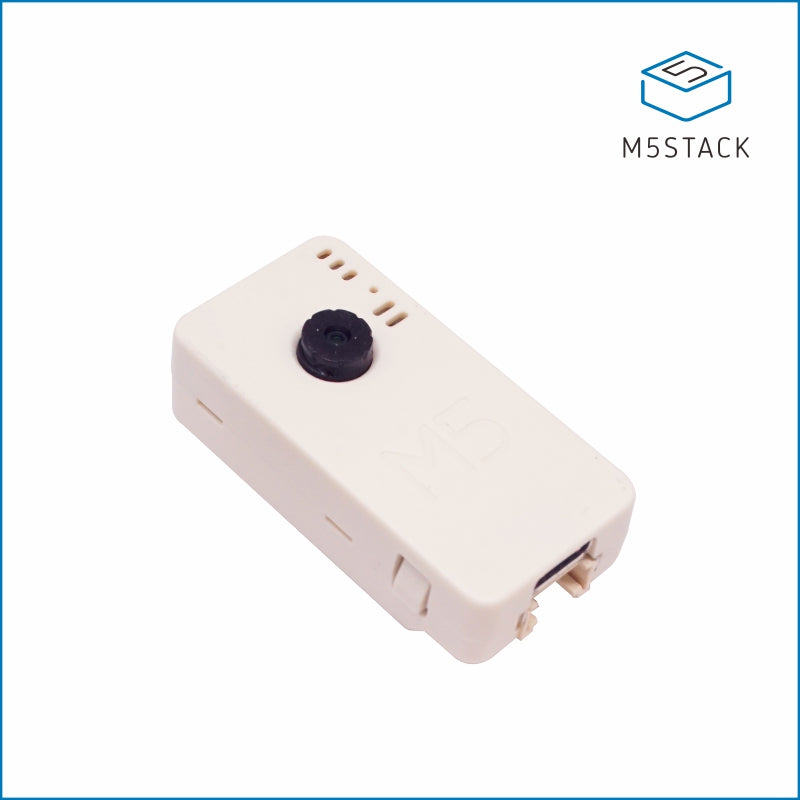

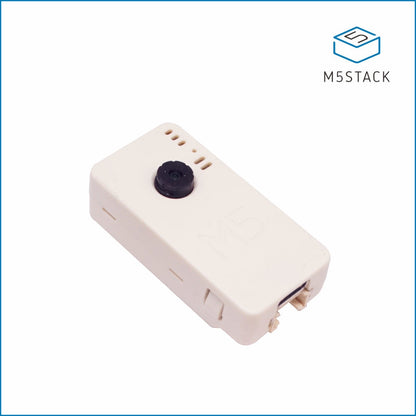

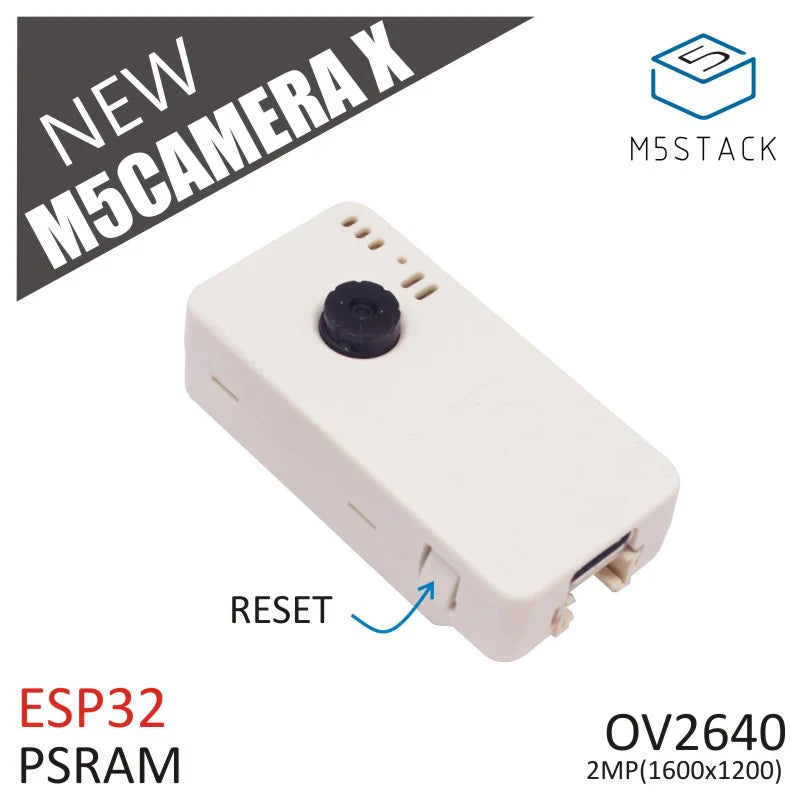

A new inspection or vision idea often stalls before the real test begins: the camera needs a controller, frame memory, Wi-Fi, USB debugging, firmware, and a viewing interface. The M5Stack M5Camera-X combines an ESP32, 4MB Flash, 520KB internal RAM, 4MB PSRAM, and a 2MP OV2640 sensor so a working image stream can be tested without first designing a custom board.

The factory firmware creates a Wi-Fi access point with a name beginning with m5stack-. Connect a phone or computer directly, open 192.168.4.1, and check the live view in a browser. No mobile app, cloud account, or existing router is required for this first proof of concept.

Check a Machine, Enclosure, or Test Bench Without Running New Video Cable

Place the module near a slow-moving mechanism, indicator panel, storage compartment, feeder, or laboratory setup to confirm whether a compact local camera can capture the information that matters. The 65° field of view fits general viewing at moderate distances, while Wi-Fi removes the need to route a dedicated video cable during early testing.

The default program outputs approximately 600 × 800 images at around 5–6 frames per second. That is useful for checking equipment state, object presence, color changes, and basic image-recognition ideas. It is not intended for high-speed motion analysis, smooth surveillance video, or precision industrial machine vision.

Move from Browser Testing to Custom Firmware

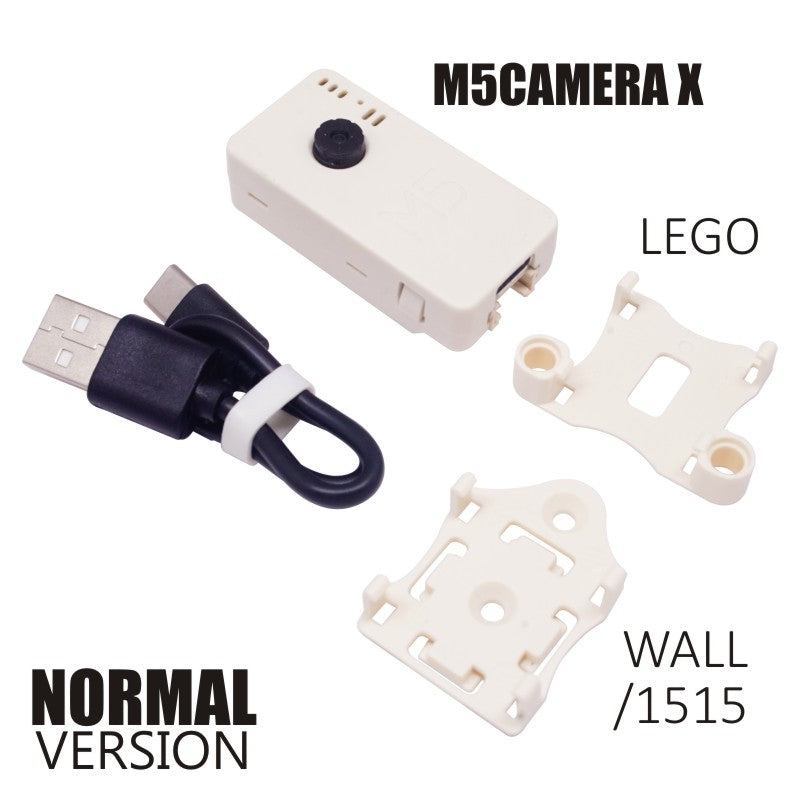

USB Type-C provides power and serial debugging through CP2104, making it easier to inspect logs and iterate on ESP-IDF firmware. The OV2640 supports YUV, YCbCr, RGB, compressed, and raw formats, while the available PSRAM gives image-processing code room for frame buffers and intermediate data.

The HY2.0-4P interface can connect the camera to a host or project-specific hardware. Confirm voltage, pin mapping, communication protocol, cable length, and total power demand before wiring it into a larger system.

Know the Limits Before It Becomes Part of the Product

The default local access-point workflow is convenient for a bench test but is not a complete security design. A real installation needs authentication, controlled network access, protected credentials, encrypted transport where appropriate, firmware maintenance, and privacy rules for captured images.

Because this model is EOL, do not treat it as the foundation of a new product that requires years of guaranteed supply. It remains practical for maintaining an existing M5Camera-X design, replacing a failed legacy unit, teaching ESP32 camera development, or proving a visual-monitoring concept before selecting current-production hardware.

Setup details and firmware references are available in the M5Stack M5Camera-X documentation.
