M5Stack ESP32 PSRAM Timer Camera (OV3660)

Capture the Important Moment Without Leaving a Camera Running All Day

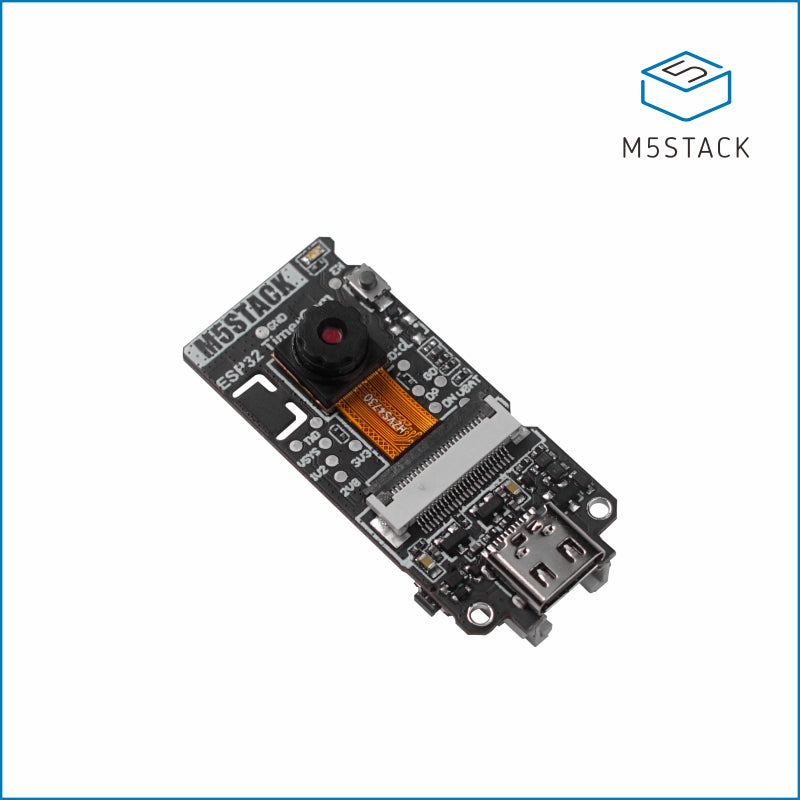

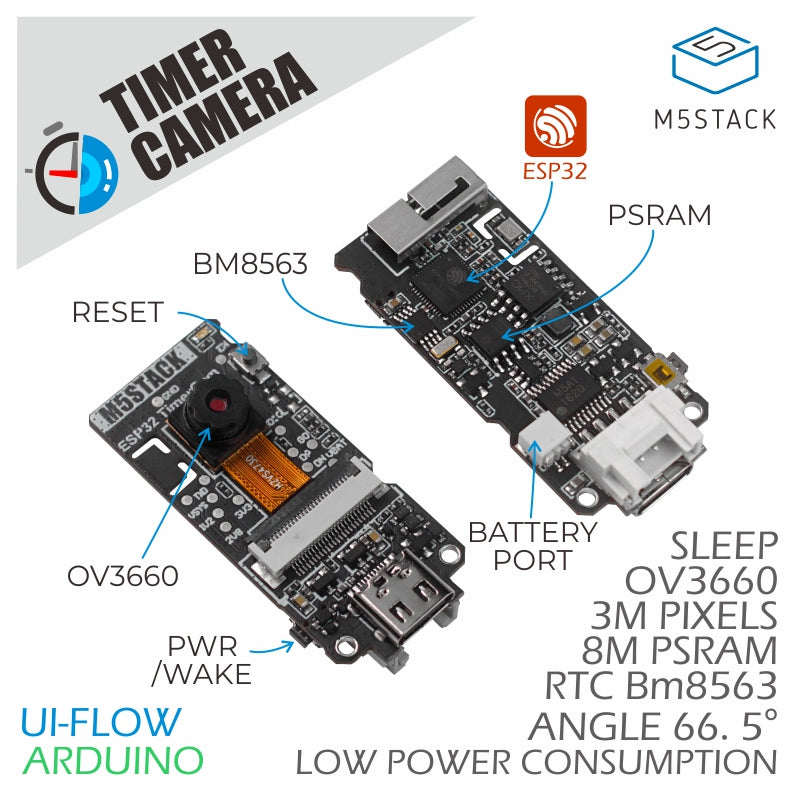

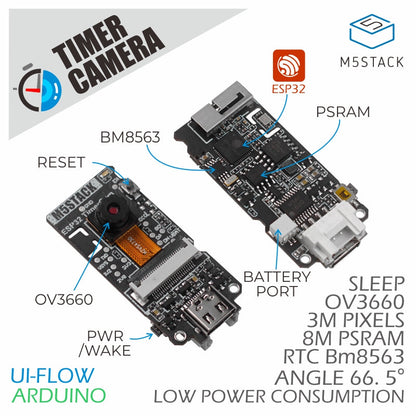

A greenhouse, storage room, feeder, construction point, or remote enclosure may only need one image every few minutes or hours. Keeping a camera and Wi-Fi connection active continuously wastes power, creates unnecessary traffic, and shortens battery life. The M5Stack TimerCamera combines an ESP32, 8MB PSRAM, a 3MP OV3660 sensor, and a BM8563 real-time clock so firmware can wake on a schedule, capture an image, transmit or store it, and return to sleep.

This workflow fits projects where the change between images matters more than continuous video: crop growth, material level, equipment position, enclosure status, animal activity, or progress over time.

Replace Repeated Site Checks with Scheduled Visual Records

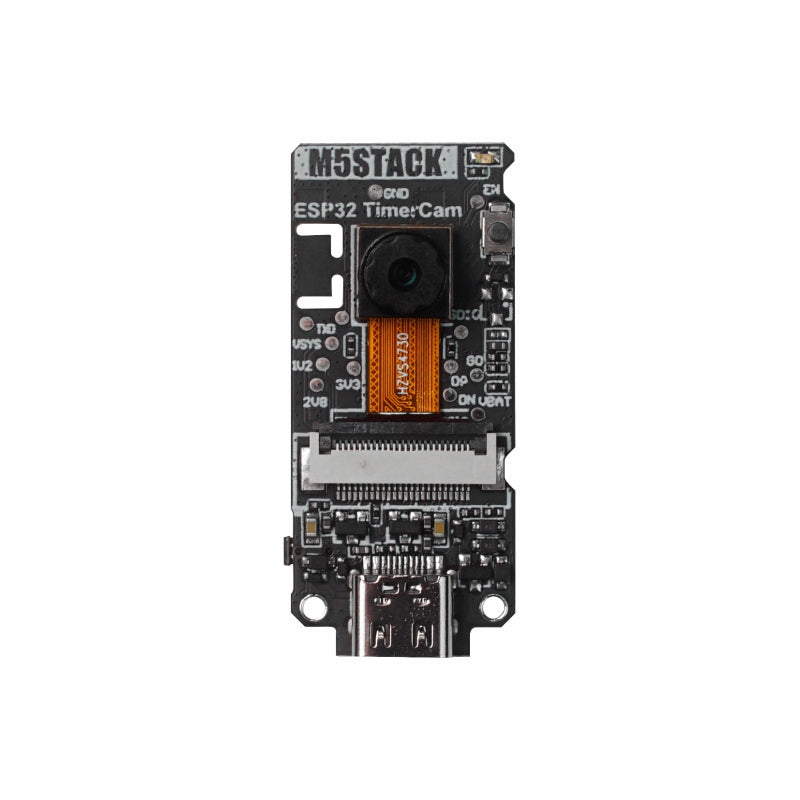

Instead of opening a cabinet or traveling to a remote location just to confirm that something still looks normal, the camera can create a timestamped visual record. The OV3660 supports resolutions up to 2048 × 1536 with a 66.5° diagonal field of view, providing enough detail for many general inspection and time-lapse tasks.

The ESP32 can send images over 2.4GHz Wi-Fi when a network is available. For an unattended node, firmware should handle changed credentials, weak signal, connection timeouts, interrupted uploads, server errors, and recovery after power loss. A camera that captures successfully but cannot reconnect still fails the monitoring task.

Plan Battery Life Around the Whole Wake Cycle

The product specification lists sleep current as low as approximately 2µA under stated conditions. That figure does not represent the complete deployed system. Real battery life depends on the external battery, regulator losses, wake interval, sensor startup, image resolution, processing time, Wi-Fi association, signal strength, upload duration, retries, and the energy used by any connected peripherals.

Measure one complete cycle on the final firmware: sleep, RTC wake, camera initialization, capture, network connection, transfer, error handling, and return to sleep. Multiply that measured energy by the planned daily schedule before selecting the battery.

External Battery Connection

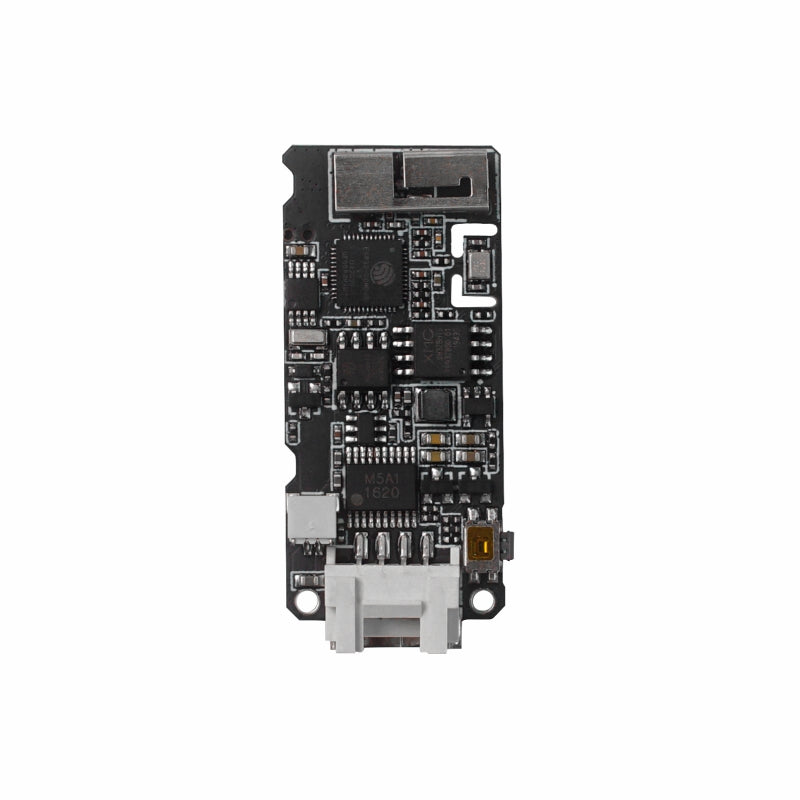

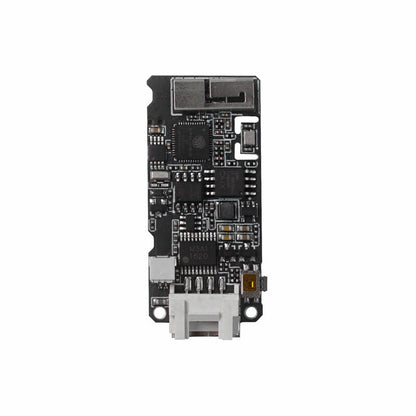

The SH1.0-2P connector supports an external battery, which is not included. Confirm chemistry, voltage, polarity, connector wiring, charging method, protection circuit, operating temperature, and enclosure safety. The bottom HY2.0-4P port can add sensors or controls, but every added peripheral changes the power budget.

Use Continuous Streaming Only When Power Is Available

The camera can support Wi-Fi image workflows, but continuous operation removes most of the timed low-power advantage. For live viewing, plan a stable supply, thermal behavior, network bandwidth, storage, and access control. For battery operation, scheduled snapshots and event-driven capture are usually the more practical design.

Protect Captured Images and Credentials

Restrict access to the image stream, protect Wi-Fi and server credentials, encrypt transport where practical, define image-retention rules, and follow the privacy requirements of the installation site. This is a programmable camera development board, not a complete certified surveillance system.

Firmware and connection references are available in the M5Stack TimerCamera documentation.
