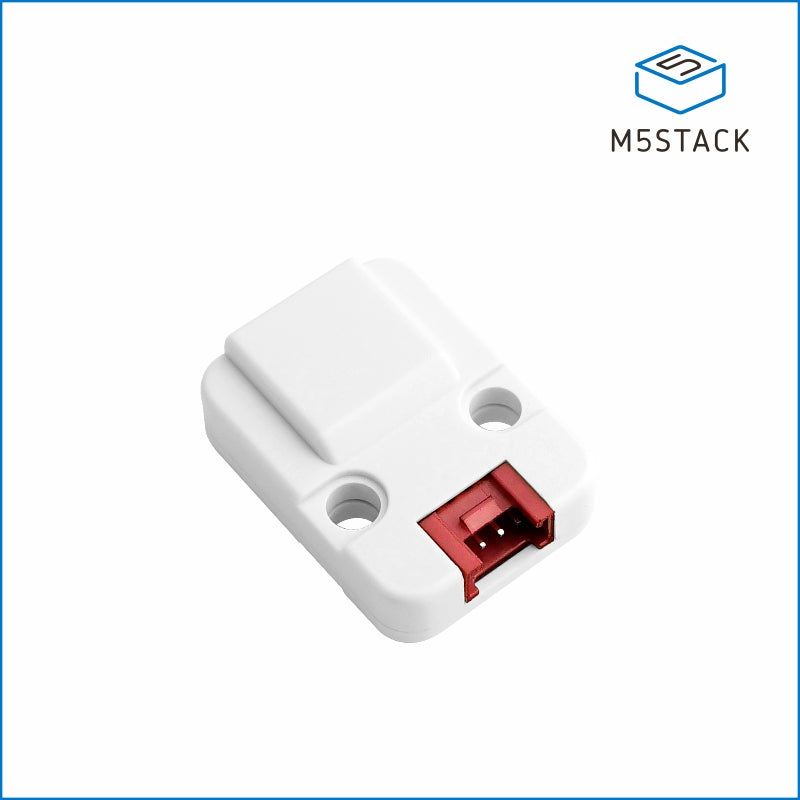

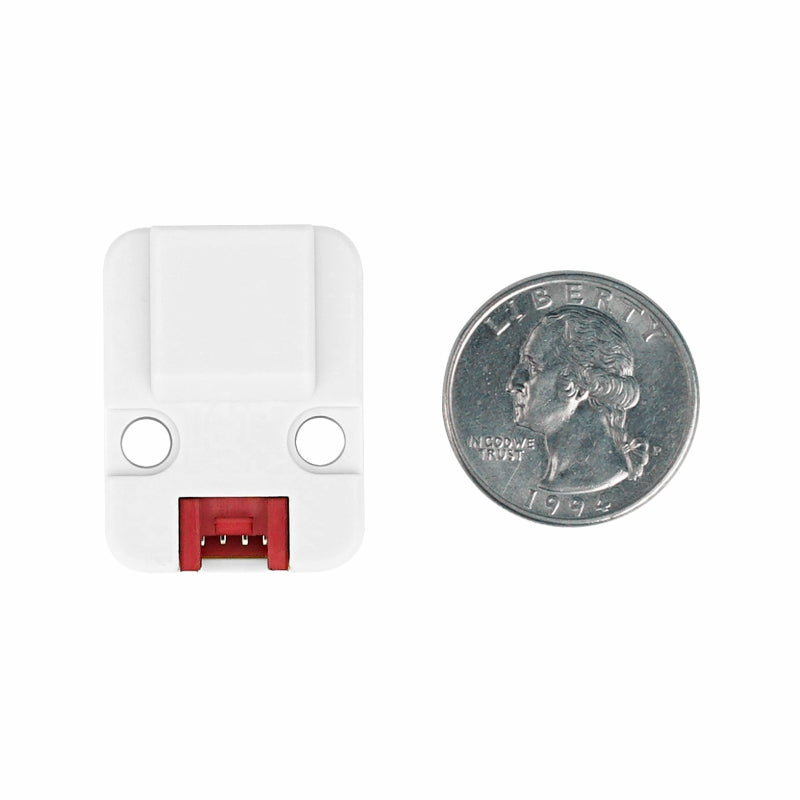

M5Stack EXT.IO2 8-Channel I2C I/O Expansion Unit

The M5Stack EXT.IO2 expands one I2C connection into eight configurable channels for compact automation panels, robotics, sensor interfaces, servo control, and RGB projects. Each channel can be assigned as digital input, digital output, ADC input, servo PWM, or compatible RGB LED control through the onboard STM32F030. It suits developers who need more flexible 3.3 V I/O without redesigning the host board, while keeping channel mode, address planning, load power, and startup safety under software control.

What You Can Build

• Multi-switch and indicator panels for embedded equipment.
• Mixed digital and analog sensor expansion nodes.
• Small servo-control and positioning prototypes.
• RGB status-light and interactive display controls.
• Robot or automation interfaces that need additional configurable I/O.

Key Capabilities

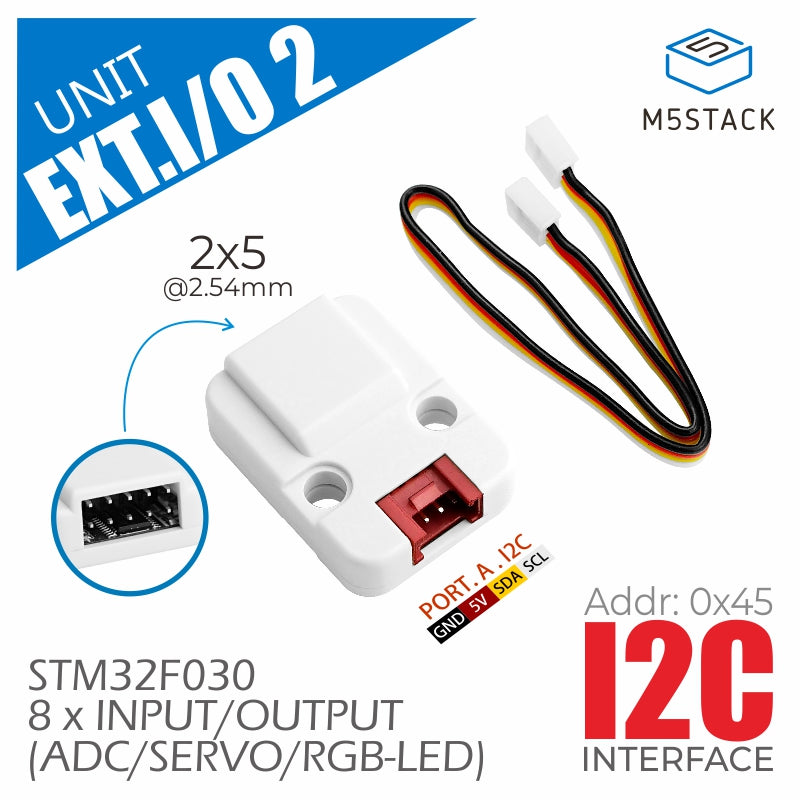

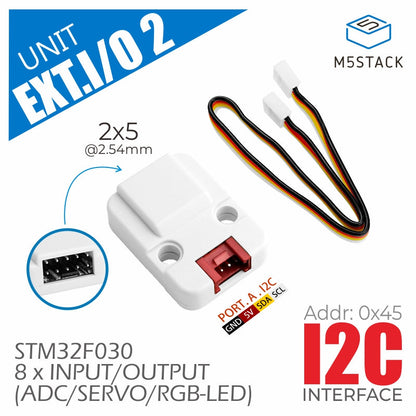

• Eight independently configurable channels.
• Digital input, digital output, ADC, servo PWM, and RGB LED control modes.

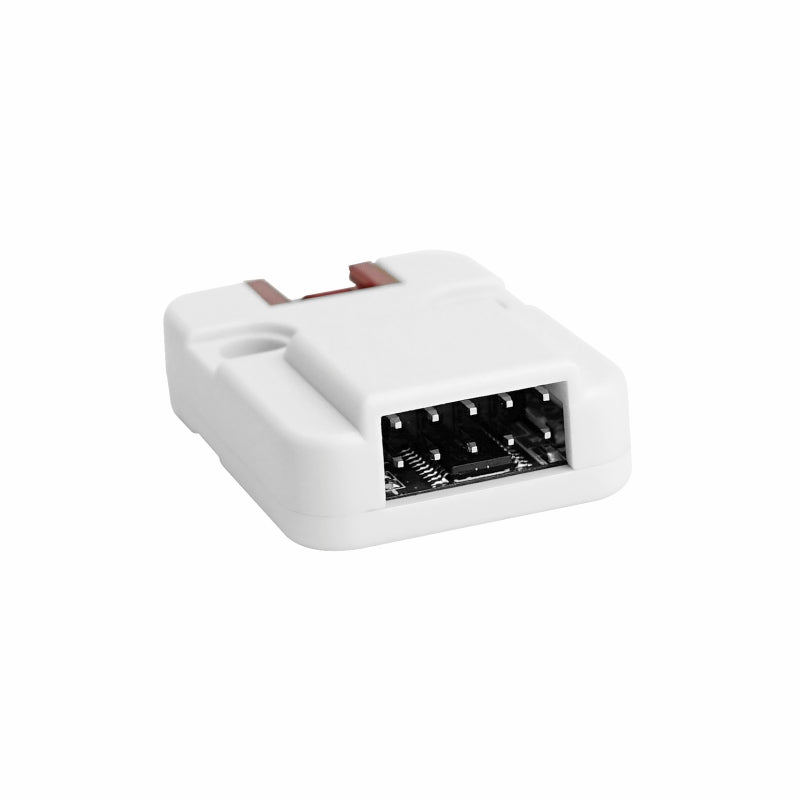

• STM32F030F4P6 controller with I2C communication.
• Default I2C address 0x45 with address configuration for multi-unit systems.

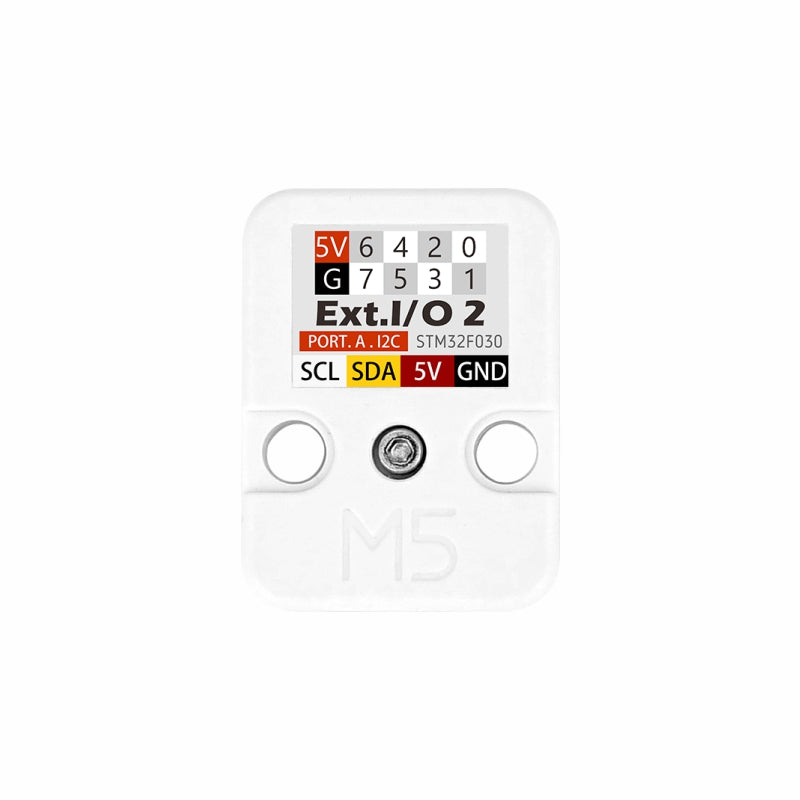

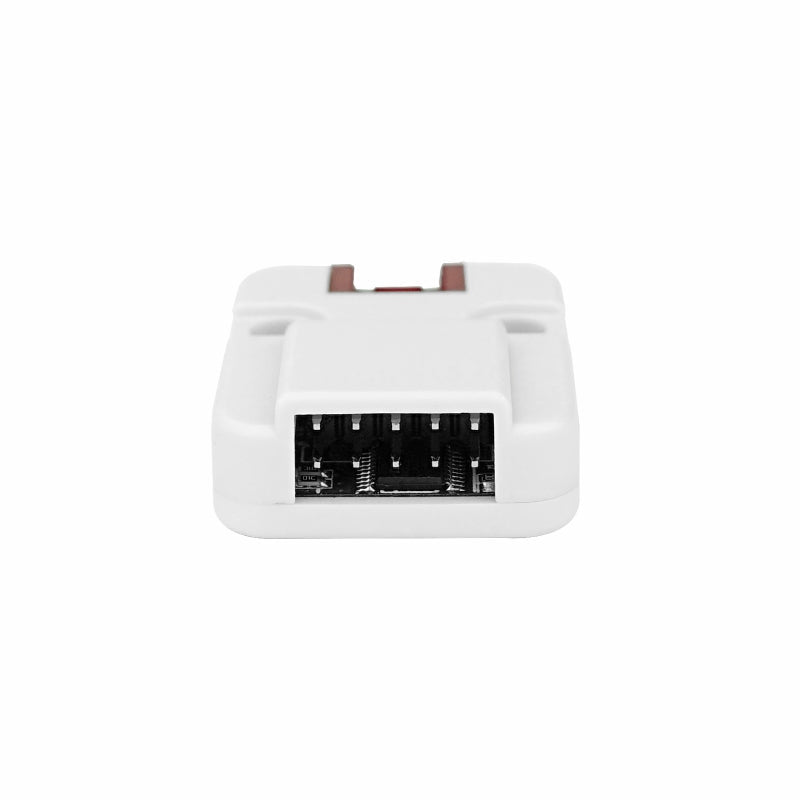

• 2.54 mm channel headers using 3.3 V signal levels.

Setup and Integration

1. Connect the Grove cable to an I2C port and confirm that address 0x45 is available, or assign a unique address before adding another unit.
2. With loads disconnected, define the mode and safe startup state for every channel.
3. Verify that each connected signal remains within the 3.3 V input and output limits.
4. Power servos, LED loads, and other higher-current peripherals from a suitable external supply with a planned common reference.

Example Workflow

1. Initialize all channels as inputs or another non-driving safe state.
2. Configure selected channels for switches, analog sensors, servo commands, or RGB control.
3. Read and filter inputs before calculating the required output state.
4. Apply bounded outputs and return actuators to a defined state after communication loss or host reset.

Deployment Notes

• The channel headers use 3.3 V logic; do not apply 5 V signals directly unless the connected circuit provides suitable level conversion.
• Servo mode provides a control signal and does not make each channel a high-current servo power source.
• Configure direction before connecting devices to avoid output-to-output contention.
• Multiple EXT.IO2 units require unique I2C addresses and a bus design that accounts for cable length, pull-ups, and capacitance.
• Confirm the software library or register protocol matches the installed unit firmware.

Development Resources

• M5Stack U011-B Documentation
• UiFlow2 Development Environment
• Arduino IDE
