LB-M5-U161
Couldn't load pickup availability

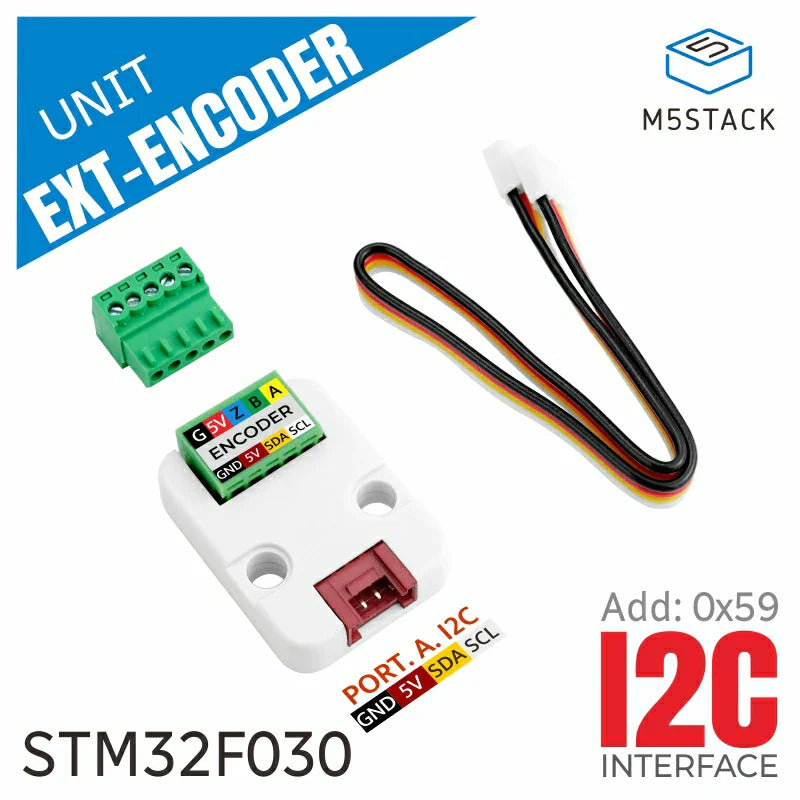

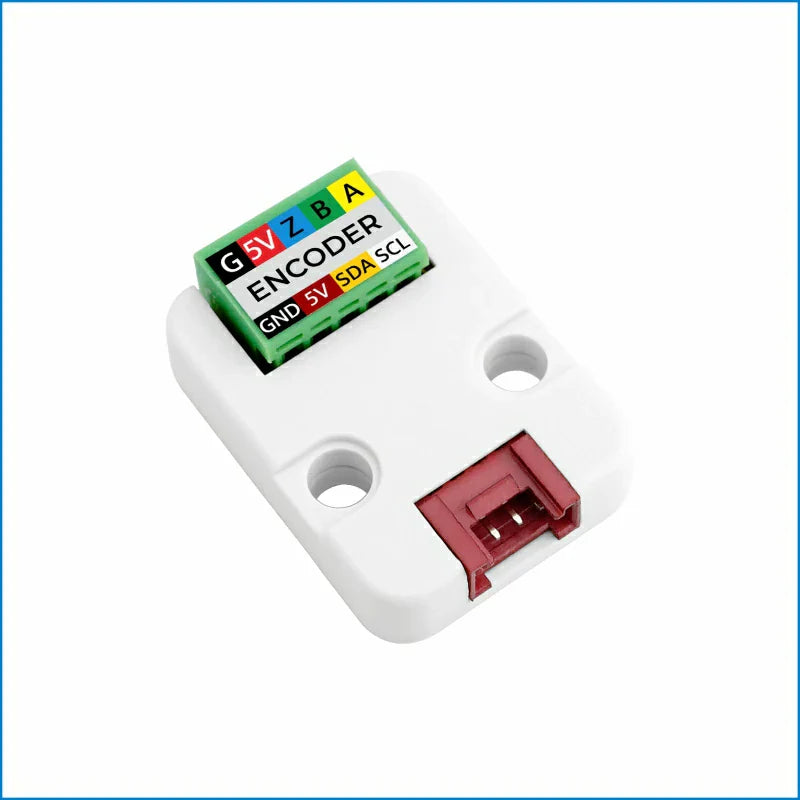

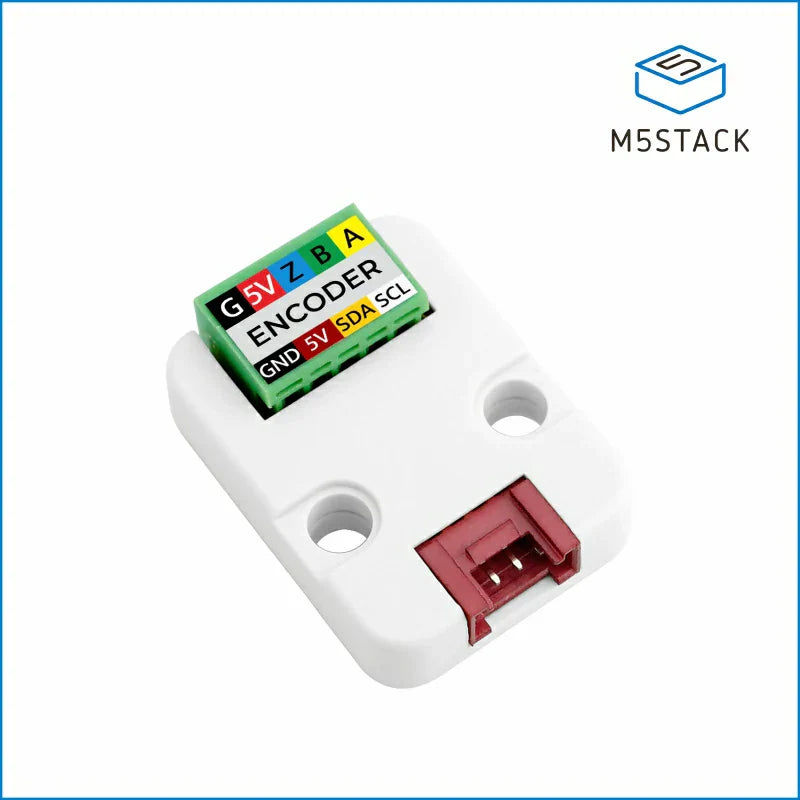

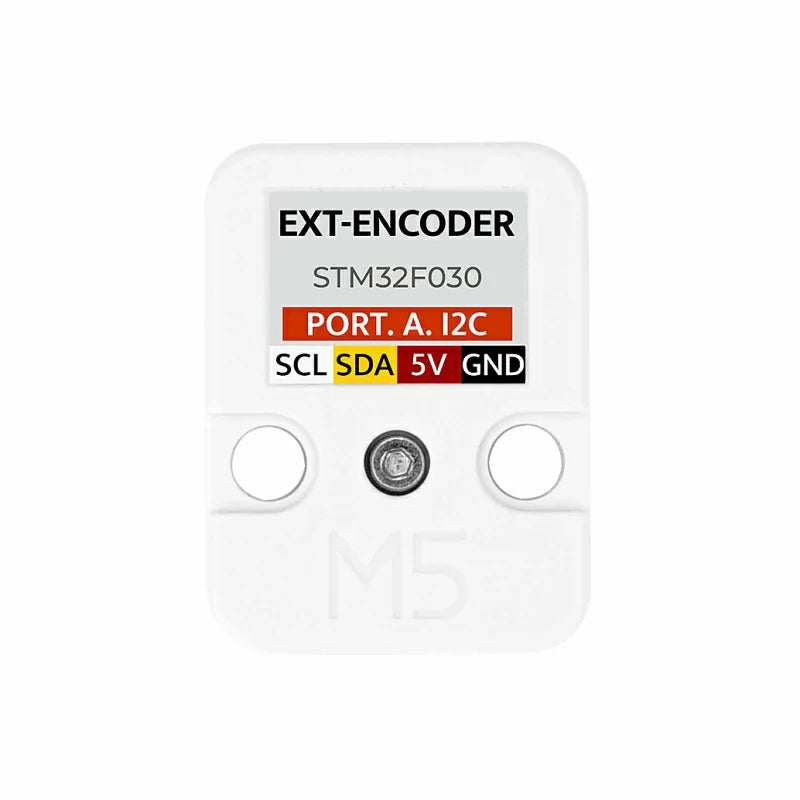

The M5Stack ExtEncoder Unit connects external incremental rotary encoders to an embedded host without dedicating multiple host GPIO pins to real-time quadrature decoding. It supports AB and ABZ signal input and uses an STM32F030F4P6 controller for local signal acquisition and decoding.

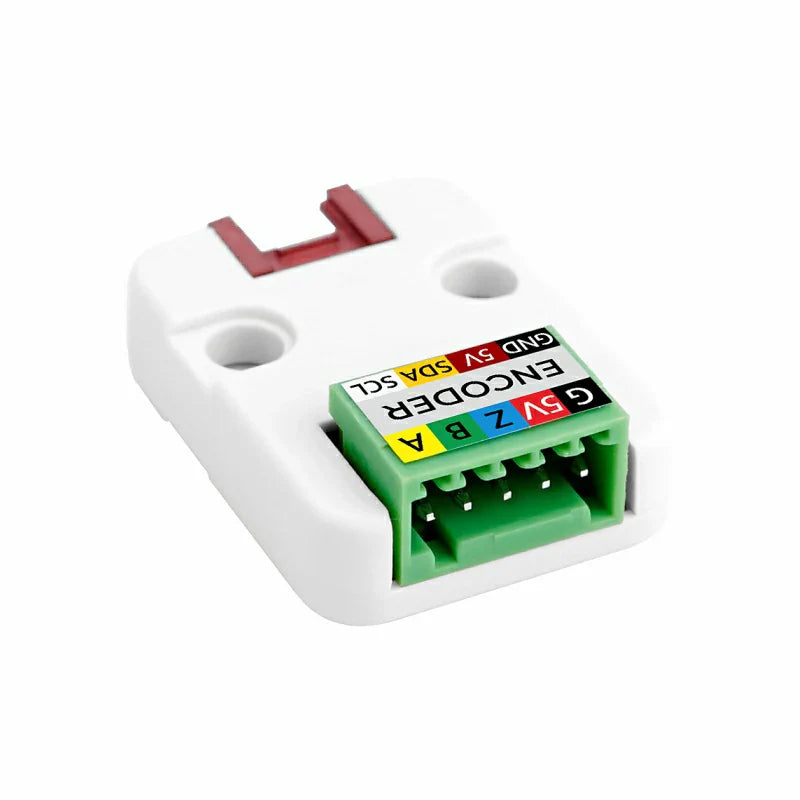

The host reads encoder data through I2C at address 0x59. This architecture is useful for measuring wheels, robotic joints, automated cutting equipment, conveyor position tracking, and other systems that need external encoder feedback.

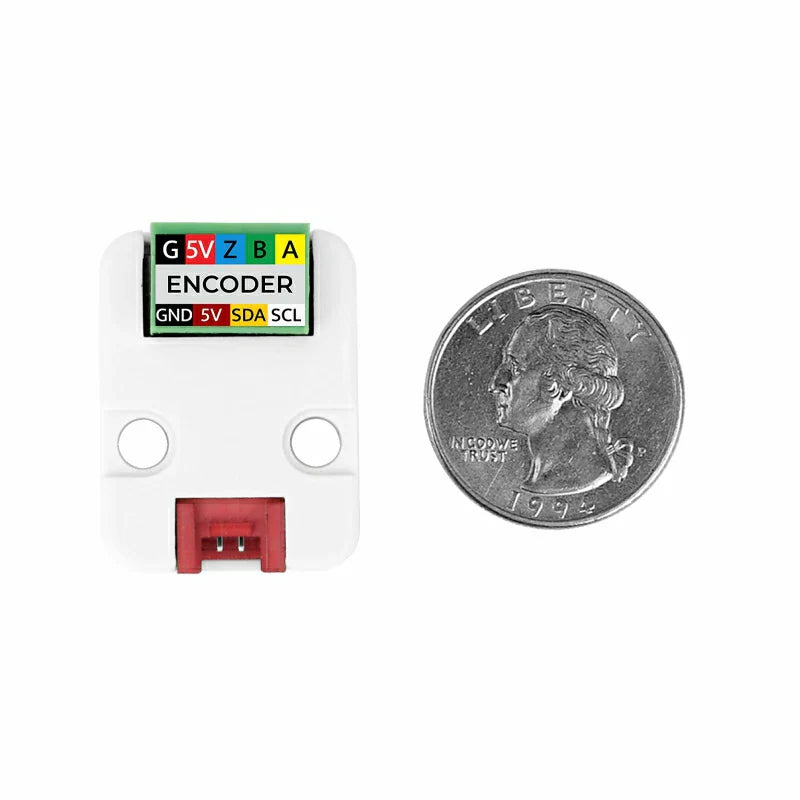

AB input provides quadrature direction and count information. ABZ input adds an index channel for applications that need a reference position. Confirm the external encoder output type, voltage levels, wiring, pulses per revolution, and mechanical coupling before integration.

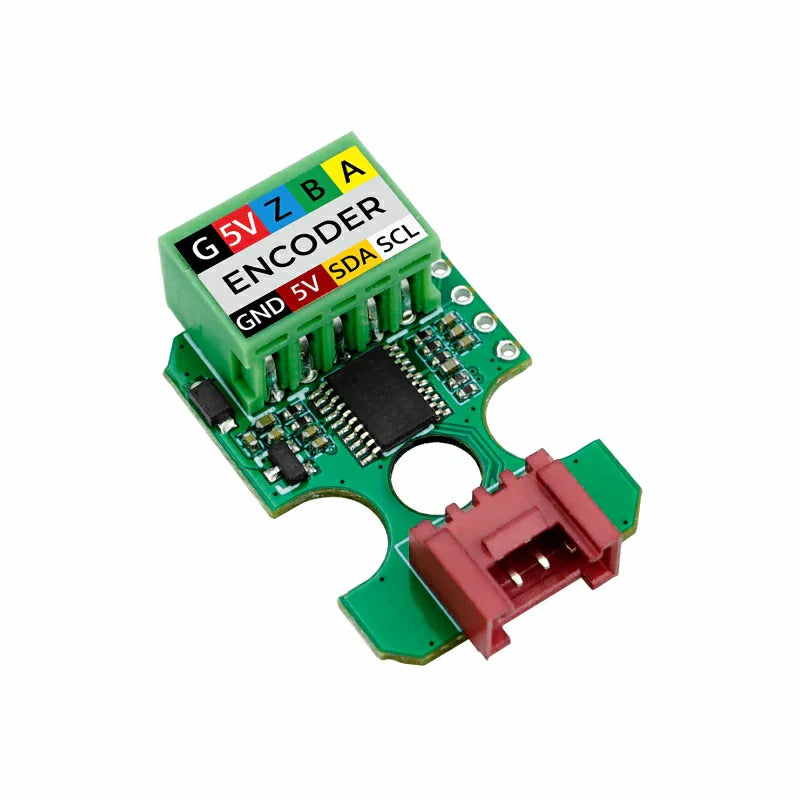

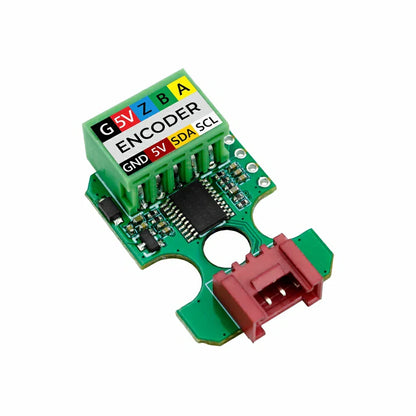

The onboard controller handles encoder signal processing and exposes values over I2C. This simplifies the host firmware and can reduce timing sensitivity compared with direct software decoding, but final measurement quality still depends on encoder quality, signal integrity, wiring, speed, and mechanical installation.
The product specification lists 12-bit sampling accuracy and I2C address 0x59. Before adding the unit to a shared bus, check address conflicts, pull-up resistance, cable length, bus capacitance, and grounding.
Use rigid mechanical coupling where required, avoid shaft misalignment, define index behavior explicitly, and verify count direction during commissioning. For safety-critical motion systems, a general-purpose encoder acquisition unit should not replace certified safety feedback or protective controls.
Technical setup details are available in the M5Stack ExtEncoder documentation.
