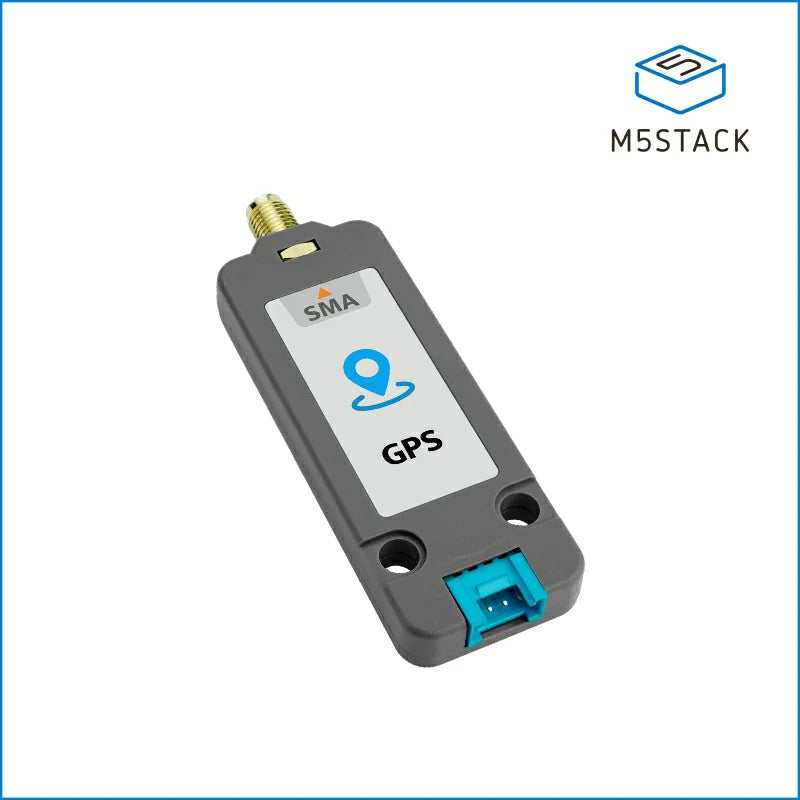

M5Stack GPS/BDS Unit with SMA Antenna (AT6668)

The M5Stack GPS/BDS Unit with SMA Antenna gives developers a compact multi-constellation GNSS input for vehicle logging, mobile robots, asset trackers, portable instruments, and location-aware IoT nodes. Its external active antenna can be positioned away from the controller enclosure for a clearer sky view, while the UART NMEA stream supplies position, speed, time, satellite, and fix-quality data that can be logged or combined with other sensor records.

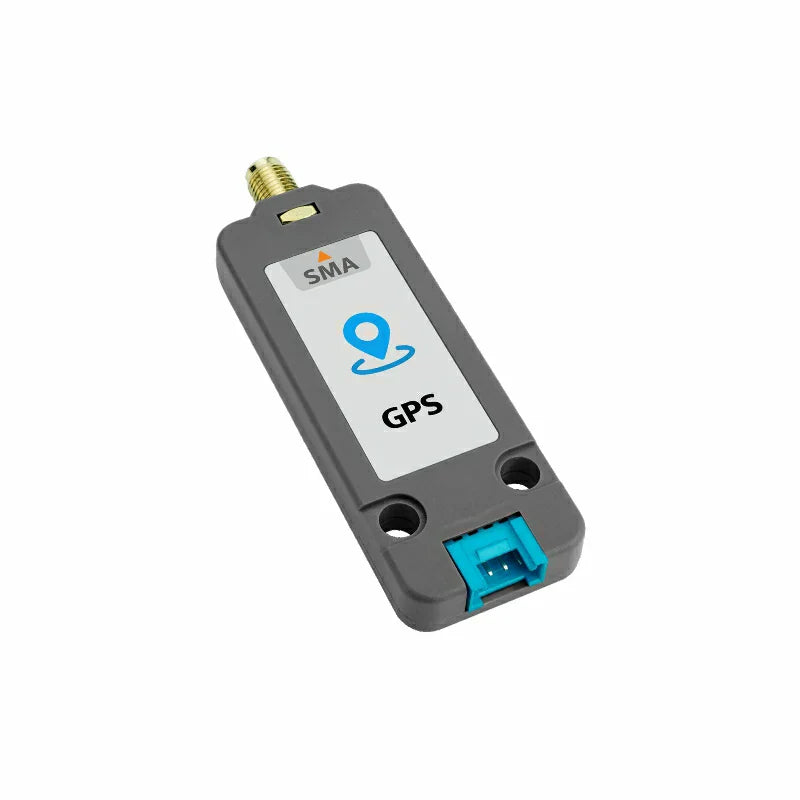

Add Multi-Constellation GNSS Positioning to M5Stack

The AT6668-based receiver can work with GPS, BeiDou, Galileo, GLONASS, and QZSS signals. Multi-system reception improves the number of usable satellites in many outdoor locations, but the final result still depends on antenna placement, obstructions, interference, and the receiver's current fix state.

Vehicle Logging, Asset Tracking and Time Synchronization

A vehicle data logger can combine latitude, longitude, speed, and UTC time with CAN, environmental, or motion data. A mobile robot can use the GNSS record for route history and geofencing while relying on other sensors for close-range navigation. Remote IoT equipment can also use the time output to timestamp measurements when network time is unavailable.

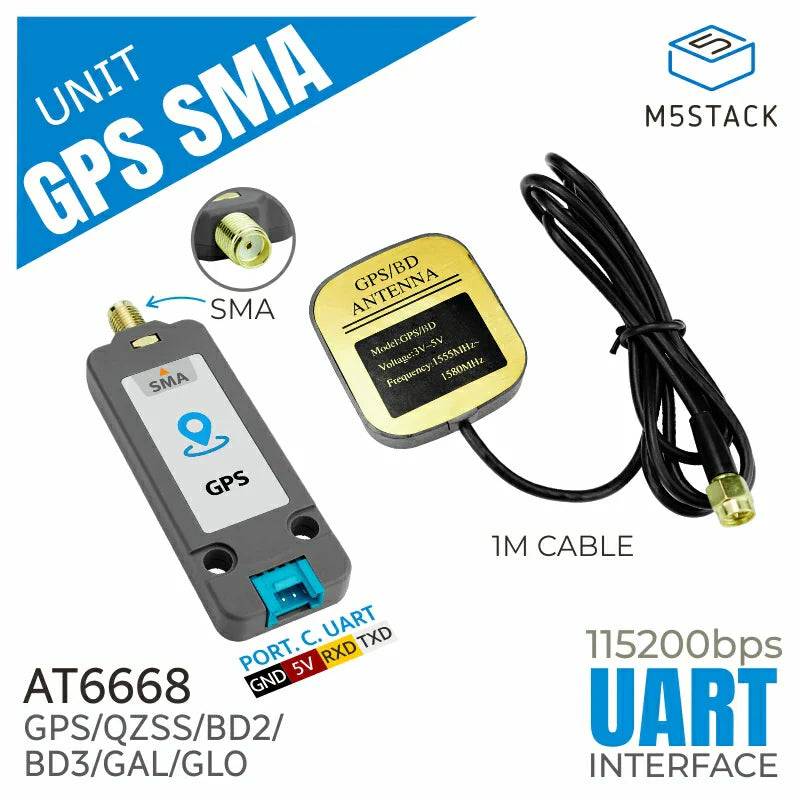

Install the GPS SMA Antenna and UART Link

Antenna Placement for Reliable Satellite Reception

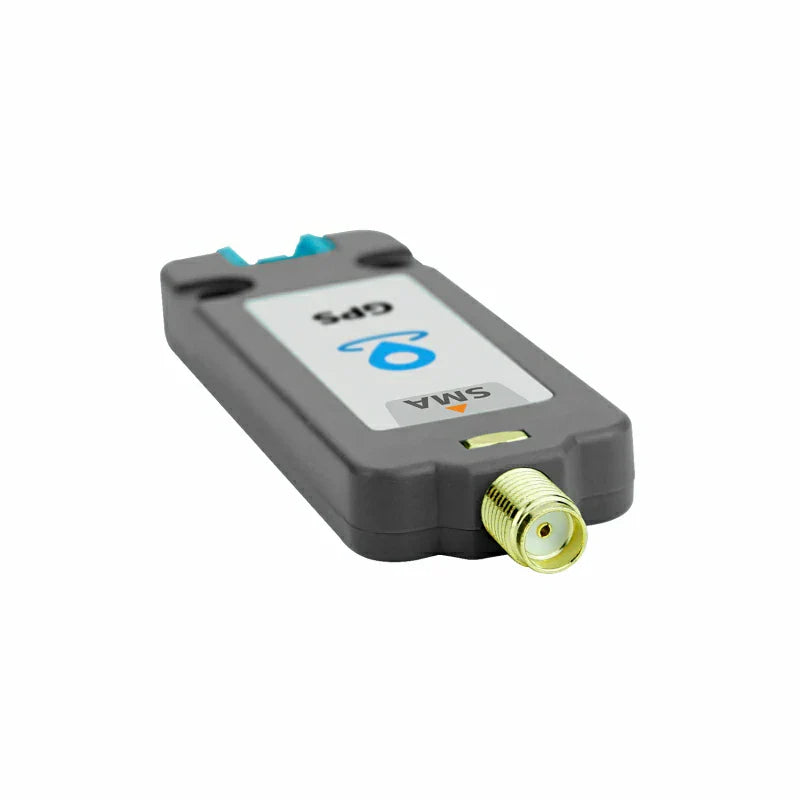

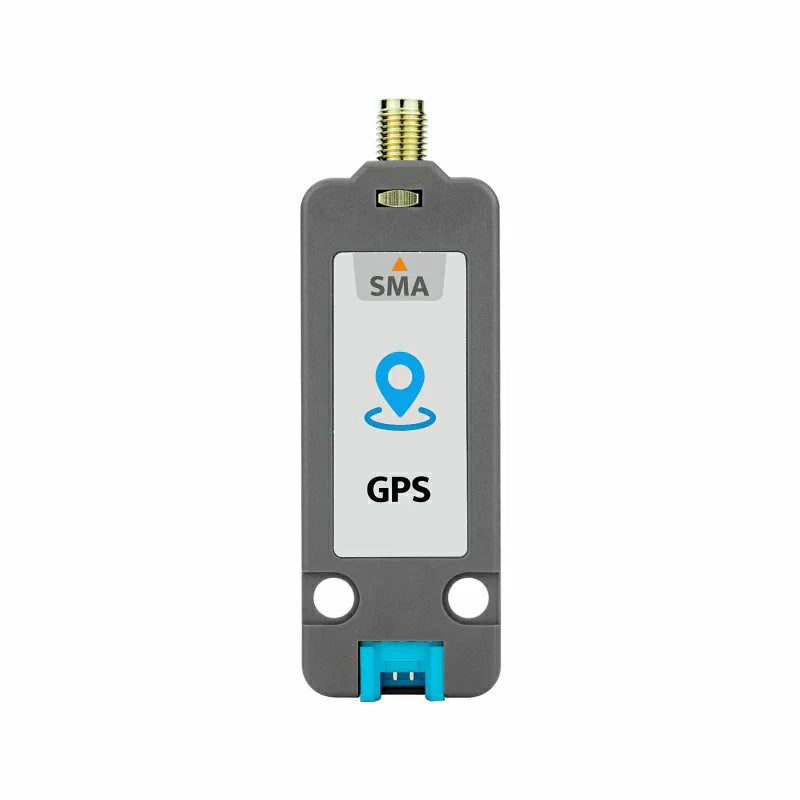

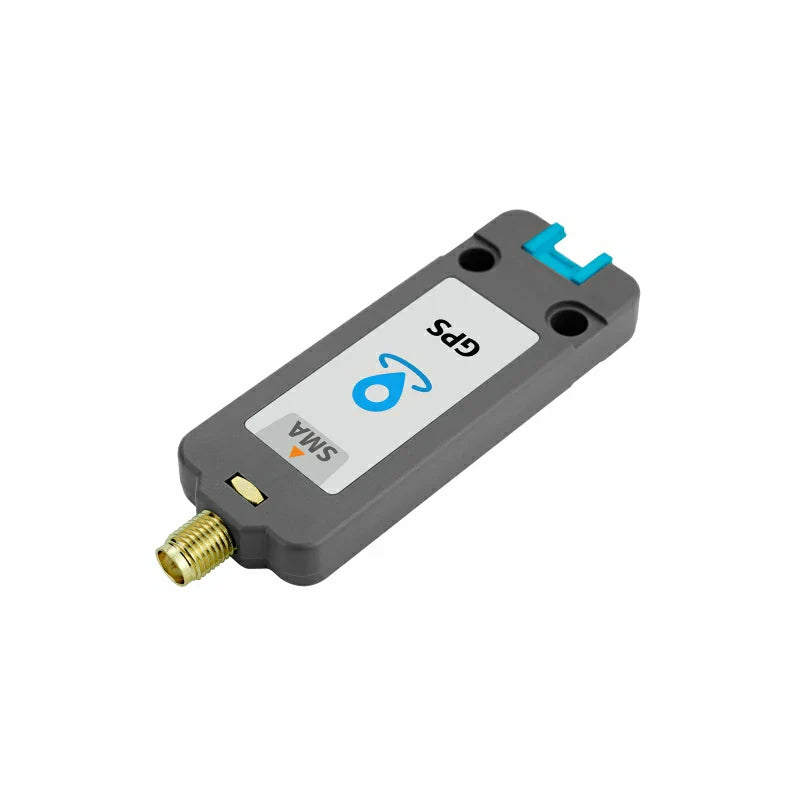

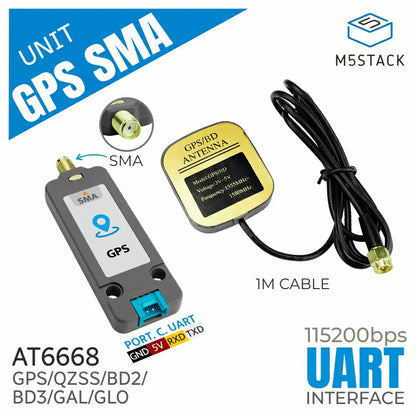

1. Connect the included active SMA antenna before testing the receiver.
2. Mount the antenna with a wide sky view and keep it away from motors, switching regulators, high-current wiring, and metal shielding.
3. Route the antenna cable without sharp bends or mechanical strain.
4. Test reception in the final enclosure and mounting position rather than only on an open workbench.

Parsing NMEA Data at 115200 Baud

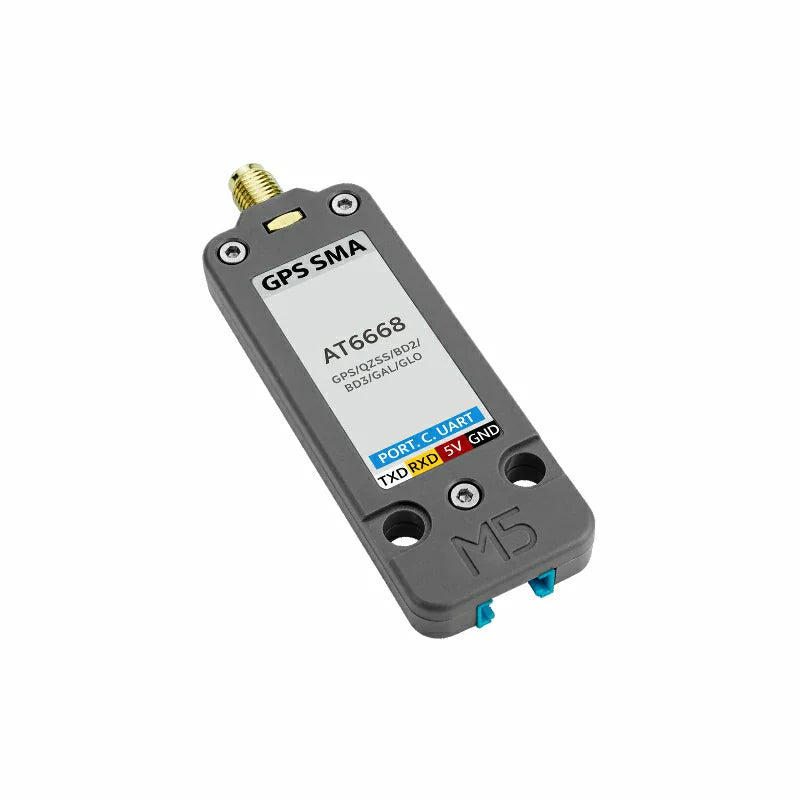

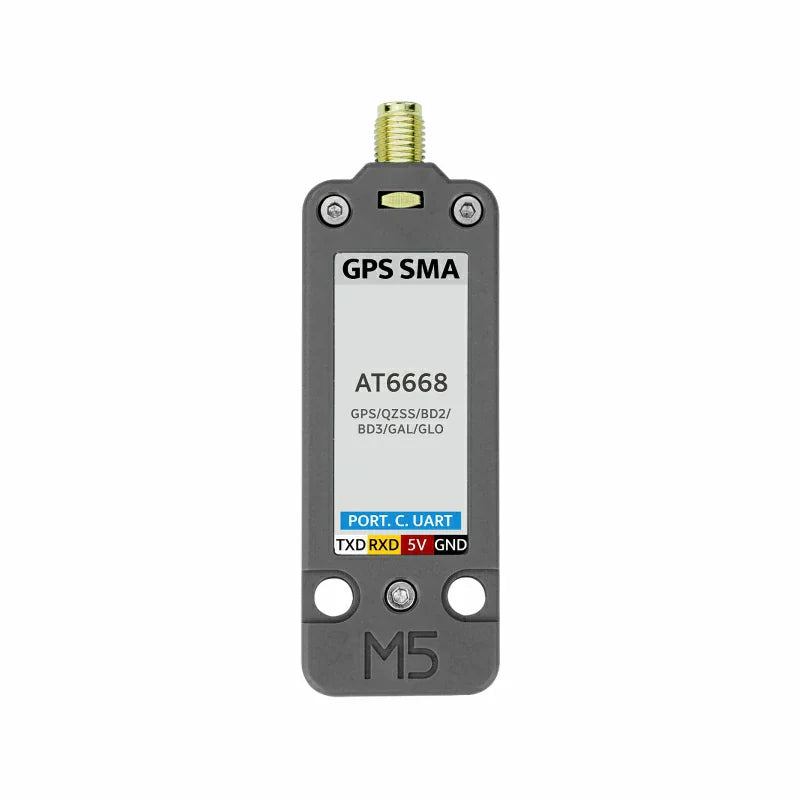

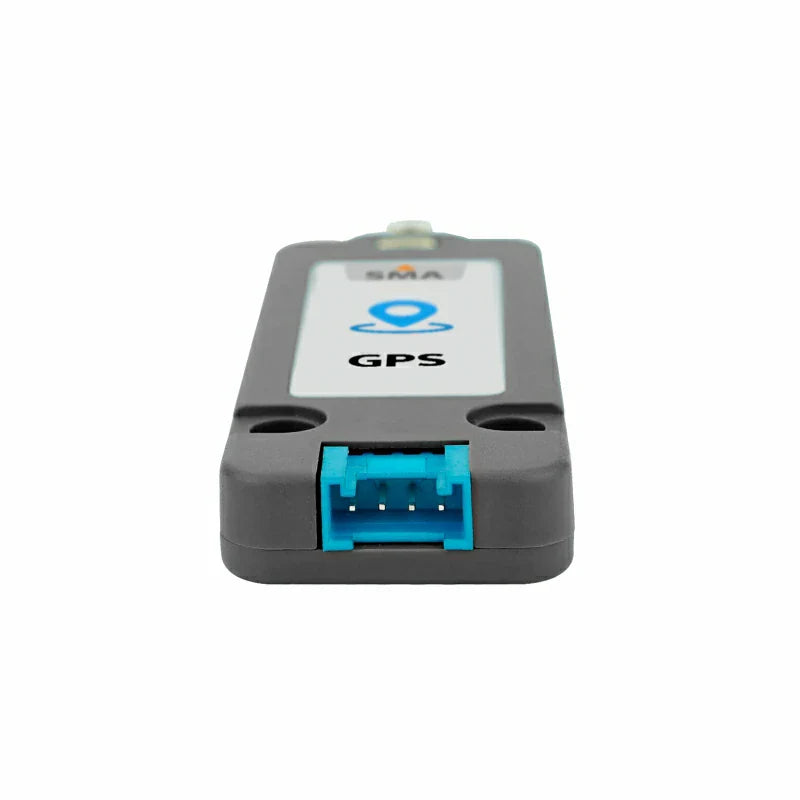

1. Connect the Grove UART interface and start with the documented 115200bps, 8N1 configuration.
2. Parse the required NMEA sentences and verify the fix-valid flag before accepting a location.
3. Record fix quality, satellite status, timestamp, and data age together with the coordinates.
4. Mark data as stale when the expected update interval is exceeded.

Example Mobile Data-Logger Workflow

1. Power the receiver and wait for a valid fix rather than using the first coordinate received.
2. Capture position, UTC time, speed, and fix-quality fields at the required rate.
3. Merge the GNSS record with local sensor data using the same timestamp reference.
4. When the fix becomes invalid, continue logging the fault state without treating the last location as current.
5. Resume normal route logging only after a valid fix returns and remains stable.

GNSS Accuracy and Deployment Constraints

• Indoor rooms, tunnels, dense foliage, urban canyons, and metal enclosures can delay or prevent a fix.
• Published accuracy is conditional and should not be treated as a guaranteed result at every site.
• Cold-start time is longer than a hot restart; design the user interface and logging state accordingly.
• RF noise and poor antenna placement can reduce satellite count and increase position error.
• Do not use this development GNSS unit as the sole navigation source for safety-critical vehicles or operations.

M5Stack GPS SMA Development Resources

• M5Stack Unit GPS SMA documentation
• UiFlow2 development environment
• Arduino IDE
