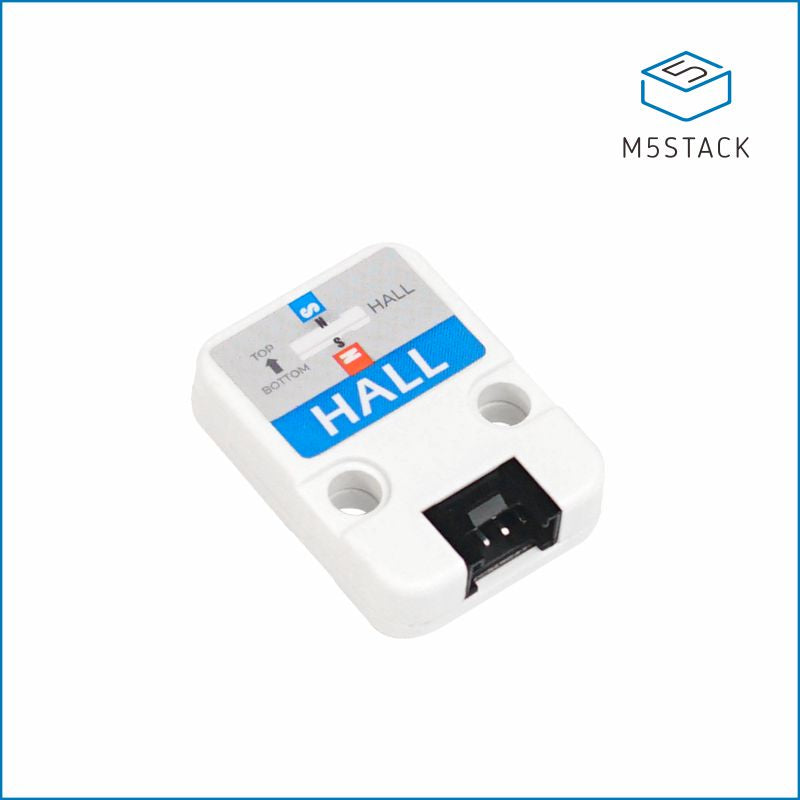

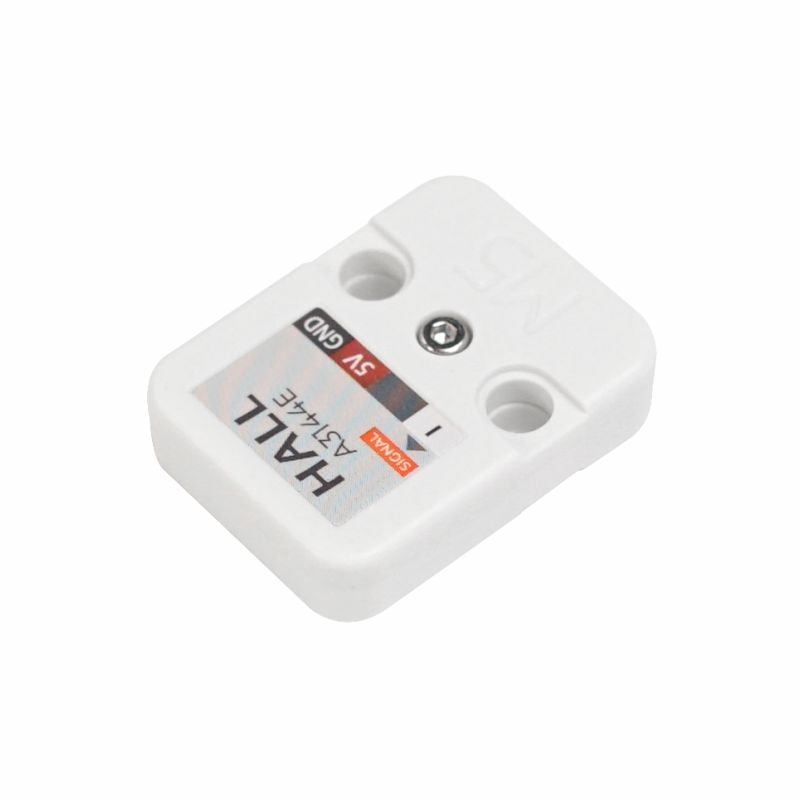

M5Stack Hall Unit – A3144E Magnetic Sensor | U084

M5Stack Hall Unit – A3144E Magnetic Sensor | U084

LB-M5-U084

20 in stock
$8.50 USD
$8.50 USD $5.95 USD

Key Features

  • 3 × A3144E unipolar Hall switches
  • 74HC08D onboard logic
  • Low-level active digital output
  • Red detection indicator LED

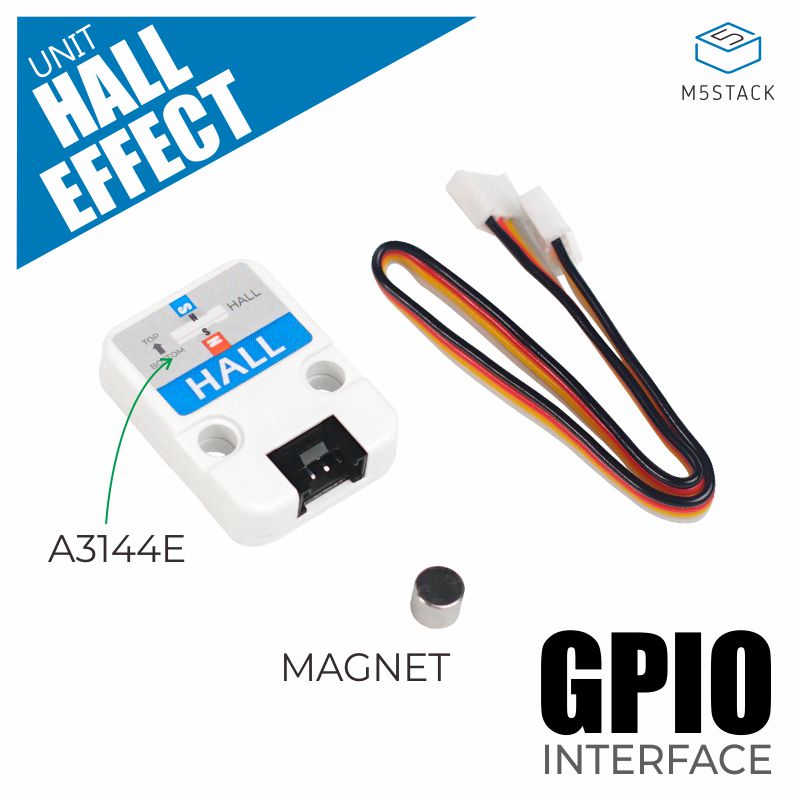

  • Supplied magnet for setup

The M5Stack Hall Unit detects a nearby magnet without mechanical contact, making it useful for door, lid, position, wheel-pulse, and rotational-event sensing. Three A3144E unipolar Hall switches feed onboard 74HC08D logic and produce a low-active digital output with a red indicator LED. Reliable operation depends on magnet pole orientation, alignment, enclosure material, and installed switching distance, so the final mechanism should be tested before thresholds or safety-related actions are assigned.

Detect Magnetic Position with the M5Stack Hall Unit

Sense a Magnet with Three A3144E Switches

The three unipolar Hall switches provide a contactless digital detection state when the correct magnetic pole approaches.

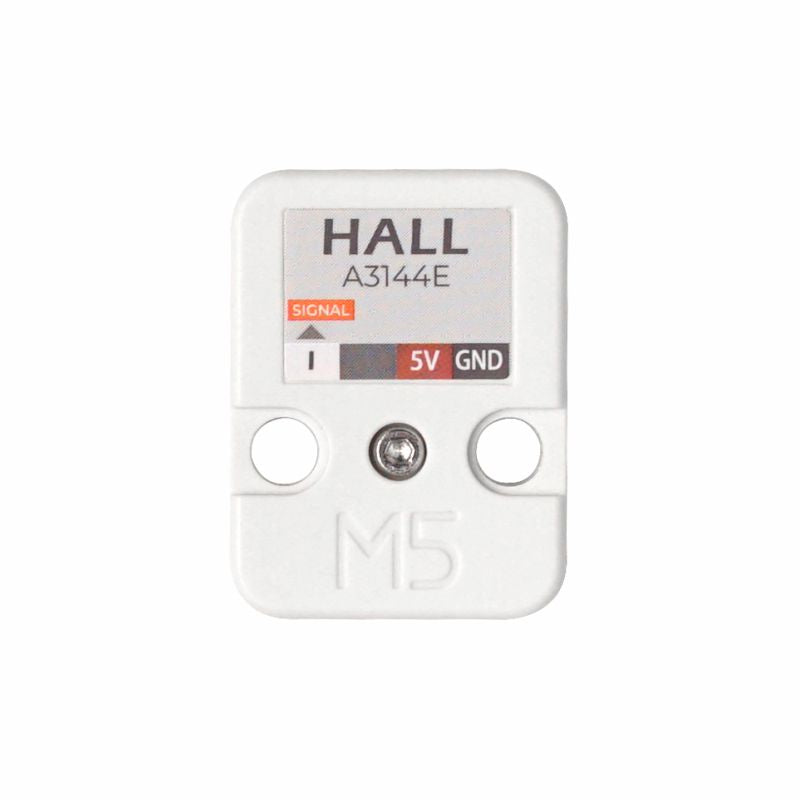

Read a Low-Active Digital Output

The onboard logic combines the sensor state into a low-level active output for a host GPIO.

Verify Magnet Orientation and Installed Distance

Use the supplied magnet and test the complete mechanical travel because pole direction, alignment, and mounting affect switching.

What You Can Build with M5Stack Hall Unit

  • Door and lid detection
  • Contactless position switches
  • Wheel-speed pulse detection
  • Rotational event counting
  • Magnetic proximity sensing

Integration and Workflow

  1. Mount the magnet and sensor so the correct pole approaches the intended face.
  2. Connect the Grove cable to a compatible digital input and confirm the low-active logic.
  3. Move the mechanism through its full travel and verify switching after final enclosure assembly.
  4. Apply debounce or stable-state timing before logging or acting on each transition.

Deployment Notes

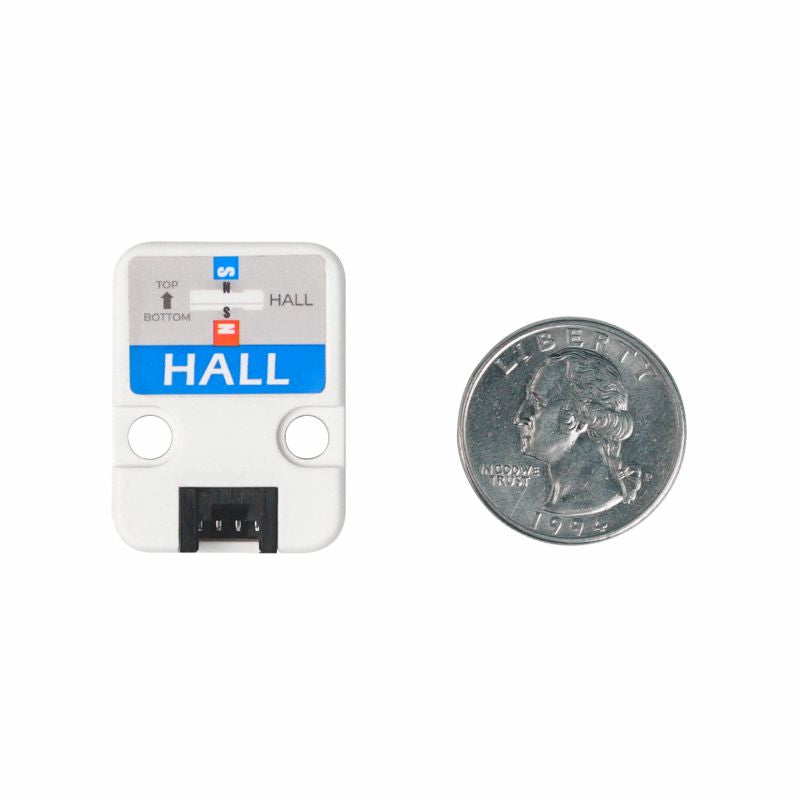

  • The S pole should approach the front, or the N pole should approach the rear.
  • Switching distance varies with magnet strength, alignment, enclosure material, and temperature.
  • The output indicates magnetic proximity; it does not measure field strength.
  • The unit is not a certified guard switch or safety interlock.
