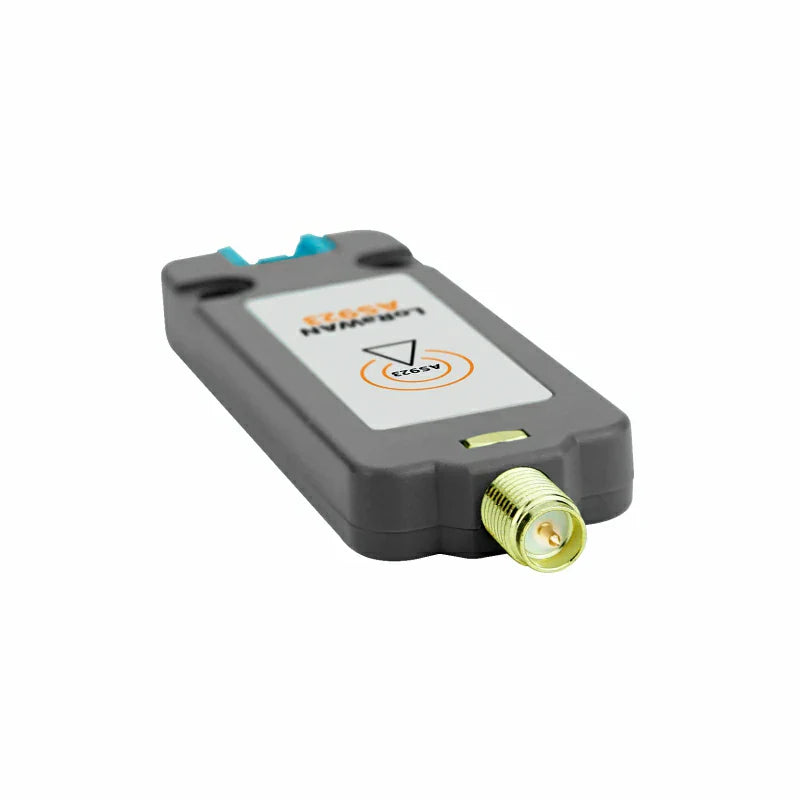

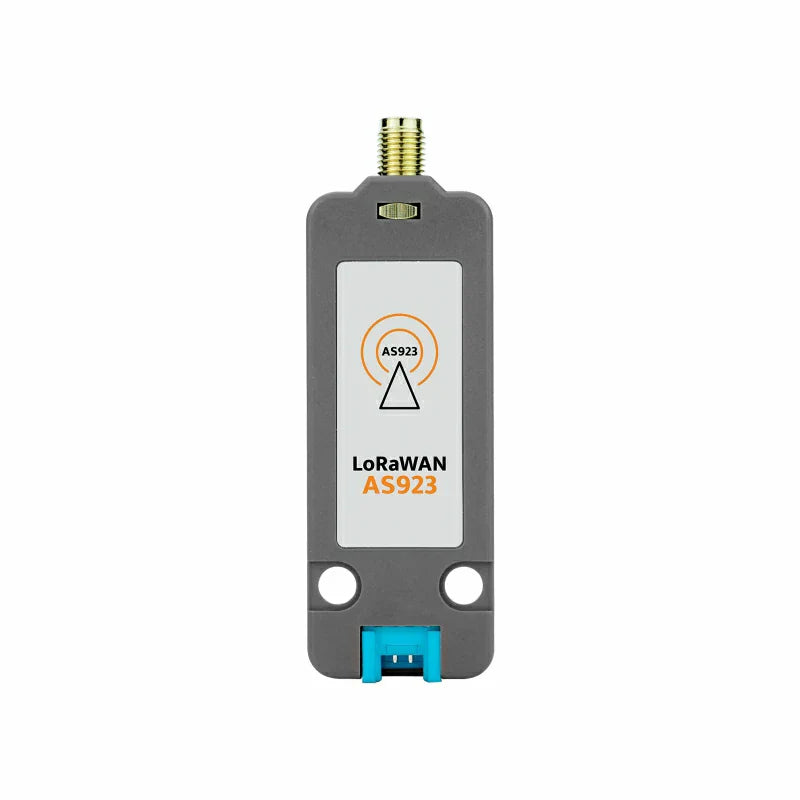

M5Stack LoRaWAN Unit AS923 (STM32WLE5) with Antenna

M5Stack LoRaWAN AS923 Unit for Regional IoT Networks

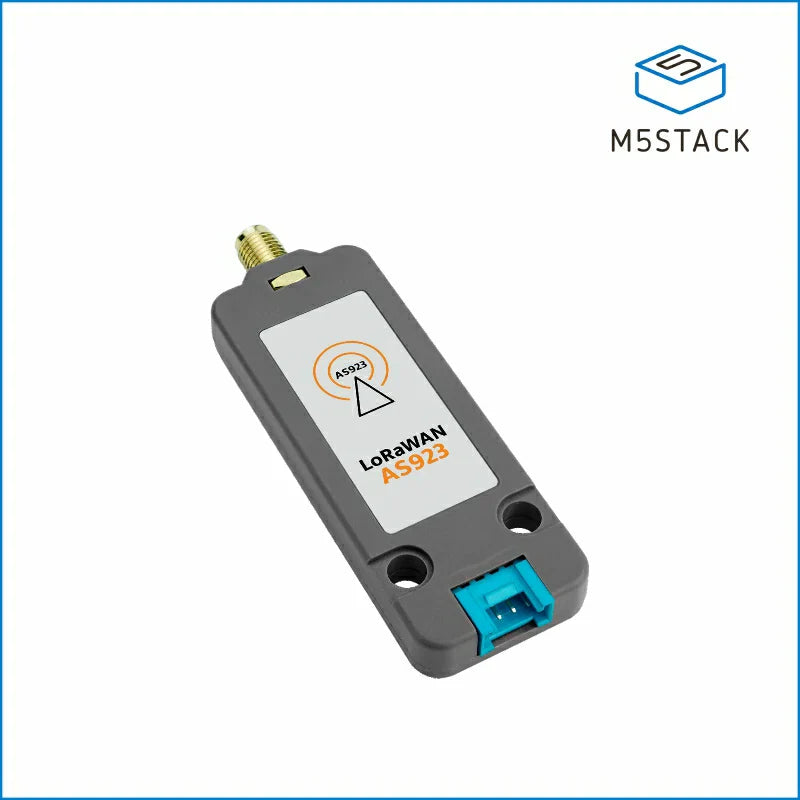

M5Stack LoRaWAN Unit AS923 adds long-range wireless communication to embedded controllers, sensor nodes, and remote monitoring equipment that operate on the AS923 923–925 MHz band. Built around STM32WLE5, it combines LoRa radio capability with LoRaWAN 1.0.3 support, Class A, B, and C operation, OTAA and ABP activation, and direct LoRa P2P communication. A host controller communicates through UART at a default 115200 baud rate and can configure the module with AT commands.

Confirm AS923 Compatibility Before Deployment

Check the gateway region, network-server channel plan, and local radio rules before installation. M5Stack LoRaWAN AS923 is intended for compatible AS923 deployments and should not be treated as an interchangeable substitute for EU868, US915, or CN470 hardware. Matching the regional frequency plan first prevents wasted debugging time when a node cannot join, receives no downlink, or appears to have poor range despite correct application credentials.

Choose LoRaWAN Network Mode or Direct P2P

M5Stack LoRaWAN supports gateway-based LoRaWAN communication for distributed nodes and direct P2P links for local device-to-device exchange. Use LoRaWAN when data must pass through a compatible gateway and network server. Use P2P when two endpoints need a direct radio path without network infrastructure. This flexibility makes the same module practical for field prototypes, local alarm links, and managed telemetry networks.

Integrate Through UART and AT Commands

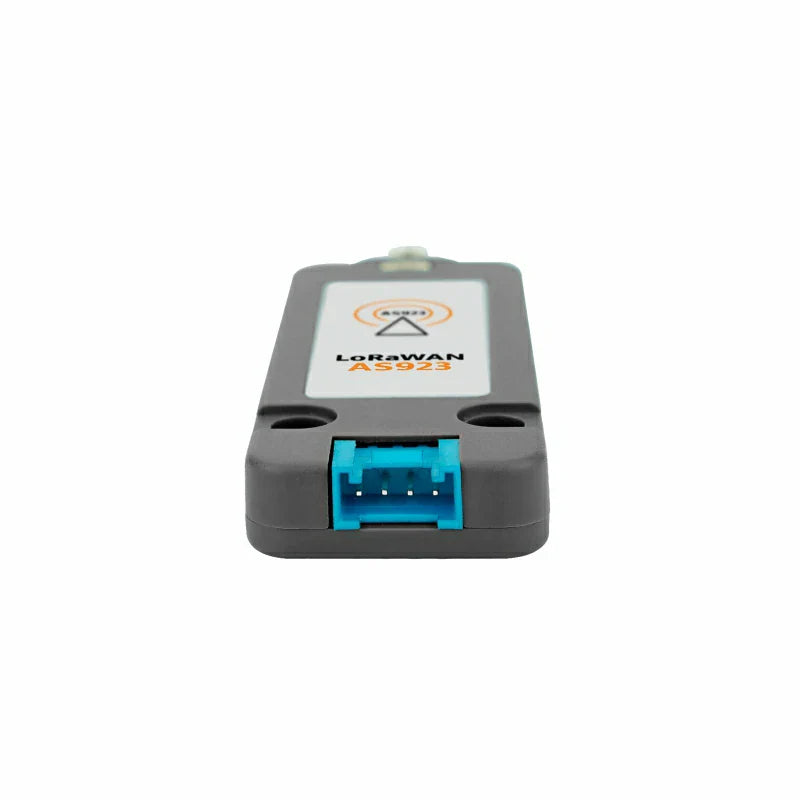

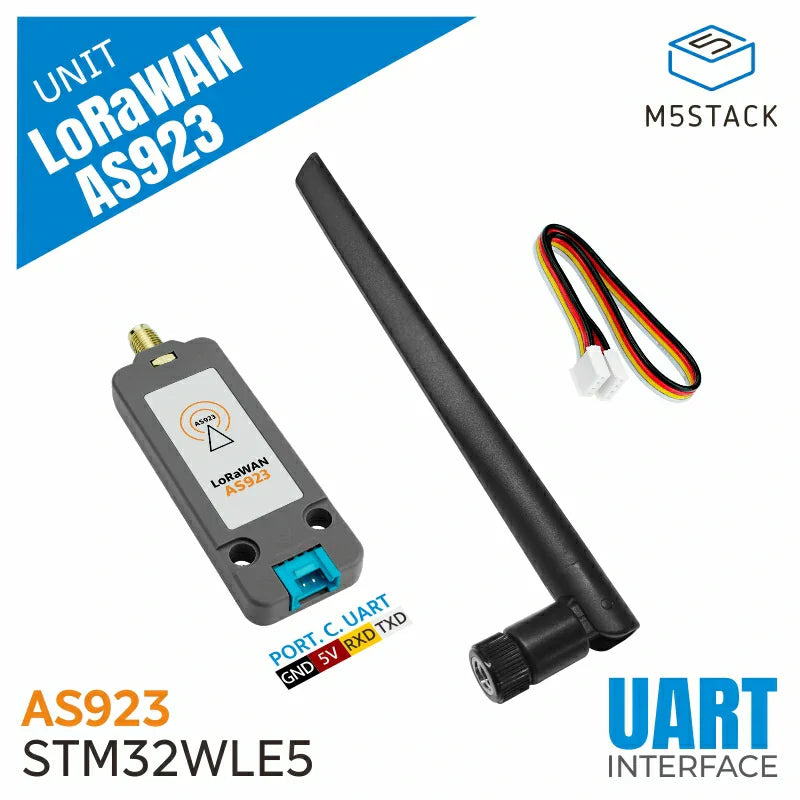

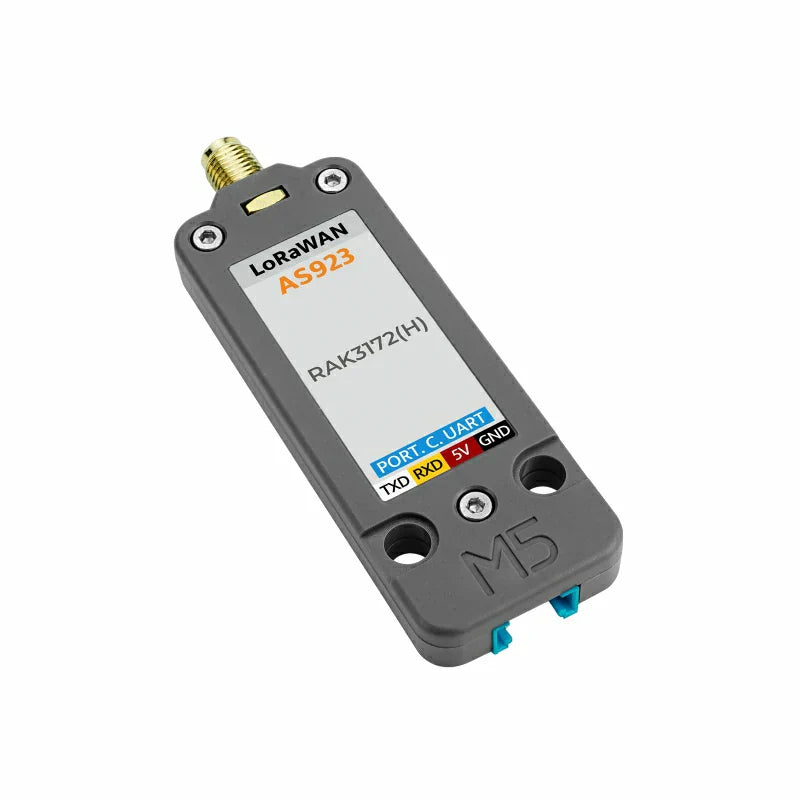

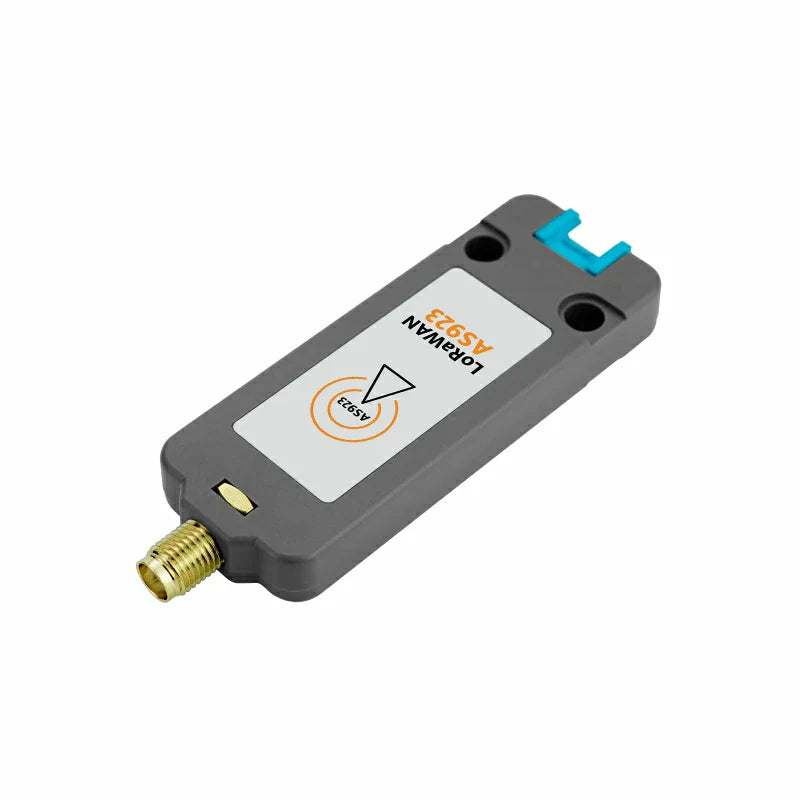

M5Stack LoRaWAN keeps radio configuration separate from the main application by exposing a UART interface. The included 20 cm HY2.0-4P Grove cable simplifies connection to compatible hosts, while custom controllers can integrate the serial signals into their own wiring. AT commands support network activation, radio settings, transmission workflows, and troubleshooting without requiring the host application to implement the complete LoRaWAN stack.

Select Class A, B, or C for Response and Power Needs

M5Stack LoRaWAN supports Class A, Class B, and Class C. Class A fits periodic battery-powered reporting with limited receive windows. Class B adds scheduled receive opportunities. Class C keeps receive windows available more continuously for faster downlink response, with higher energy use. Select the class around actual wake intervals, downlink requirements, and power budget rather than using one mode for every node.

Plan Real-World Range and Power Consumption

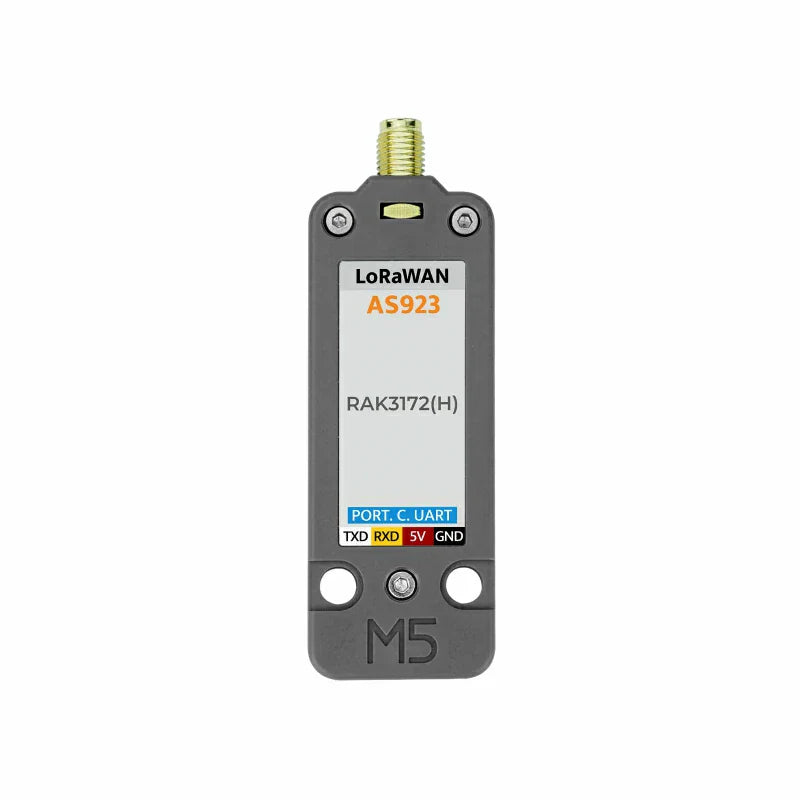

P2P tests reach up to 2300 m at 125 Kbps and 1300 m at 500 Kbps under stated conditions. M5Stack LoRaWAN range in a real site depends on antenna placement, obstacles, interference, data rate, installation height, and link budget. The included 50-ohm rubber duck antenna is rated at 2.3 dBi and uses an SMA male connector.

For low-power designs, M5Stack LoRaWAN uses about 28.61 µA in sleep mode at 5 V and 7.23 mA in idle state. Battery sizing should also include the host controller, sensors, regulator losses, reporting frequency, retries, and transmit duty cycle. Do not estimate runtime from module sleep current alone.

Applications for M5Stack LoRaWAN AS923

Remote Agriculture and Environmental Nodes

M5Stack LoRaWAN can carry compact sensor payloads from soil monitoring, irrigation status, greenhouse equipment, weather stations, air-quality nodes, and water-level alarms. Long-range radio can reduce new signal cabling where sensor points are dispersed across a site.

Industrial Telemetry and Distributed Alarms

M5Stack LoRaWAN also fits periodic meter readings, equipment status, threshold alarms, and remote asset monitoring when payloads are small and communication distance matters more than high throughput. For gateway deployments, verify AS923 settings on both the gateway and network server before debugging application code.

Development Resources

Start by connecting the antenna before radio tests, checking UART wiring, confirming the AS923 channel plan, and selecting OTAA, ABP, or P2P. Continue development with technical documentation and the platform tools that match the host controller.

• Technical Documentation
• UiFlow1
• UiFlow2
• Arduino IDE

M5Stack LoRaWAN setup becomes easier to maintain when channel settings, activation mode, antenna placement, firmware version, and node credentials are documented before field installation and later troubleshooting.
