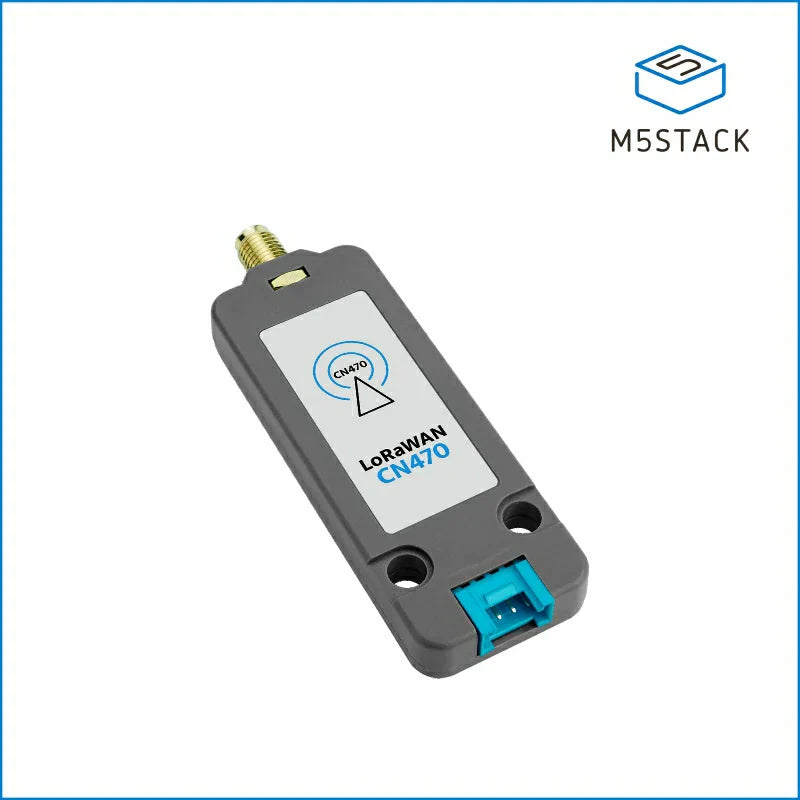

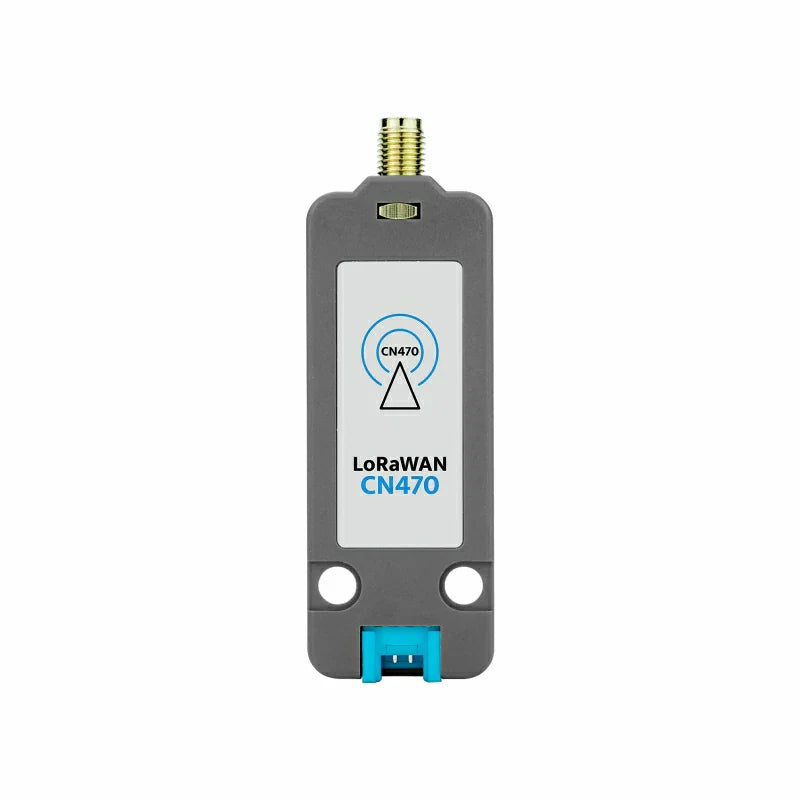

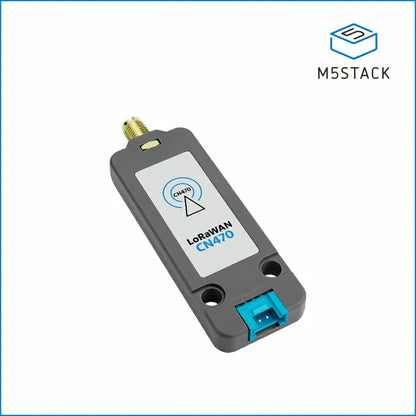

M5Stack LoRaWAN Unit CN470 (STM32WLE5) with Antenna

M5Stack LoRaWAN CN470 Unit for Long-Range IoT Nodes

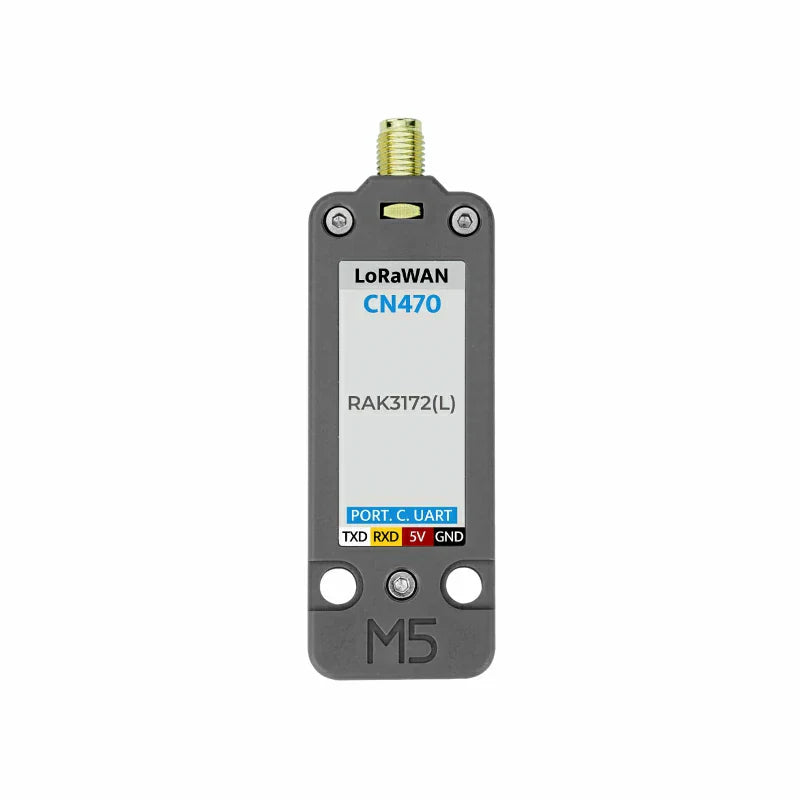

M5Stack LoRaWAN Unit CN470 gives you a practical way to add long-range wireless communication to remote sensors and embedded controllers. Built around STM32WLE5, the module supports the CN470 470–510 MHz band, LoRaWAN 1.0.3, Class A, B, and C operation, OTAA and ABP activation, plus direct LoRa P2P links. You can connect a host through UART and configure the module with AT commands.

Choose the Right CN470 LoRaWAN Hardware

Before ordering, confirm that your gateway, network server, and deployment region use a compatible CN470 channel plan. M5Stack LoRaWAN is not a substitute for EU868 or US915 hardware. A frequency-plan mismatch can look like failed credentials, weak coverage, or incorrect firmware. Confirm regional compatibility first, then plan antenna position, node class, power source, and reporting intervals.

Connect Through UART and AT Commands

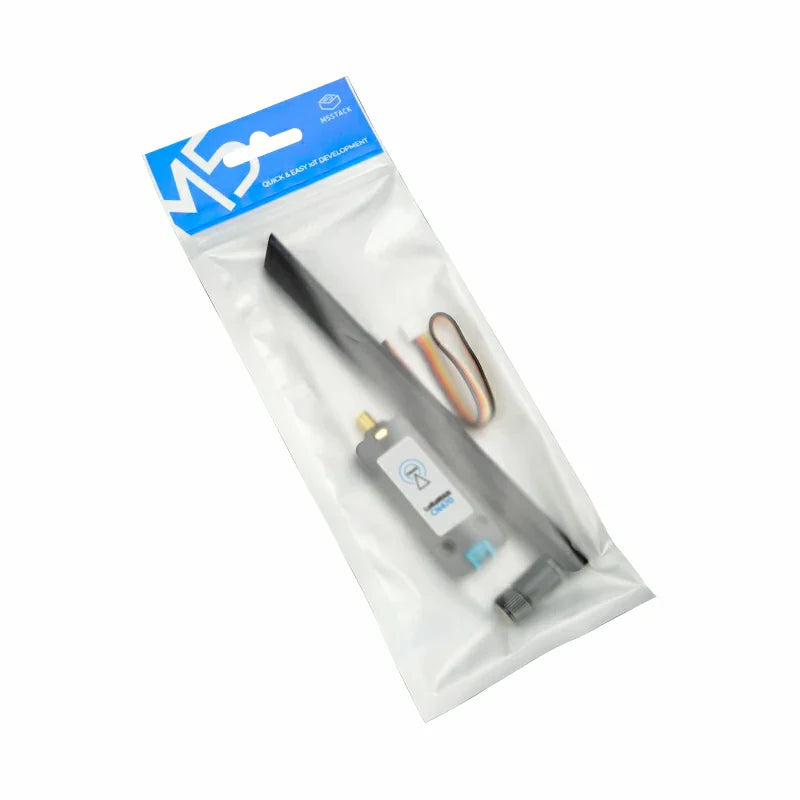

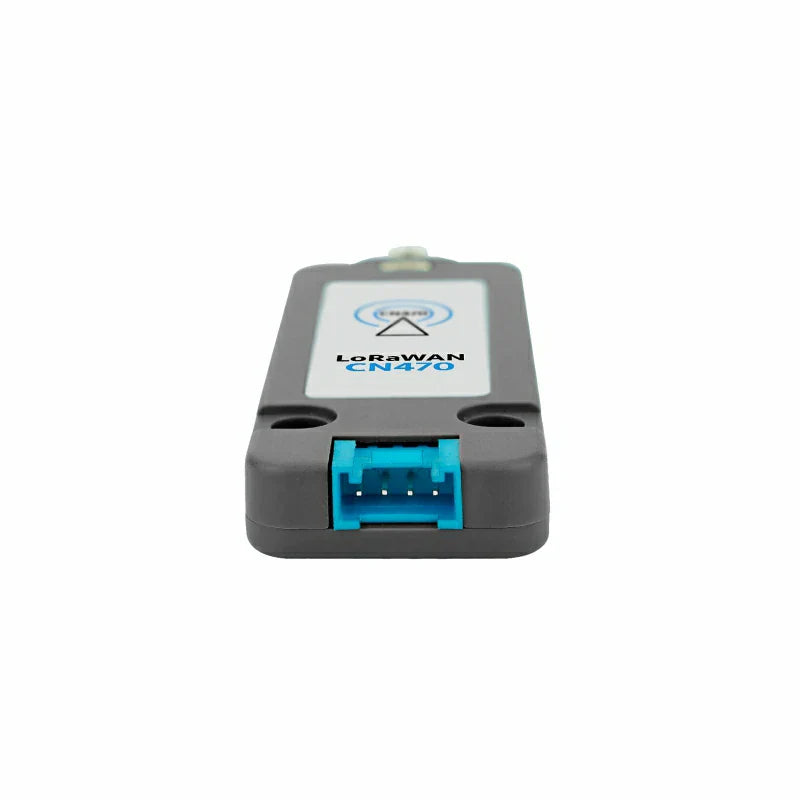

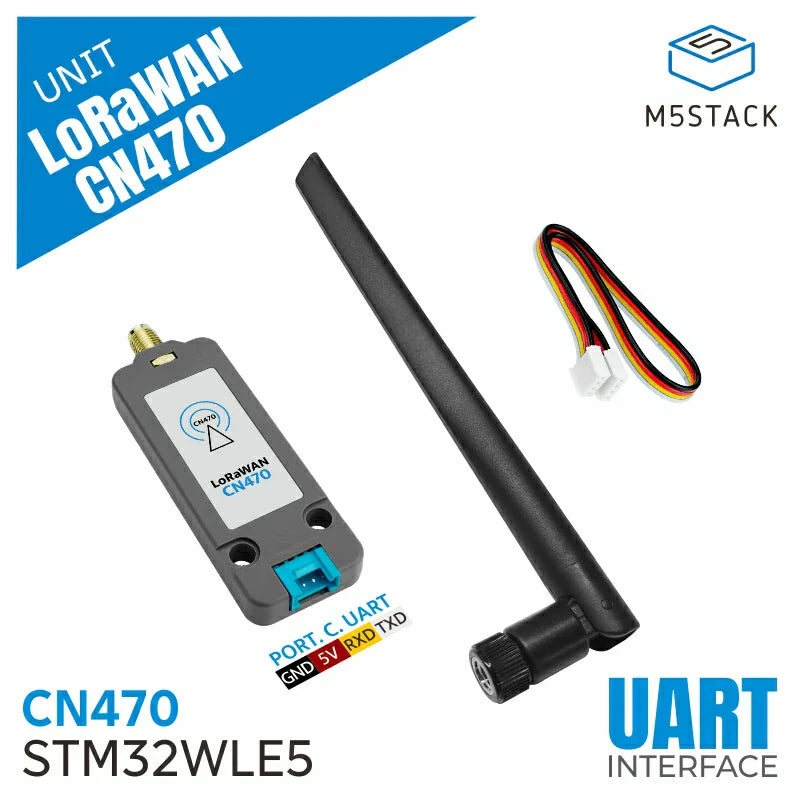

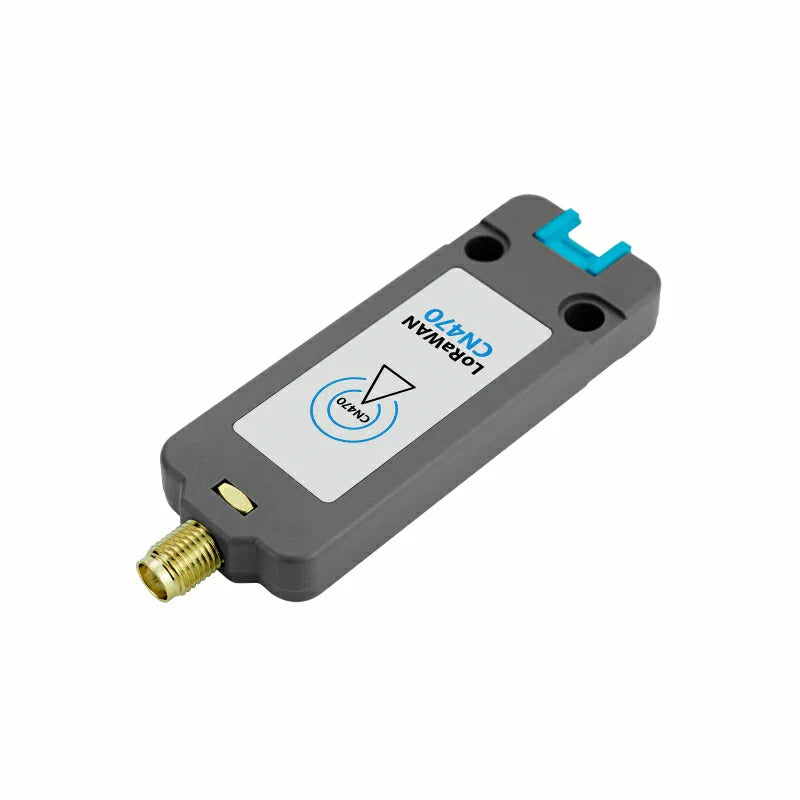

M5Stack LoRaWAN communicates through UART at a default 115200 baud rate. That lets you keep sensor logic on your existing controller while using the module for network joining and radio communication. The included 20 cm HY2.0-4P Grove cable supports a faster start with compatible M5Stack hosts, while developers can integrate the serial interface into custom systems. For teams searching for a m5stack lorawan example, the official documentation, Arduino resources, and AT command manual provide a clear development path.

Use LoRaWAN Networks or Direct P2P Links

Choose network mode when you need distributed nodes to report through a compatible CN470 gateway and network server. Choose P2P when two devices need a direct local link without a gateway. M5Stack LoRaWAN helps you prototype managed IoT networks and device-to-device communication. When comparing m5stack lora options, decide whether your project needs gateway-based reporting, direct P2P communication, or both.

Select Class A, B, or C for Your Power Profile

M5Stack LoRaWAN supports Class A, Class B, and Class C. Class A suits battery-powered nodes that transmit periodically and open limited receive windows. Class B adds scheduled receive opportunities. Class C keeps receive windows available more continuously for responsive downlinks, with higher power use. This flexibility lets you match communication behavior to your actual device instead of forcing every node into the same pattern.

Where This CN470 Unit Fits Your Project

Smart Agriculture and Environmental Monitoring

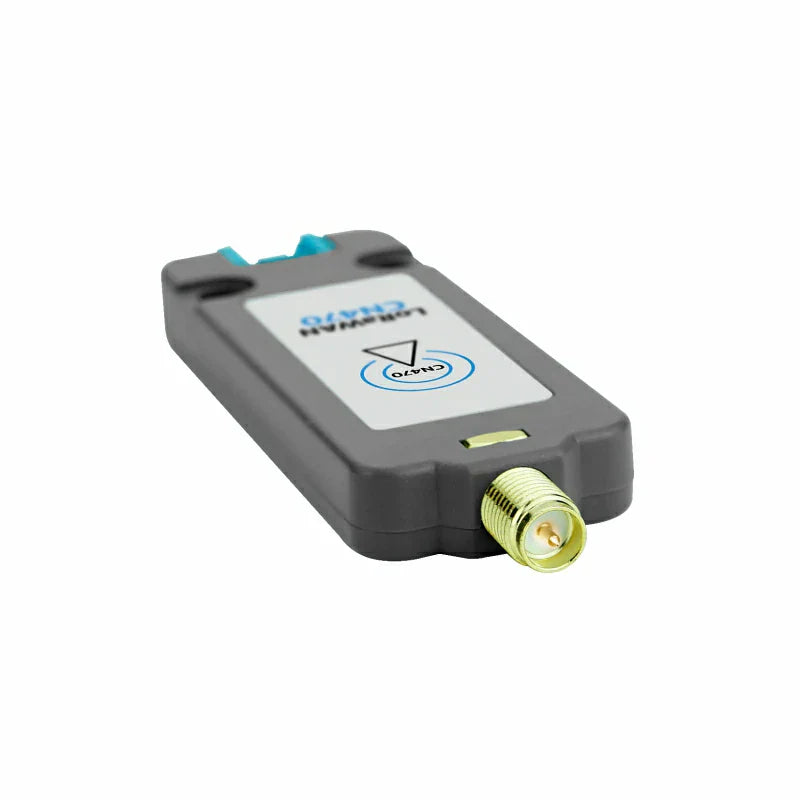

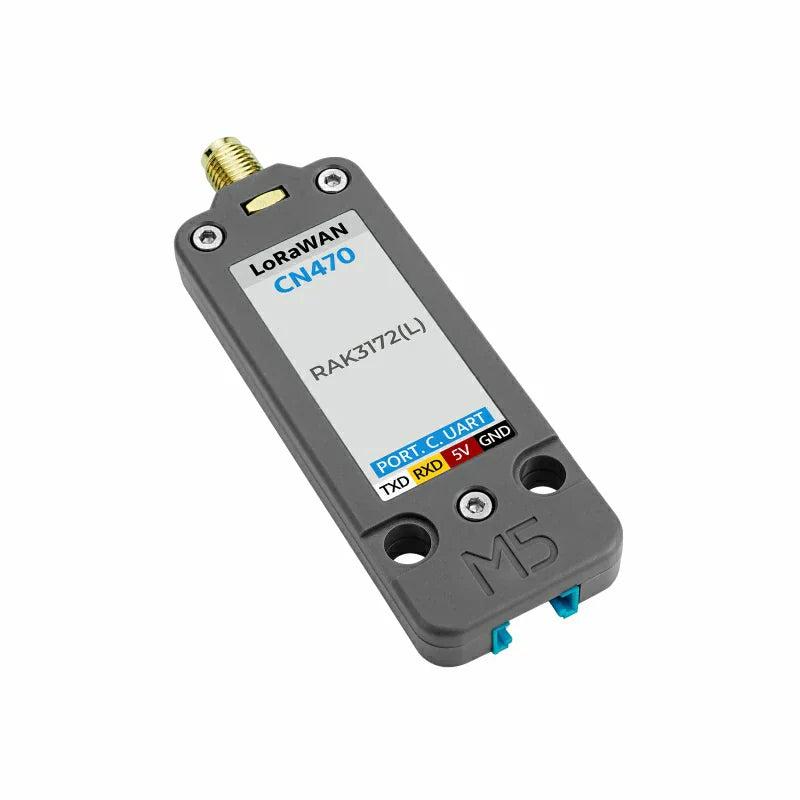

Use M5Stack LoRaWAN for soil sensors, irrigation status, greenhouse monitoring, weather stations, air-quality nodes, or water-level alerts. Long-range communication can reduce the need for new signal cabling across large sites. The compact enclosure and external SMA antenna make the module easier to place inside a larger field device.

Industrial Telemetry and Remote Alarms

For factories, warehouses, utilities, and remote equipment, M5Stack LoRaWAN can carry equipment status, meter readings, threshold alarms, and periodic telemetry. The module is useful when your data payload is small but the communication distance is larger than typical short-range wireless links. You can select OTAA or ABP according to your network workflow.

Plan Low-Power Nodes with Real Current Data

The module is specified at about 28.61 µA in sleep mode at 5 V and 7.23 mA in idle state. M5Stack LoRaWAN can fit low-power remote nodes, but your battery calculation should include the host controller, sensors, wake interval, transmit duty cycle, data rate, and environmental conditions.

Getting Started with M5Stack LoRaWAN

For your first M5Stack LoRaWAN setup, connect the antenna before radio testing, verify UART wiring, confirm the CN470 channel plan, and choose OTAA, ABP, or P2P. For gateway deployments, check gateway region settings before debugging application code.

Use these technical resources for hardware integration, firmware development, protocol configuration, and troubleshooting:

• Product Documentation
• Schematic PDF
• Datasheet PDF
• Arduino Resources
• AT Command Manual PDF
• UiFlow1
• UiFlow2
• Arduino IDE
