M5Stack MIC Unit – Analog & Digital Microphone Sensor | U096

M5Stack MIC Unit – Analog & Digital Microphone Sensor | U096

LB-M5-U096

20 in stock
$7.50 USD
$7.50 USD $3.95 USD

Key Features

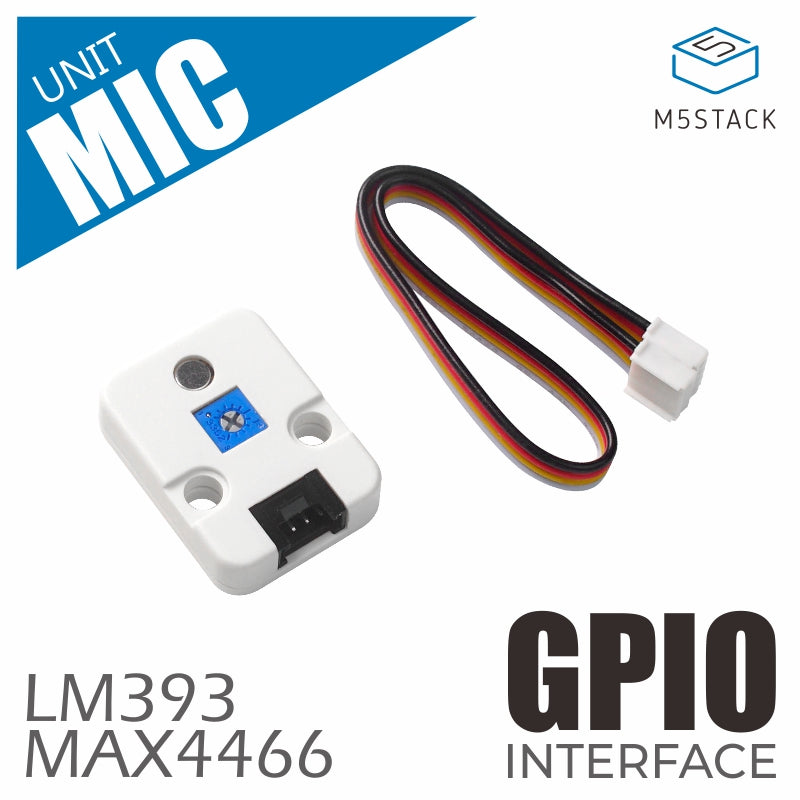

  • Omnidirectional electret microphone
  • MAX4466 microphone preamplifier
  • LM393 threshold comparator

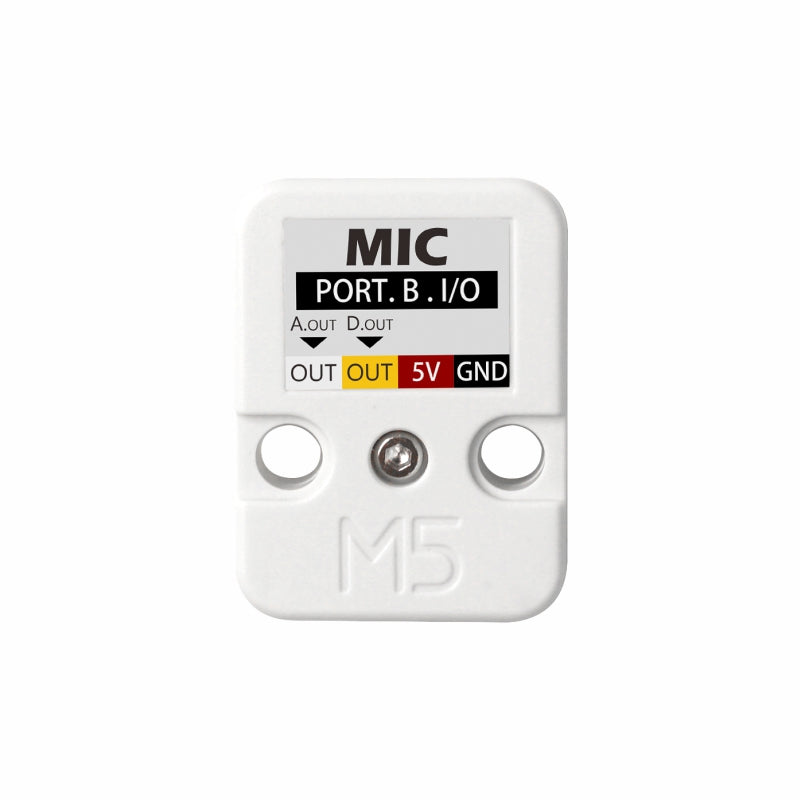

  • Analog waveform and digital trigger outputs
  • Adjustable threshold with 10 kΩ potentiometer

The M5Stack MIC Unit gives sound-reactive projects both an amplified analog waveform and an adjustable digital trigger. An omnidirectional electret microphone feeds a MAX4466 preamplifier, while an LM393 comparator and onboard 10 kΩ potentiometer set the event threshold. It suits sound-activated switches, interactive installations, machine-noise experiments, and audio-level prototypes where the host needs continuous signal information plus a fast threshold indication.

Capture Sound with the M5Stack MIC Unit

Read an Amplified Analog Waveform

The MAX4466 preamplifier provides an analog signal that can be sampled for level, envelope, or frequency-related experiments.

Use an Adjustable Digital Sound Trigger

The LM393 comparator produces a digital event when the microphone signal crosses the threshold selected by the potentiometer.

Tune the Sensor for the Installed Environment

Set the threshold after final enclosure installation because openings, airflow, vibration, and background sound change the response.

What You Can Build with M5Stack MIC Unit

  • Sound-activated switches
  • Interactive sound installations
  • Machine-noise event detection
  • Audio level and envelope experiments
  • Clap and impact detection prototypes

Integration and Workflow

  1. Connect the Grove cable to host pins that support one analog input and one digital input.
  2. Keep the microphone opening clear of enclosure walls, airflow, and direct structural vibration.
  3. Adjust the potentiometer while observing the digital output under normal background and target sounds.
  4. Sample the analog channel, apply filtering or envelope detection, and confirm digital events before taking action.

Deployment Notes

  • The digital threshold changes with potentiometer position, supply noise, and ambient sound.
  • The analog output is not a calibrated sound-pressure-level value without reference calibration.
  • Enclosure acoustics, airflow, and mechanical vibration strongly affect the result.
  • Audio capture and sound monitoring can be subject to privacy and consent requirements.
