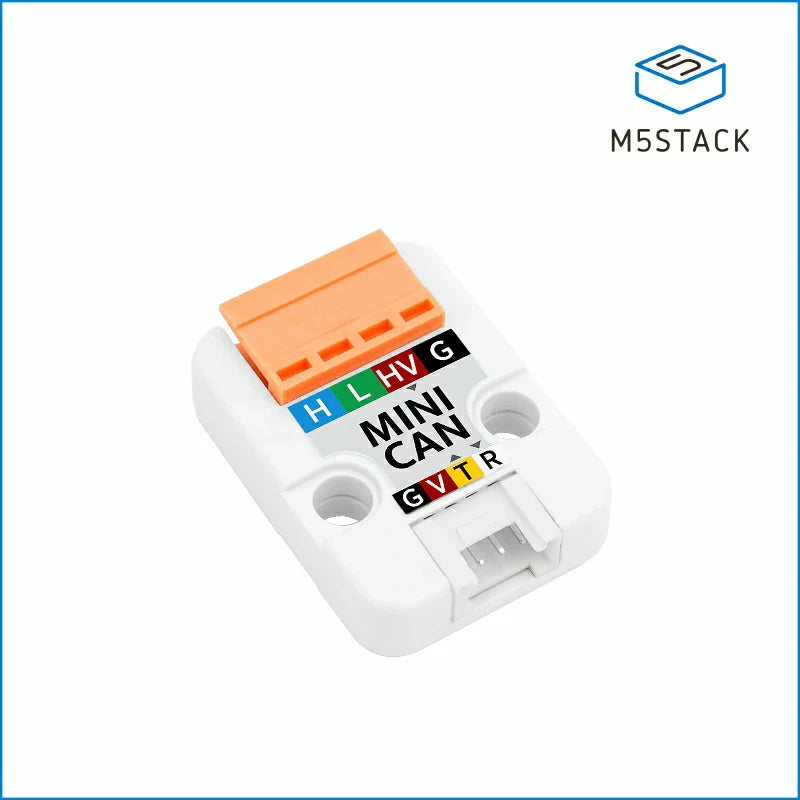

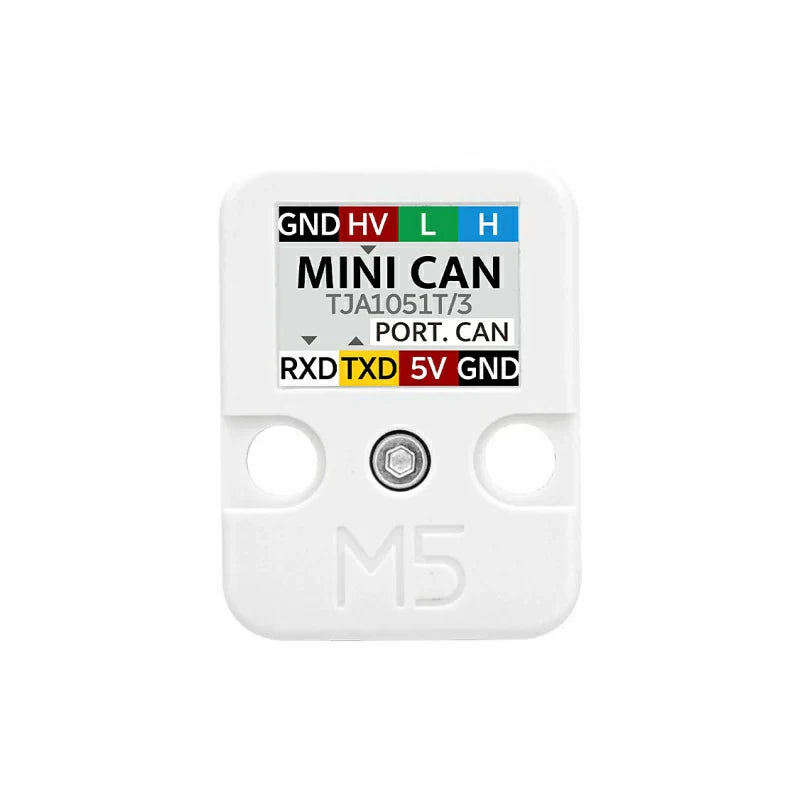

M5Stack Mini CAN Bus Transceiver Unit (TJA1051T/3)

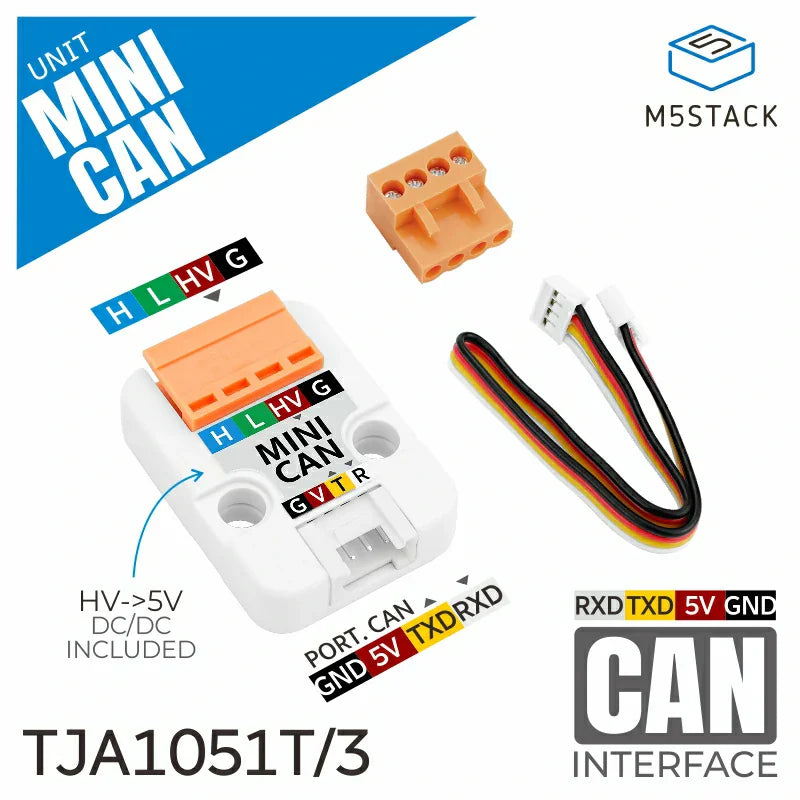

The M5Stack Mini CAN Bus Unit provides a compact physical-layer interface for classical CAN networks in robotics, machine monitoring, embedded gateways, and vehicle-bus experiments. Its TJA1051T/3 transceiver supports communication up to 1 Mbit/s, while Grove 5 V input and a 9–24 V terminal option simplify integration into different power environments. It is designed for developers whose host already includes a CAN controller and who need a small, non-isolated CANH/CANL interface with practical terminal wiring.

What You Can Build

• Embedded gateways that collect and forward selected CAN frames.
• Robot and distributed-controller communication networks.
• Machine status, actuator, and sensor-bus monitoring tools.
• Classical CAN teaching and protocol-analysis setups.
• Vehicle-bus prototypes on networks you are authorized to access.

Key Capabilities

• TJA1051T/3 high-speed CAN transceiver for classical CAN up to 1 Mbit/s.

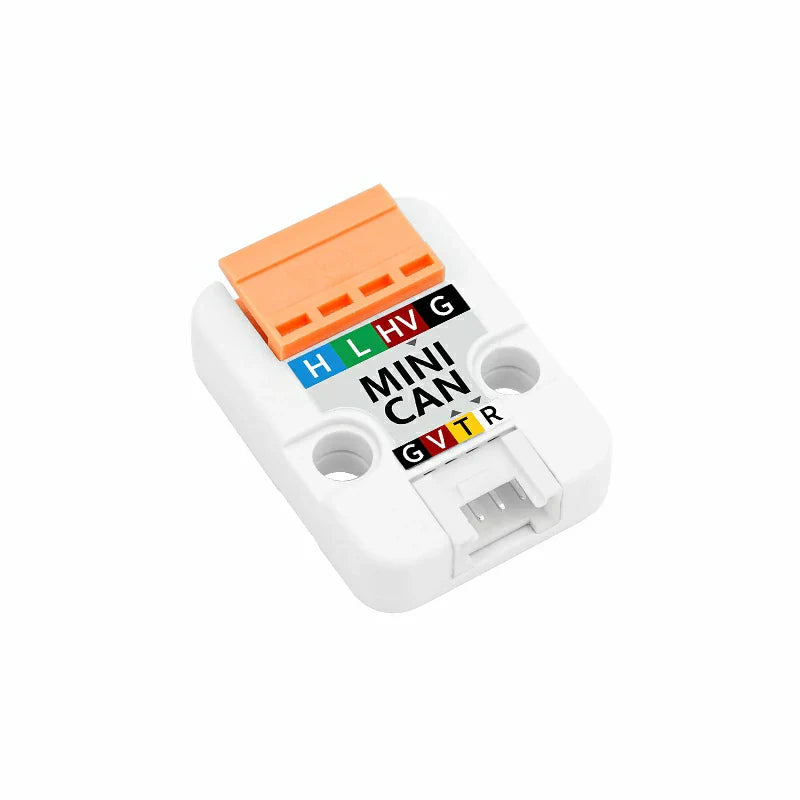

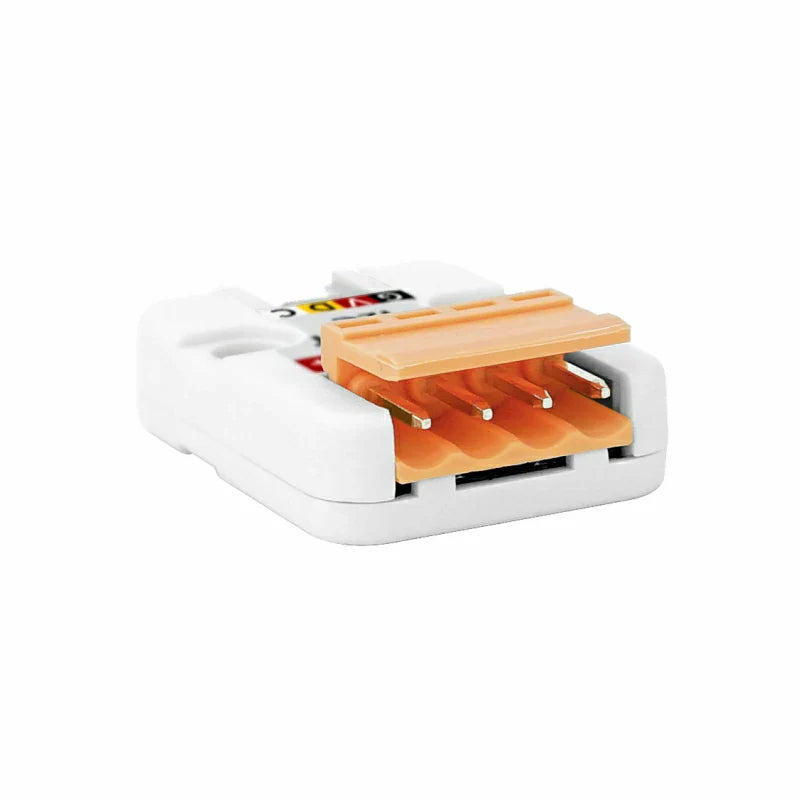

• 5 V Grove input or 9–24 V input through the pluggable terminal.
• 5 V load output rated up to 700 mA under suitable conditions.
• Compatibility with ISO 11898-2:2016 and SAE J2284-1 to J2284-5 physical-layer requirements.

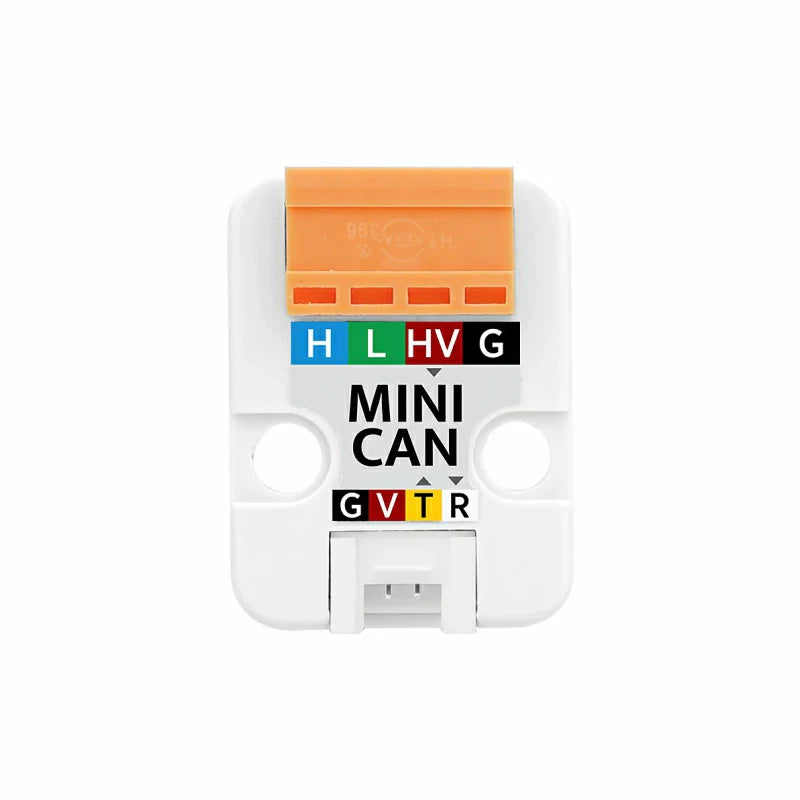

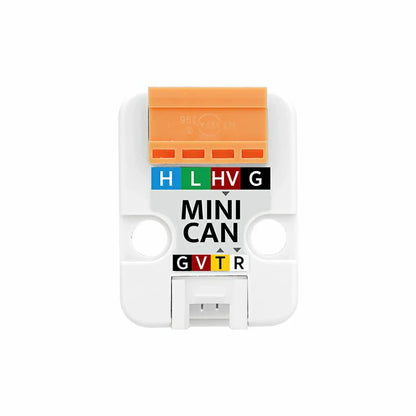

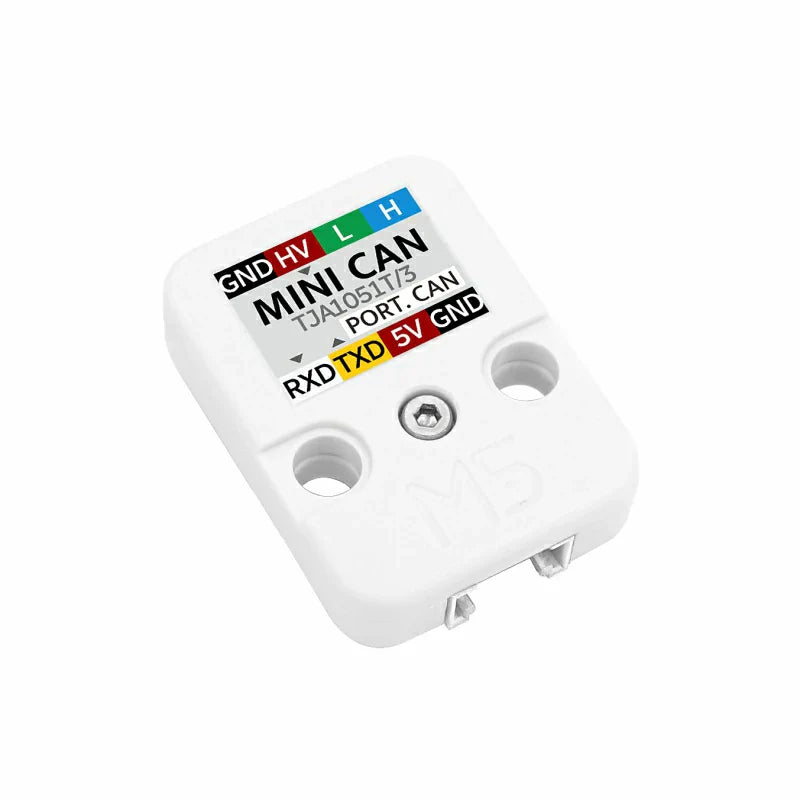

• Compact non-isolated interface with CANH, CANL, power, and host signal access.

Setup and Integration

1. Confirm that the host MCU or controller provides a CAN peripheral; this unit is a transceiver, not a standalone CAN controller.
2. With power removed, connect CANH, CANL, and the required common reference, then choose the documented Grove or terminal power path.
3. Install 120 Ω termination only at the two physical ends of the bus and keep branch stubs short.
4. Configure every node for the same bitrate, sample point, and frame format before transmitting a low-rate test message.

Example Workflow

1. Initialize the host CAN controller and acceptance filters.
2. Receive frames and validate identifier, frame type, and payload length.
3. Process or forward only the messages required by the application.
4. Monitor error counters and recover from bus-off with a controlled delay instead of continuous retries.

Deployment Notes

• This unit is non-isolated; large ground-potential differences can corrupt communication or damage connected equipment.
• Reliable CAN operation depends on twisted-pair cable, correct polarity, controlled topology, proper termination, and short stubs.
• The documented maximum is 1 Mbit/s classical CAN; do not present this unit as a CAN FD data-phase interface.
• Industrial and automotive installations may require additional isolation, fusing, transient suppression, shielding, and connector protection.
• Do not connect to an unknown vehicle or machine network without understanding its electrical and protocol requirements.

Development Resources

• M5Stack U179 Documentation
• UiFlow2 Development Environment
• Arduino IDE
