M5Stack Mini Proto Unit – 40-Hole Prototyping Board | U064

M5Stack Mini Proto Unit – 40-Hole Prototyping Board | U064

LB-M5-U064

20 in stock
$4.50 USD
$4.50 USD $1.75 USD

Key Features

  • 40-hole solderable prototyping area
  • HY2.0-4P Grove connection
  • Compact M5Stack Unit form factor
  • Two LEGO-compatible mounting holes
  • Suitable for custom interface circuits

The M5Stack Mini Proto Unit provides a compact 40-hole solderable board for custom sensor interfaces, signal conditioning, connector adaptation, level conversion, protection circuits, and one-off electronics prototypes. The HY2.0-4P Grove connection brings the selected host port’s power and signal pins into the Unit form factor, while two LEGO-compatible holes support mechanical integration. The board does not automatically add regulation, isolation, level shifting, current limiting, or protection; those functions must be designed and tested by the developer.

Mini Proto Unit: Core Functions and Control

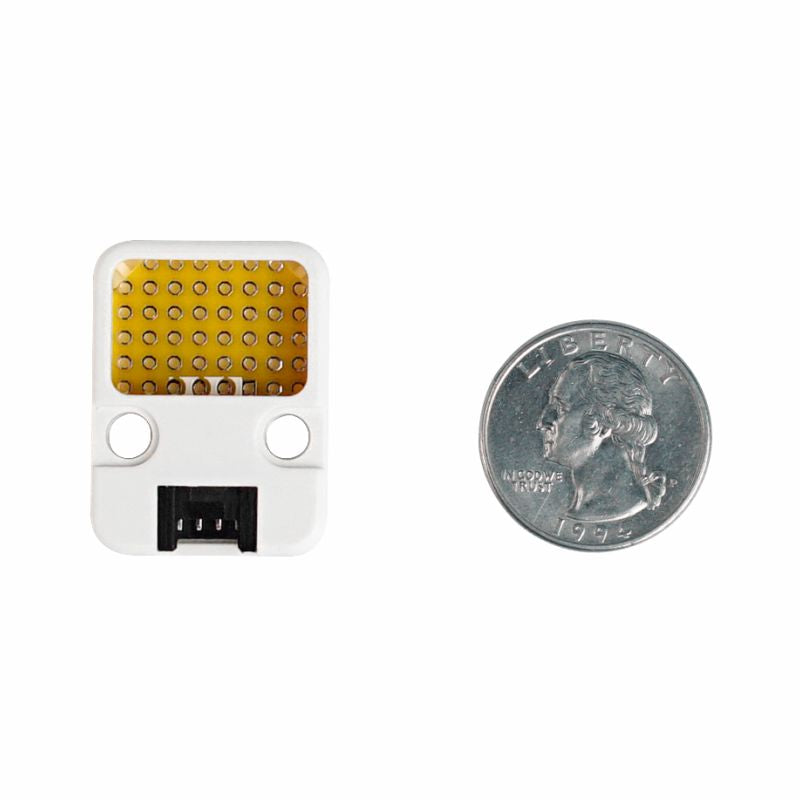

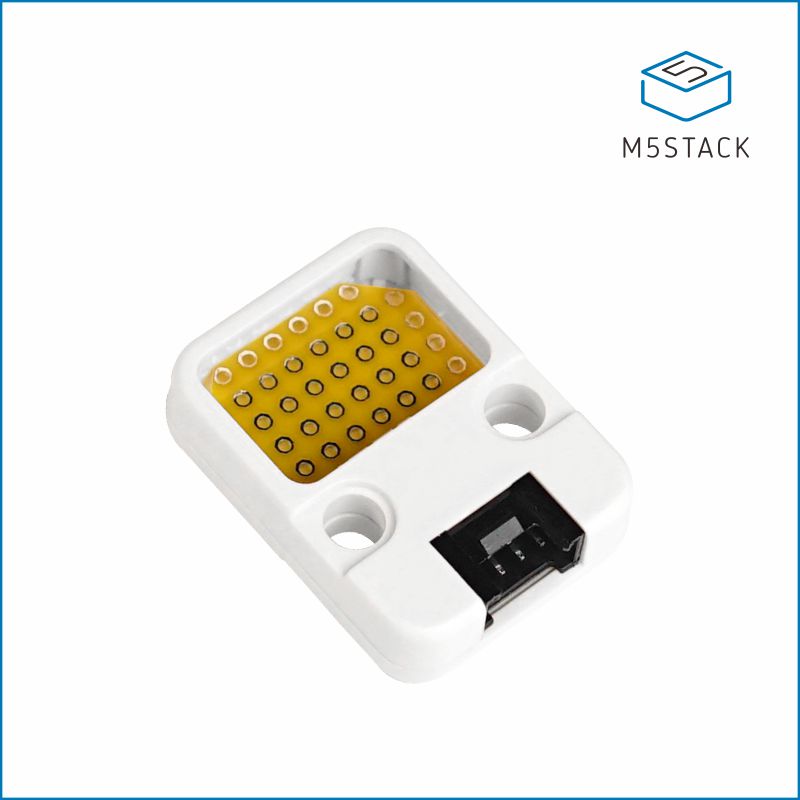

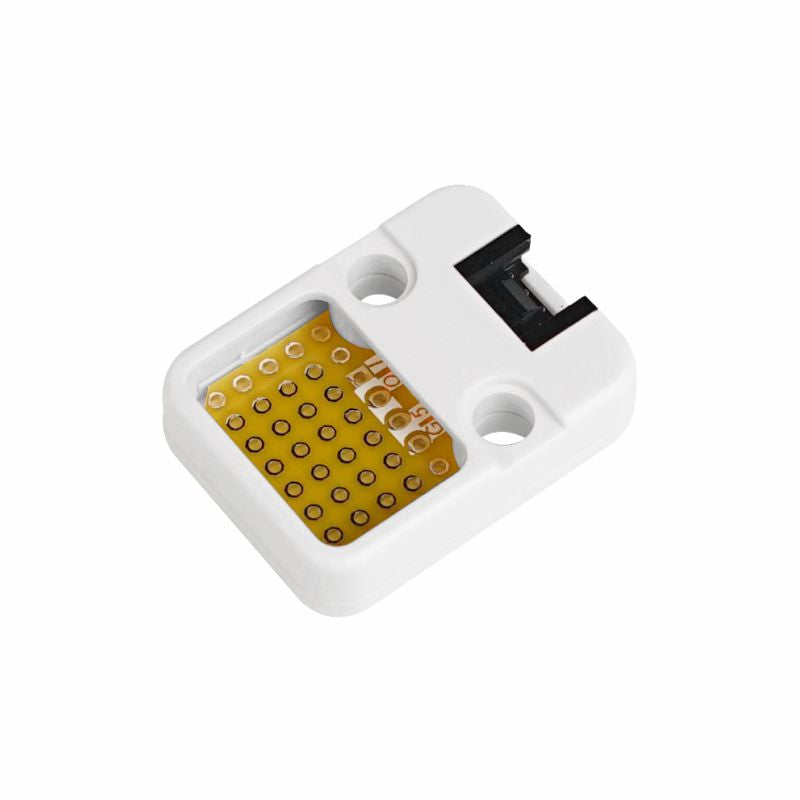

Build on a 40-Hole Solderable Area

The perfboard provides space for through-hole components, small modules, passive networks, connectors, and point-to-point wiring.

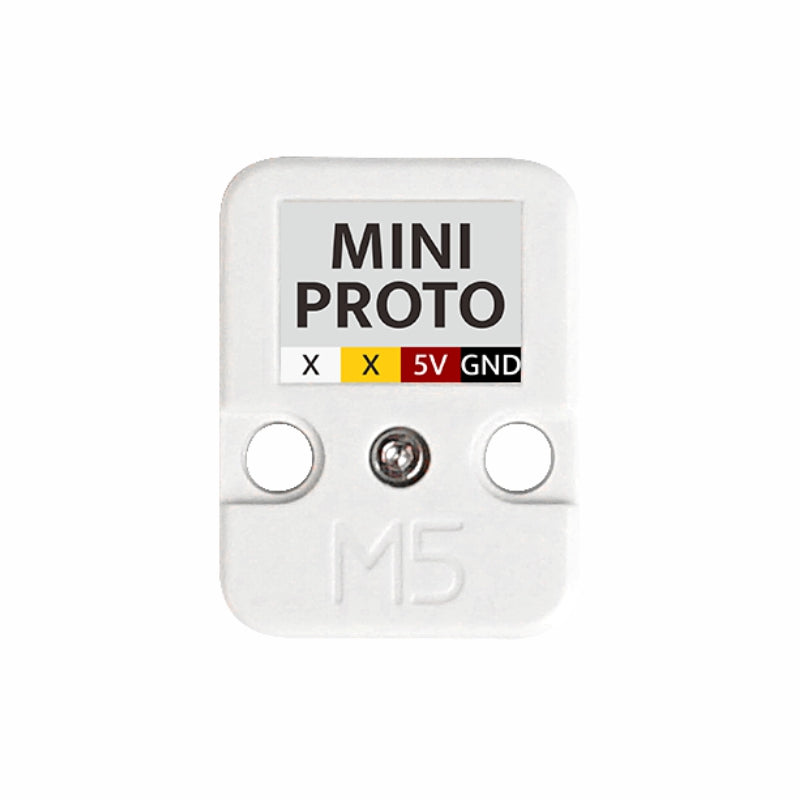

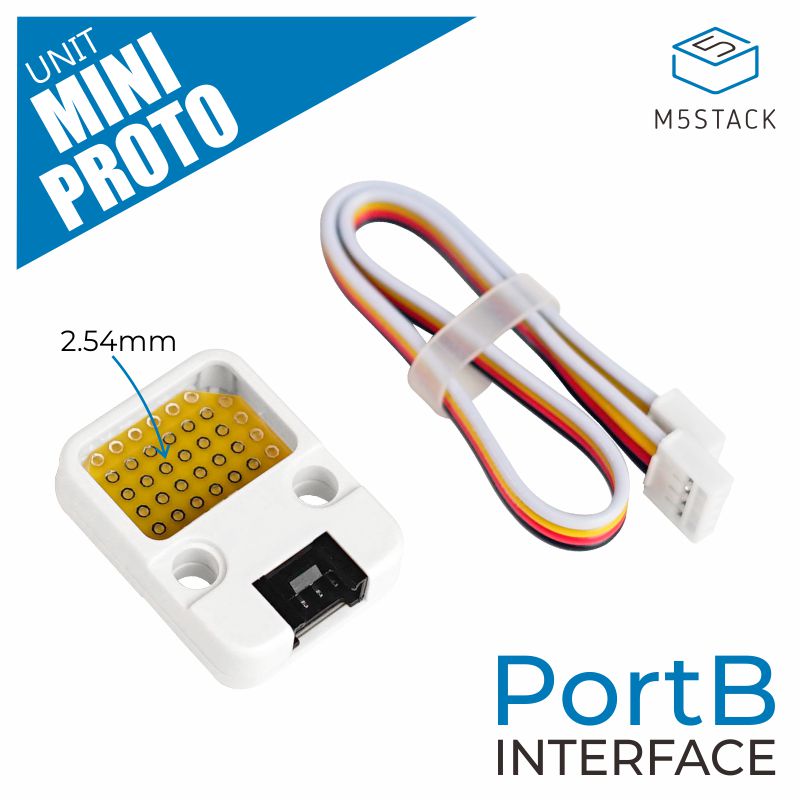

Break Out Grove Power and Signals

The Grove connection exposes the selected host port, but exact voltage and GPIO mapping depend on the controller and port.

Mount Compact Custom Circuits

Two LEGO-compatible holes support fixtures and educational assemblies in the standard Unit footprint.

Mini Proto Unit Applications

  • Custom Grove sensor interfaces
  • Level shifting and signal conditioning
  • Connector and pinout adaptation
  • Filters, pull-ups, and protection circuits
  • Educational soldering projects

How to Integrate the Mini Proto Unit

  1. Identify the exact host port, voltage, GPIO mapping, current limit, and signal direction.
  2. Draw the schematic and layout, including power protection, decoupling, and connector orientation.
  3. Assemble low-profile components first and inspect every solder joint.
  4. Check continuity, shorts, polarity, and resistance to ground with the host disconnected.
  5. Use a current-limited supply to verify every rail before connecting the controller.

Mini Proto Unit Deployment Notes

  • Example pin mappings for one M5Core family do not apply to every host.
  • No regulation, isolation, level conversion, or overcurrent protection is included automatically.
  • Exposed solder joints require spacing, insulation, and a suitable enclosure.
  • Current capacity and heat dissipation depend on the complete custom design.
  • Disconnect power before soldering or rewiring.

Mini Proto Unit Development Resources
