M5Stack Mini Proto Unit – 77-Hole 2.54mm Board | U022

M5Stack Mini Proto Unit – 77-Hole 2.54mm Board | U022

LB-M5-U022

20 in stock
$3.50 USD
$3.50 USD $1.95 USD

Key Features

  • 77 CNC-drilled prototype holes
  • 2.54 mm / 0.1 inch component pitch

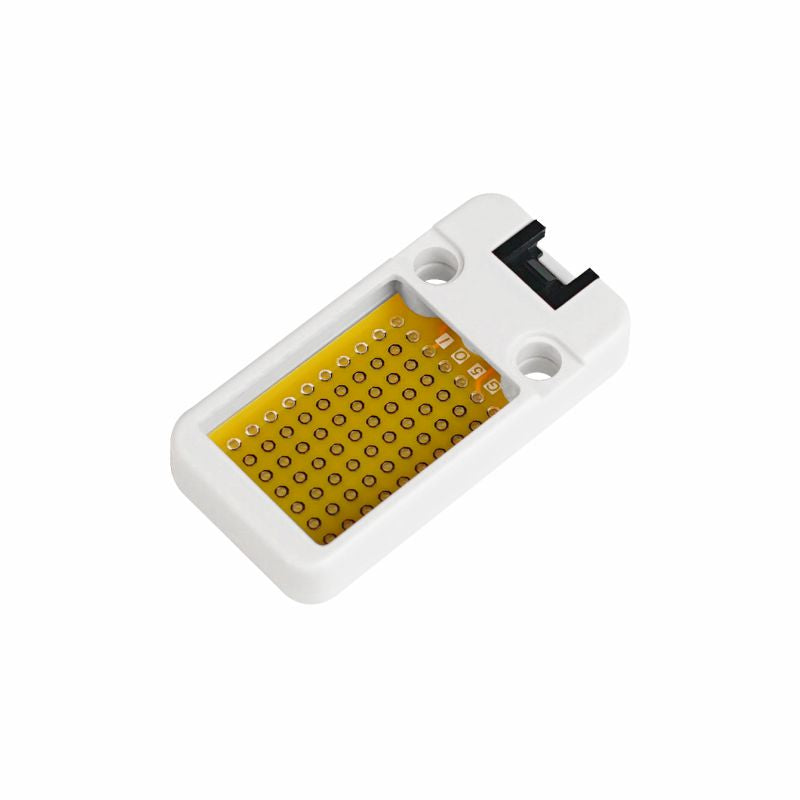

  • HY2.0-4P Grove connection

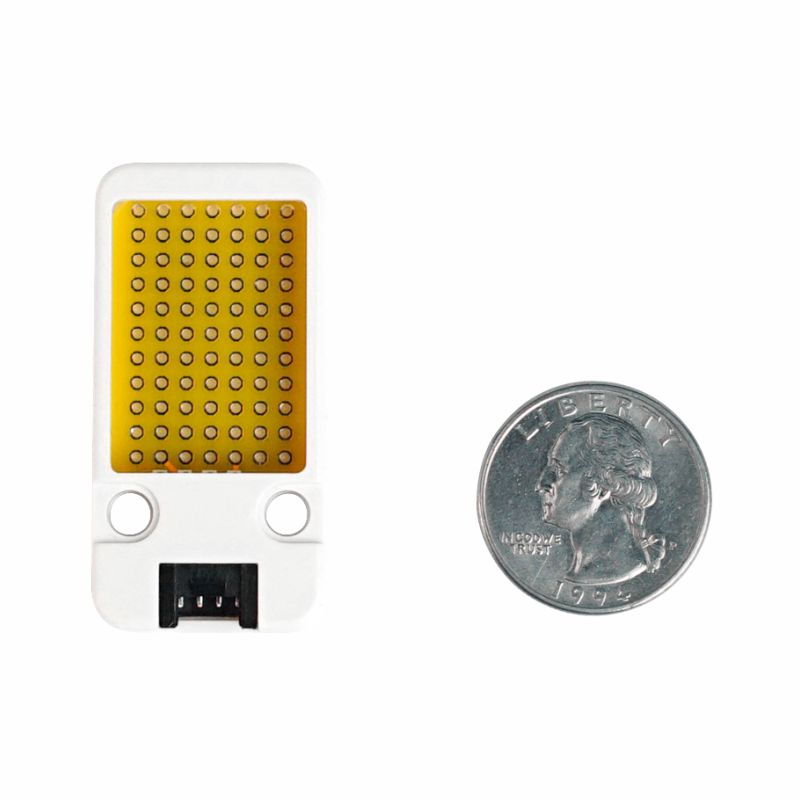

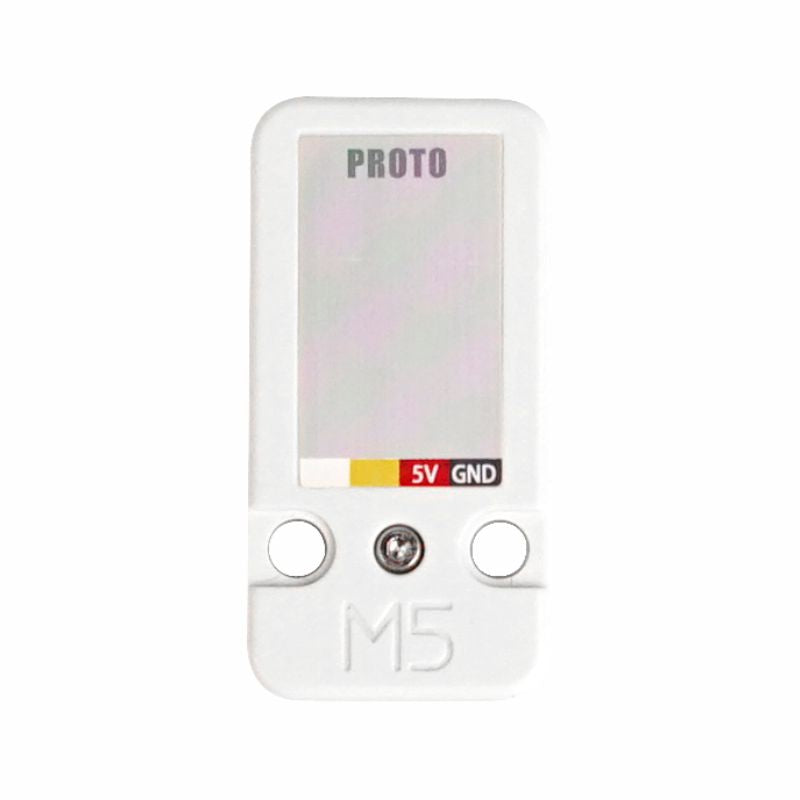

  • 2 LEGO-compatible mounting holes
  • M5Stack Unit enclosure format

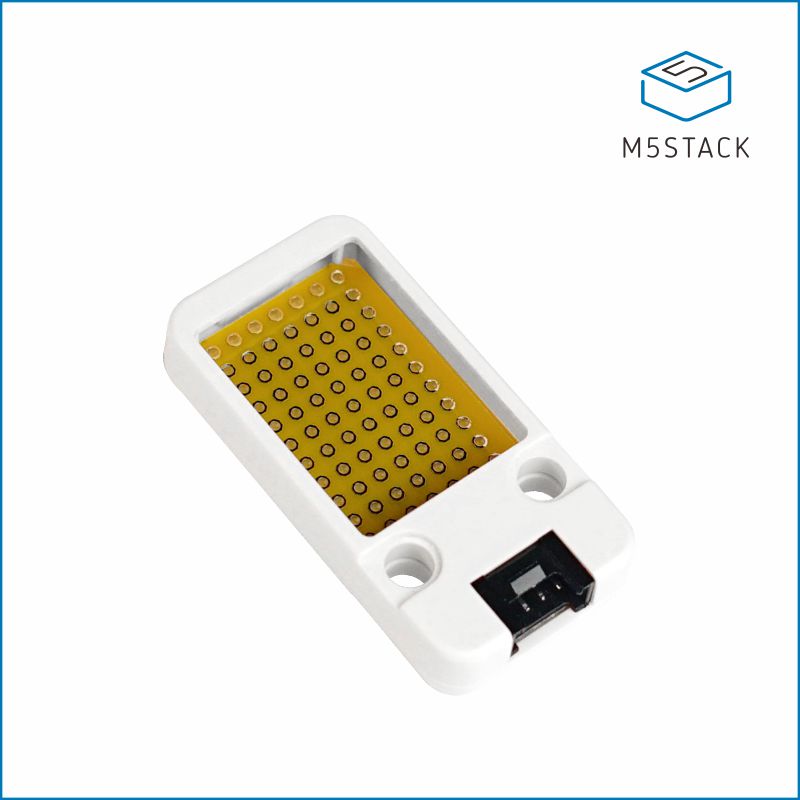

The M5Stack Mini Proto Unit provides a compact 77-hole soldering area for custom sensor adapters, signal-conditioning circuits, connector conversions, and one-off embedded interfaces. Its 2.54 mm pitch accepts many common through-hole components, while the Grove connection brings host signals and power into the board. Because the holes are not automatically connected into rows or rails, every power, ground, and signal path must be deliberately planned, soldered, inspected, and tested.

Build Custom Circuits with the M5Stack Mini Proto Unit

Use 77 Holes on a 2.54 mm Grid

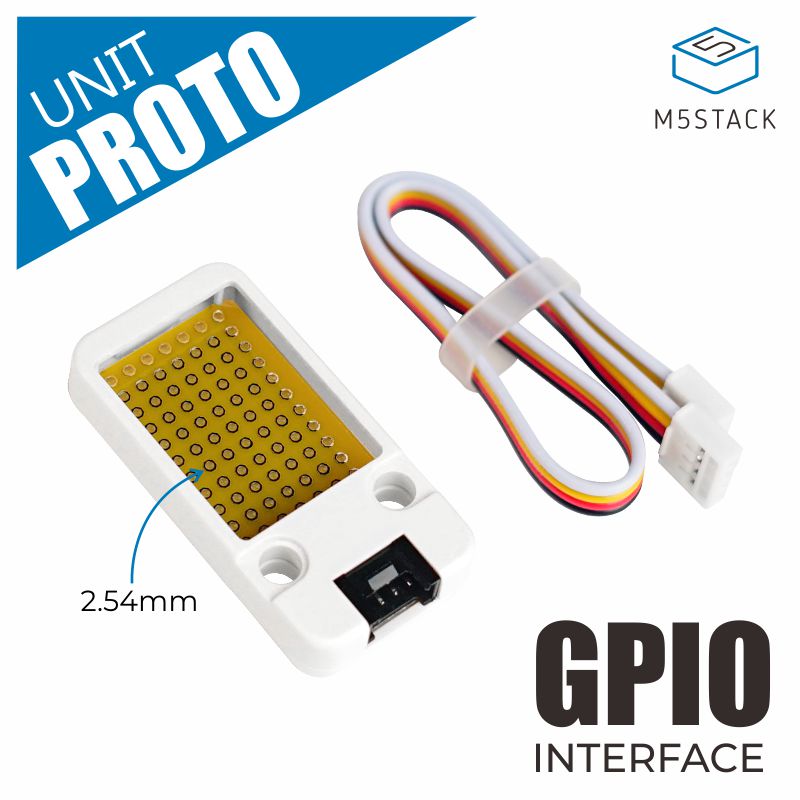

The board provides 77 CNC-drilled holes at standard 2.54 mm spacing for headers and through-hole components.

Bring Grove Signals into a Soldered Prototype

The HY2.0-4P connection exposes the selected host port conductors for application-specific wiring.

Create Every Electrical Connection Deliberately

The holes do not form automatic rows or power rails, so use component leads, insulated wire, or soldered jumpers.

What You Can Build with M5Stack Mini Proto Unit

  • Custom Grove sensor adapters
  • Signal conditioning and level shifting
  • Connector and pinout conversion
  • Compact through-hole prototypes
  • Teaching and circuit experiments

Integration and Workflow

  1. Draw the component placement, Grove pin assignment, power path, and ground path before soldering.
  2. Check component lead spacing and reserve clearance for the enclosure and cable exit.
  3. Create each required connection, then inspect continuity and shorts with the host disconnected.
  4. Use a current-limited source for first power-up and verify voltage and polarity before connecting the M5Stack controller.

Deployment Notes

  • This is a solderable prototype PCB, not a solderless breadboard.
  • Holes are not automatically connected into rows or dedicated power rails.
  • Current capacity depends on wire size, solder joints, copper paths, temperature rise, and component ratings.
  • Verify the exact pin mapping and voltage of the selected M5Stack host port.
