M5Stack Audio Player Unit (N9301)

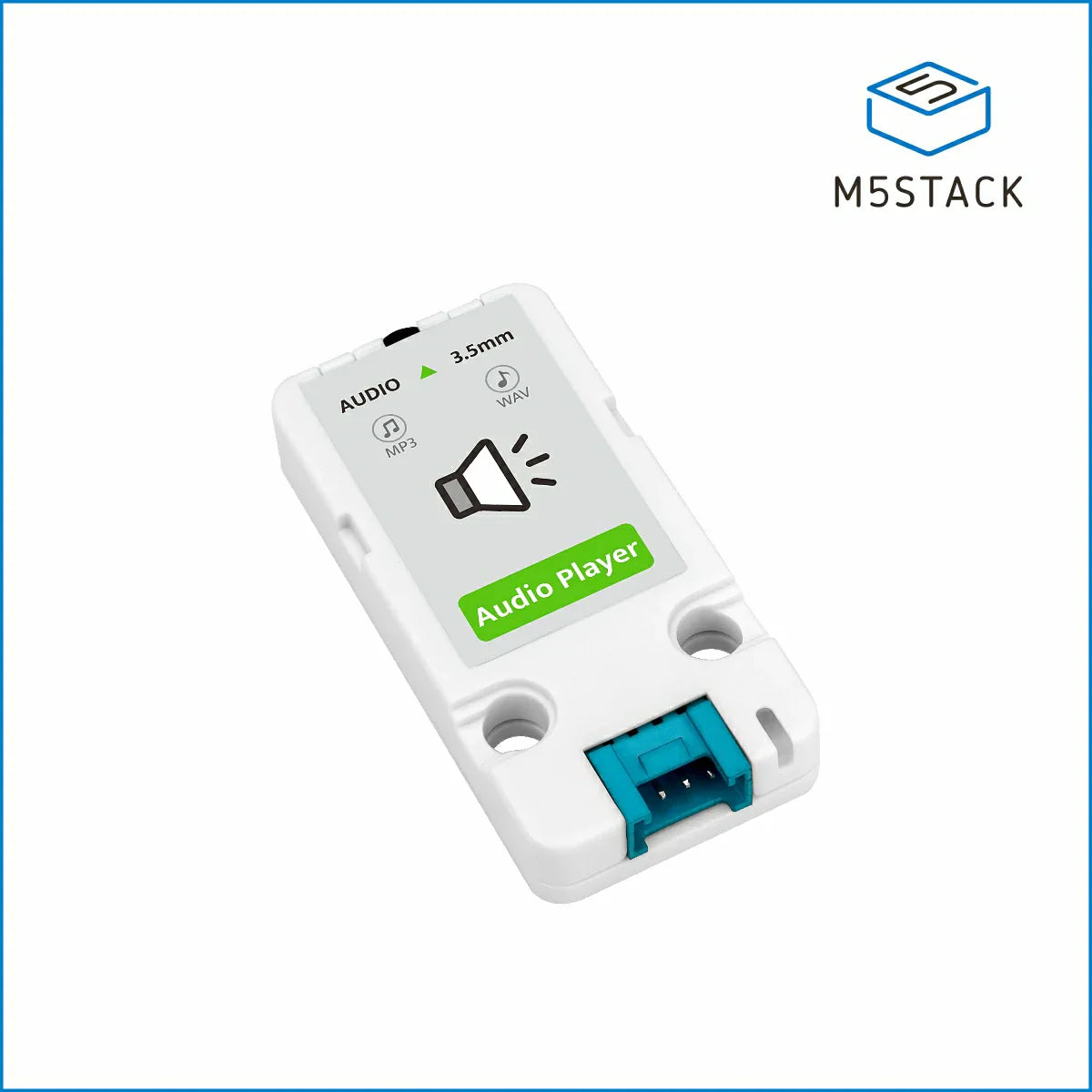

M5Stack N9301 UART Audio Player Unit

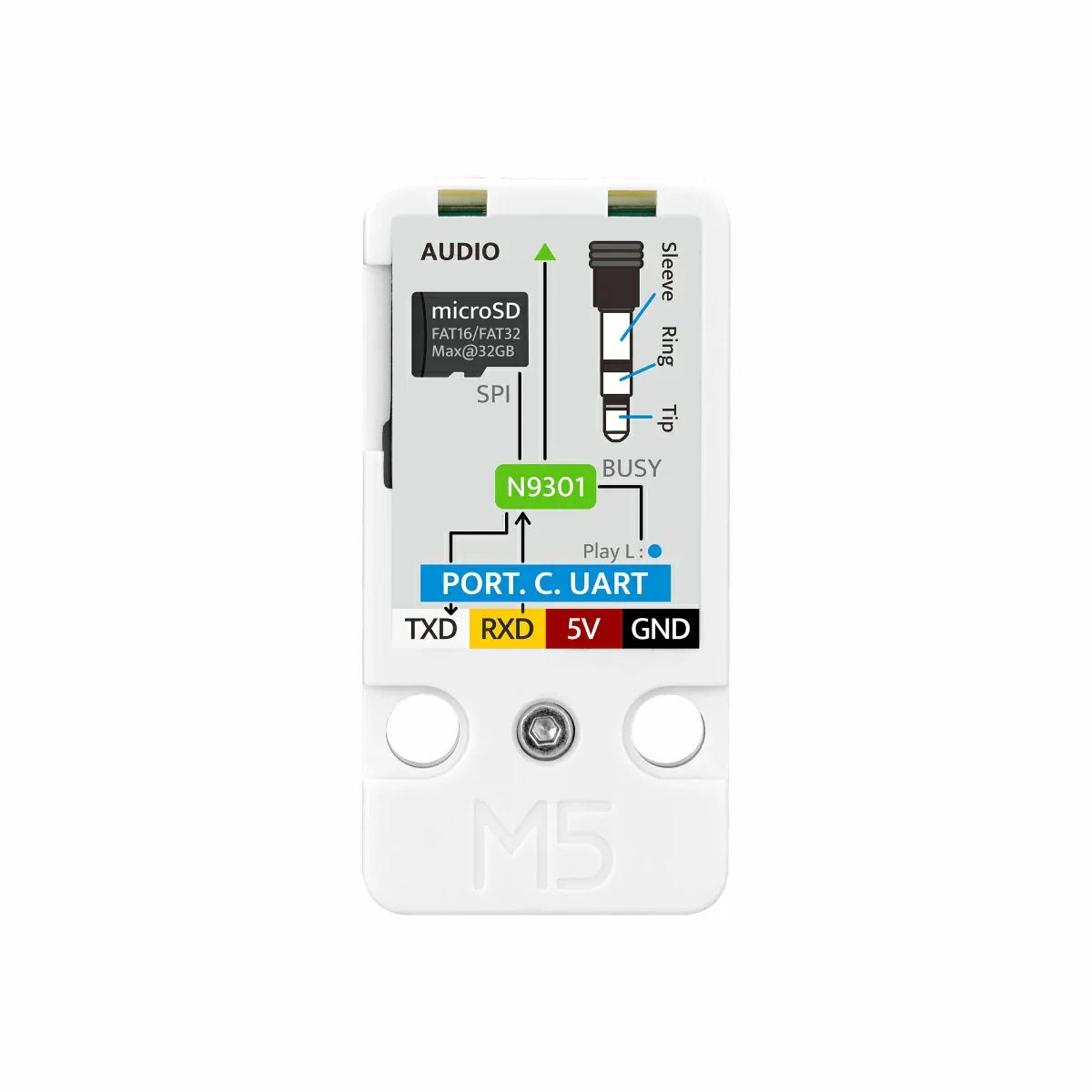

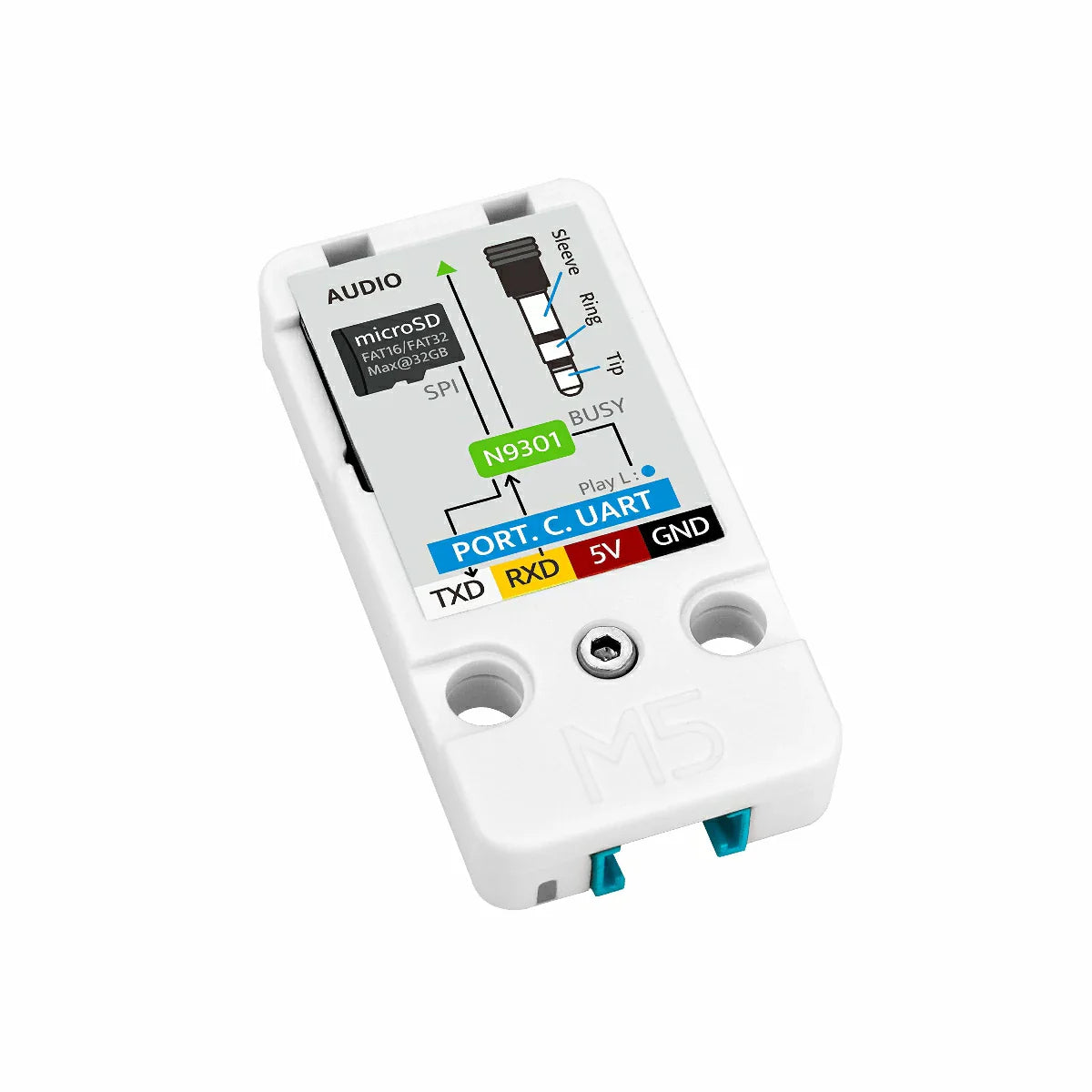

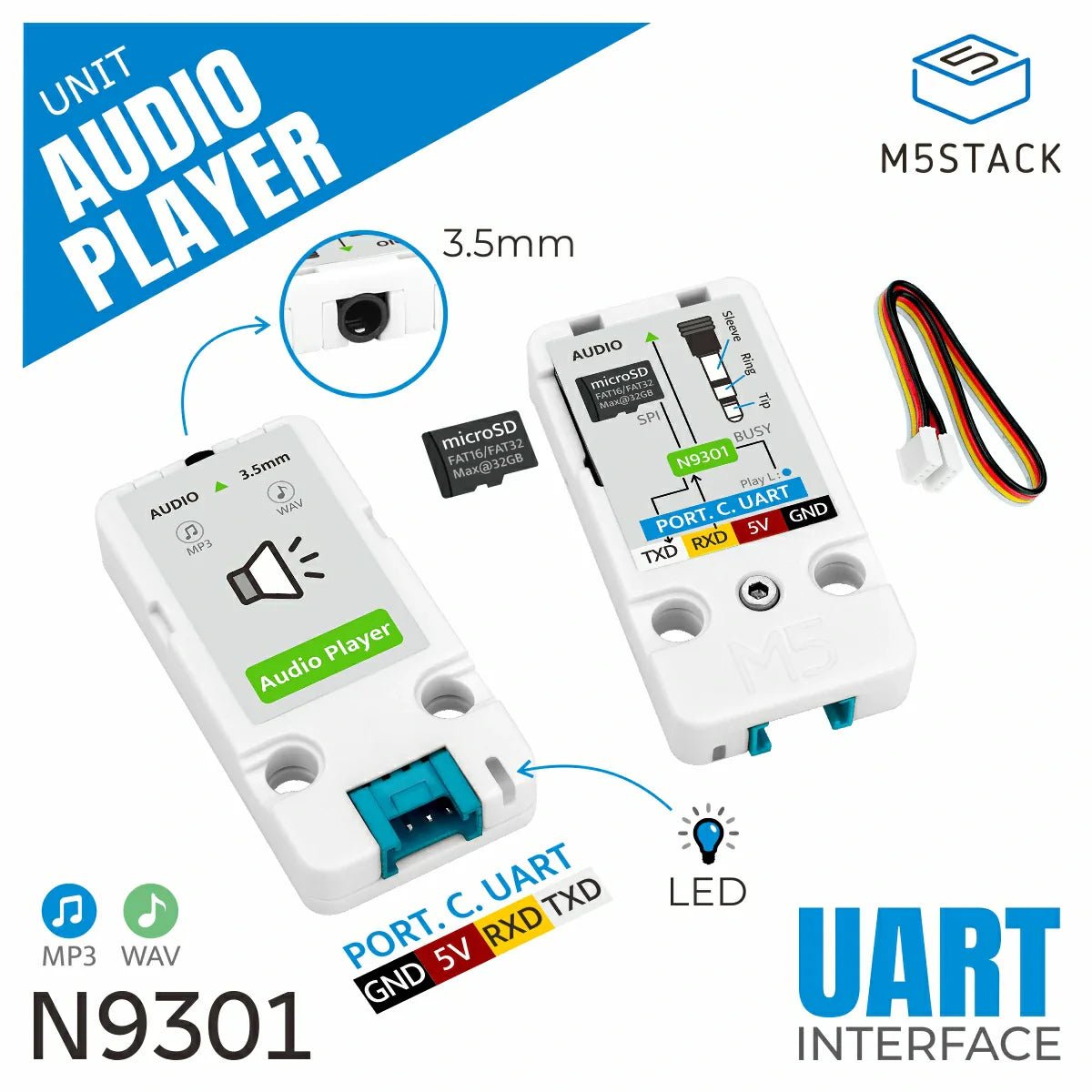

The M5Stack AudioPlayer Unit adds local audio-file playback to embedded products through an N9301 decoding chip, microSD card slot, UART control, and 3.5mm stereo output jack. A host can trigger and manage stored audio without implementing MP3 decoding itself.

The unit supports MP3 and WAV files on FAT16 or FAT32 microSD storage, with cards up to 32GB listed in the product specification. UART communication defaults to 9600bps, 8N1.

Trigger Stored Audio from Embedded Firmware

Use serial commands to play prompts, alarms, instructions, sound effects, or prerecorded messages. This fits smart-home interfaces, industrial status systems, guided exhibits, STEAM projects, and equipment that needs repeatable local audio without continuous network streaming.

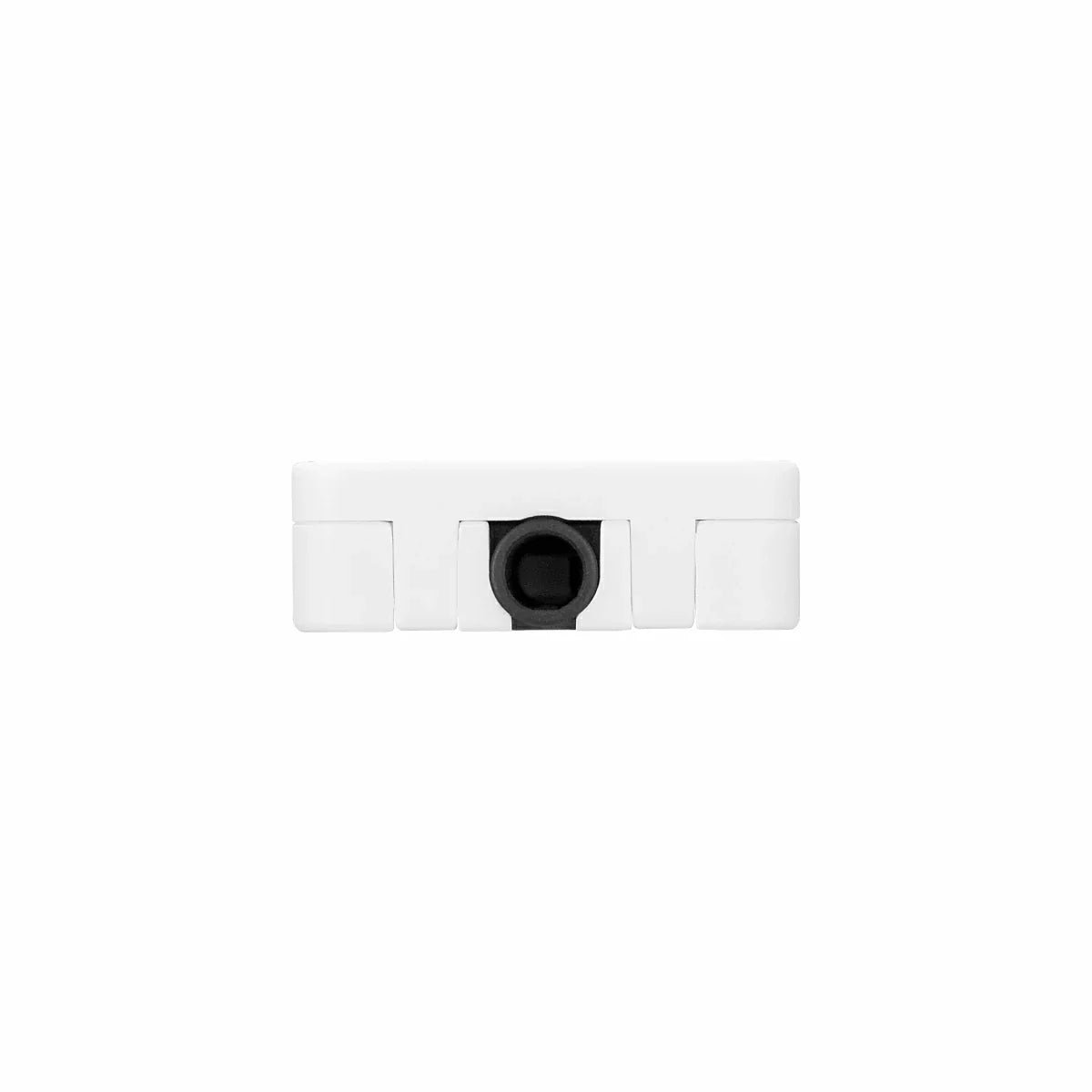

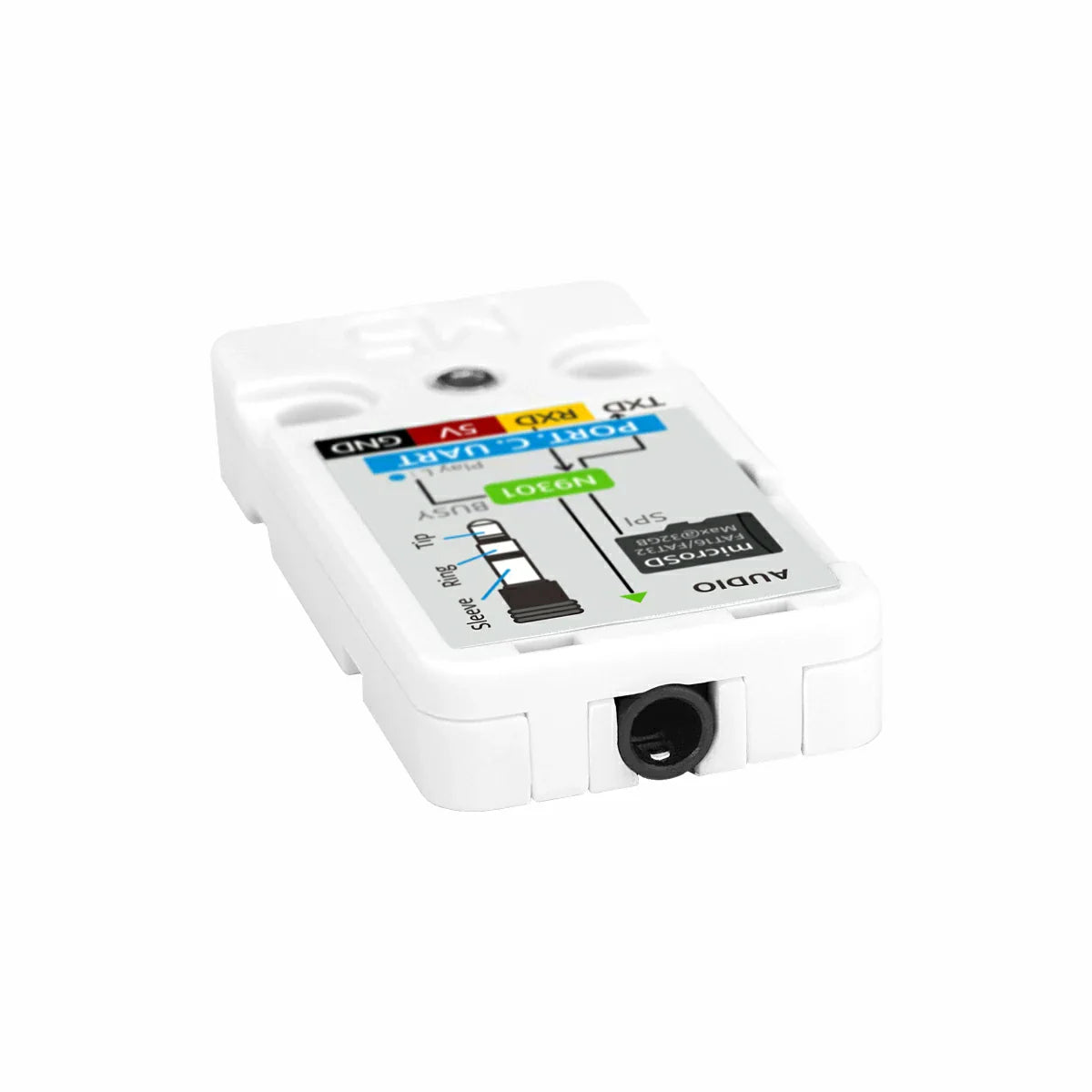

3.5mm Stereo Audio Output

The analog output connects to compatible powered speakers, amplifiers, or line-level receiving equipment. Confirm input level and impedance before connection; a line-level output should not be assumed to drive passive speakers directly.

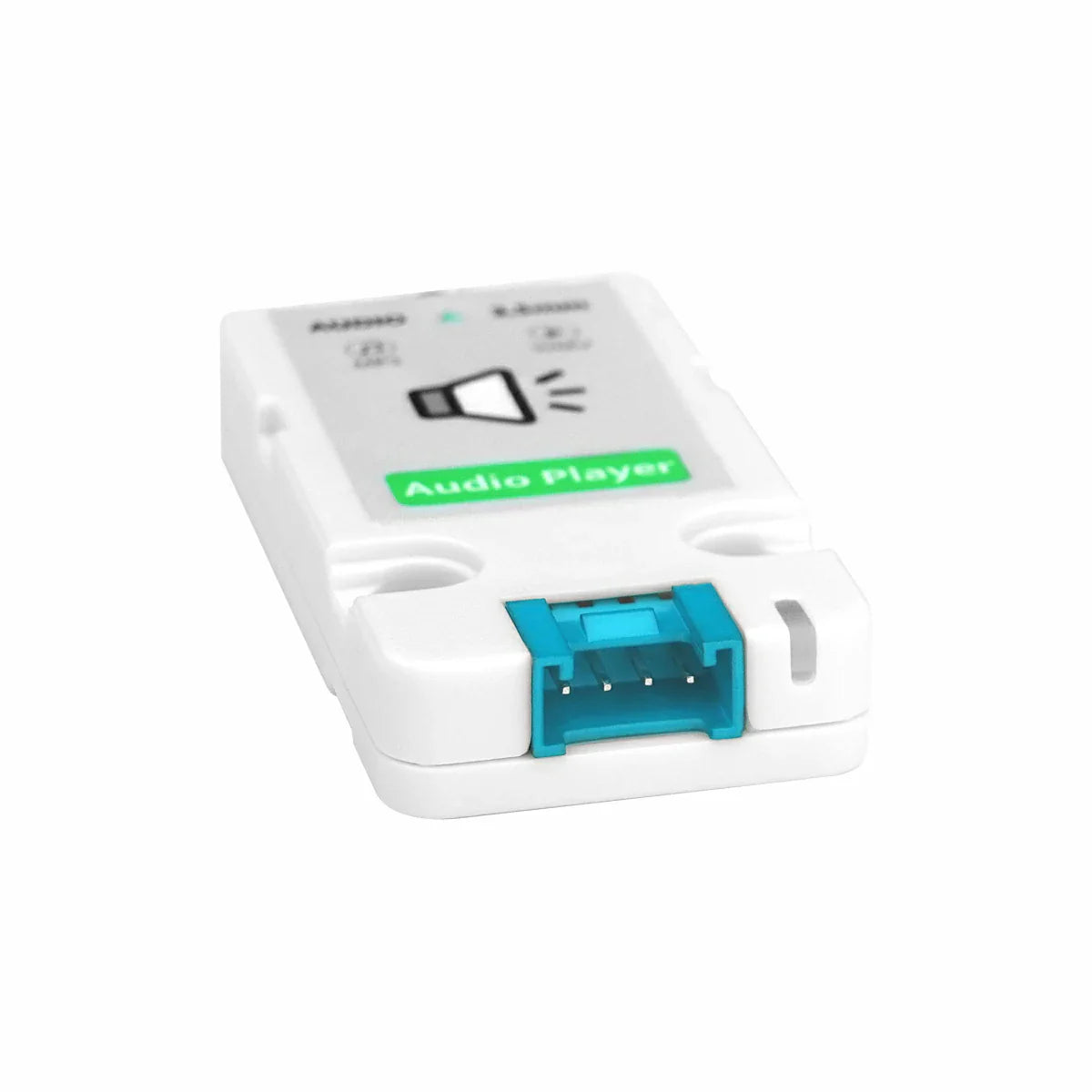

microSD File Management

Organize files consistently and define firmware behavior for missing cards, unsupported files, corrupt storage, and power interruption. For unattended systems, validate the actual card brand, capacity, filesystem, and operating environment.

Plan Audio Prompts as Part of the Interface

Keep alerts distinguishable, avoid excessive repetition, and provide a visual or other secondary indication when a message is safety-relevant. Audio playback alone should not be the sole life-safety alarm path.

Technical setup details are available in the M5Stack AudioPlayer documentation.
