M5Stack OLED Unit – 1.3in SH1107 128×64 Display | U119

The M5Stack OLED Unit adds a compact 1.3-inch monochrome display to sensor nodes, controllers, status panels, portable instruments, and menu interfaces. Its SH1107 driver provides a 128 × 64 pixel canvas through I2C address 0x3C, allowing firmware to render text, icons, graphs, counters, and alarm states without using a large host display. A magnetic rear surface supports quick placement on suitable metal panels. Stable integration requires correct display initialization, controlled refresh behavior, address-conflict checks, and protection against prolonged static high-contrast content.

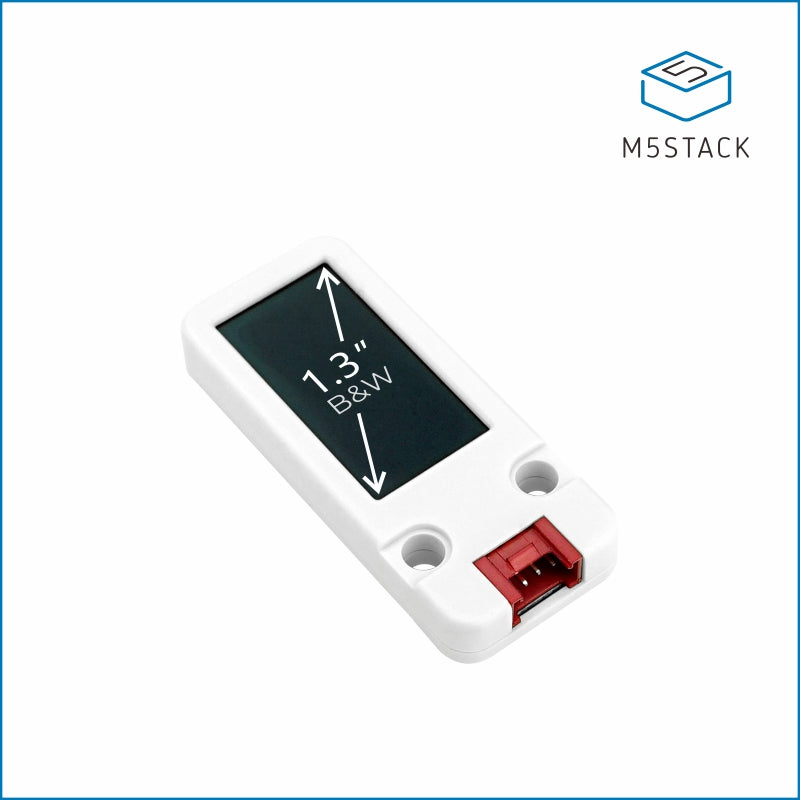

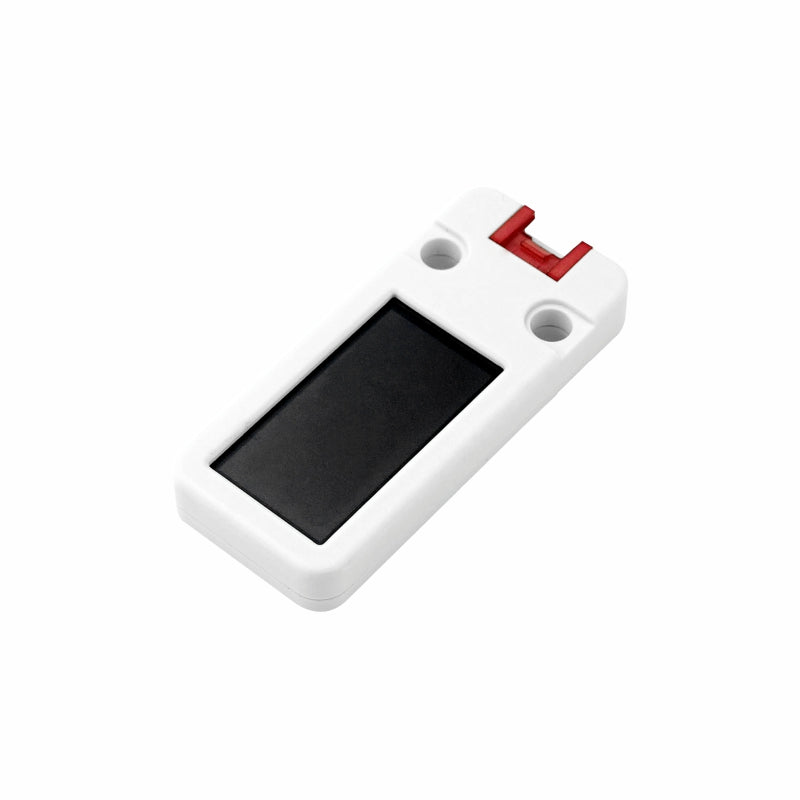

Compact Local Display with the M5Stack 1.3in OLED Unit

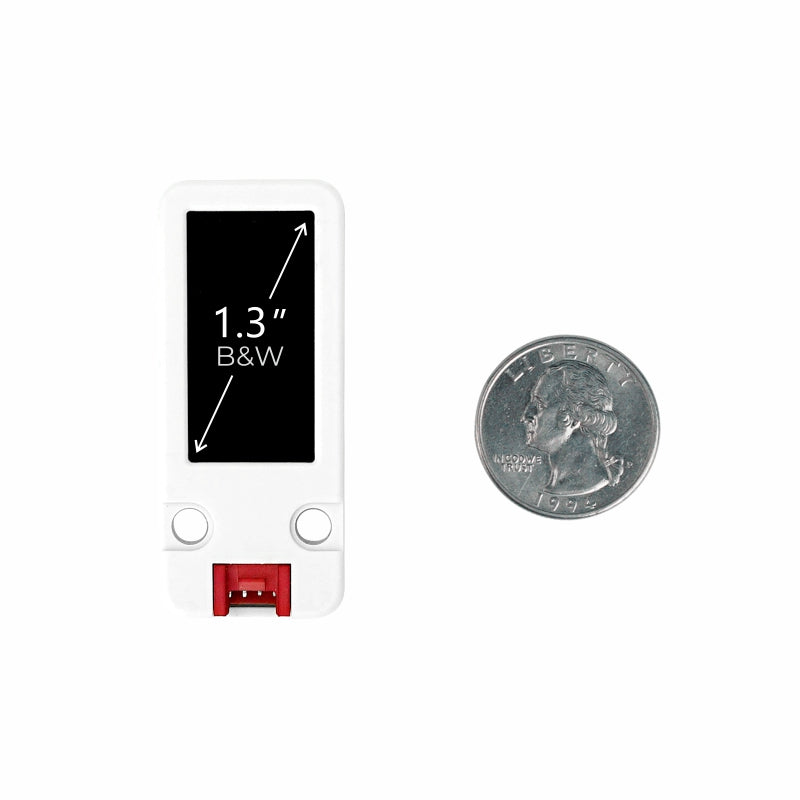

Render Text and Icons on a 128×64 Canvas

The monochrome pixel matrix is suitable for readable labels, values, menus, simple charts, connection status, and diagnostic messages in compact embedded interfaces.

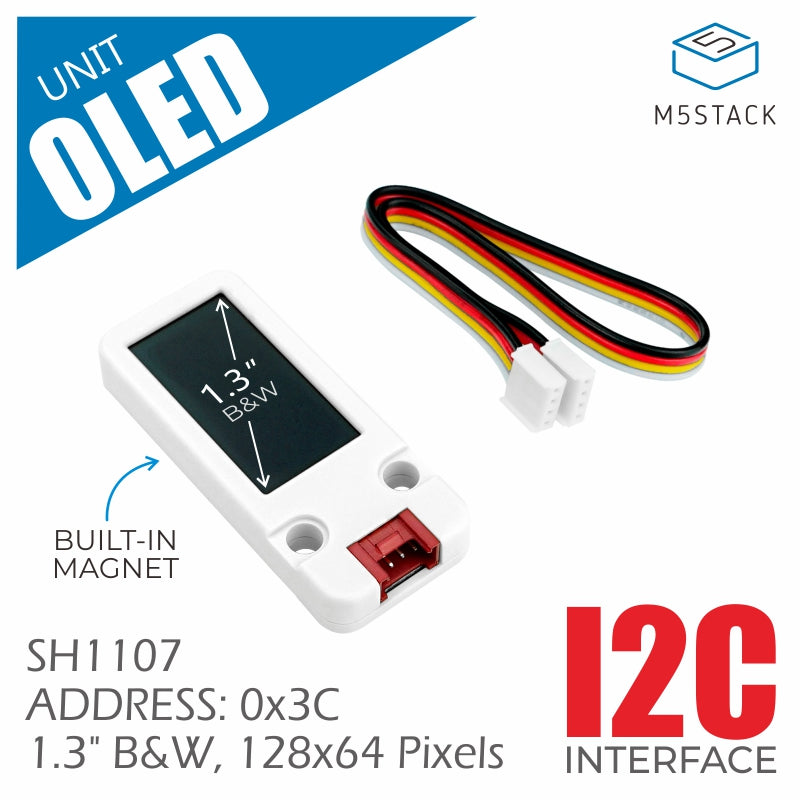

Connect through I2C Address 0x3C

The SH1107 display controller communicates through the Grove I2C connection, reducing host wiring and allowing the display to share the bus with devices that use different addresses.

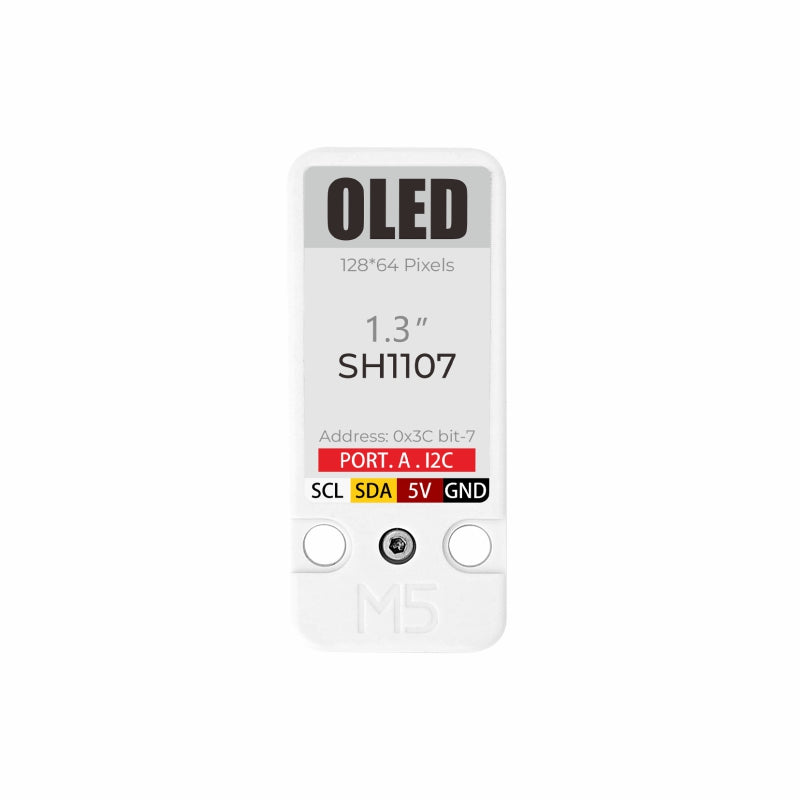

Mount the Display with the Magnetic Rear Surface

The integrated magnetic back can hold the unit on suitable ferromagnetic surfaces during prototyping or in removable status-panel installations.

M5Stack OLED Unit Applications

• Sensor values and environmental dashboards
• Compact menu and status interfaces
• Portable instruments and test fixtures
• Robot and equipment diagnostics
• Timers, counters, and notification displays

How to Integrate the M5Stack OLED Unit

1. Connect the unit to a compatible Grove I2C port and confirm that address 0x3C is available.
2. Initialize the SH1107 with the correct 128 × 64 orientation and buffer settings.
3. Draw a simple test pattern, then verify text direction, pixel coordinates, and refresh behavior.
4. Update only when content changes or at a controlled frame rate to reduce bus traffic and unnecessary power use.
5. Use screen blanking, content movement, or changing layouts where static content would remain visible for long periods.

M5Stack OLED Unit Deployment Notes

• The display is monochrome and does not provide touch input.
• Another device using I2C address 0x3C will create a bus conflict unless one address can be changed or a multiplexer is used.
• Long-term static high-contrast content can cause uneven pixel aging.
• Magnetic mounting strength depends on the target material, surface condition, orientation, vibration, and external force.
• Protect the screen from impact, moisture, excessive pressure, and operation outside the documented temperature range.
