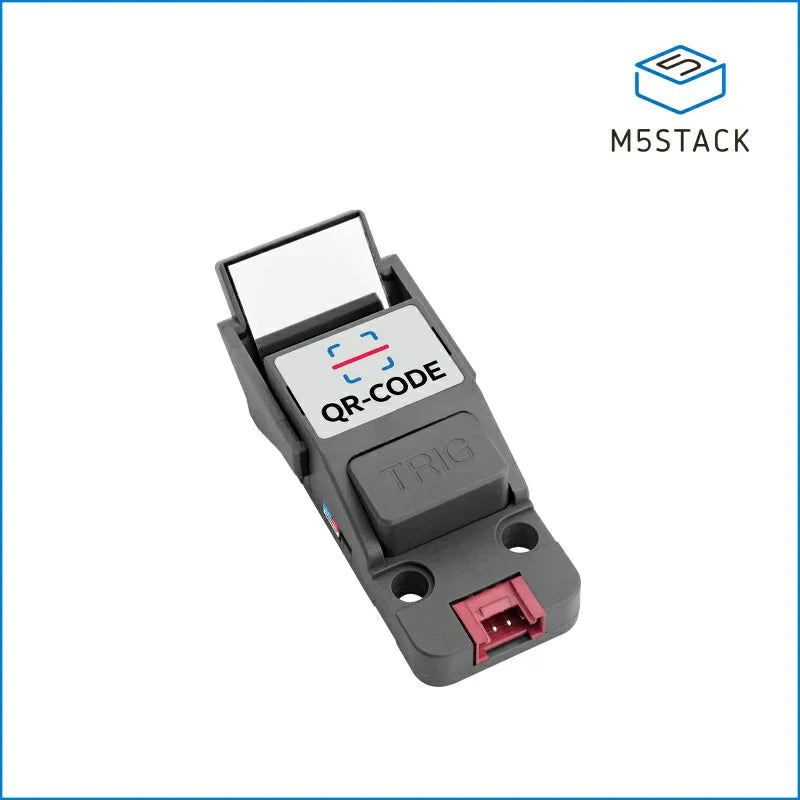

M5Stack QR Code Scanner Unit (STM32F030)

Replace Repeated Keyboard Entry with a Direct Scan

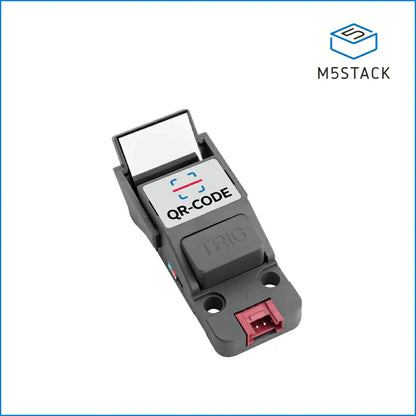

Typing a part number, serial code, shelf label, or ticket ID takes time and creates avoidable mistakes. One wrong character can attach a component to the wrong work order, receive inventory into the wrong record, or reject a valid access credential. The M5Stack QRCode Unit reads common 1D and 2D codes and sends the decoded result directly to an embedded controller through I2C or UART.

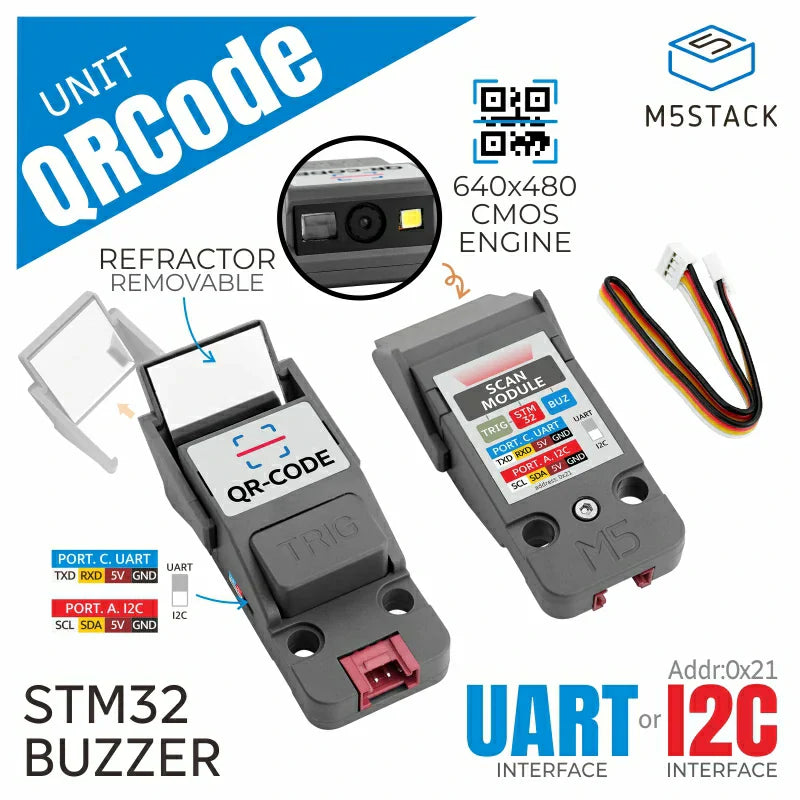

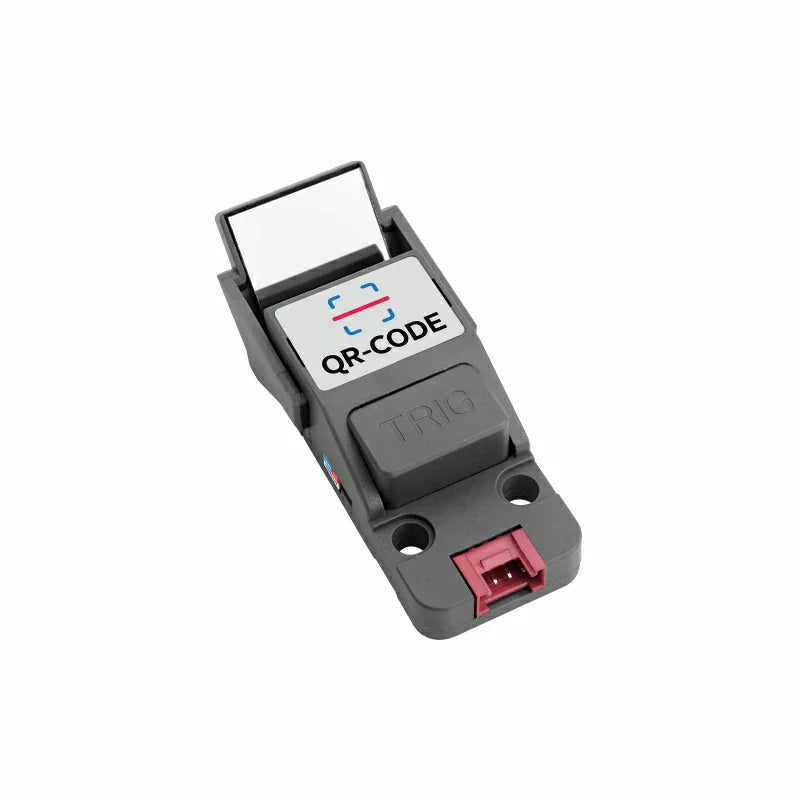

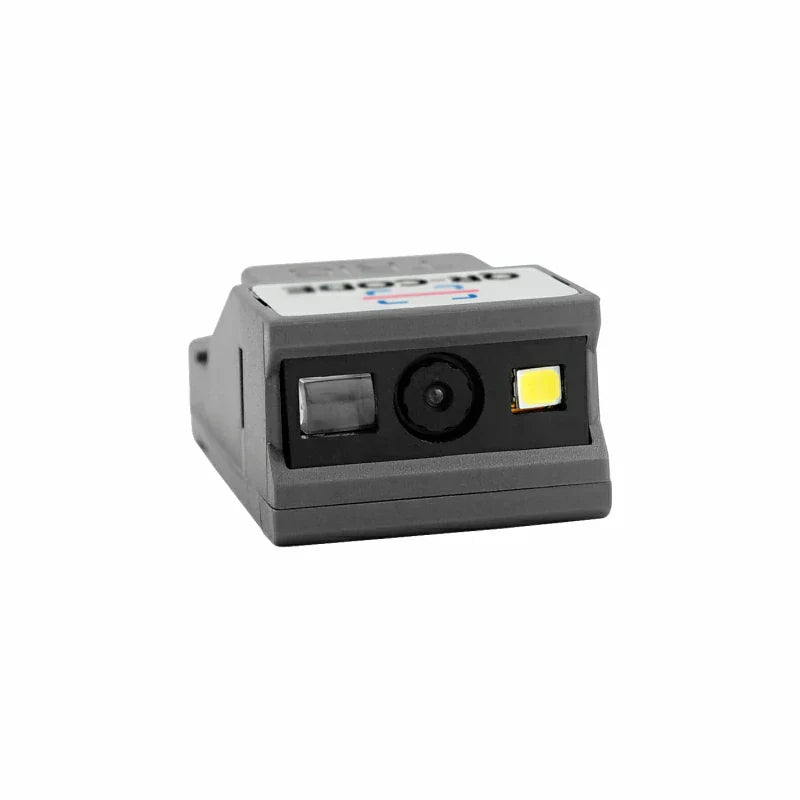

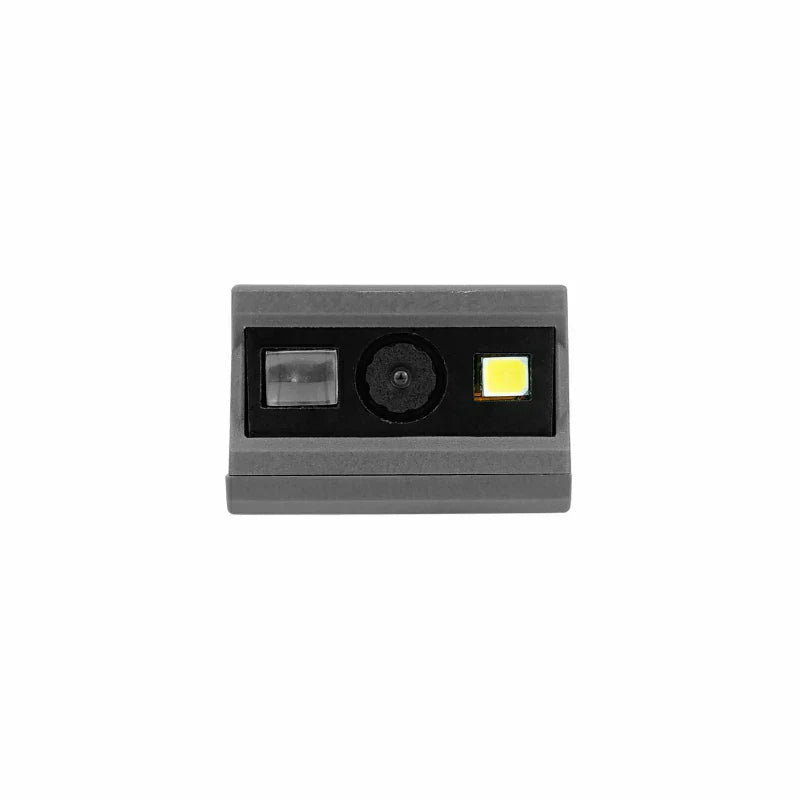

The unit combines a 640 × 480 CMOS M14 scan engine with an STM32F030F4P6 interface controller. A red aiming LED helps position the code, a white illumination LED improves visibility, and the buzzer can confirm a successful read without requiring the operator to watch a display.

Build a Faster Receiving, Picking, or Production Station

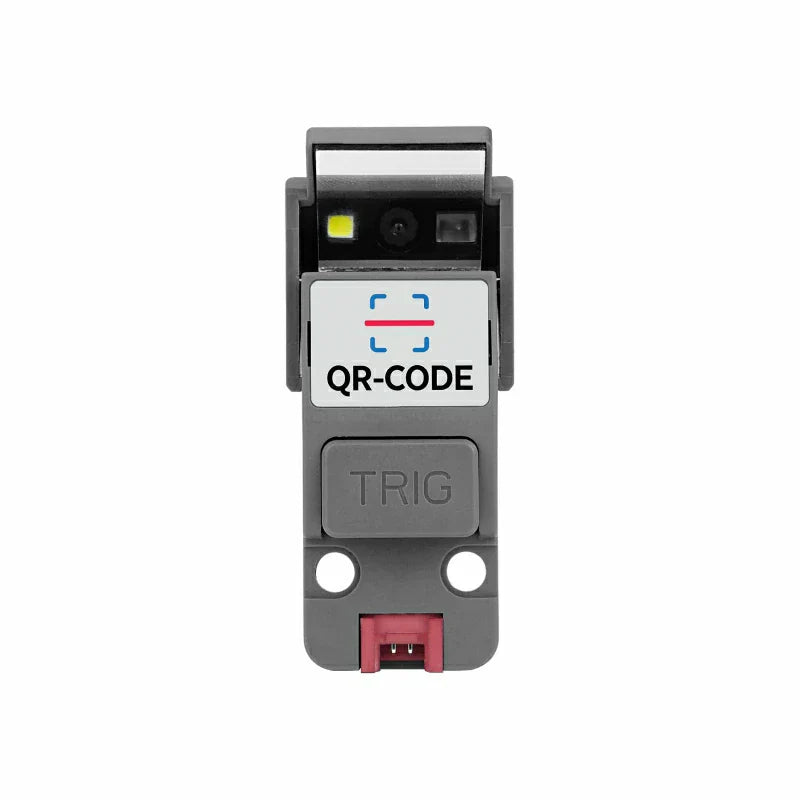

At a warehouse bench, the scanner can capture incoming labels before the item is placed into stock. On a production line, it can associate a component code with the current assembly step. At a service desk, it can read a device serial number instead of asking staff to enter it manually. Automatic continuous scanning supports hands-free workflows, while the trigger button fits stations where each scan must be deliberate.

Supported 2D formats include QR Code, Data Matrix, and PDF417. Supported 1D formats include Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, MSI, and GS1.

Choose the Interface That Matches the Controller

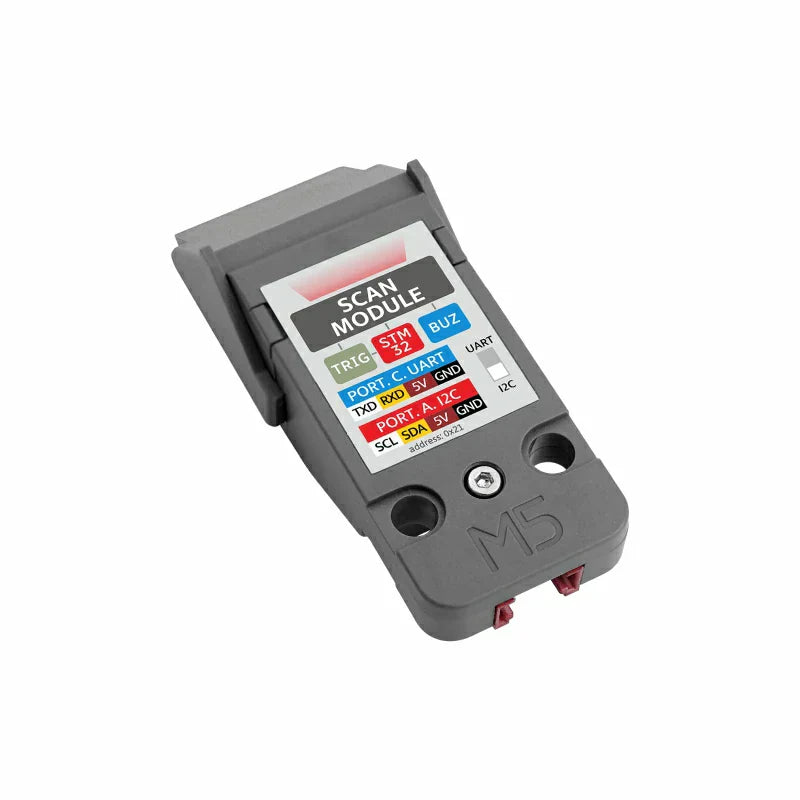

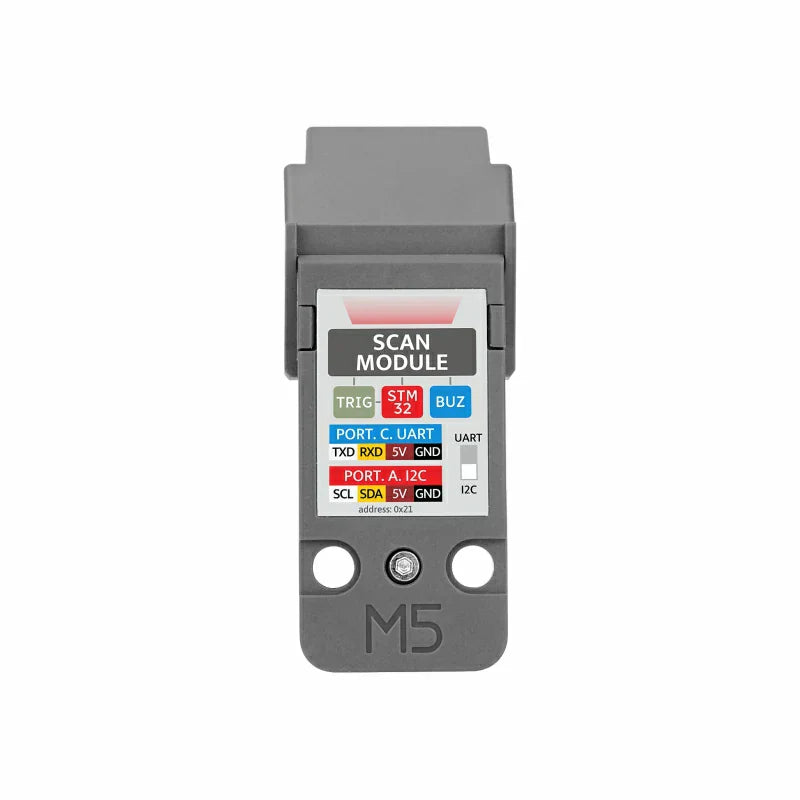

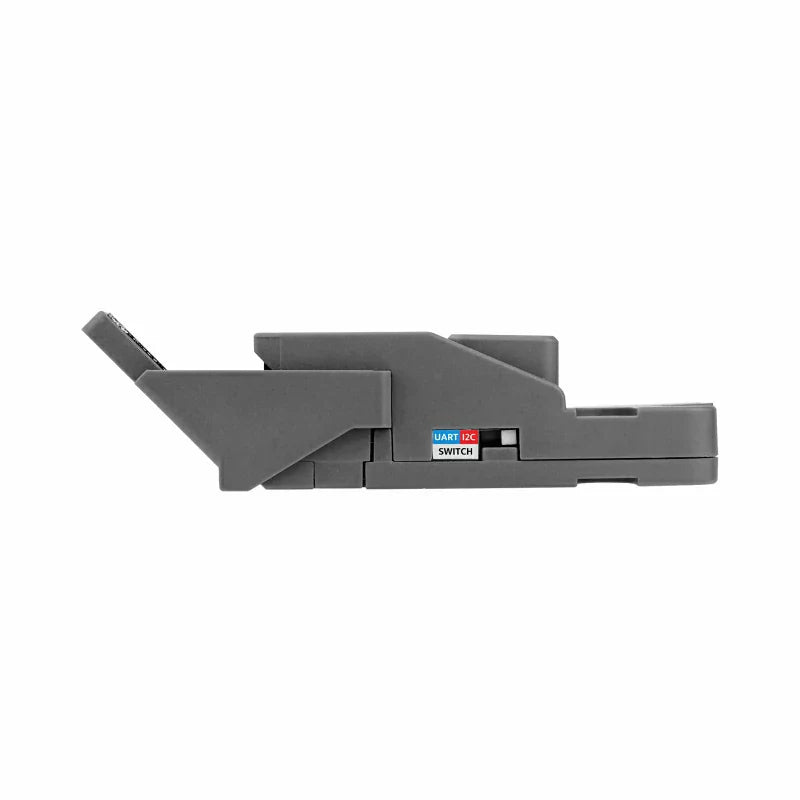

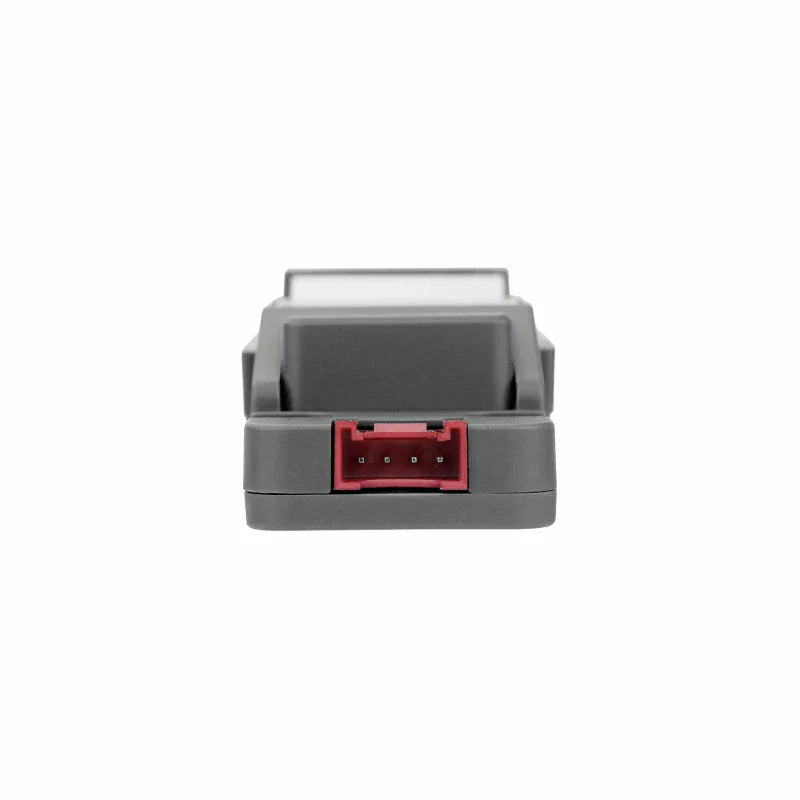

The side switch selects I2C or UART. I2C mode uses address 0x21 and can fit a system where several addressed peripherals share one bus. UART provides a direct serial path that is often easier to isolate and debug. Set the physical switch and host firmware to the same mode before initialization; a mode mismatch can look like a wiring or driver failure.

Design the Workflow Around Real Labels, Not Perfect Test Prints

The product specification lists decode resolution of at least 5mil, print contrast of at least 20%, and pitch or skew angles up to approximately ±55° under stated conditions. Actual labels may be small, glossy, curved, damaged, poorly printed, moving, or placed under uneven lighting. Test the exact code size, material, distance, mounting angle, and motion found at the final station.

Position the scanner so the aiming line is easy to see and reflections do not wash out the code. Keep the lens clean and provide a clear physical guide when operators need to scan items quickly in the same position.

Prevent Duplicate and Incorrect Records After the Scan

Successful decoding is only the first step. Host software should validate the expected length and format, reject codes that do not belong to the current workflow, and provide a clear success or error response. Continuous mode also needs duplicate suppression so one stationary label does not create multiple inventory entries.

Treat every scanned payload as untrusted input. Do not automatically open URLs, execute commands, grant access, or use the value directly in a database query without validation and sanitization.

Interface details and supported commands are available in the M5Stack QRCode Unit documentation.
