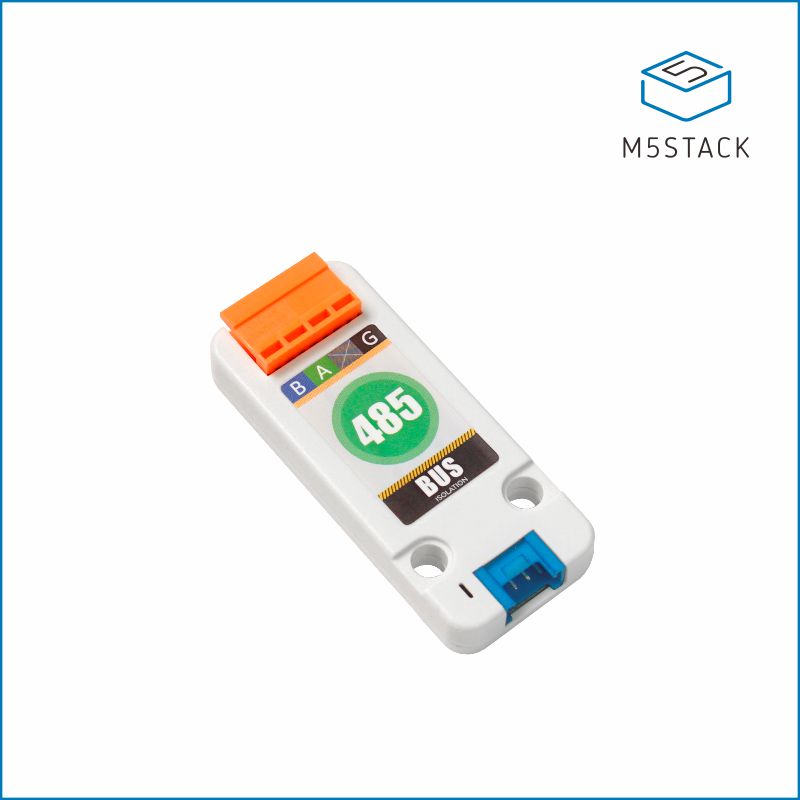

• M5Stack Unit RS485-ISO front product view

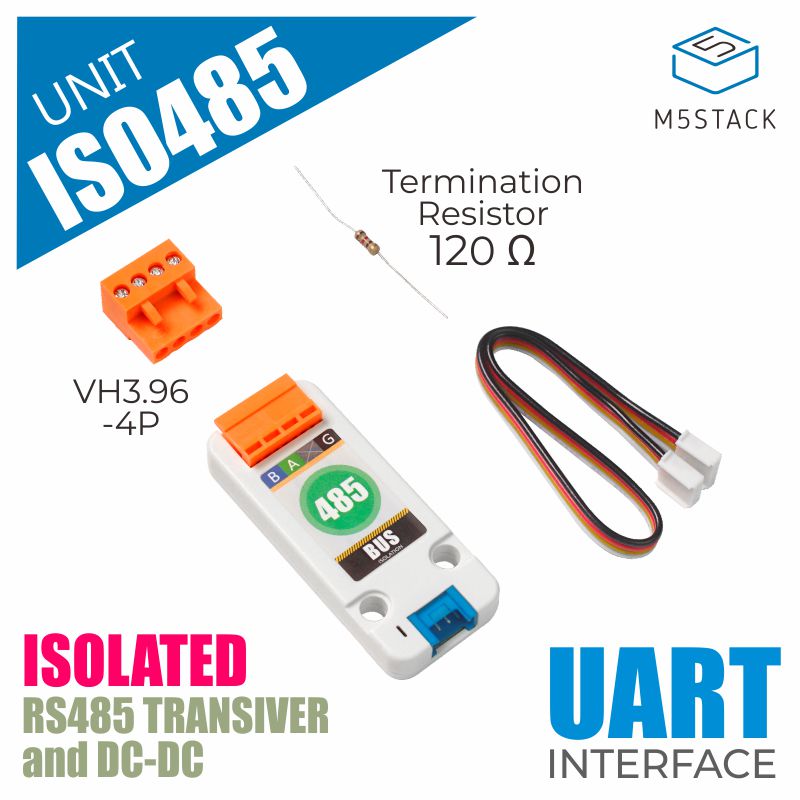

  • M5Stack Unit RS485-ISO connector and control detail

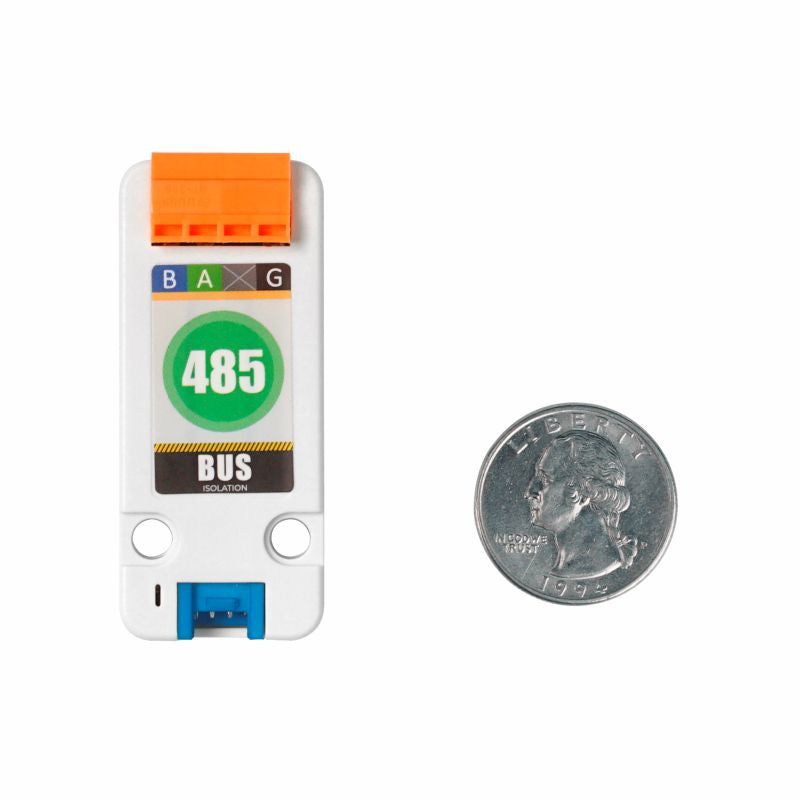

  • M5Stack Unit RS485-ISO feature overview

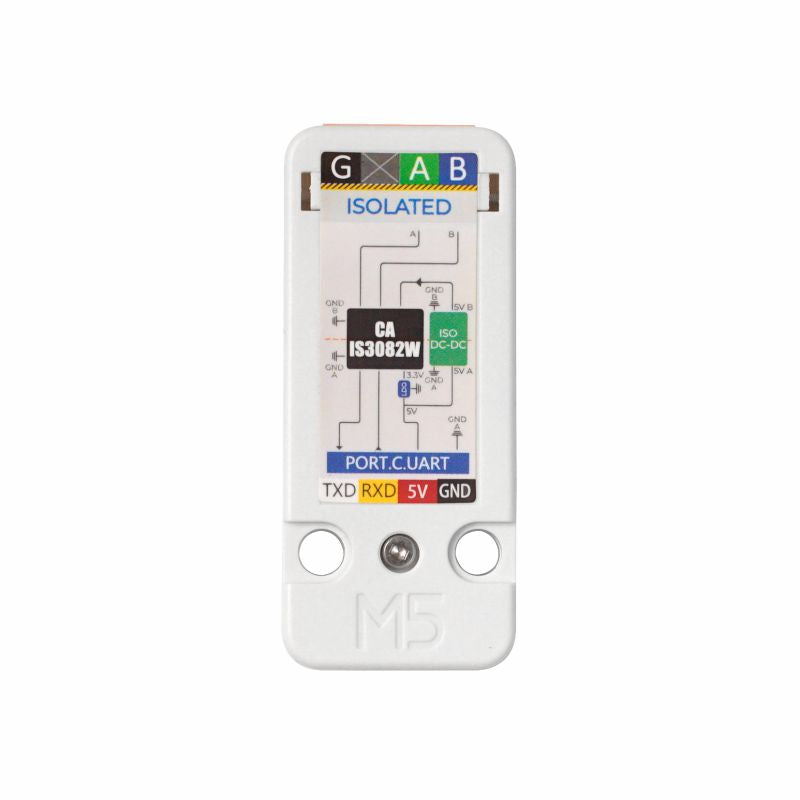

  • M5Stack Unit RS485-ISO rear hardware view

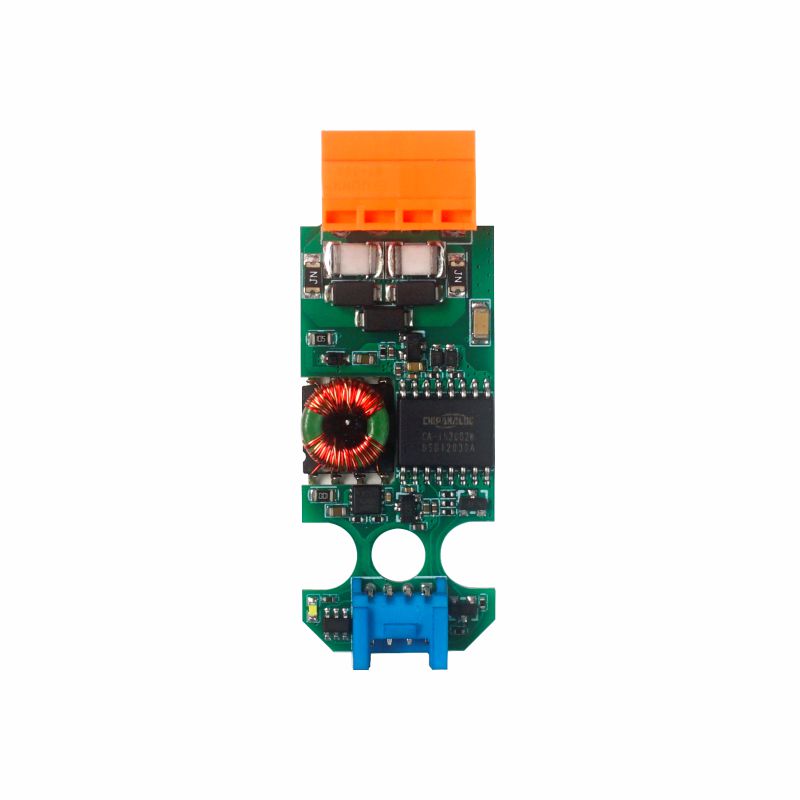

  • M5Stack Unit RS485-ISO side profile

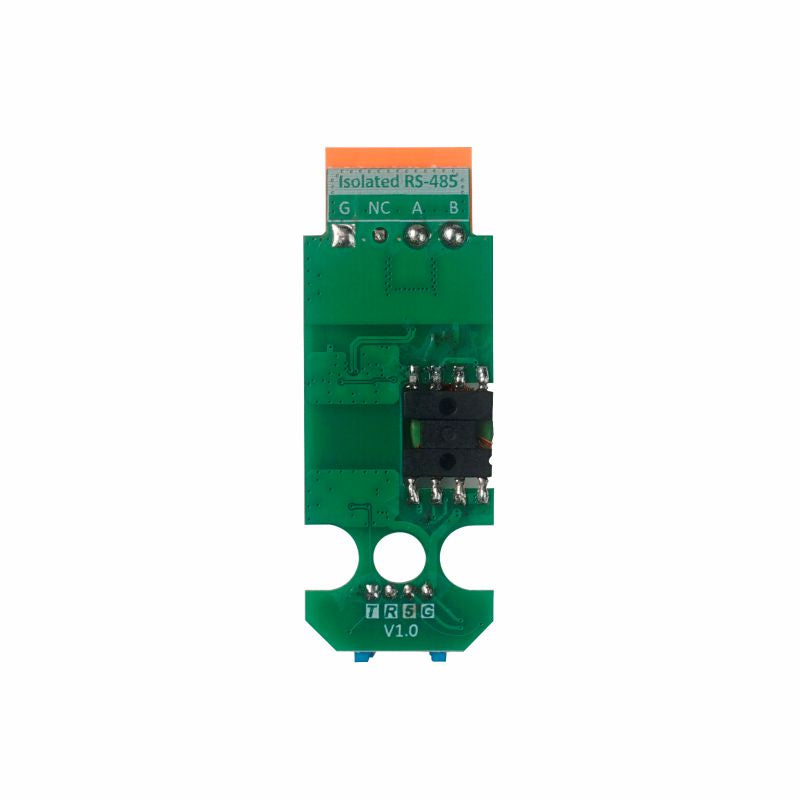

  • M5Stack Unit RS485-ISO installation example

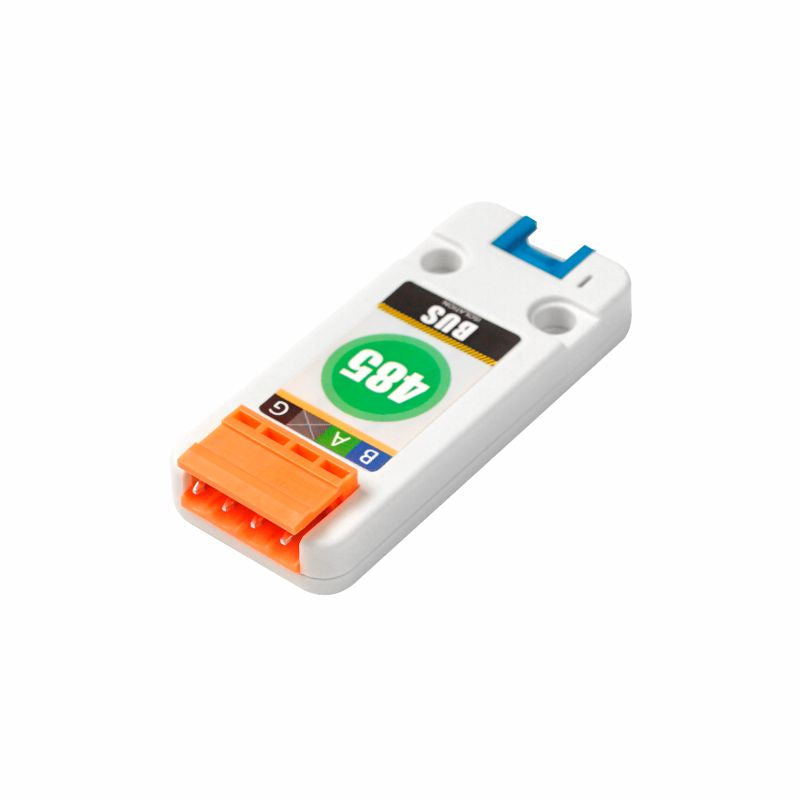

  • M5Stack Unit RS485-ISO dimensions and interface diagram

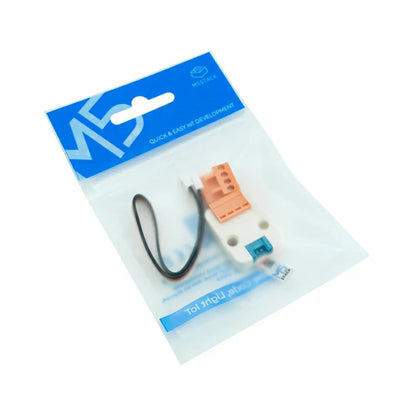

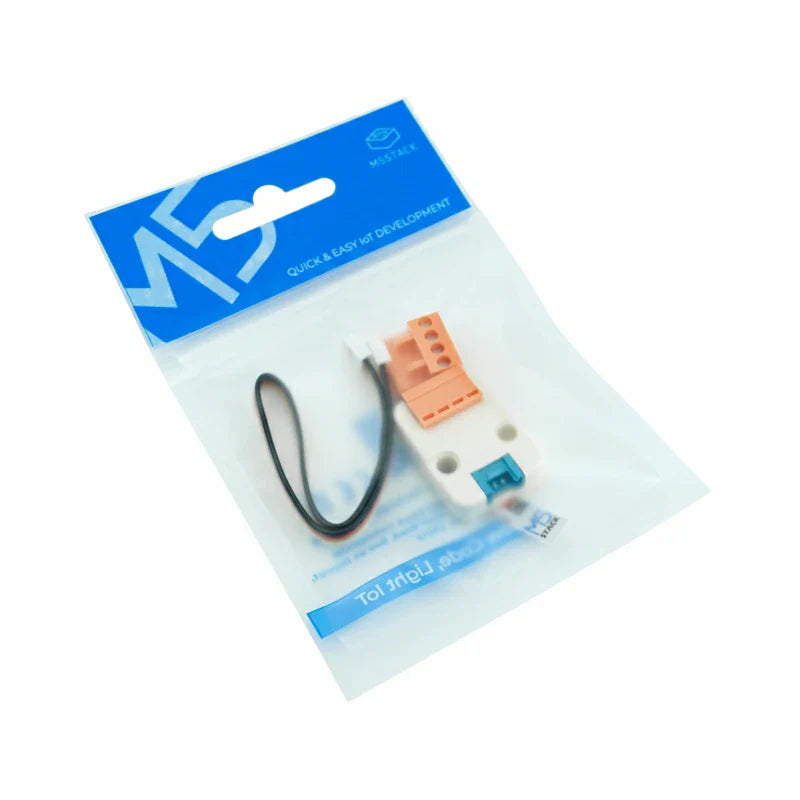

  • M5Stack Unit RS485-ISO package contents

M5Stack RS485-ISO Unit – Isolated RS485 Transceiver | U094

M5Stack RS485-ISO Unit – Isolated RS485 Transceiver | U094

LB-M5-U094

20 in stock
$13.00 USD
$13.00 USD $9.95 USD

Key Features

  • CA-IS3082W isolated RS485 transceiver
  • Half-duplex communication up to 500 kbps
  • Isolation withstand reference up to 1000 Vrms
  • Fail-safe receiver and protection functions
  • Terminal and supplied 120 Ω resistor

The M5Stack RS485-ISO Unit connects a TTL UART host to industrial RS485 meters, sensors, controllers, and Modbus RTU devices while adding galvanic isolation between the controller and field bus. Its CA-IS3082W transceiver supports half-duplex communication up to 500 kbps, and the isolated power stage helps reduce problems caused by ground-potential differences and electrical noise. Correct deployment still requires verified A/B polarity, topology, termination, biasing, shielding, protection, and protocol settings.

RS485-ISO Unit: Core Functions and Control

Separate the Host from Field-Side Wiring

The isolation barrier reduces direct conductive coupling between the controller and RS485 network.

Communicate over Half-Duplex RS485 up to 500kbps

The CA-IS3082W converts UART data into differential signaling for multidrop industrial serial networks.

Install End-of-Line Termination Correctly

The included 120 Ω resistor is intended for a physical end of the main bus, not every node.

RS485-ISO Unit Applications

  • Isolated Modbus RTU gateways
  • Industrial meter and sensor networks
  • Factory equipment monitoring
  • Long-distance multidrop communication
  • Controllers exposed to noisy field wiring

How to Integrate the RS485-ISO Unit

  1. Power off the system and verify terminal pinout, supply, and A/B labeling.
  2. Connect the Grove UART side to the host and the terminal to the field cable.
  3. Configure matching baud rate, data bits, parity, stop bits, address, and protocol.
  4. Install termination only at the two physical ends and apply biasing as required.
  5. Test one slave first, validate checksums, and expand the bus while monitoring errors.

RS485-ISO Unit Deployment Notes

  • Isolation does not replace correct grounding, shielding, surge protection, or enclosure design.
  • RS485 defines the electrical layer; the host must implement the application protocol.
  • Maximum node count depends on loading, topology, biasing, termination, and cable quality.
  • A/B naming differs among manufacturers and must be verified.
  • Do not service field wiring while unknown or hazardous equipment is energized.

RS485-ISO Unit Development Resources
