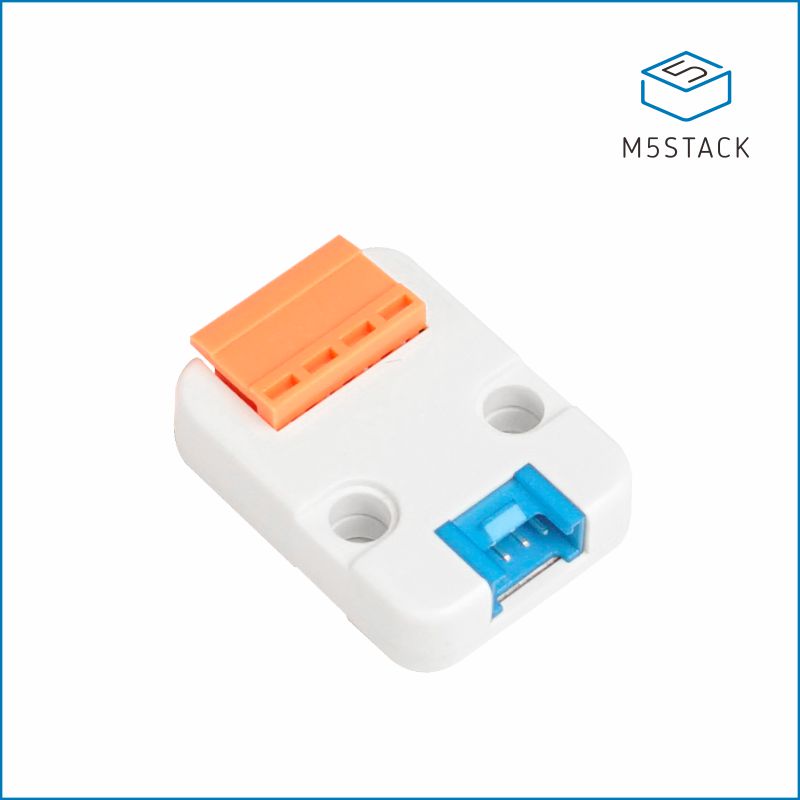

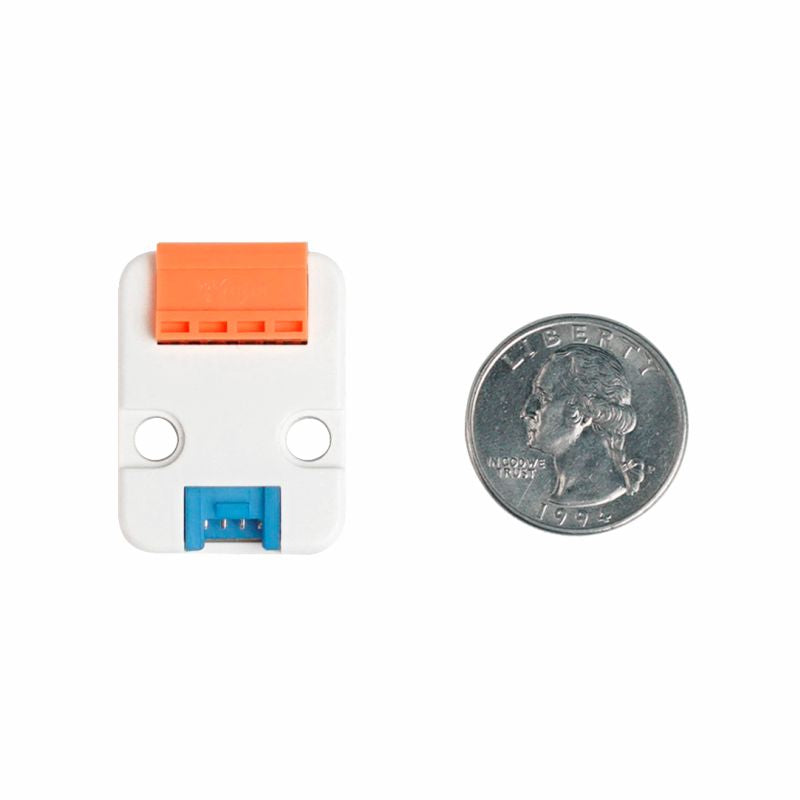

M5Stack RS485 Unit – MAX485 TTL-to-RS485 Converter | U034

The M5Stack RS485 Unit converts a host controller’s TTL UART signals into the differential signaling used by RS485 field devices. Built around a MAX485/SP485EEN transceiver, it is suitable for connecting meters, sensors, controllers, and Modbus RTU equipment over longer cable runs than standard TTL serial links. The removable terminal simplifies bus wiring, while the Grove UART connection integrates with compatible M5Stack hosts. This version is not galvanically isolated, so grounding, termination, biasing, and field-power design must be considered in the final installation.

Industrial Serial Communication with the M5Stack RS485 Unit

Convert TTL UART to Differential RS485

The onboard MAX485/SP485EEN transceiver converts the host’s single-ended UART data into an RS485 differential pair. This improves noise tolerance and supports longer multidrop wiring when the cable, topology, and baud rate are selected correctly.

Connect Meters, Sensors and Modbus RTU Devices

The unit provides the electrical interface required for many industrial serial devices. The host must still implement the correct protocol, device address, baud rate, parity, stop bits, timeout, and checksum handling.

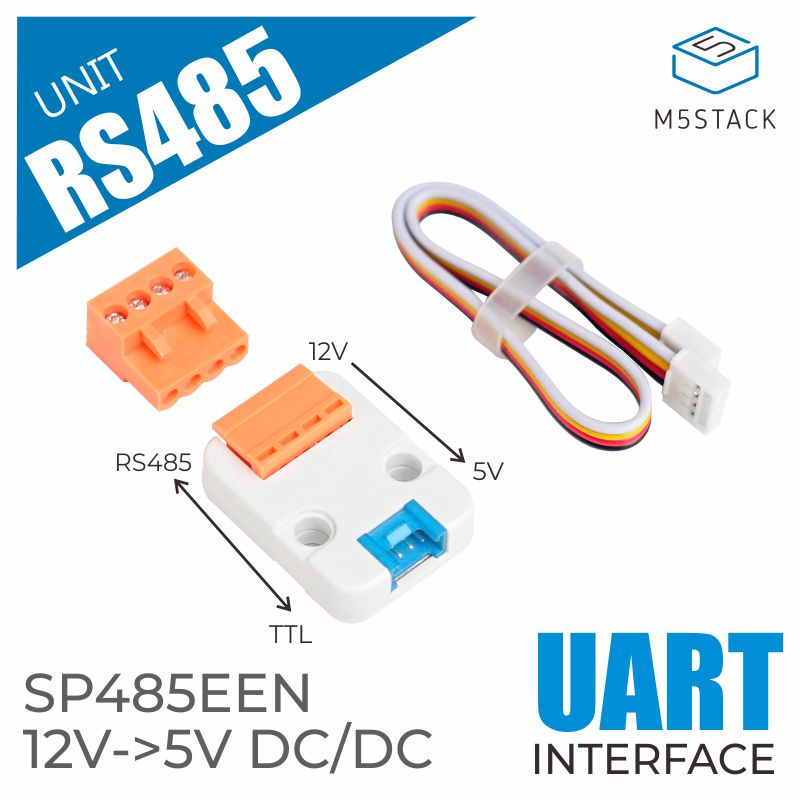

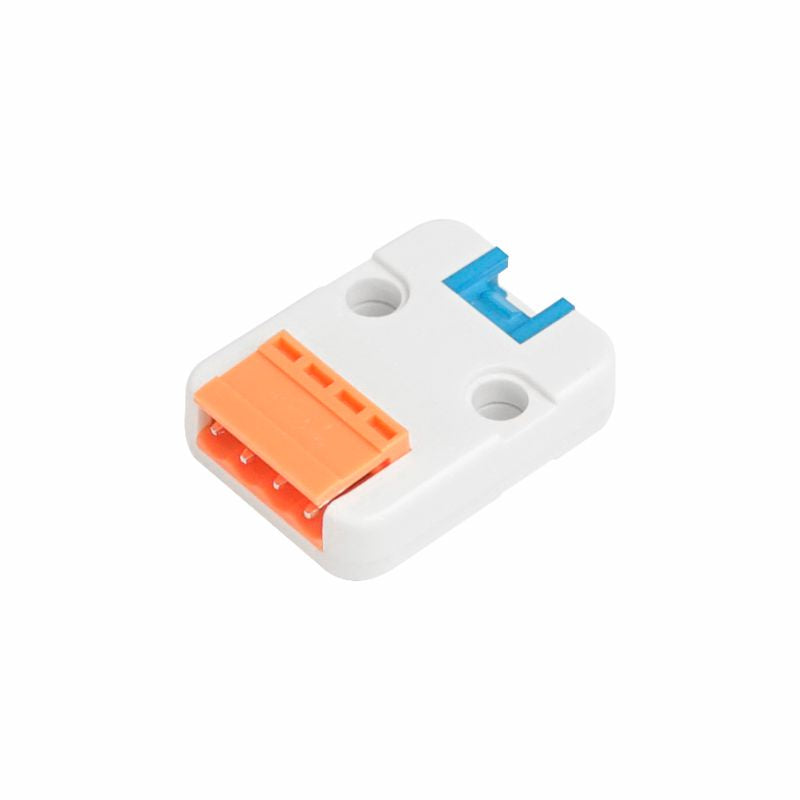

Use 12V Field Power and Removable Terminal Wiring

The field-side terminal provides the documented RS485 connection and 12V power input. Confirm terminal labels, polarity, bus A/B naming, and connected-device requirements before applying power.

M5Stack RS485 Unit Applications

• RS485 sensor and meter communication
• Modbus RTU gateways and data loggers
• Industrial equipment monitoring
• Long-distance serial communication
• Multidrop controller and instrument networks

How to Integrate the M5Stack RS485 Unit

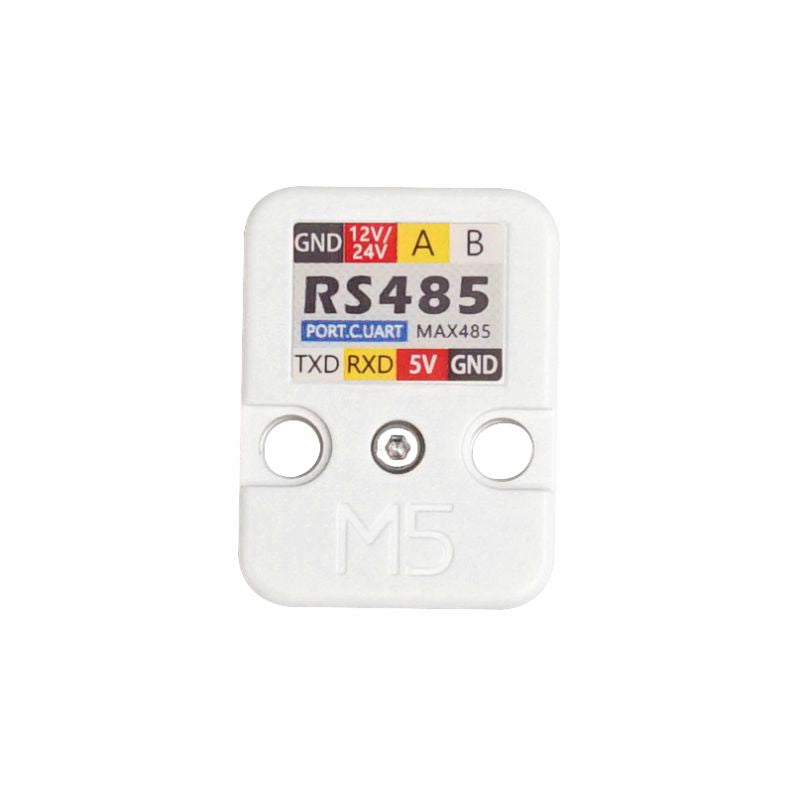

1. Power the system off and verify the terminal pinout, 12V polarity, and RS485 A/B labels.
2. Connect the Grove UART side to the host and the removable terminal to the field bus.
3. Configure matching baud rate, data bits, parity, and stop bits on all devices.
4. Start with one slave and a short cable, then add termination, biasing, and additional nodes according to the final topology.
5. Validate device address, function code, response length, and checksum before accepting data.

M5Stack RS485 Unit Deployment Notes

• This version is not described as galvanically isolated.
• RS485 electrical compatibility does not guarantee protocol compatibility.
• Termination normally belongs at the two physical ends of the bus.
• Ground-potential differences, shielding, biasing, cable impedance, and stub length affect reliability.
• Do not connect unknown industrial equipment until voltage, wiring, and protocol requirements are confirmed.
