M5Stack RTC Unit – HYM8563 I2C Real-Time Clock | U126

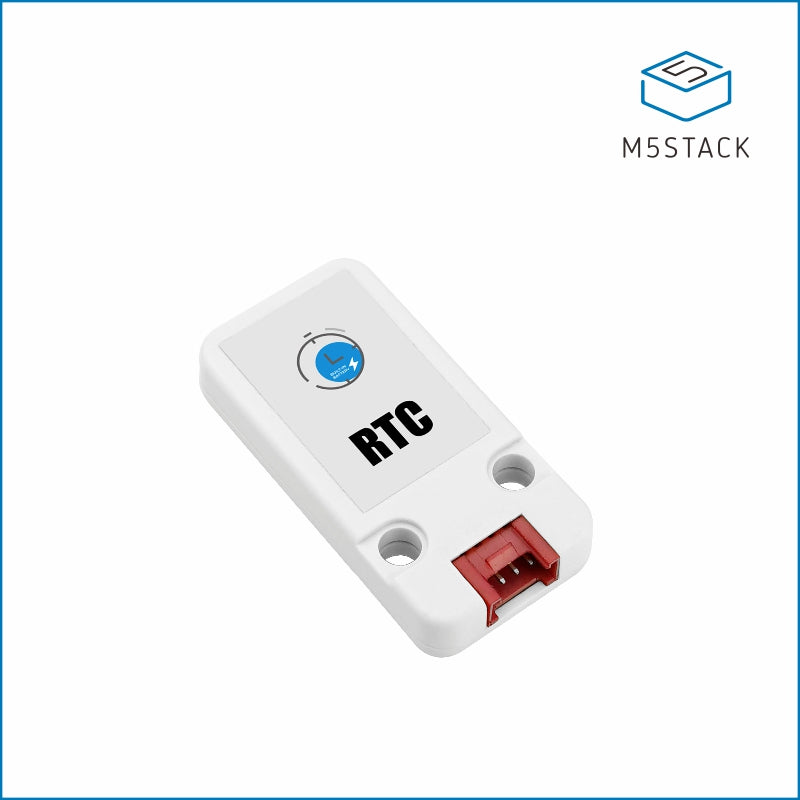

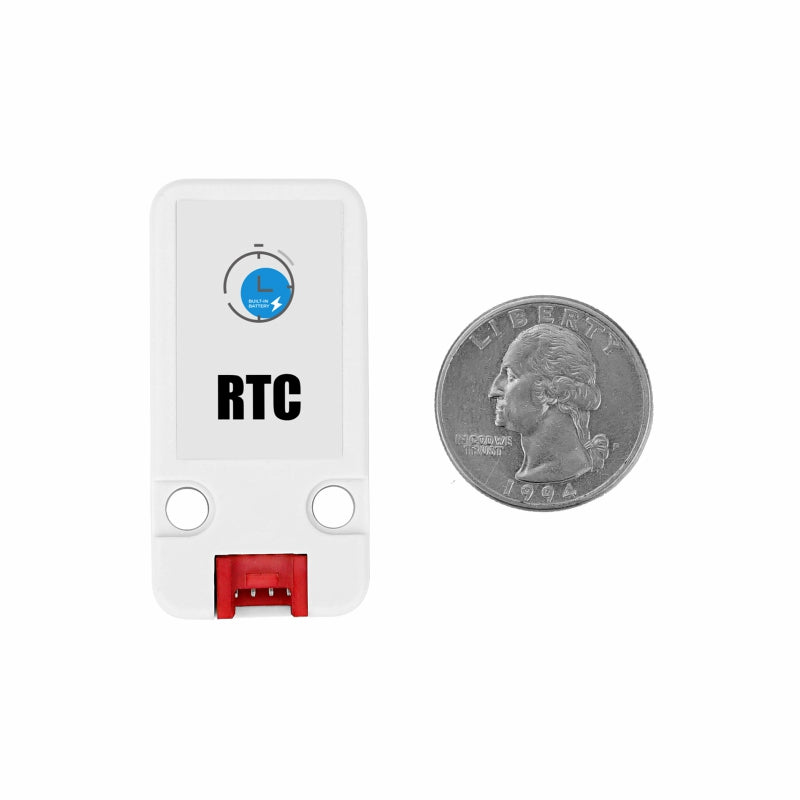

The M5Stack RTC Unit provides battery-backed date and timekeeping for offline data loggers, scheduled controllers, clocks, access terminals, and embedded devices that must retain time while the main host is powered down. Its HYM8563 real-time clock communicates over I2C at address 0x51 and stores seconds, minutes, hours, weekday, date, month, and year. Firmware can read the clock at startup, synchronize it from a trusted network source, and continue timestamping local events when network access is unavailable.

Battery-Backed Timekeeping with the M5Stack RTC Unit

Maintain Date and Time During Host Power Loss

The backup supply allows the HYM8563 to continue counting when the main controller is switched off, so the host can recover a usable calendar time after restart.

Read Calendar Data over I2C Address 0x51

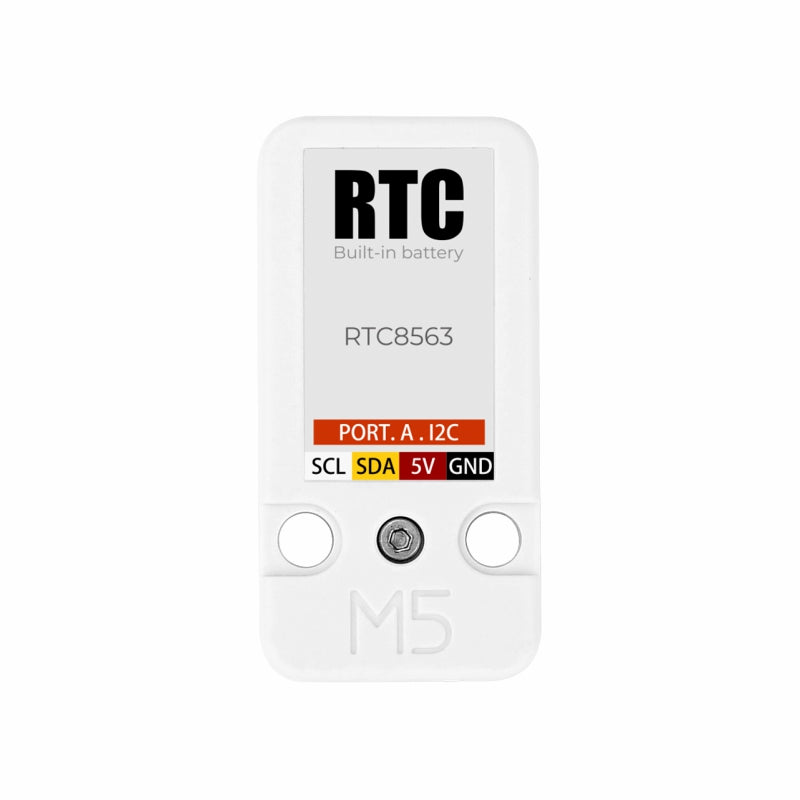

The host can read seconds, minutes, hours, weekday, date, month, and year through the Grove I2C connection. The documented I2C address is 0x51.

Synchronize Offline Logs with Network Time

A connected device can periodically correct the RTC from NTP, GNSS, or another trusted source, then use the local clock to timestamp measurements during network outages.

M5Stack RTC Unit Applications

• Offline sensor and event data logging
• Scheduled control and timed automation
• Clocks, calendars, and information displays
• Access, attendance, and check-in terminals
• Network-independent timestamp retention

How to Integrate the M5Stack RTC Unit

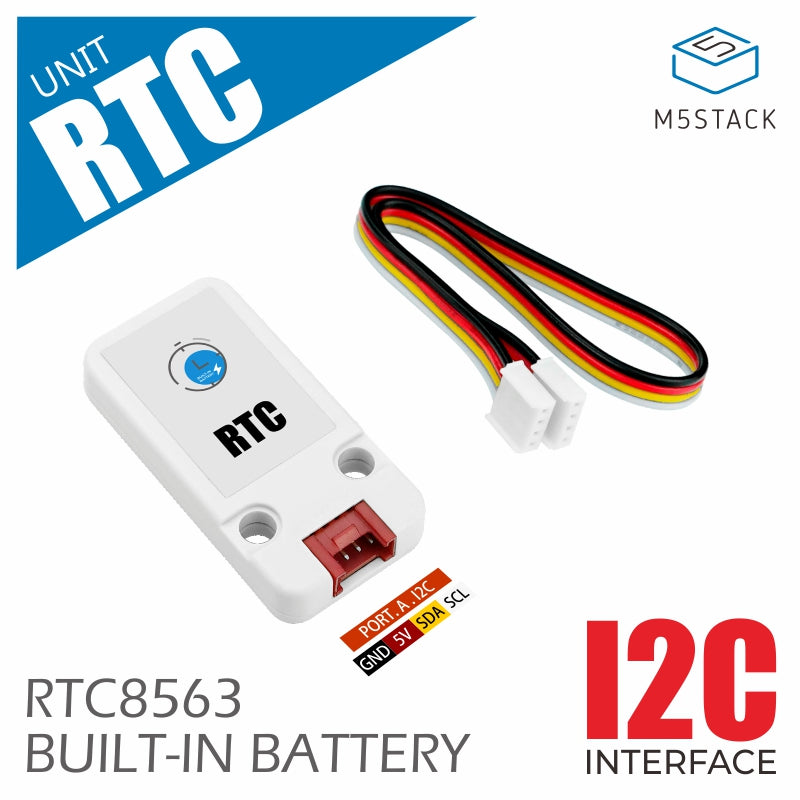

1. Connect the unit to a compatible Grove I2C port and confirm that address 0x51 is free.
2. At first setup, write a trusted date and time to the RTC.
3. On every startup, read the clock and validate the year and status before using timestamps.
4. Store timestamps in a defined time zone or UTC and handle daylight-saving rules in application software.
5. Periodically compare the RTC with a trusted reference and correct accumulated drift when necessary.

M5Stack RTC Unit Deployment Notes

• A real-time clock reduces dependence on network time but still accumulates oscillator drift.
• Validate clock data after long storage, battery replacement, or an invalid-status indication.
• The RTC stores calendar values; time-zone and daylight-saving conversion belong in host software.
• Keep the backup battery and unit away from excessive heat, moisture, and mechanical damage.
• This module is not a precision timing reference for billing, legal metrology, or safety-critical synchronization.

M5Stack RTC Unit Development Resources

• M5Stack RTC Unit Official Documentation
• UiFlow2 Development Environment
• Arduino IDE
