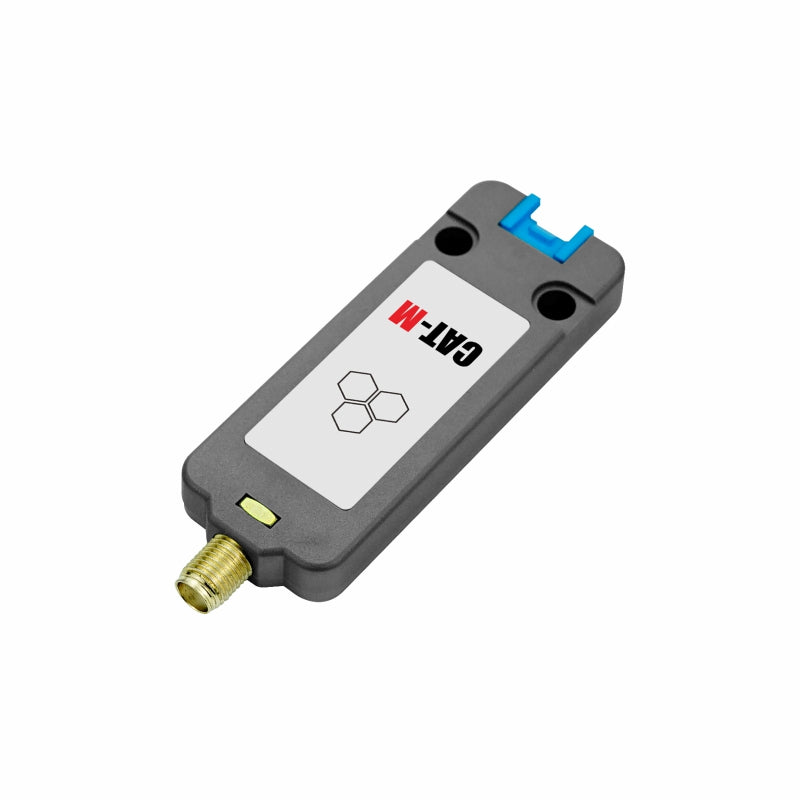

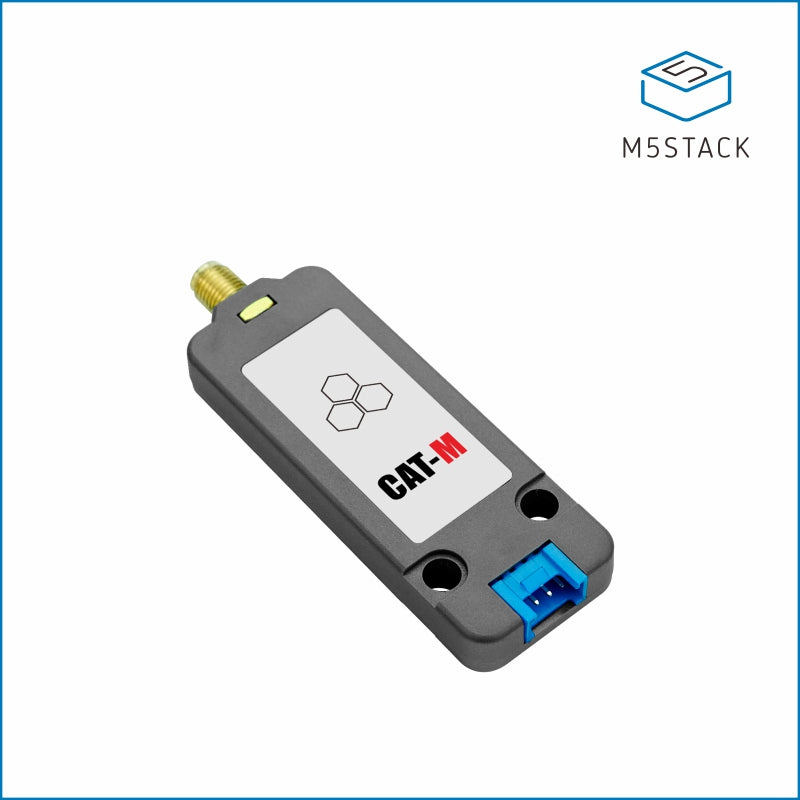

M5Stack SIM7080G CAT-M/NB-IoT Unit

Send Sensor Data from Places Where Wi-Fi Never Reaches

A water tank, irrigation pump, utility meter, warehouse asset, or roadside controller may be easy to measure but expensive to visit. Running Ethernet is impractical, local Wi-Fi may not exist, and a failed data upload can remain unnoticed for days. The M5Stack SIM7080G CAT-M/NB-IoT Unit adds low-bandwidth cellular communication so remote equipment can report readings, alarms, and operating status through a mobile network.

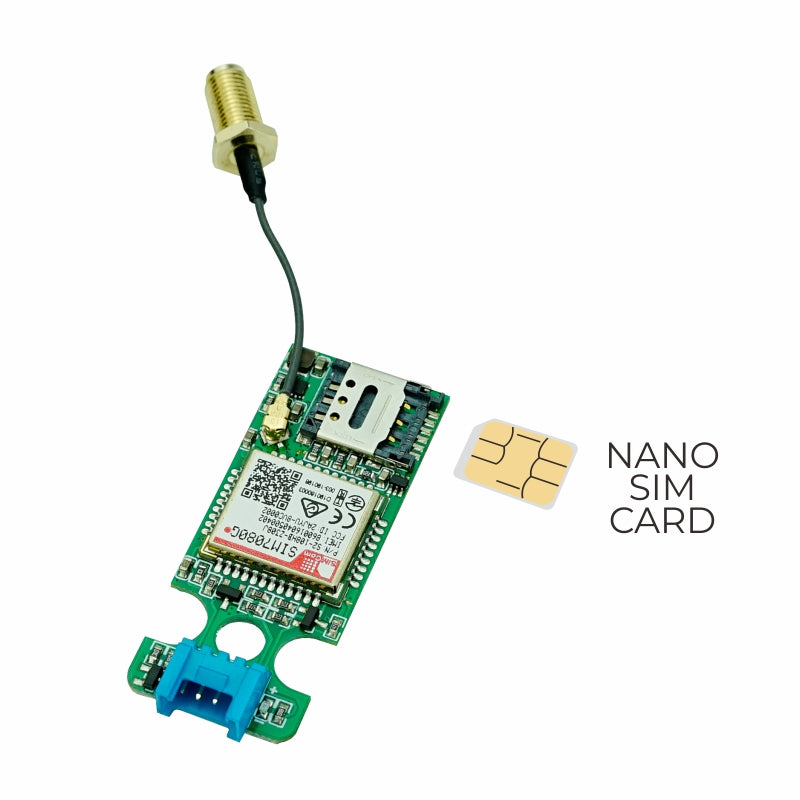

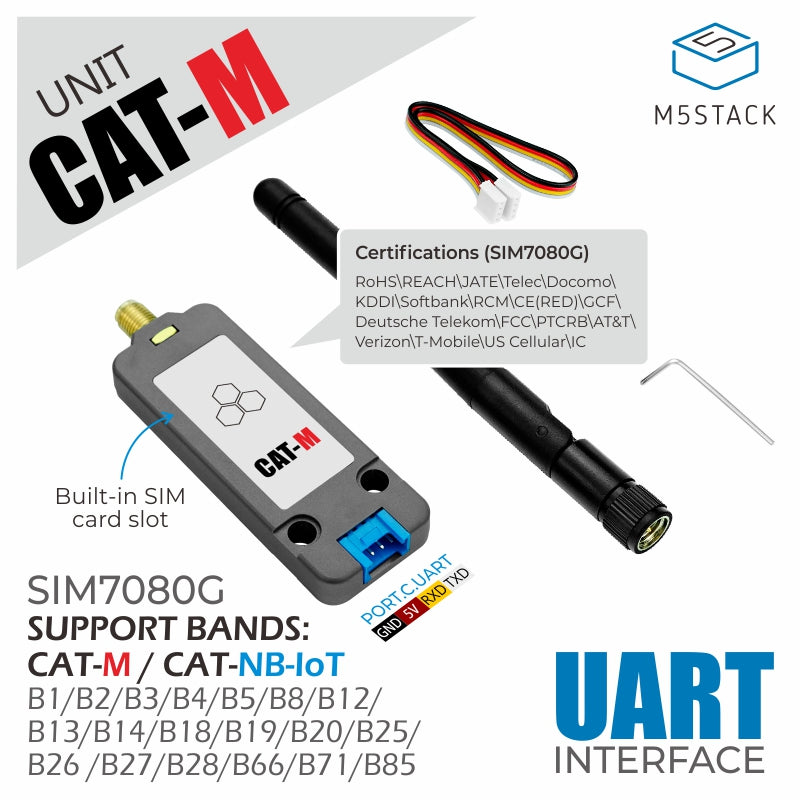

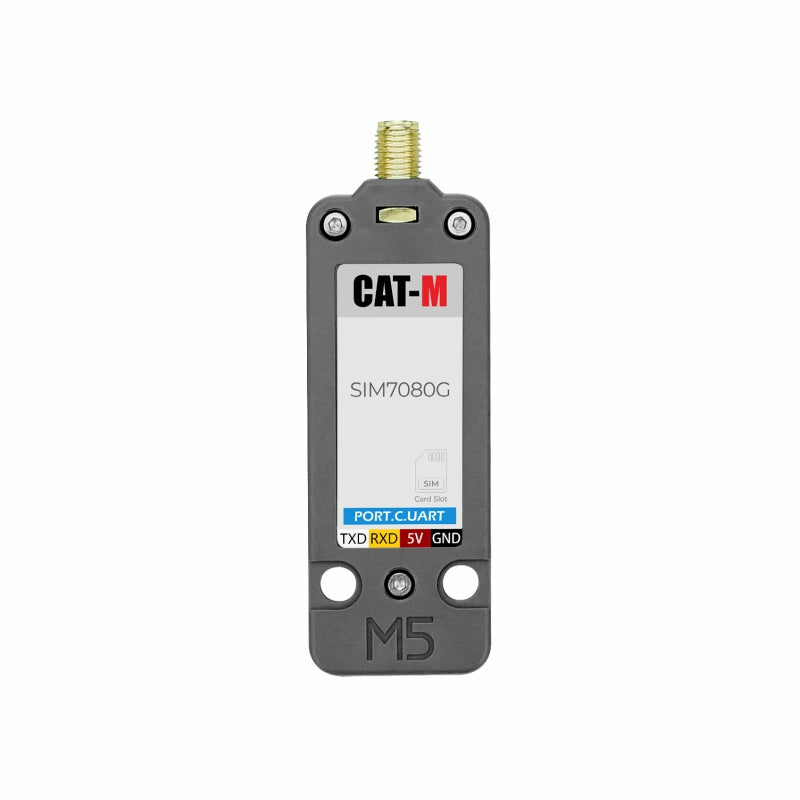

The SIM7080G provides LTE Cat-M and NB-IoT modes, a Nano SIM slot, UART AT-command control, and an external SMA antenna connection. MQTT, HTTP, HTTPS, TCP, UDP, TLS, DTLS, LwM2M, and CoAP support gives the host several ways to send data to a cloud platform or private server.

Reduce Site Visits for Routine Readings and Fault Checks

Instead of sending someone to read a meter, check a pump, or confirm whether a remote cabinet is still online, the host controller can collect sensor data and upload only the information that matters. Small periodic payloads, threshold alarms, equipment-state messages, and maintenance counters fit the strengths of Cat-M and NB-IoT better than continuous high-bandwidth traffic.

Cat-M generally fits applications that need more throughput or mobility, while NB-IoT can fit stationary, low-data-rate devices where the carrier provides coverage. The correct choice starts with the network at the actual installation site, not only the modem specification.

Confirm the Carrier Before Committing the Hardware

A matching frequency band does not guarantee a connection. Confirm that the local carrier has deployed Cat-M or NB-IoT on a supported band, the SIM plan allows the required service, and the APN, authentication, roaming, and registration policy match the project. Test the exact SIM and antenna at the deployment location before manufacturing a larger batch.

Build for Network Loss Instead of Assuming Permanent Connectivity

Remote cellular devices will encounter weak signal, delayed registration, rejected SIMs, incorrect APNs, server outages, and interrupted uploads. Firmware should use clear timeouts, bounded retries, watchdog recovery, queued records, timestamps, and reconnection logic. A device that repeatedly retries without limits can drain its battery while still losing the data it was meant to protect.

Size the Power Supply for Registration and Transmission Peaks

The product specification lists approximately 49.4mA in standby and a 249mA network peak. The supply must also support the host controller, sensors, and any peripheral loads. Thin cables, weak regulators, or insufficient local capacitance can cause resets exactly when the modem begins to register or transmit.

Choose It for Telemetry, Not Continuous Media

This unit is a practical fit for meter readings, environmental data, tank level, equipment alarms, location updates, and scheduled maintenance reports. It is not the right transport for continuous video, large frequent files, or applications that depend on consistently low latency.

Band tables, commands, and setup references are available in the M5Stack Unit CatM documentation.
