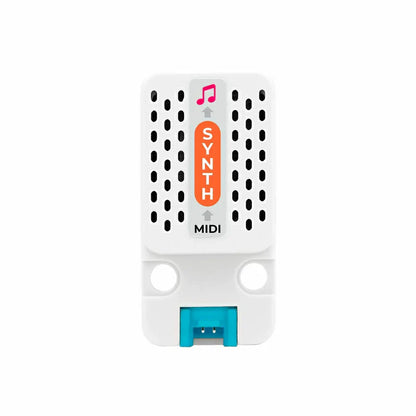

M5Stack Synth Unit – SAM2695 MIDI Sound Module | U178

The M5Stack Synth Unit adds embedded MIDI sound generation to interactive instruments, music controllers, toys, games, exhibits, and education projects. Its SAM2695 synthesizer receives MIDI commands through UART and generates multi-instrument audio with configurable effects, while an NS4150B class-D amplifier drives the onboard 1 W speaker. Developers can select voices, notes, channels, velocity, volume, four-band equalization, and reverb without streaming recorded audio. Reliable results depend on correct MIDI message timing, controlled volume, suitable power, and avoiding clipping or continuous high-output operation.

Embedded MIDI Audio with the M5Stack Synth Unit

Generate Instrument Voices with the SAM2695

The SAM2695 synthesizer responds to MIDI note, program, channel, velocity, and controller messages, allowing compact devices to play melodies, sound effects, and multi-part arrangements.

Shape Sound with 4-Band EQ and Reverb

Firmware can adjust the available equalization and reverb controls to suit different enclosures, instruments, and interactive audio effects.

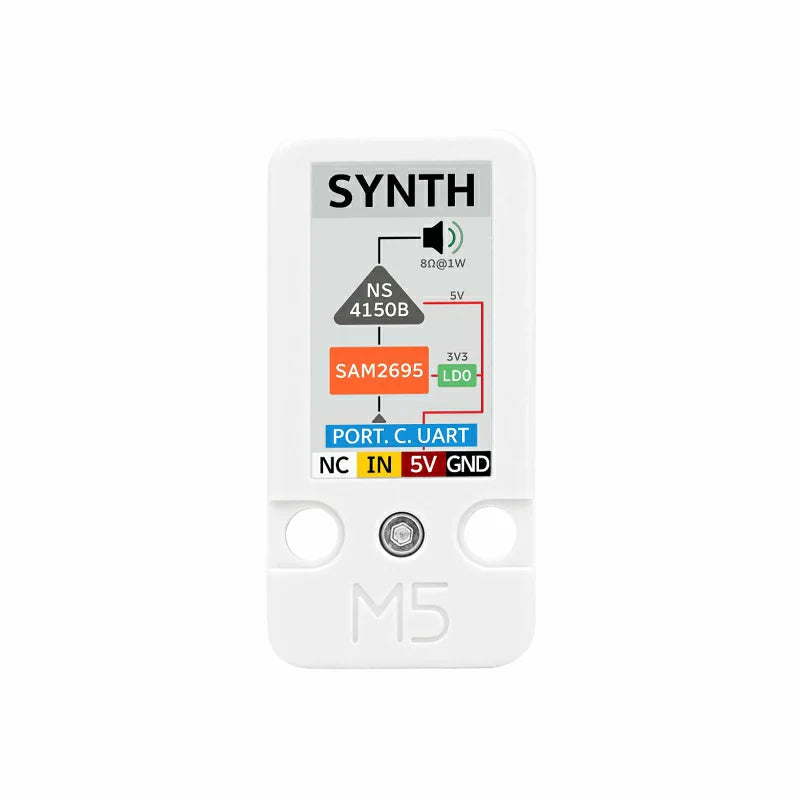

Play Audio through the Onboard 1W Speaker

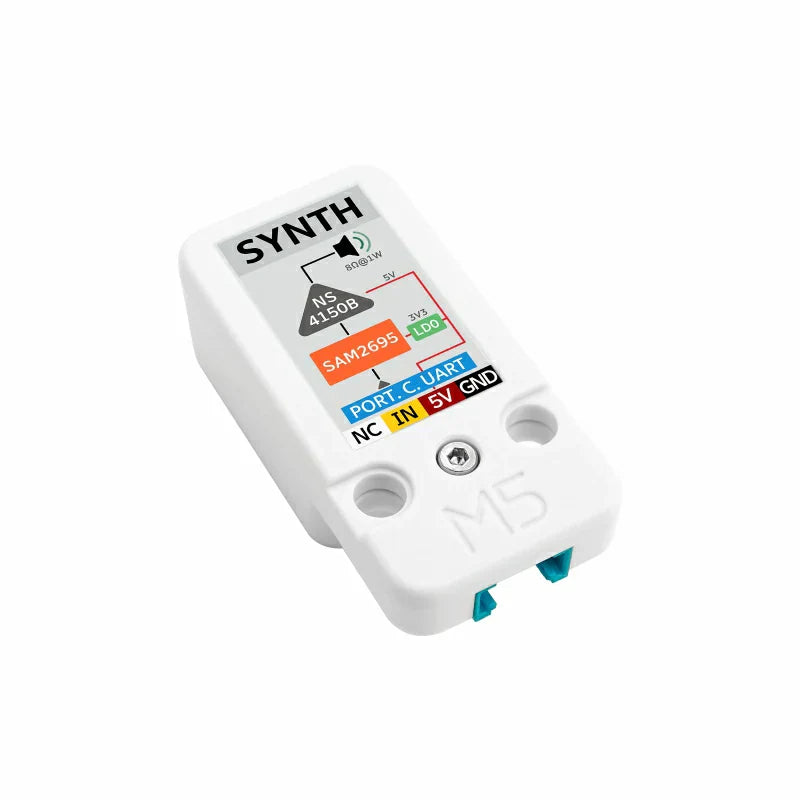

The NS4150B class-D amplifier drives the integrated 8 Ω, 1 W speaker, enabling self-contained sound output without a separate audio amplifier for basic applications.

M5Stack Synth Unit Applications

• Portable MIDI instruments and sequencers
• Interactive toys and educational music projects
• Game and user-interface sound effects
• Robotic and exhibit audio feedback
• Algorithmic music and generative sound

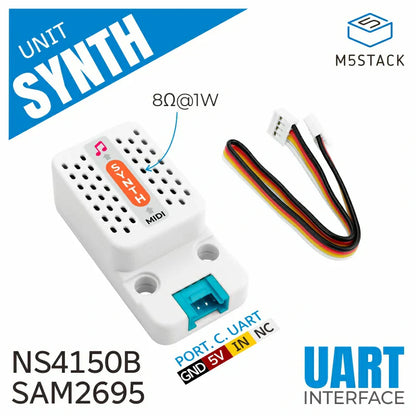

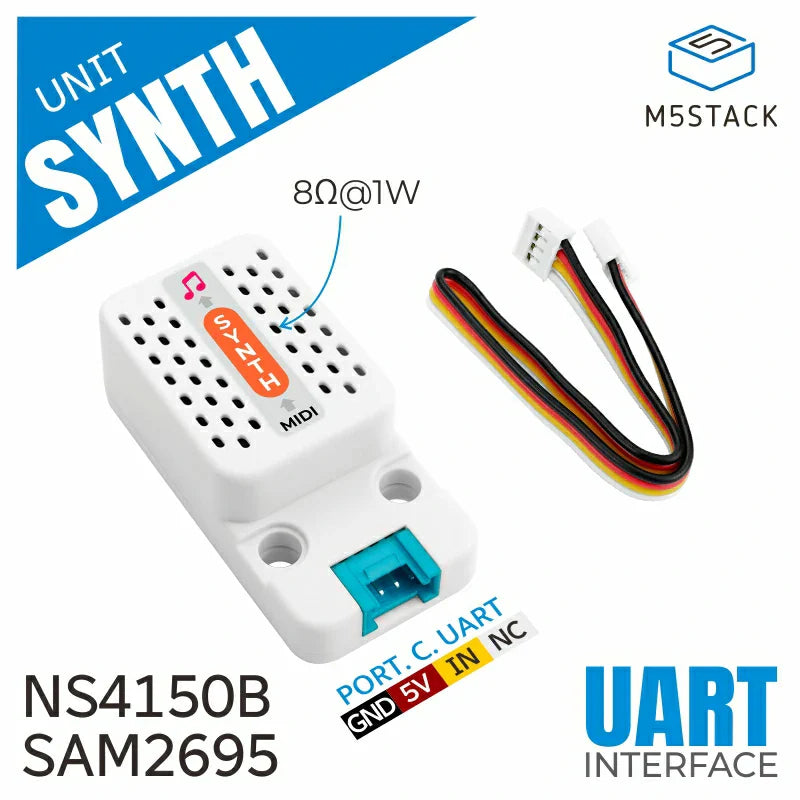

How to Integrate the M5Stack Synth Unit

1. Connect the unit to a compatible Grove UART port and confirm the documented receive-pin mapping.
2. Initialize the serial connection and send a known program-change, note-on, and note-off sequence.
3. Set a conservative master volume before testing multiple notes or channels.
4. Add proper note-off, panic, timeout, and restart handling so notes cannot remain stuck.
5. Tune EQ, reverb, voice allocation, and event timing in the final enclosure at the intended listening distance.

M5Stack Synth Unit Deployment Notes

• The module receives MIDI control data; it is not a general-purpose digital audio recorder or file player.
• Excessive volume or dense polyphony can cause clipping, distortion, or higher power demand.
• Send note-off or all-notes-off commands during errors, scene changes, and shutdown.
• Speaker response changes with enclosure design, openings, mounting, and nearby surfaces.
• Operate within the documented 0–40 °C range and do not use the unit as a safety-critical audible alarm.
