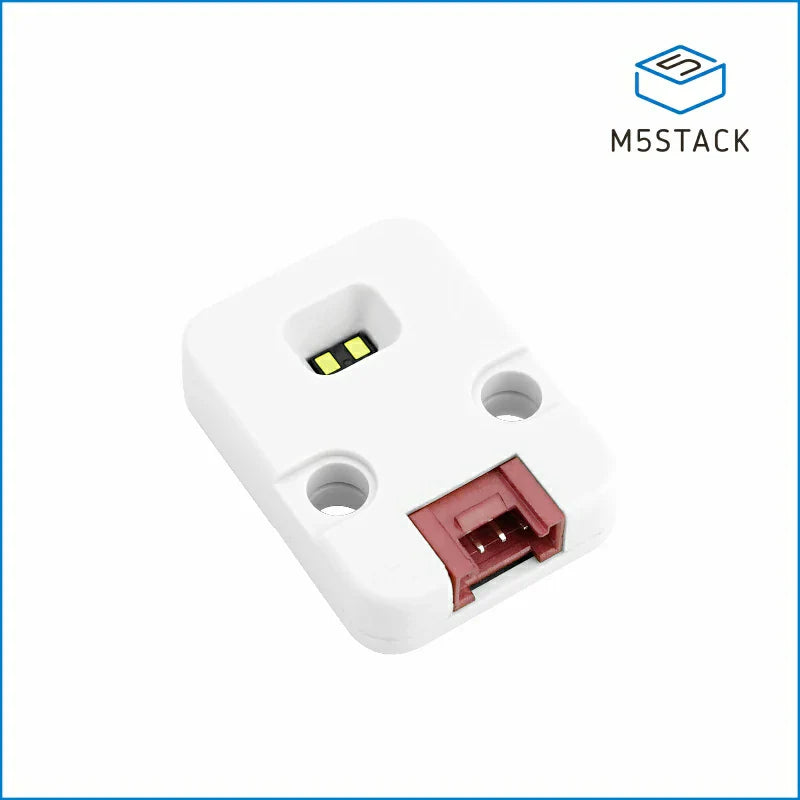

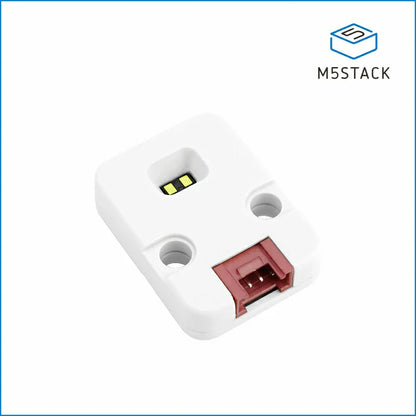

M5Stack ToF4M Unit – VL53L1X 4m Distance Sensor | U172

The M5Stack ToF4M Unit measures object distance for robot obstacle detection, level monitoring, positioning, parking aids, and interactive installations. Its VL53L1X Time-of-Flight sensor reports millimeter-scale data from approximately 4 cm to 4 m through I2C address 0x29. A configurable field of view helps focus on a smaller target area. Actual range and stability depend on timing budget, target reflectivity, ambient infrared light, optical cleanliness, geometry, and host-side filtering.

ToF4M Unit: Core Functions and Control

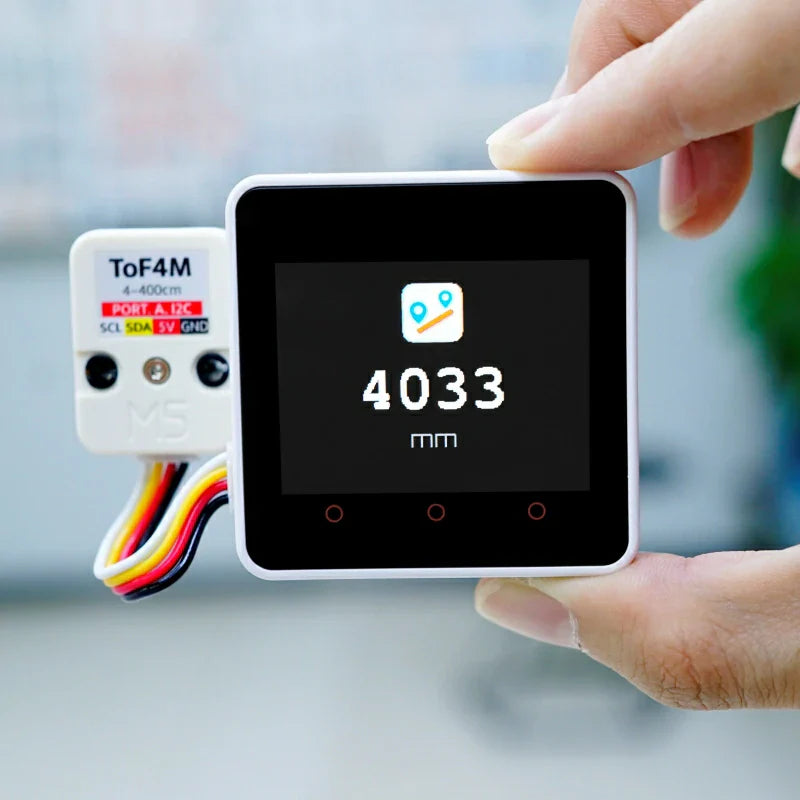

Measure Targets from Approximately 4cm to 4m

The VL53L1X calculates distance from infrared light travel time and returns digital range data for stationary or moving targets.

Configure the Sensor Field of View

A reduced region of interest can help reject enclosure edges, adjacent objects, or surrounding structures.

Balance Timing Budget and Response Speed

Longer timing budgets can improve long-range performance, while shorter budgets provide faster updates.

ToF4M Unit Applications

• Mobile robot obstacle ranging
• Bin and tank level prototypes
• Doorway and object-presence detection
• Parking and alignment assistance
• Interactive distance-controlled installations

How to Integrate the ToF4M Unit

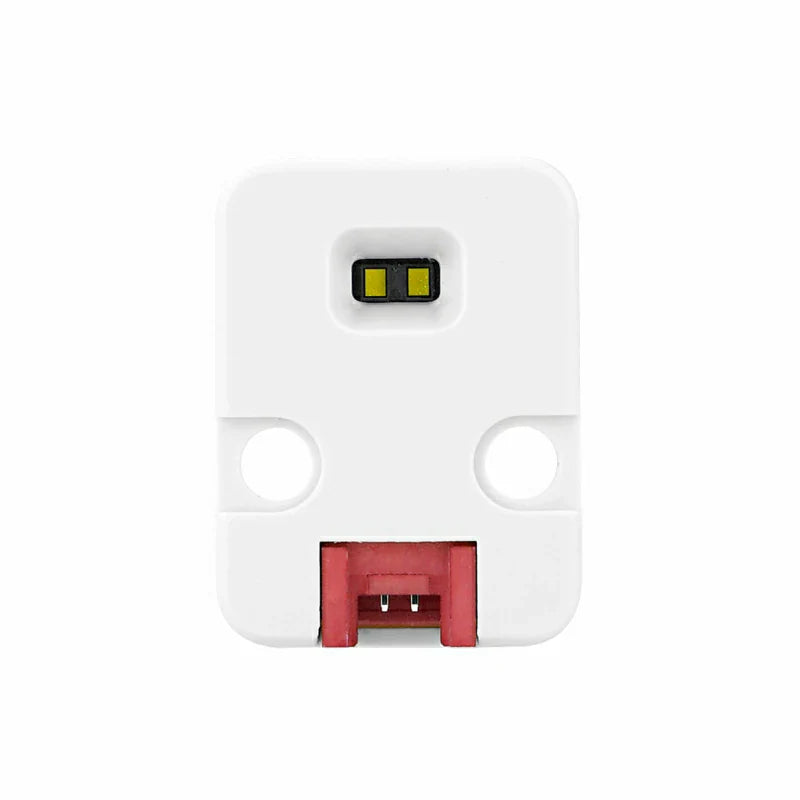

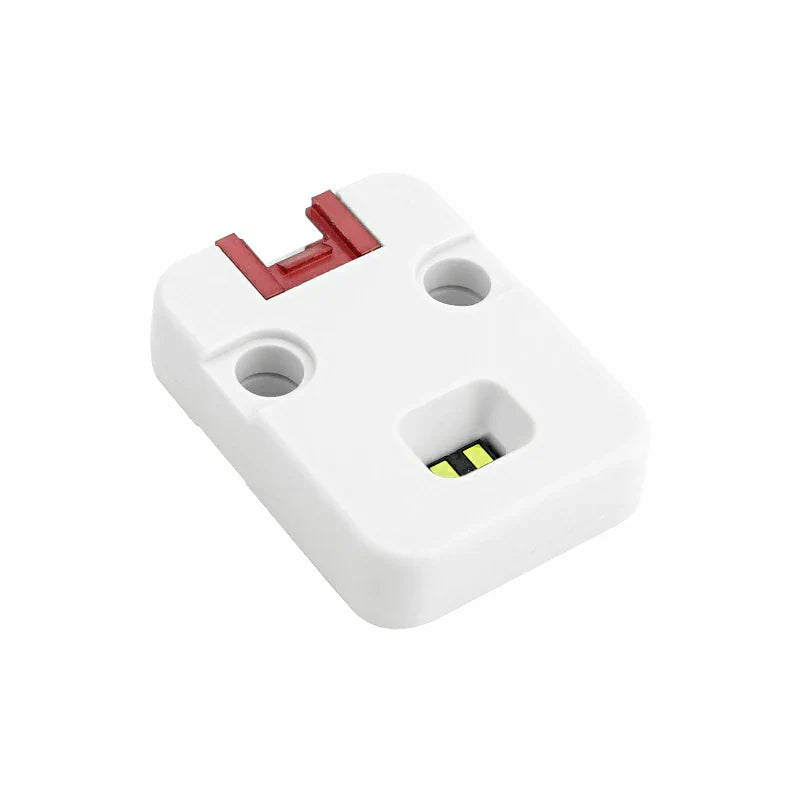

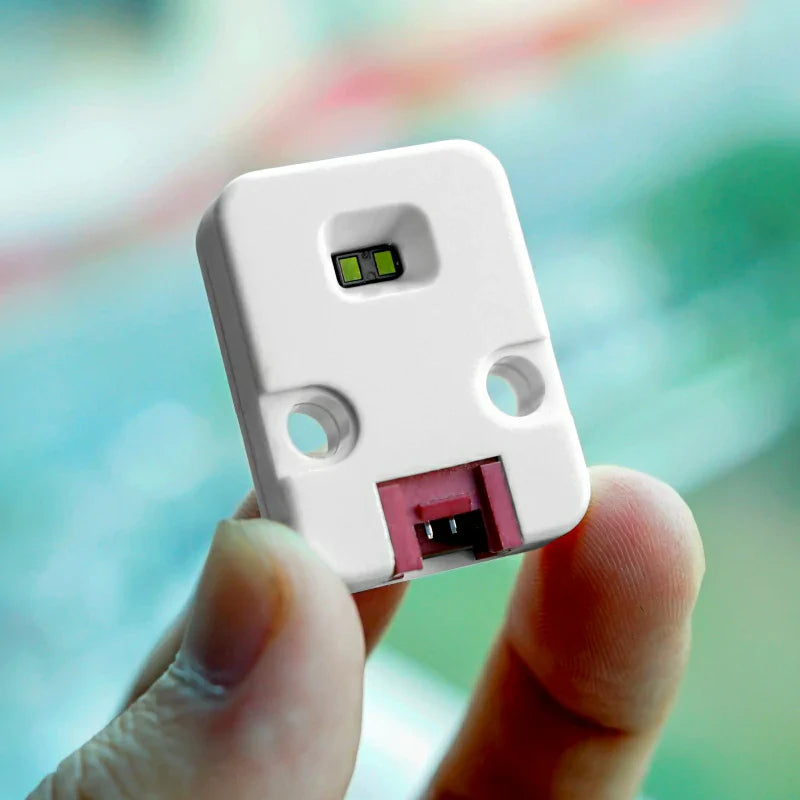

1. Mount the optical window perpendicular to the target and keep it clean and unobstructed.

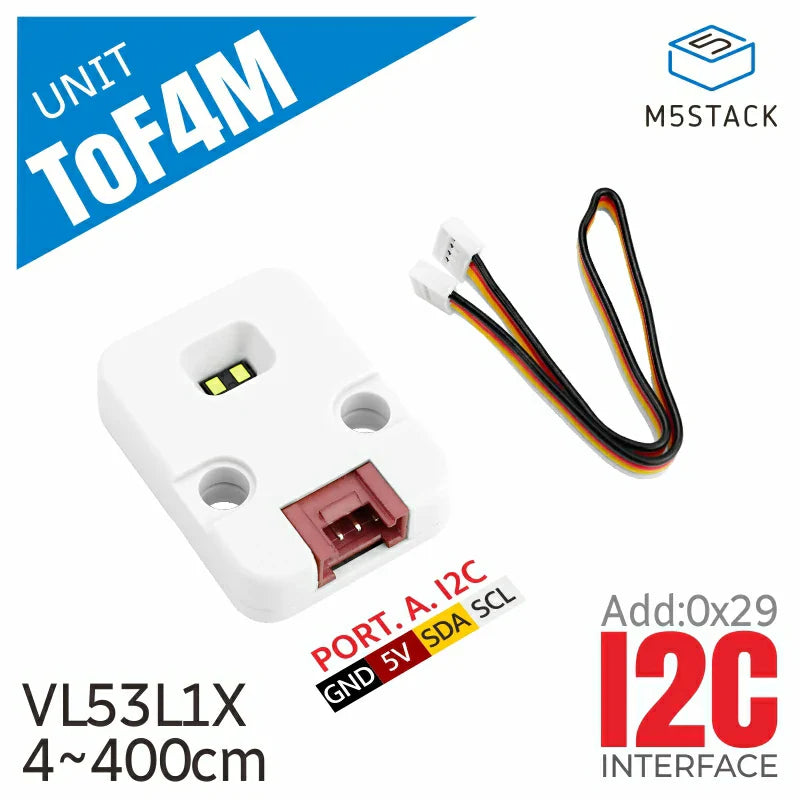

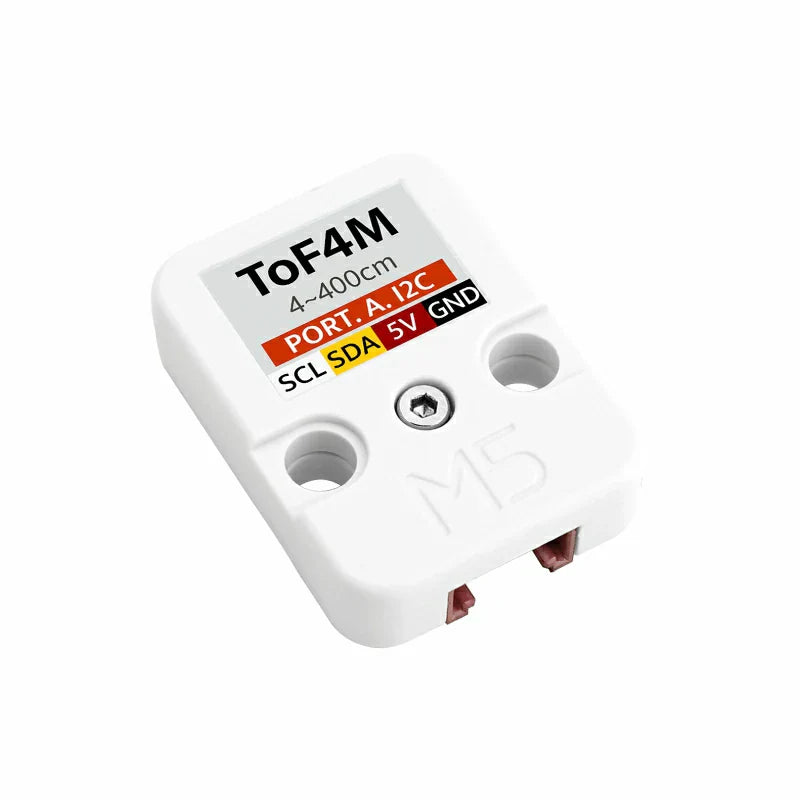

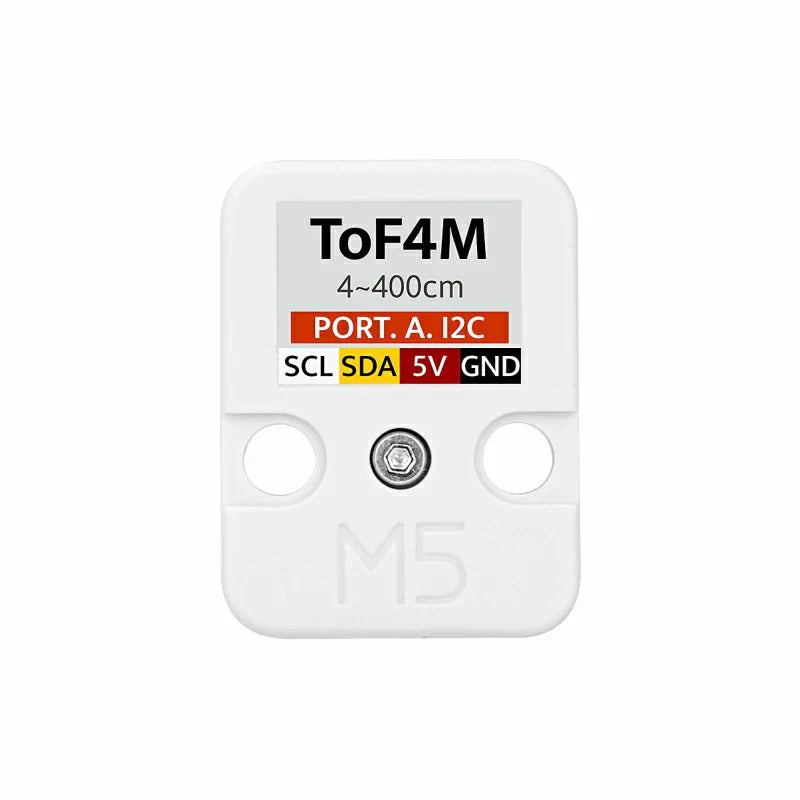

2. Connect the unit to an I2C port and confirm that address 0x29 is available.
3. Select distance mode, timing budget, measurement interval, and field of view.
4. Test representative dark, light, reflective, narrow, and angled targets at known distances.
5. Reject invalid status codes and outliers before using distance data for control.

ToF4M Unit Deployment Notes

• The 4 m range is a maximum reference and is not guaranteed for every target.
• Dark, transparent, reflective, narrow, or angled targets can reduce reliability.
• Strong ambient infrared light and unsuitable cover glass can degrade performance.
• Multiple optical sensors can interfere when aimed at the same area.
• Do not use this module as the only collision-protection device for hazardous motion.
