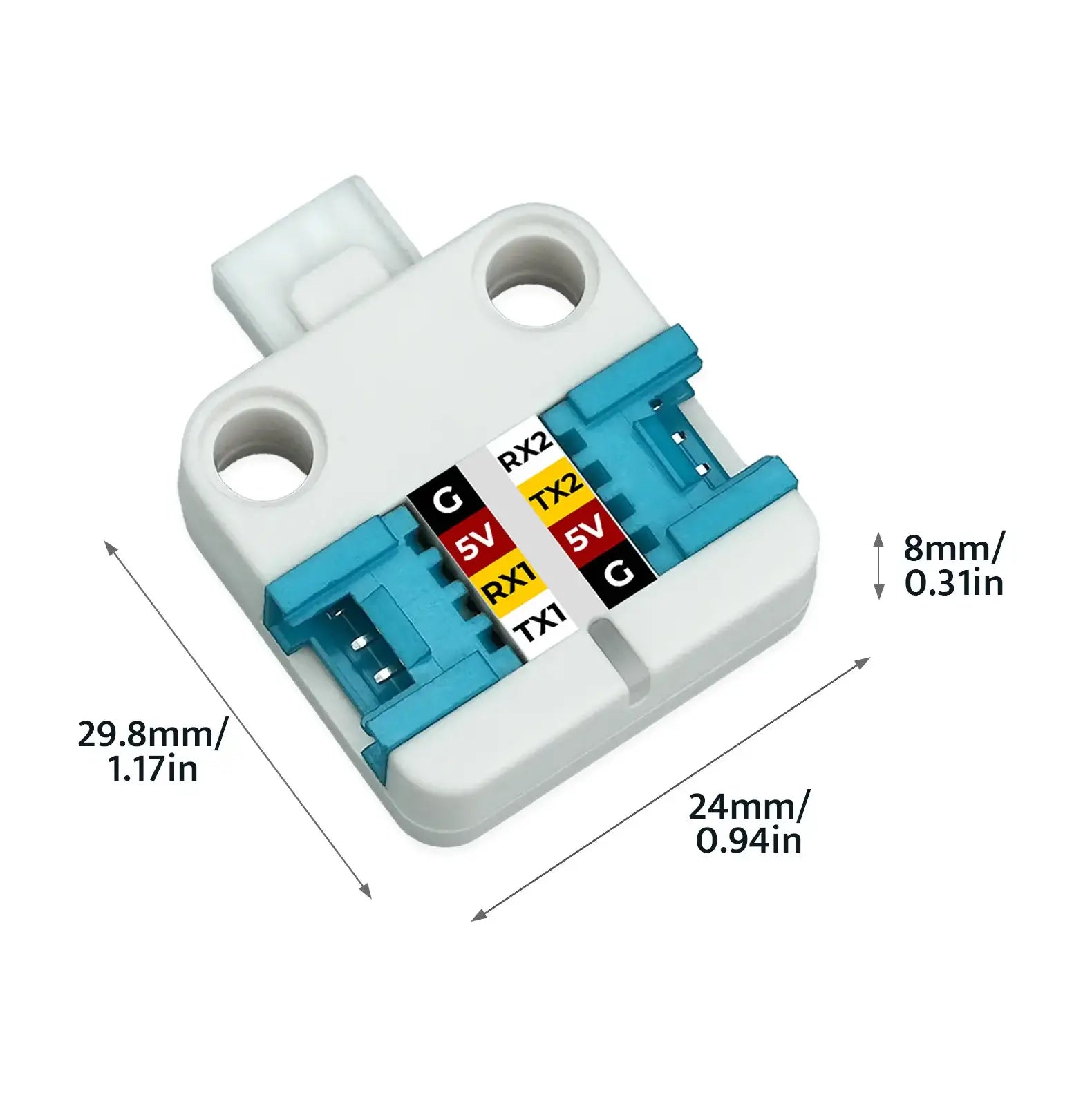

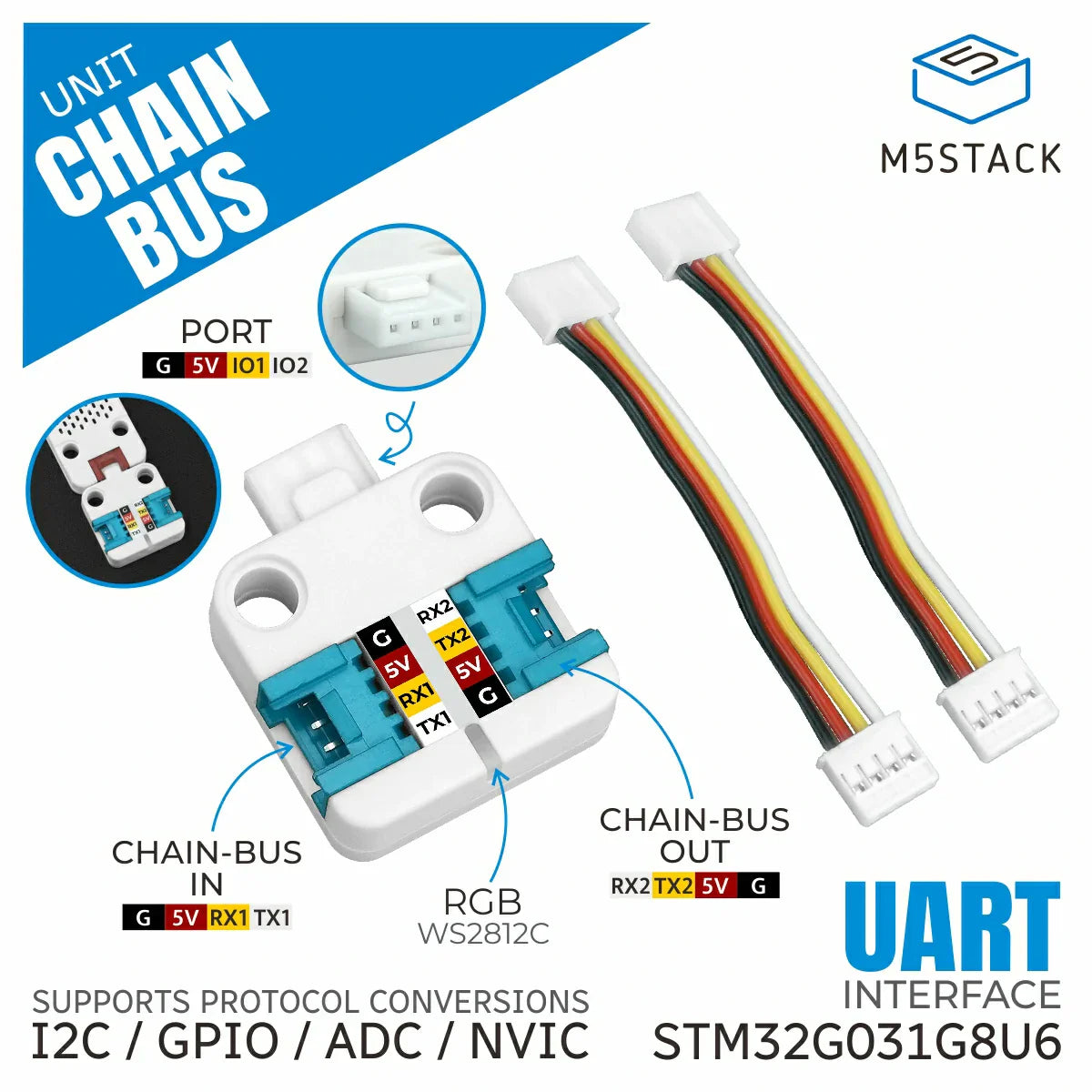

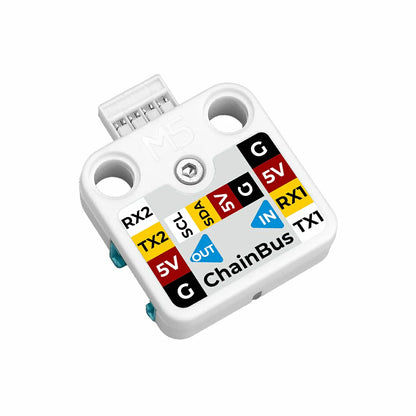

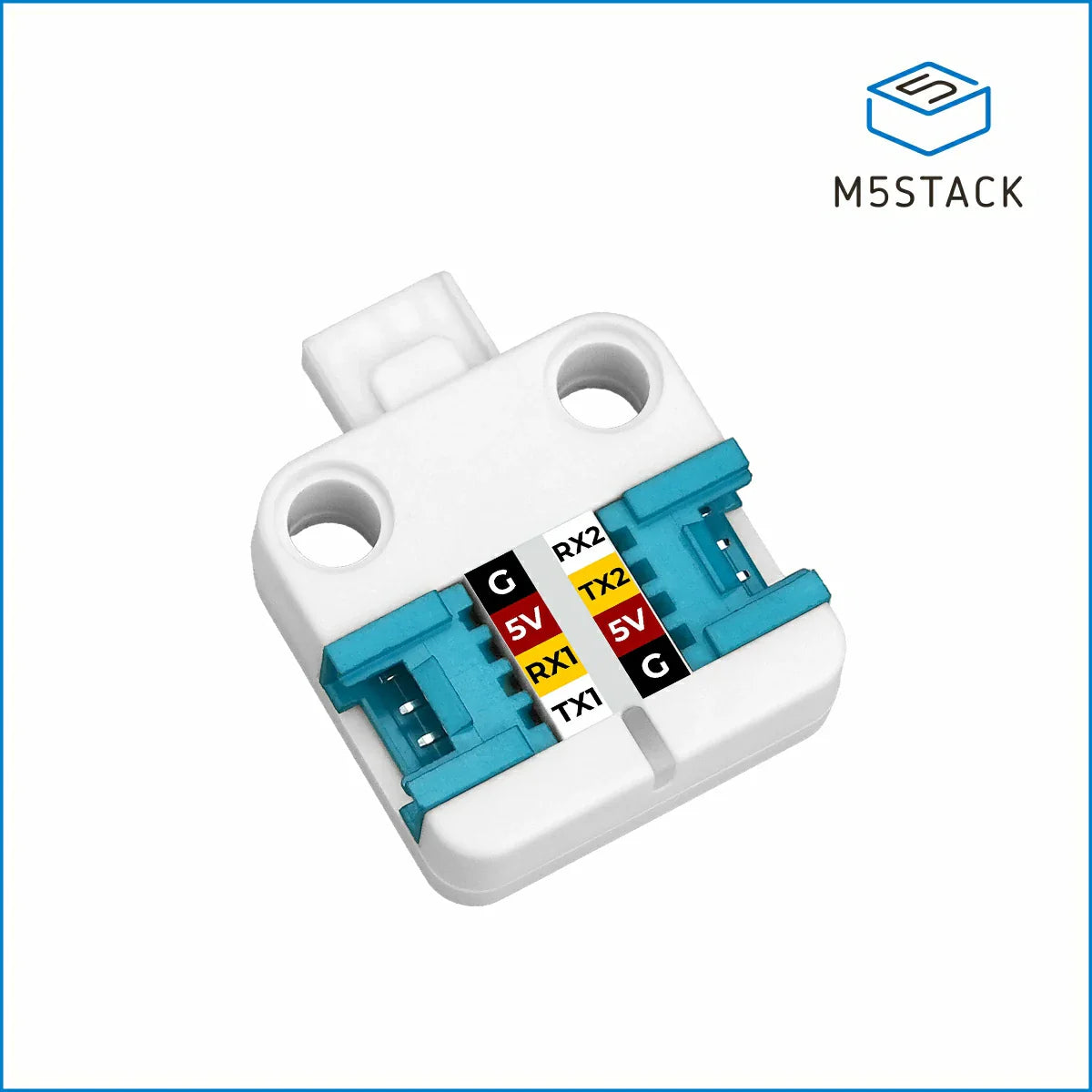

M5Stack UART ChainBUS Unit is a protocol-conversion and expansion module built around the STM32G031G8U6. It uses a UART daisy-chain communication protocol so multiple compatible devices can be connected in sequence instead of requiring a separate direct host connection for every node. Left and right HY2.0-4P interfaces support the chain path, while the top multifunction expansion interface provides access to additional peripheral functions.
M5Stack UART ChainBUS supports device enumeration, unique ID queries, firmware version queries, and heartbeat functions. These capabilities help a host identify connected nodes and track the chain more systematically than a simple passive cable split. For installations with repeated modules, document physical order, device identity, and firmware versions so maintenance remains clear after the prototype becomes a larger assembly.
M5Stack UART communication runs at 115200 bps with an 8N1 serial format. The chain design is useful when modules need to pass communication from one node to the next in a compact machine, fixture, display installation, educational platform, or distributed controller. It reduces the need to route every device back to the same central connector, but the complete chain still needs a planned power and communication layout.

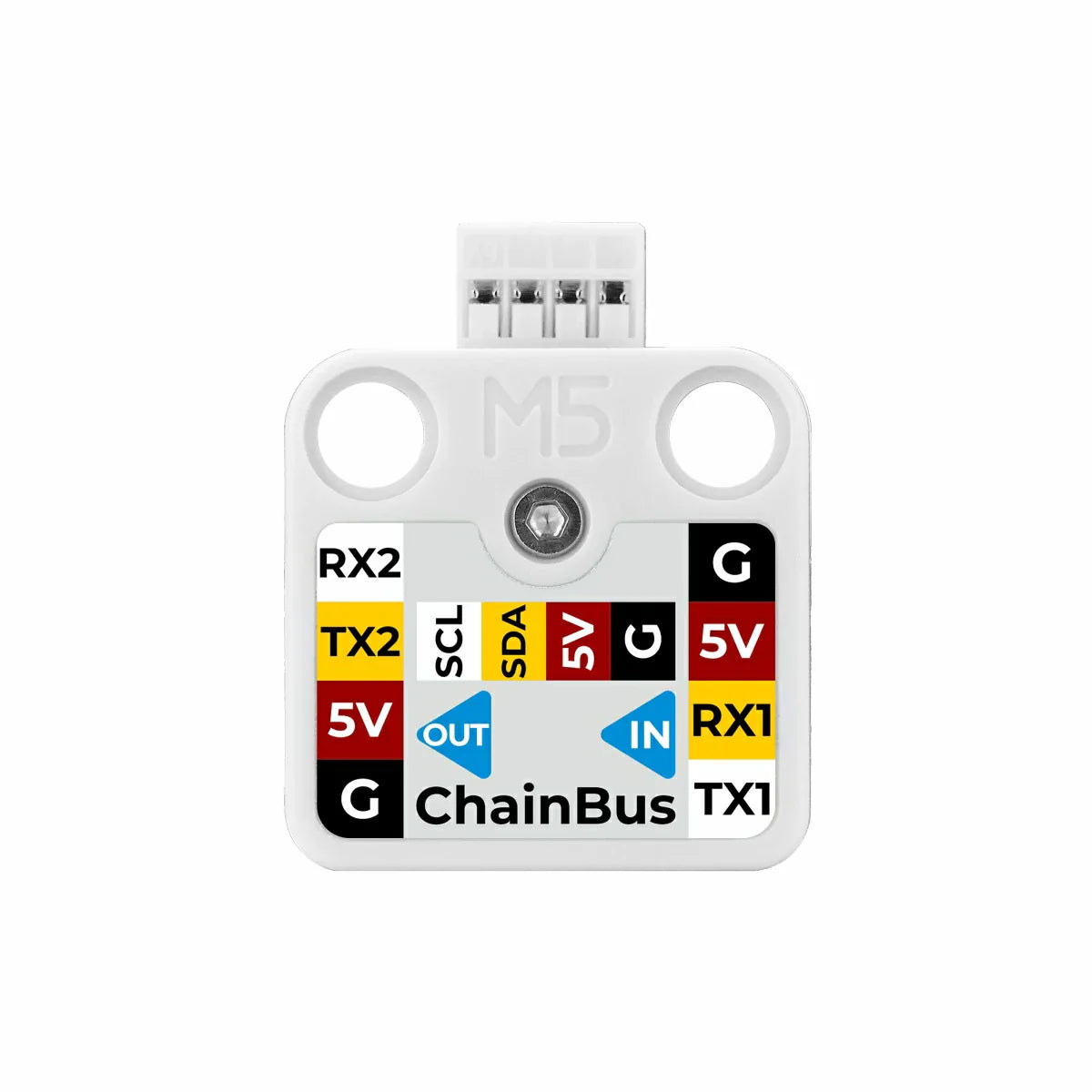

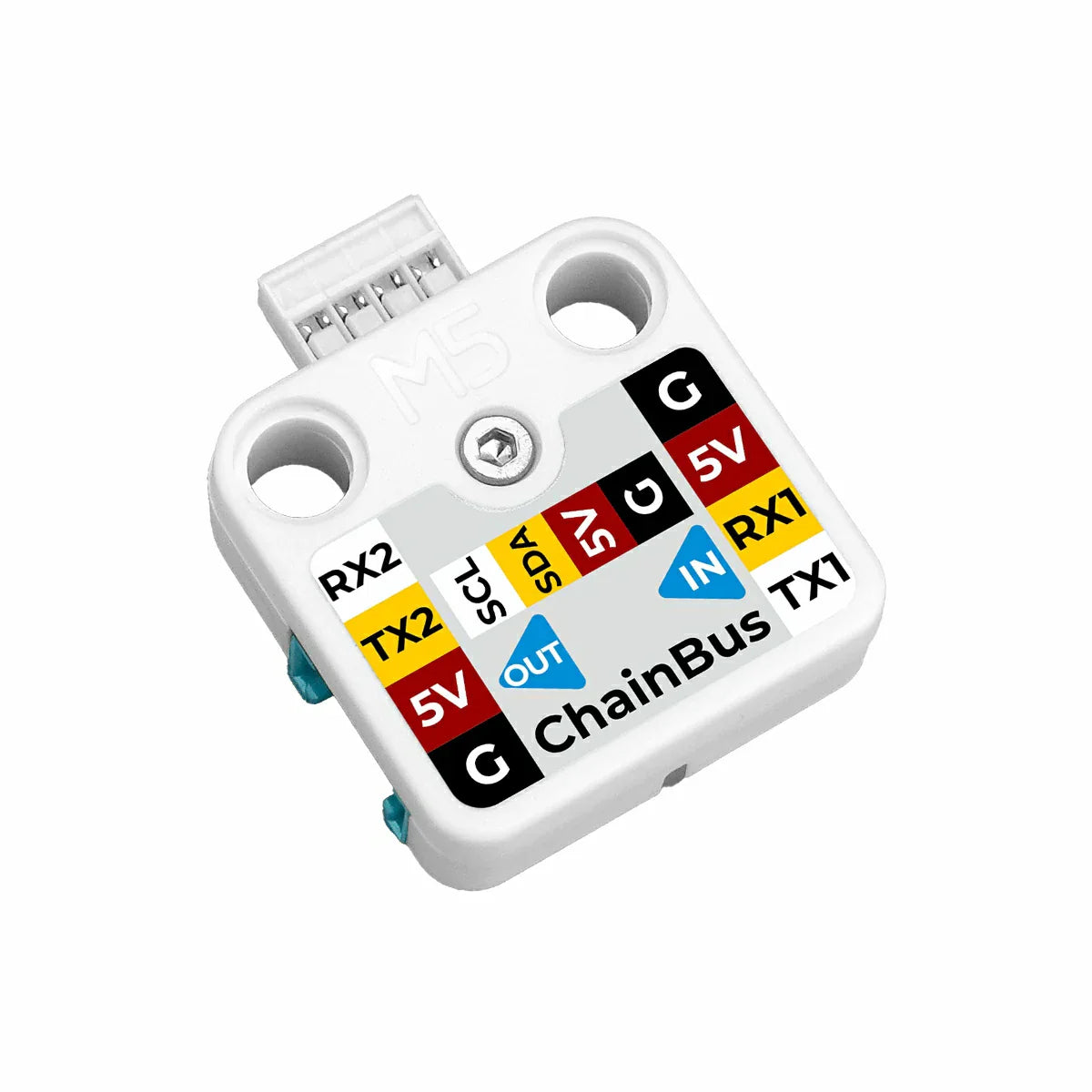

M5Stack UART ChainBUS is more than a basic serial repeater. The top interface supports I2C control, GPIO configuration, ADC acquisition, and NVIC interrupt-related functions. This makes the unit useful when a chained node also needs local sensing, digital control, analog acquisition, or interrupt handling. A programmable WS2812 RGB LED provides a visible status channel for identification or diagnostics.
M5Stack UART projects should define which controller owns enumeration, heartbeat checks, error recovery, and application-level commands. The module supplies the M5Stack UART communication functions, but a reliable system still benefits from clear timeout behavior, node discovery rules, and recovery handling when a cable or downstream device is disconnected. Test the longest expected chain rather than validating only one module on a workbench.
M5Stack UART ChainBUS can simplify modular equipment where similar nodes are arranged in a row or repeated across an enclosure. Examples include status modules, fixture stations, distributed inputs, compact teaching rigs, and expandable control panels. The daisy-chain topology can make wiring easier to organize when the physical device layout already follows a sequence.
For a node that needs local peripherals, M5Stack UART communication can be combined with the top expansion interface. This provides a path to integrate sensors, digital signals, or analog measurements without treating the unit as only a cable pass-through. The exact peripheral design should account for electrical levels, sampling requirements, cable length, and the behavior of the host software.
Start with one unit, verify serial communication, then add nodes progressively. M5Stack UART debugging is easier when the host records discovered IDs, firmware versions, heartbeat state, and the point where a chain stops responding. A staged setup helps separate protocol issues from cable, connector, or power problems. Keep the 115200 bps 8N1 configuration consistent across the host workflow.

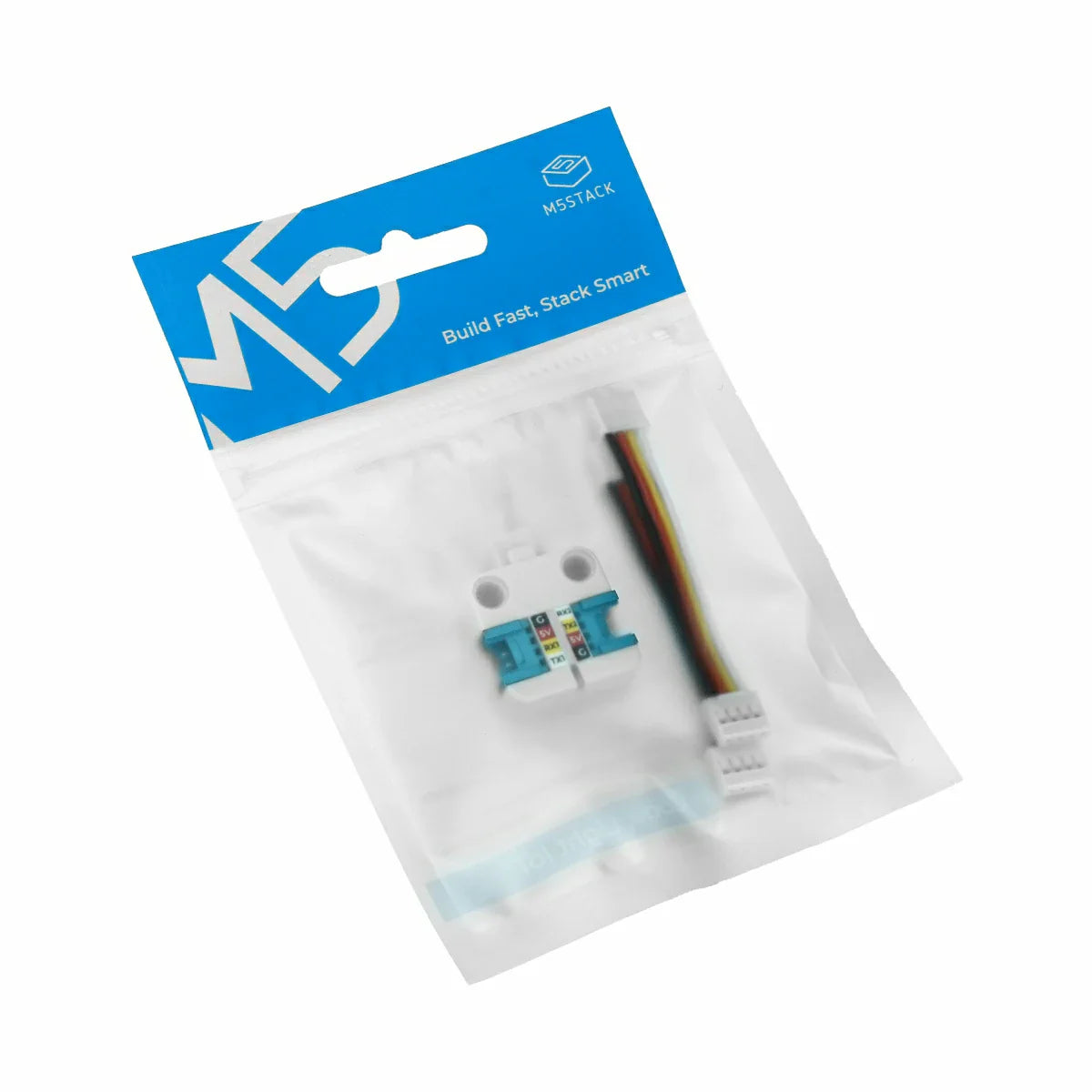

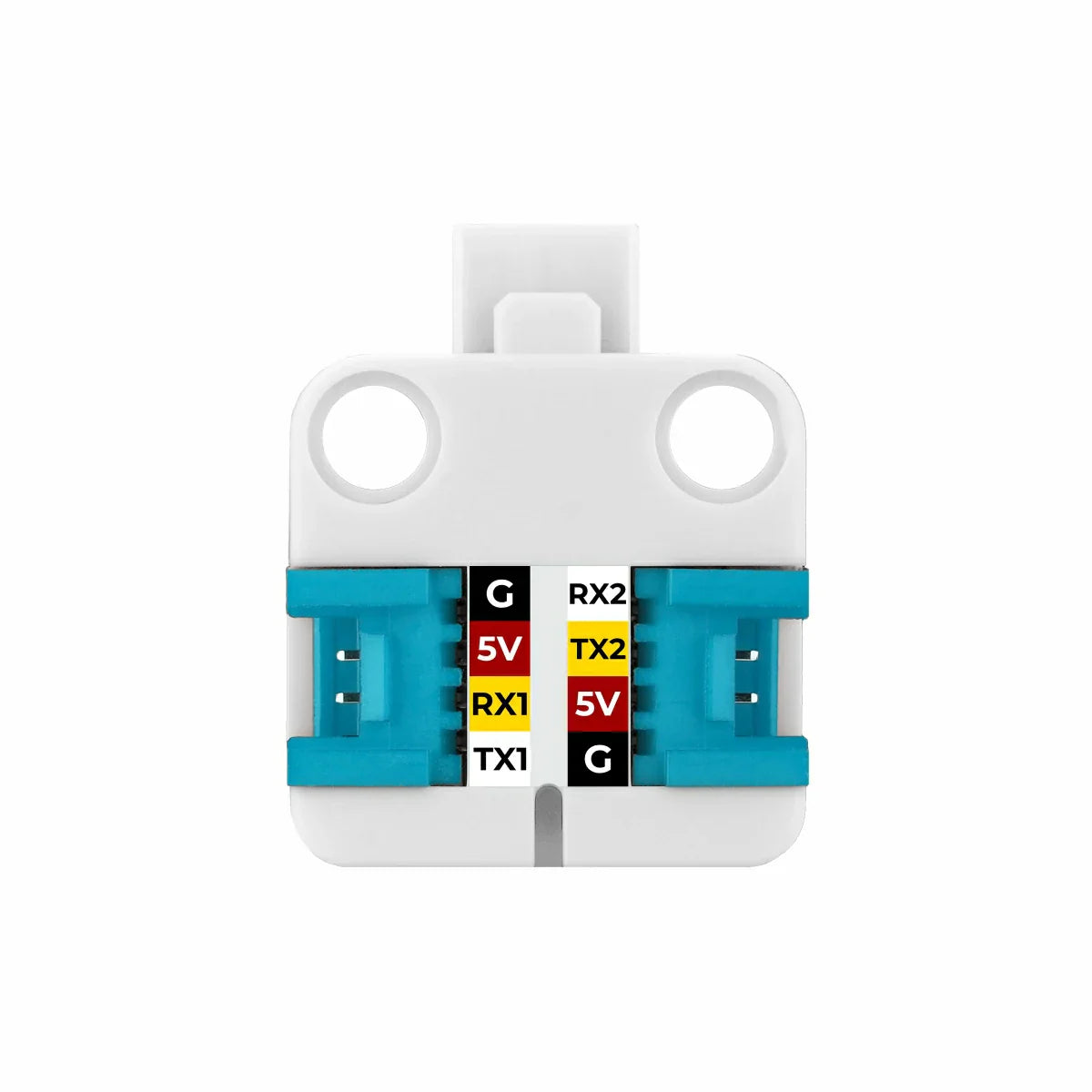

M5Stack UART ChainBUS includes a 20 cm HY2.0-4P Grove cable for initial connection. Before final installation, confirm connector orientation, strain relief, node spacing, and service access. For longer assemblies, validate the complete physical chain under the same power and communication conditions expected in the finished device.
M5Stack UART development can use technical documentation for protocol details and supported tools for host-side integration. UiFlow2 is suitable for compatible visual and Python-oriented workflows, while Arduino IDE supports code-based embedded development.
M5Stack UART chain planning is most dependable when node order, unique IDs, cable routing, software versions, and recovery behavior are recorded before the system is duplicated or deployed.
