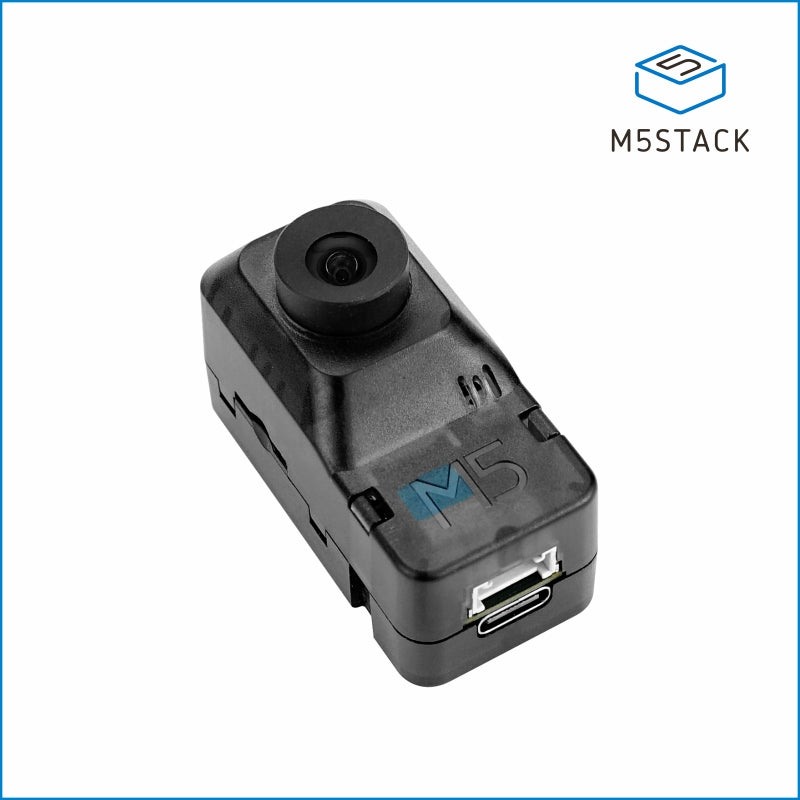

M5Stack UnitV2 M12 AI Camera with Two Lenses

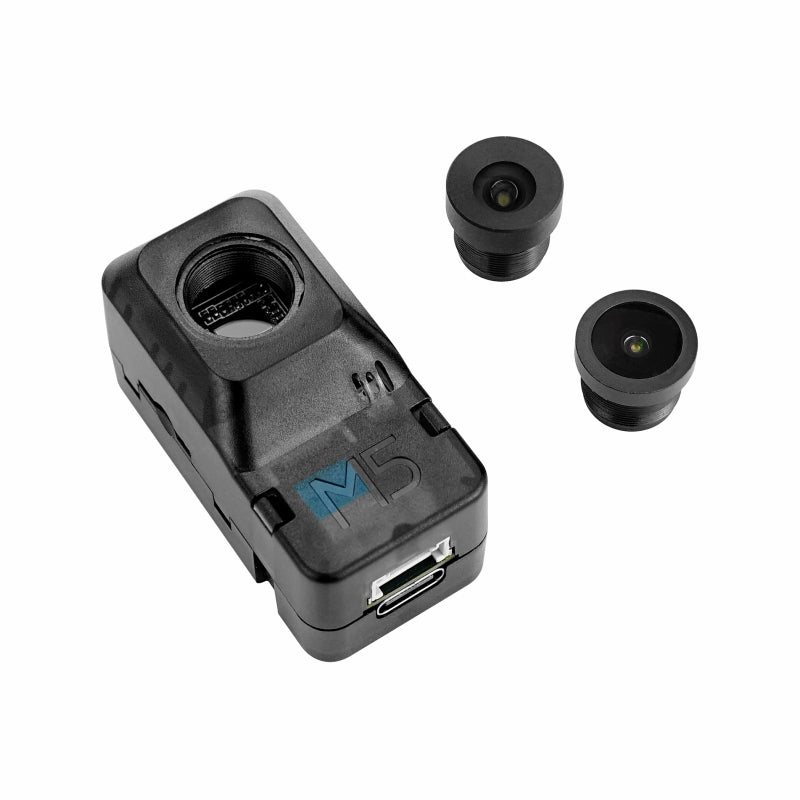

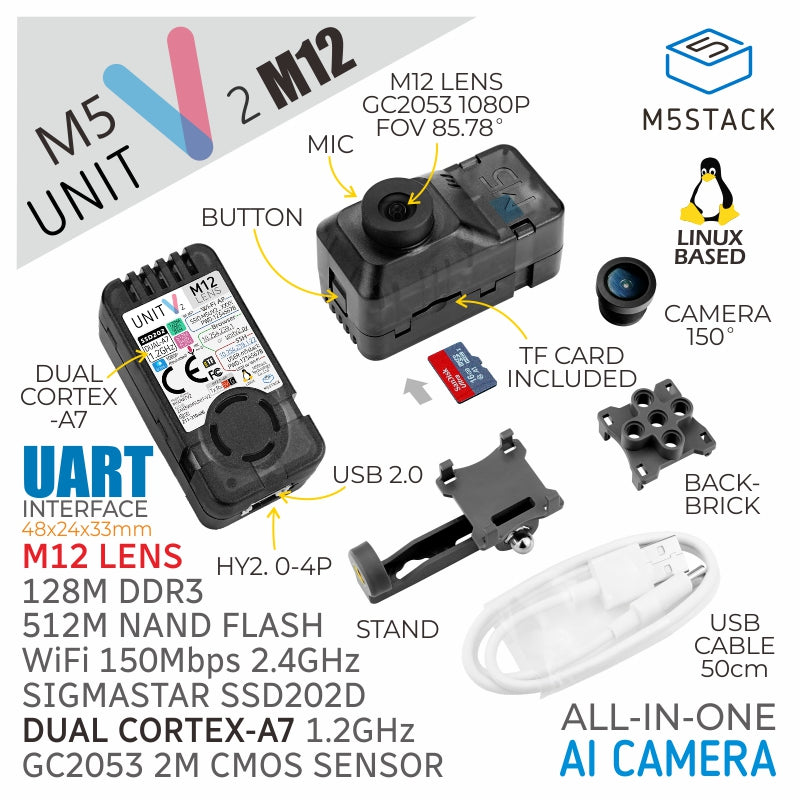

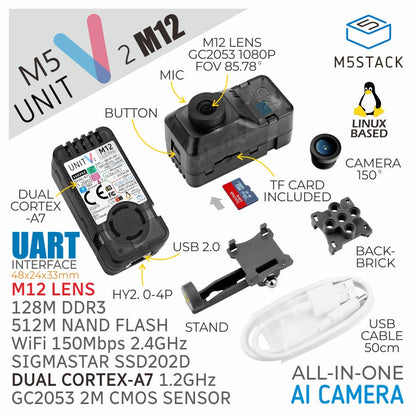

The M5Stack UnitV2 M12 is a compact embedded Linux camera for developers building computer-vision demonstrations, inspection tools, smart sensors, and robotics prototypes. It combines a dual-core SSD202D processor, 1080p GC2053 camera, Wi-Fi, microSD expansion, microphone, USB-C, UART, active cooling, and interchangeable M12 optics. The included 85° standard and 150° fisheye lenses let one platform cover focused scene analysis or wide-area observation without redesigning the complete camera node.

What You Can Build

• Object, color, shape, line, and QR-code detection prototypes.
• Visual inspection and classification stations for small production tasks.
• Wide-angle occupancy, room, and robot-environment experiments.
• Camera-equipped robots with local preprocessing and UART communication.
• OpenCV, Python, Linux, SSH, and Jupyter-based vision lessons.

Key Capabilities

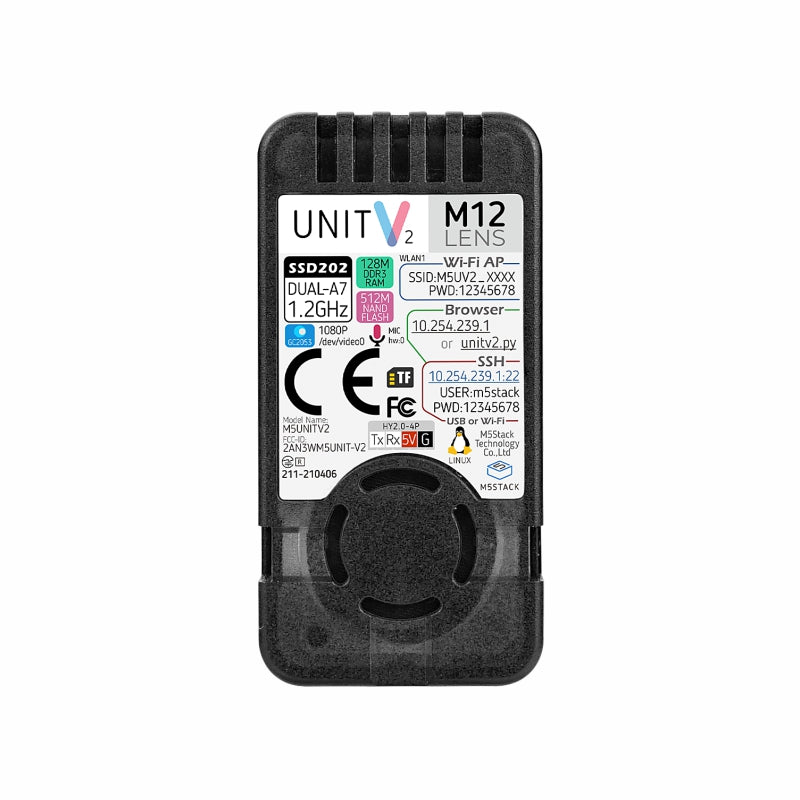

• SSD202D dual Cortex-A7 processor running at up to 1.2 GHz.

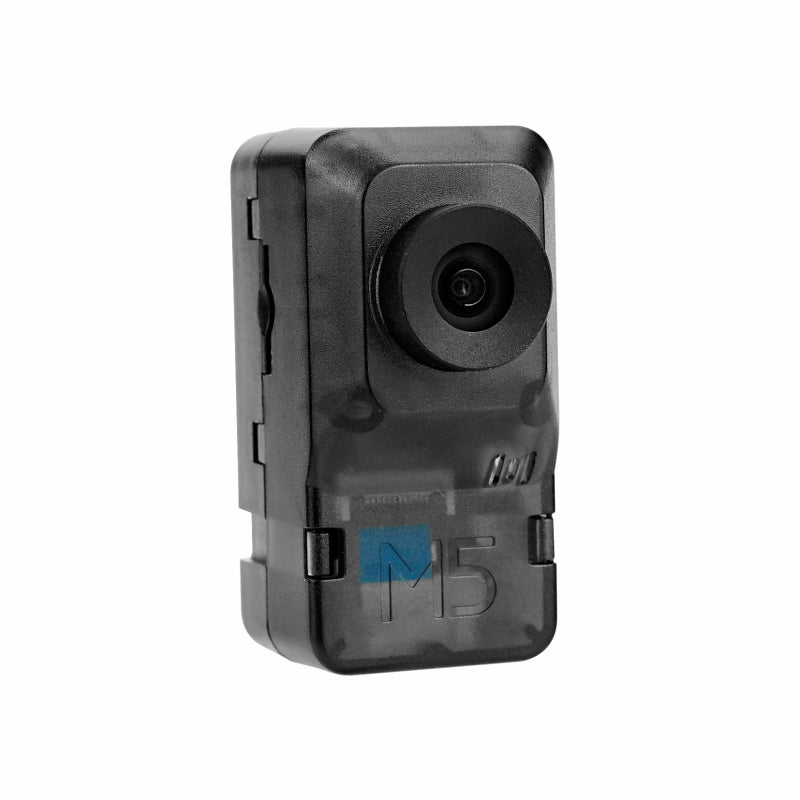

• GC2053 1080p image sensor with interchangeable M12 lenses.
• 128 MB DDR3, 512 MB NAND, and microSD storage expansion.
• Embedded Linux with network access and OpenCV-compatible workflows.

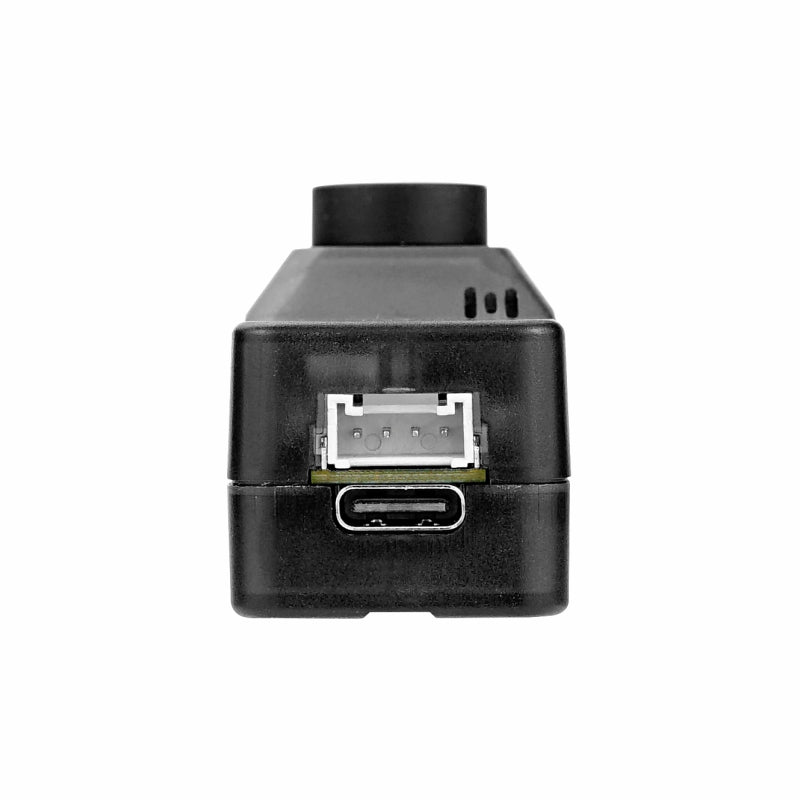

• 2.4 GHz Wi-Fi, USB-C, UART, microphone, and active cooling.

Setup and Integration

1. Insert the supplied microSD card when the selected image or workflow requires it, then connect a stable 5 V USB-C source.
2. Start with the 85° lens for general scenes or the 150° fisheye lens for wide-area coverage.
3. Adjust focus carefully after changing a lens and secure the lens only after image sharpness is verified.
4. Connect through the supported local or network workflow, change default credentials, and confirm camera access before adding an AI model.

Example Workflow

1. Capture frames under the final lighting and lens configuration.
2. Resize, crop, or normalize the image before running detection or classification.
3. Validate confidence thresholds against real objects, backgrounds, and motion.
4. Send only the required result or event through Wi-Fi or UART to reduce bandwidth and host processing.

Deployment Notes

• Image quality and model accuracy depend on focus, lighting, motion blur, lens distortion, and training data.

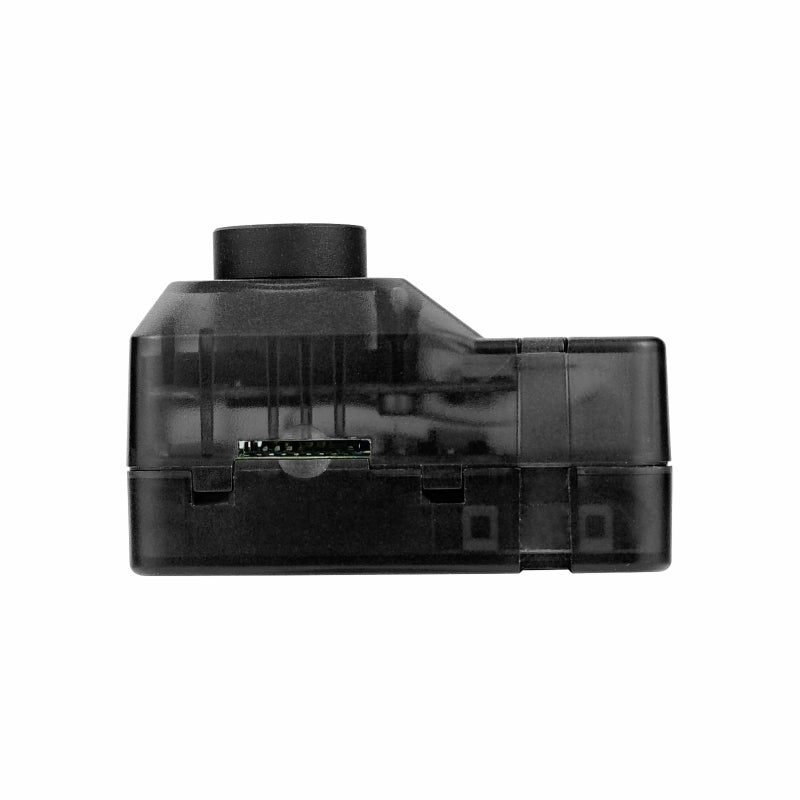

• The 150° fisheye lens provides wider coverage but introduces stronger geometric distortion.

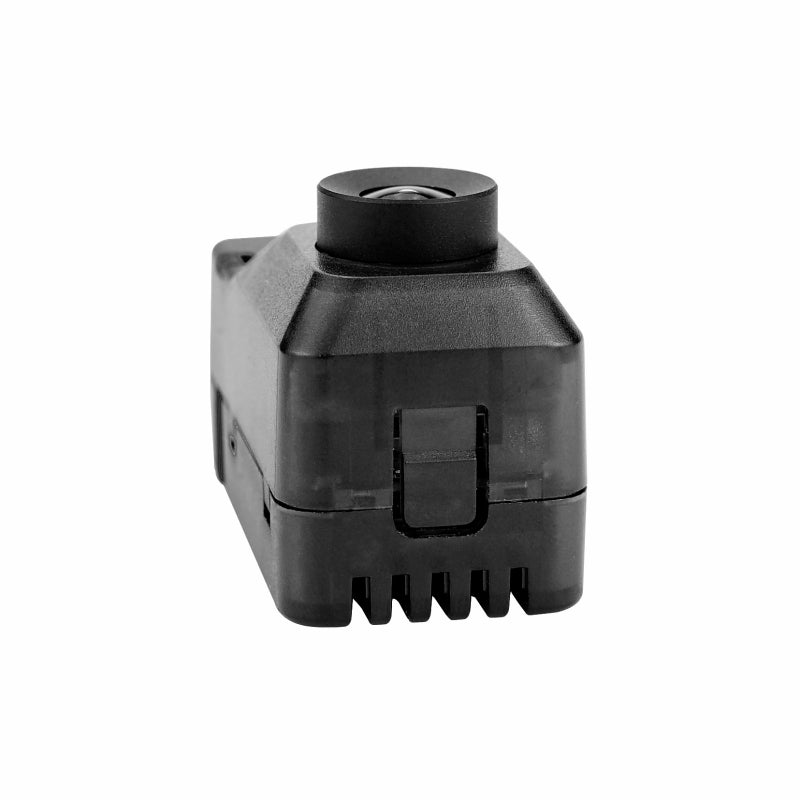

• Do not block the cooling path, and verify temperature during sustained processing.
• Use a stable 5 V supply; weak cables or adapters can cause resets during camera and Wi-Fi activity.
• Change default credentials, restrict network exposure, and define a software-update process before unattended deployment.

Development Resources

• M5Stack UnitV2 M12 Documentation
• OpenCV Documentation
