M5Stack UnitV2 USB Version without Camera

M5Stack UnitV2 USB AI Module Without a Camera

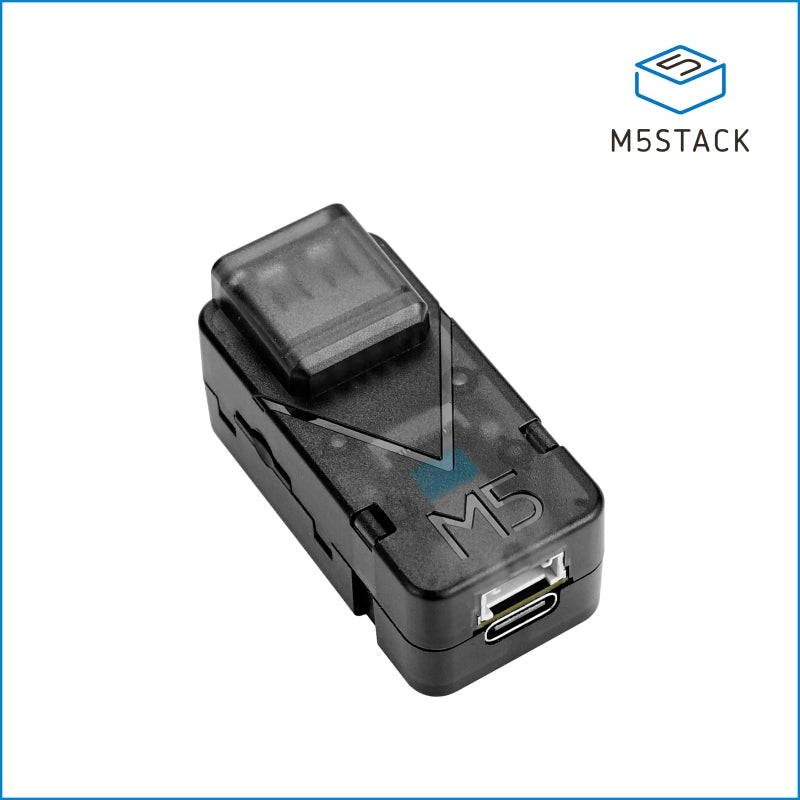

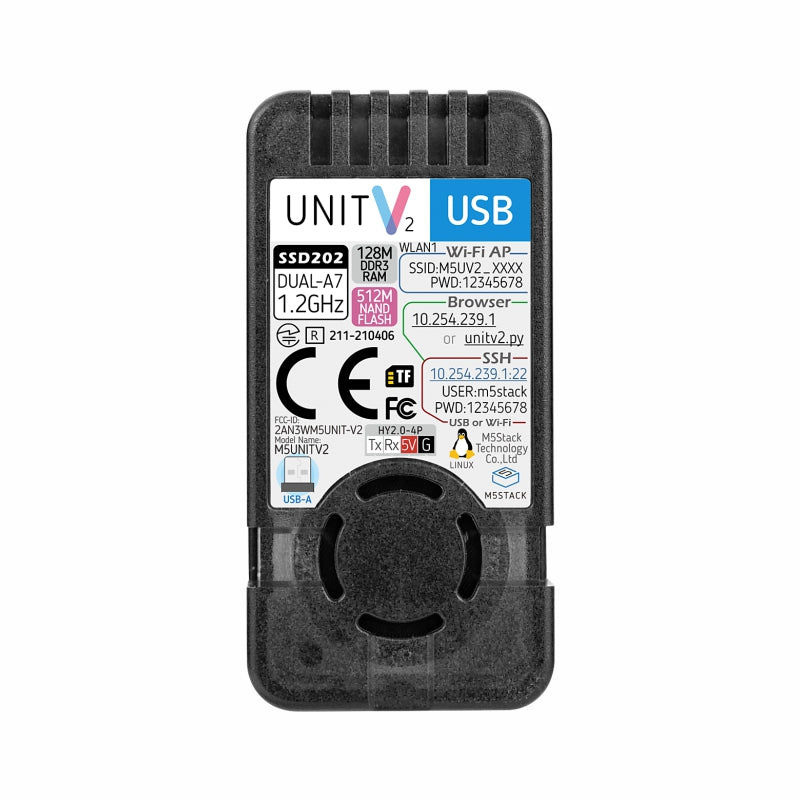

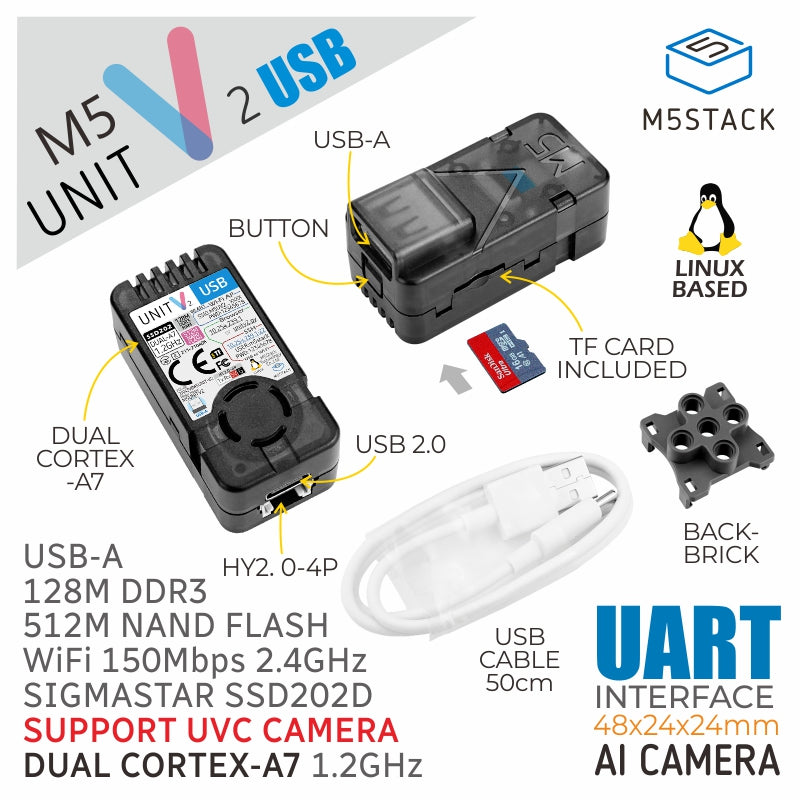

M5Stack UnitV2 USB is a compact Linux-based AI recognition module built around the Sigmstar SSD202D with a dual-core Cortex-A7 processor running at up to 1.2 GHz. It includes 128 MB DDR3 memory and 512 MB NAND Flash, plus a USB-A interface for connecting compatible UVC cameras. This version does not include a camera or lens, so camera selection remains separate from the module purchase.

Choose Your UVC Camera Instead of a Fixed Lens

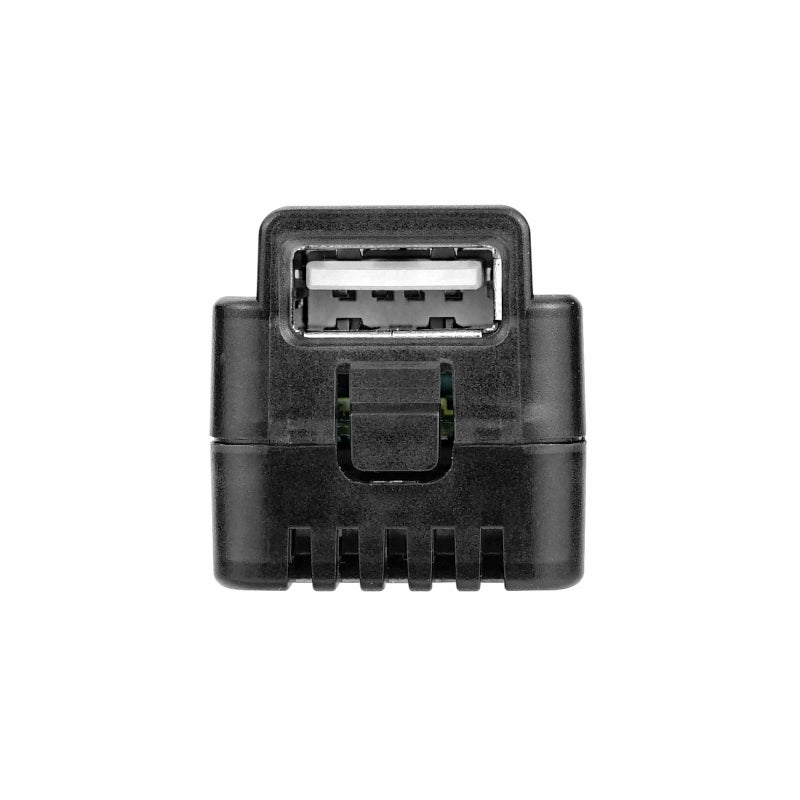

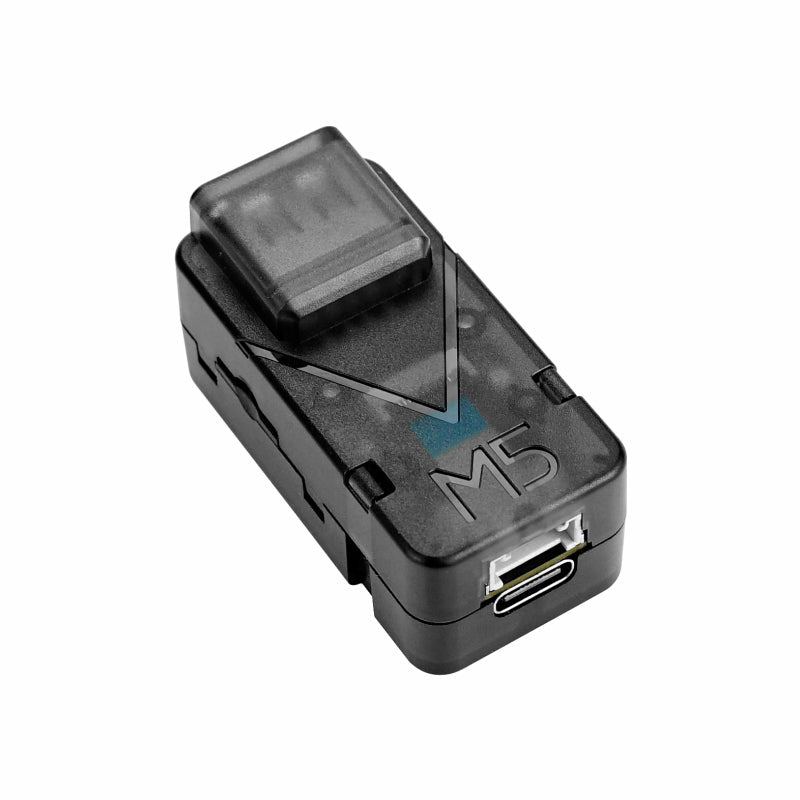

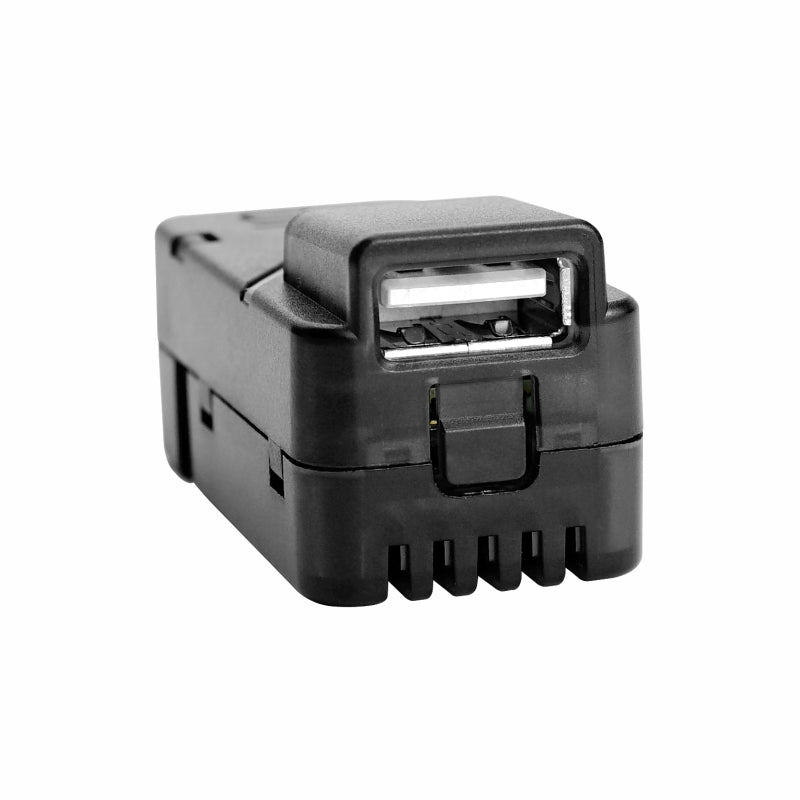

M5Stack UnitV2 USB is useful when a project needs more flexibility than an integrated fixed camera. The USB-A interface supports various UVC cameras, allowing the imaging device to be selected around viewing angle, mounting position, cable routing, and application needs. Before deployment, verify UVC compatibility, power requirements, resolution, frame rate, and physical installation rather than assuming every USB camera behaves identically.

Run AI Recognition on a Linux Platform

M5Stack UnitV2 includes a built-in Linux operating environment and development paths based on OpenCV, SSH, and Jupyter Notebook. This makes the module suitable for developers who need to inspect data, test vision logic, work interactively, or connect custom processing steps around the supplied recognition services. The platform also provides a practical bridge between embedded hardware and familiar Linux-based AI workflows.

Start with 12 Built-In Recognition Functions

M5Stack UnitV2 provides commonly used functions including QR code recognition, face detection, line following, motion detection, template matching, image streaming, classification, color tracking, face recognition, object tracking, contour detection, and custom object recognition. These functions can shorten early proof-of-concept work before a team invests in a fully custom vision pipeline.

Use Web Preview and JSON Serial Results

M5Stack UnitV2 supports web-based online preview and UiFlow-oriented serial calls with JSON-formatted results. Recognition outputs can also be delivered through UART, making it easier for another controller to consume detected results without running the complete vision workload itself. Define message handling, timeouts, and recovery behavior clearly when the AI module becomes part of a larger machine.

Network, Debug, and Develop

M5Stack UnitV2 supports 2.4 GHz Wi-Fi and includes an SR9900 Ethernet solution. When connected to a computer through the Type-C interface, the module can establish a network connection for access and debugging. Wireless connectivity provides another path for configuration and development. For production use, plan how credentials, remote access, firmware updates, and service procedures will be controlled.

Use the Hardware Interfaces Around the Application

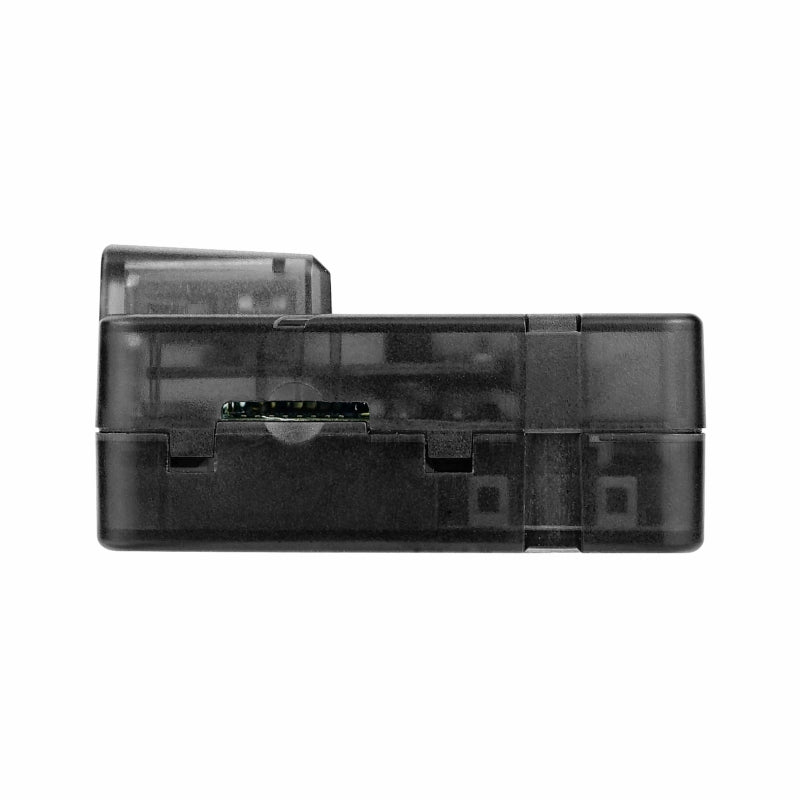

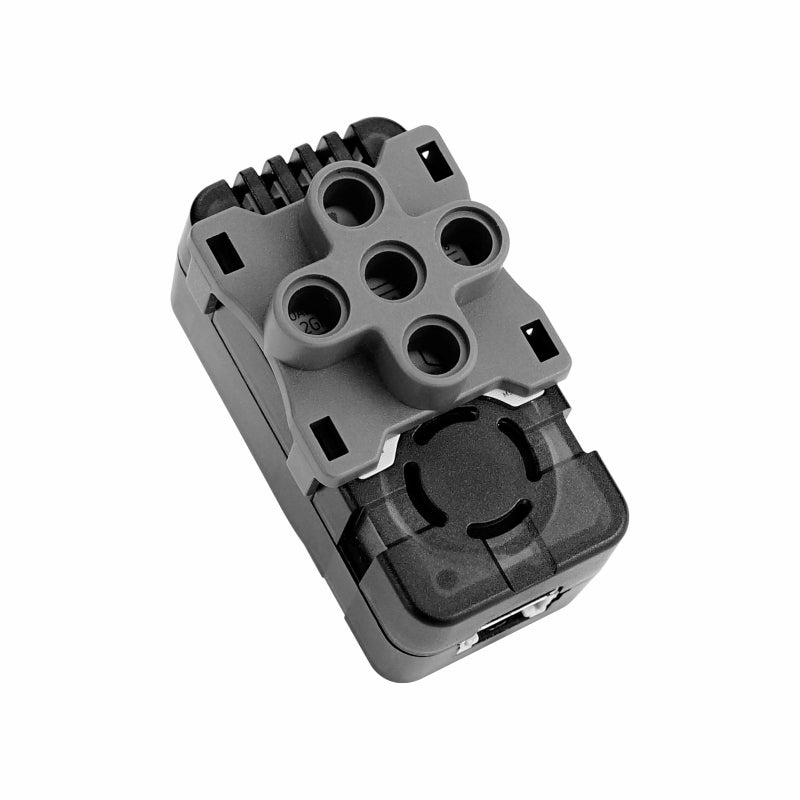

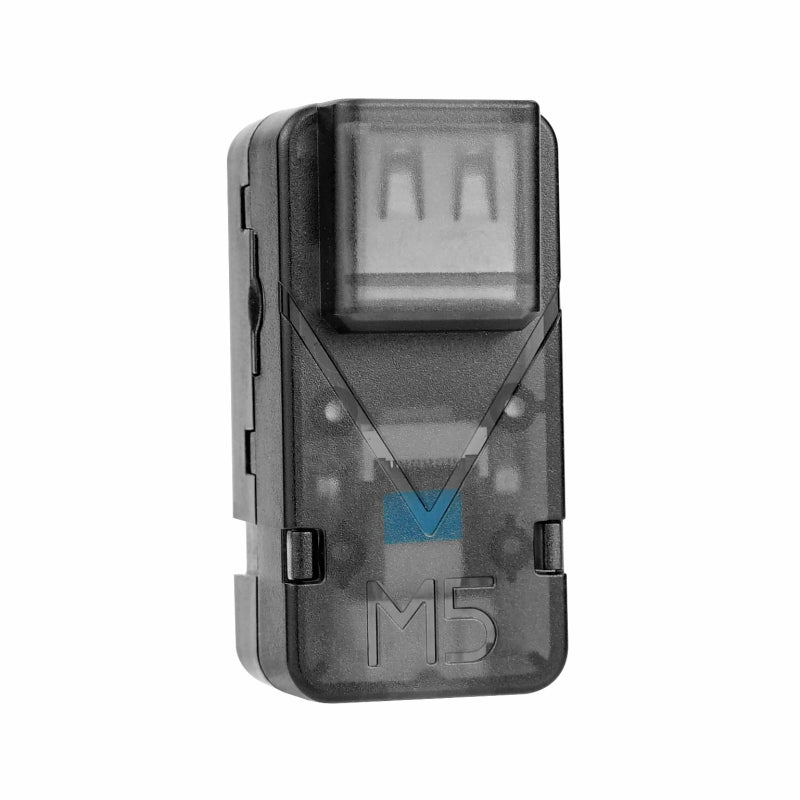

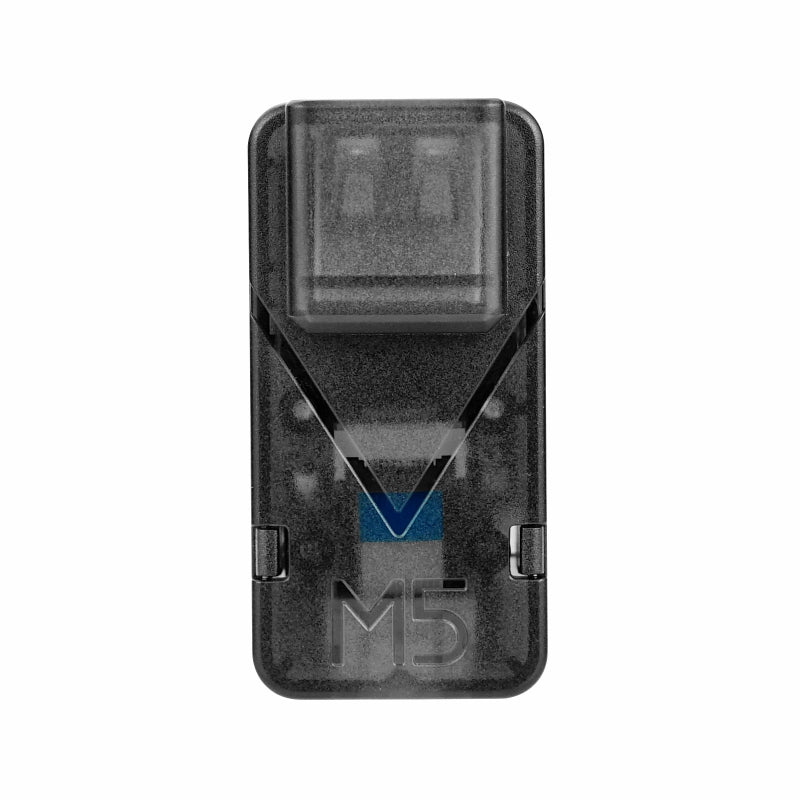

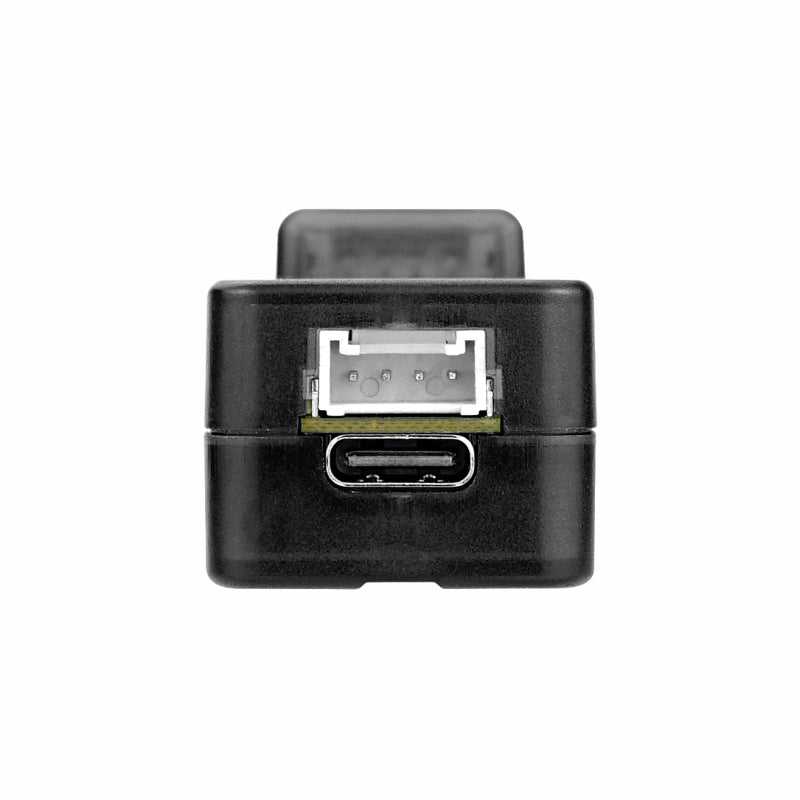

M5Stack UnitV2 hardware includes one Type-C interface, one UART interface, a TF card slot, a button, a microphone, and an active cooling fan. The module operates from 5 V at about 500 mA. The supplied 16 GB microSD card, stand, back clip, and 50 cm USB Type-C cable help establish a practical development setup.

Applications for M5Stack UnitV2

Industrial Vision Classification

M5Stack UnitV2 can support visual sorting experiments, defect-screening prototypes, station monitoring, and classification workflows where a compact edge module processes camera input close to the application. The separate UVC camera approach is valuable when the camera must be positioned away from the processing unit.

Machine Vision Learning and Prototyping

M5Stack UnitV2 also fits training, demonstration, and research setups that combine built-in recognition, Jupyter Notebook experiments, OpenCV processing, and serial integration with another controller. Start with a controlled scene and stable lighting, then test the exact camera, target distance, background, and motion expected in the finished system.

Development Resources

Before first use, connect a compatible UVC camera, verify the 5 V power path, establish Type-C or network access, and confirm the required recognition workflow. M5Stack UnitV2 technical resources cover built-in services, driver setup, tutorials, firmware updates, and SDK workflows for deeper development.

• Technical Documentation
• UiFlow1

M5Stack UnitV2 projects are easier to reproduce when the exact UVC camera model, Linux image, recognition settings, network configuration, lighting conditions, and mechanical mounting are recorded before a prototype is copied into multiple systems.

Document camera compatibility before final system deployment.
