M5Stack USB-C to Grove 5V Power Adapter Unit

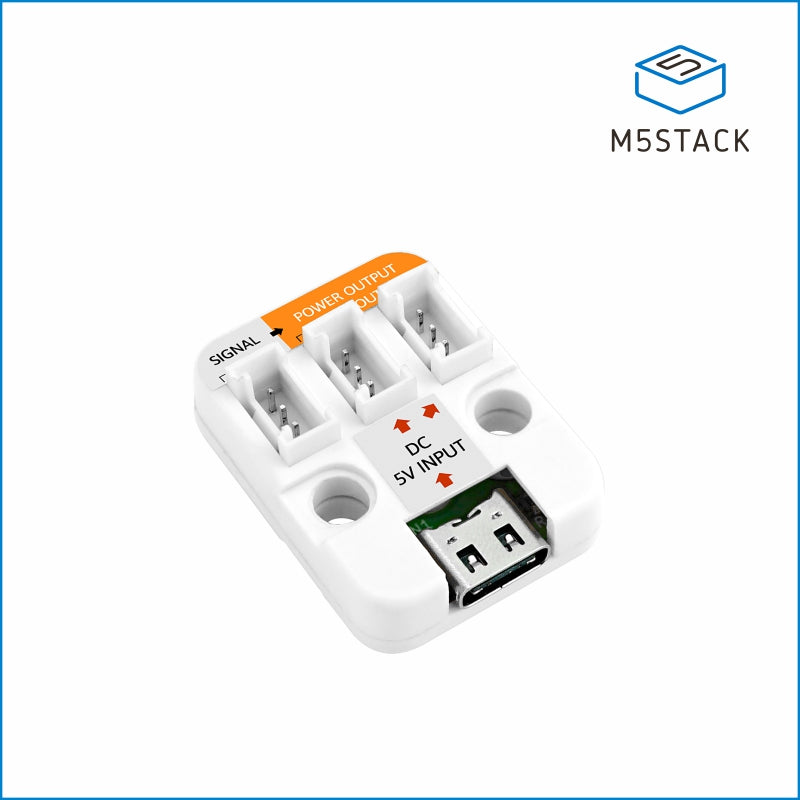

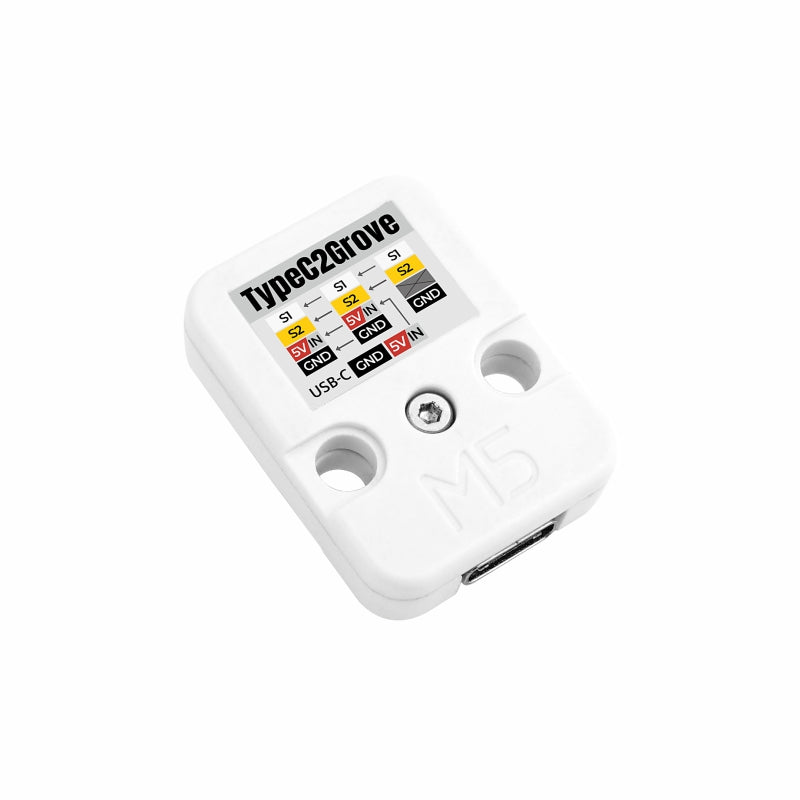

The M5Stack USB-C to Grove Power Adapter Unit injects an external regulated 5 V supply into a shared Grove signal path for LED, sensor, actuator, and higher-current prototype loads. One Grove port receives the host signal, while two output ports distribute that same signal together with the external 5 V rail. It suits developers who need more load current than the host should provide directly, while keeping signal compatibility, total current, cable rating, backfeed prevention, and thermal behavior under system-level control.

What You Can Build

• Externally powered Grove LED and lighting prototypes.
• Sensor or actuator setups that need a stronger 5 V supply.
• One-signal-to-two-output demonstration systems.
• Bench tests for higher-current Grove-compatible loads.
• Compact 5 V power-injection and signal-distribution assemblies.

Key Capabilities

• USB-C input for an external regulated 5 V supply.

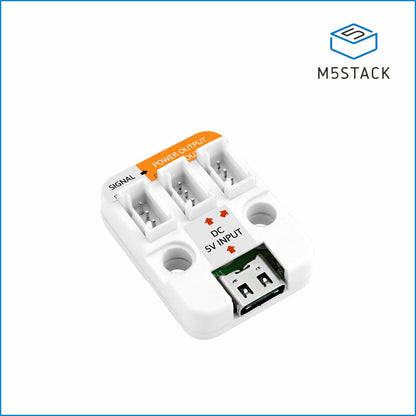

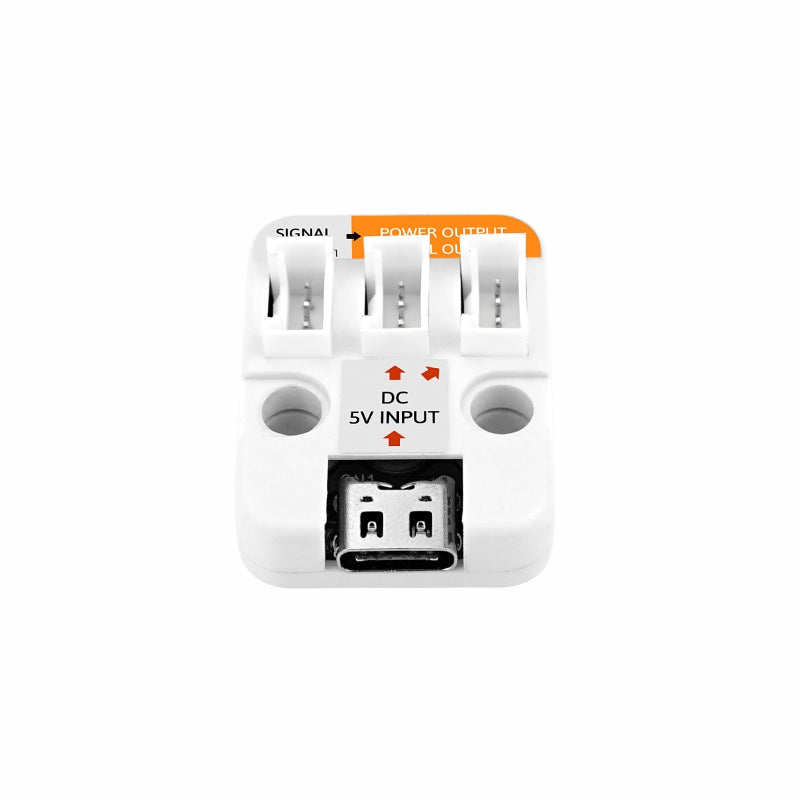

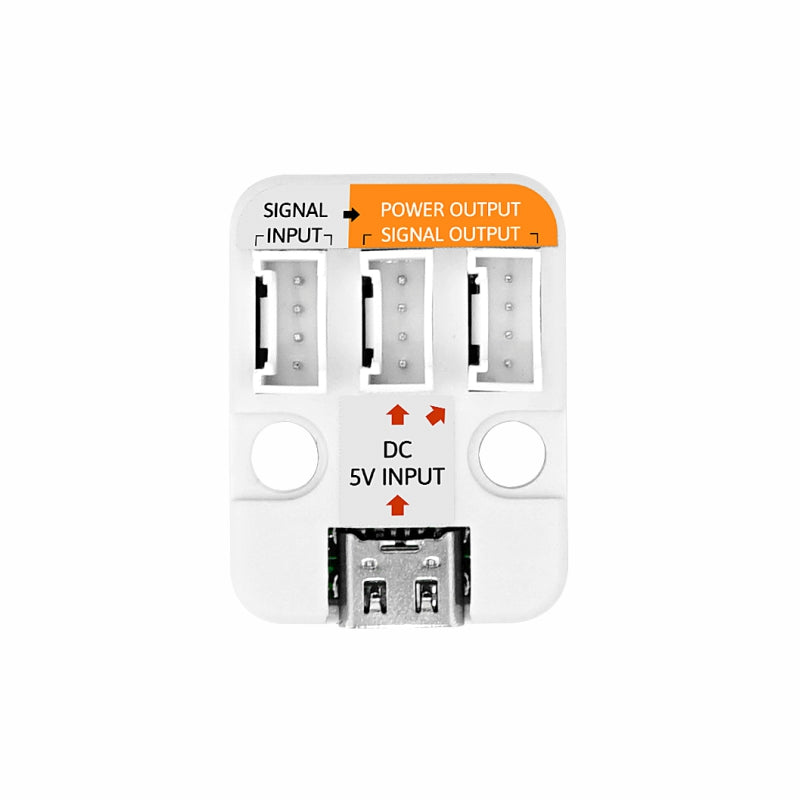

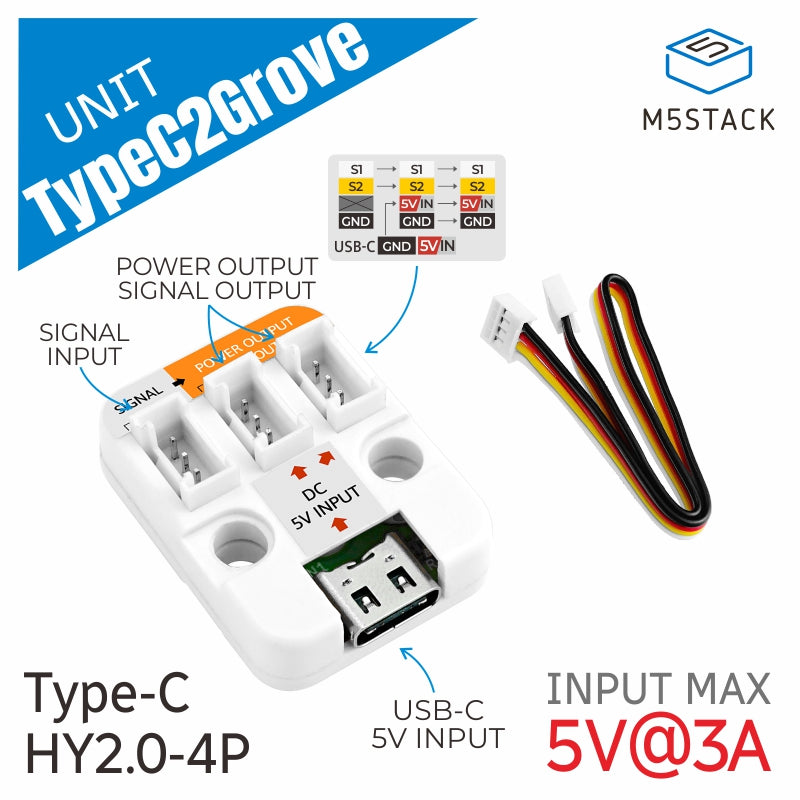

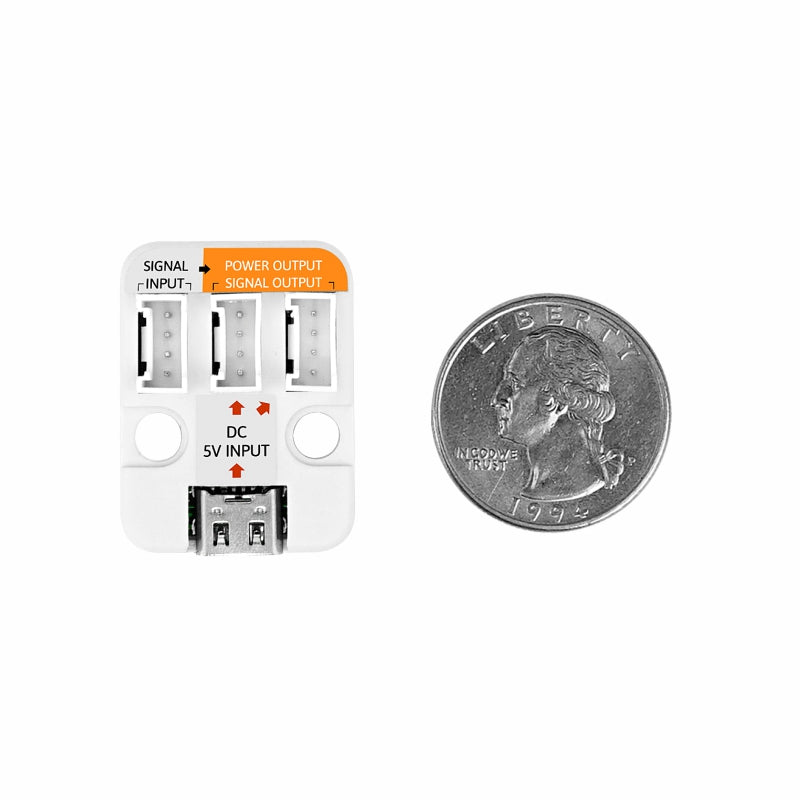

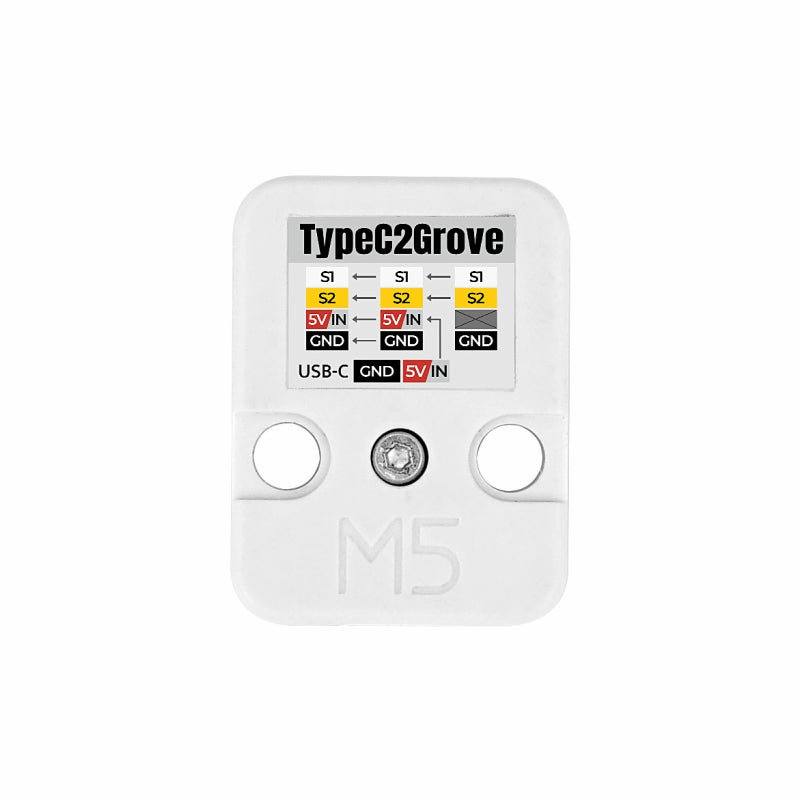

• One Grove signal-source port and two shared-signal output ports.
• Power-path reference up to 5 V / 3 A when the source, cable, connectors, wiring, and temperature are suitable.
• Allows compatible loads to draw power from the external supply instead of routing their full current through the host.
• Compact Grove adapter format for rapid prototype wiring.

Setup and Integration

1. Power all devices off and confirm that the USB-C source provides a regulated 5 V output.

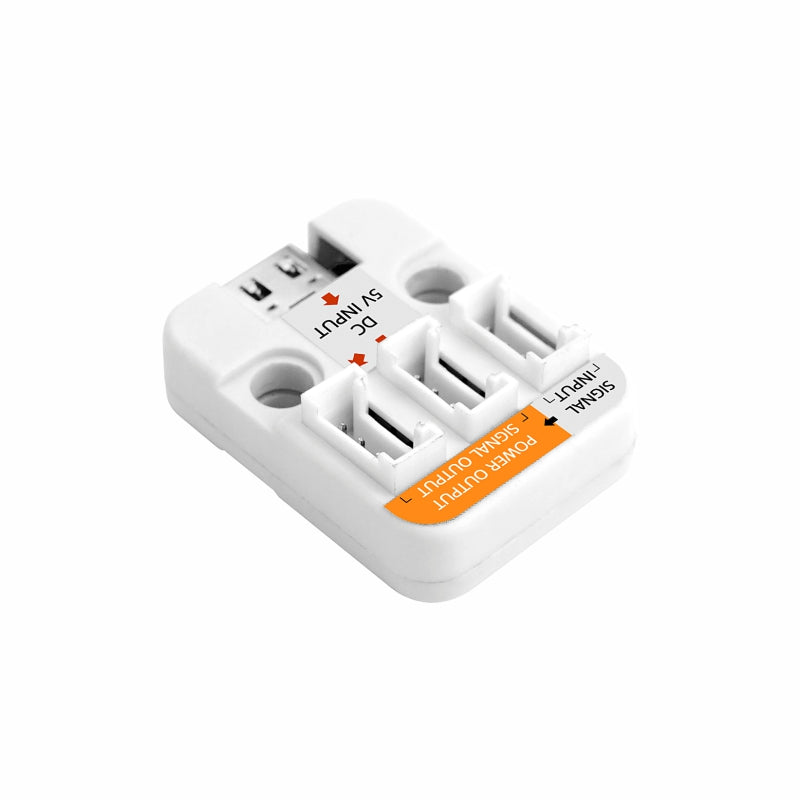

2. Connect the host signal to the designated Grove source port.
3. Connect one compatible peripheral to an output and verify Grove pin order, signal direction, and current demand.
4. Add the second peripheral only when both devices can safely share the same signal and the combined load remains within the complete power-path limits.

Example Workflow

1. Assemble the host, adapter, USB-C supply, and first load with power removed.
2. Apply 5 V and check output voltage, idle current, and connector temperature.
3. Enable the highest expected load state and measure total current and voltage drop.
4. Add the second load, repeat the electrical and thermal checks, and confirm that neither device drives the shared signal against the other.

Deployment Notes

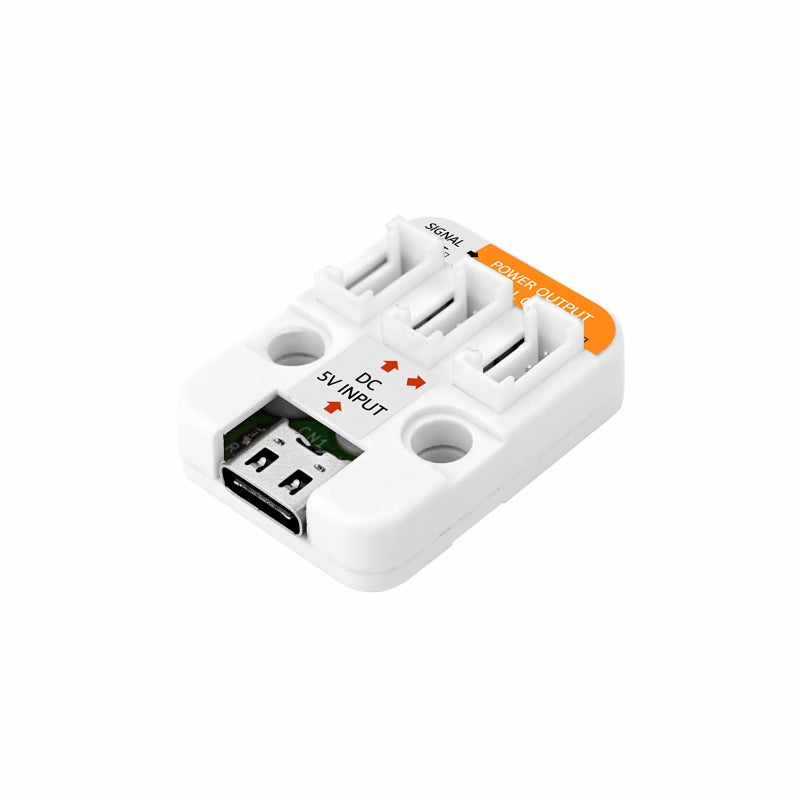

• The USB-C connector is used for regulated 5 V power input and does not convert USB data into a Grove protocol.
• The unit does not negotiate a higher USB Power Delivery voltage; do not apply 9 V, 12 V, 15 V, or 20 V.
• Both outputs share the same signal path and must not connect conflicting output drivers.
• The adapter does not provide galvanic isolation, voltage conversion, or complete system-level overcurrent protection.
• Prevent unintended backfeeding between the host supply and external USB-C supply, and add fusing or current limiting when the final installation requires it.

Development Resource

• M5Stack U151 Documentation
