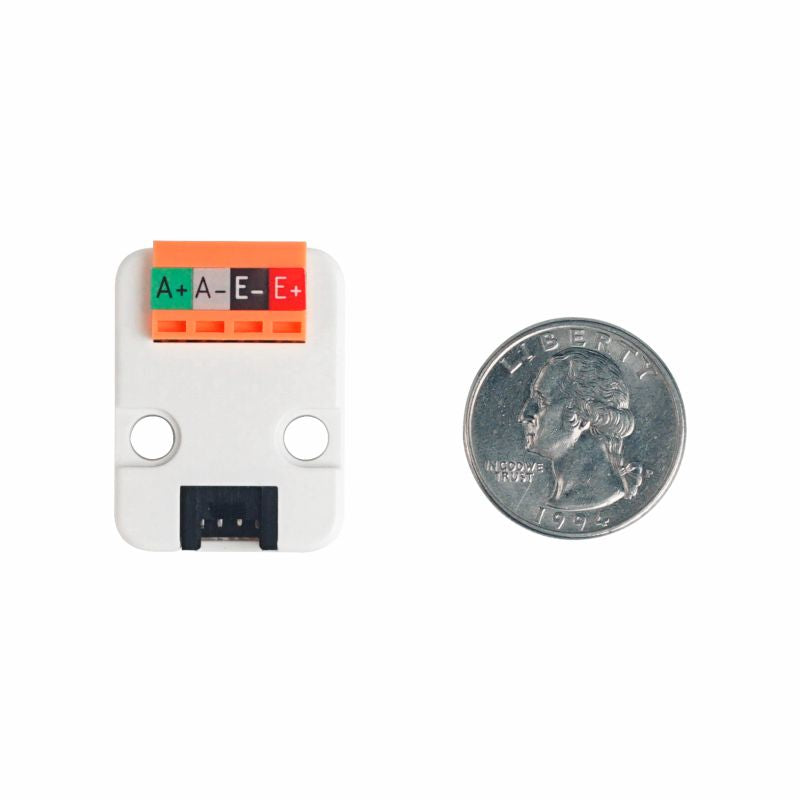

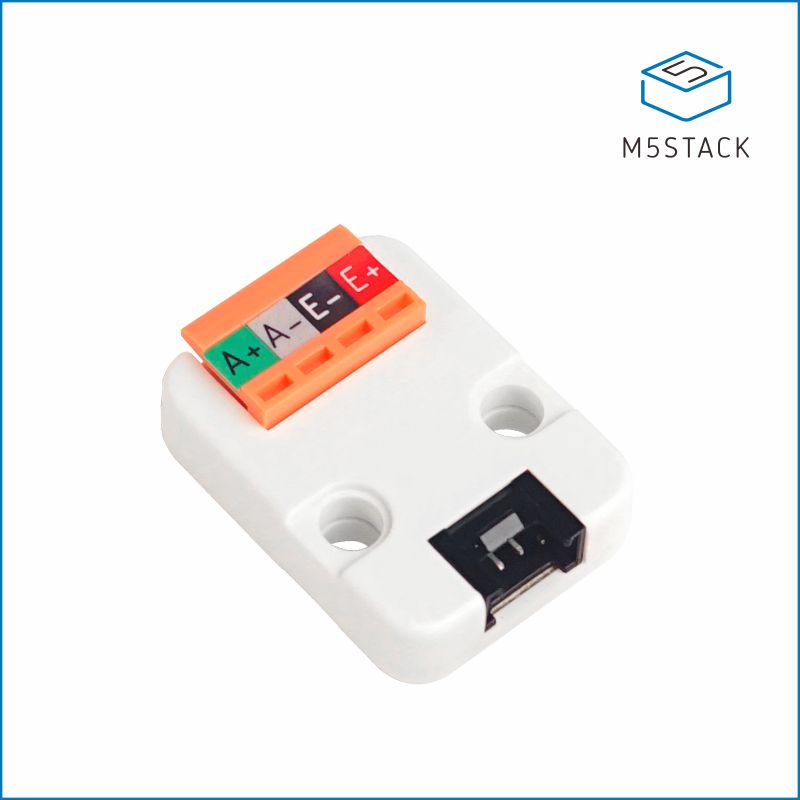

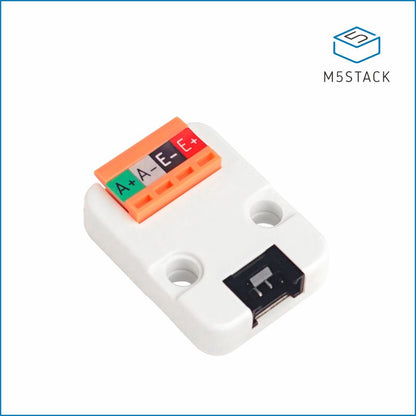

M5Stack Weight Unit – HX711 24-Bit Load Cell ADC | U030

M5Stack Weight Unit – HX711 24-Bit Load Cell ADC | U030

LB-M5-U030

20 in stock
$6.90 USD
$6.90 USD $3.50 USD

Key Features

  • HX711 24-bit load-cell amplifier and ADC
  • Channel A gain of 64× or 128×
  • Approximate full-scale input of ±40 mV or ±20 mV

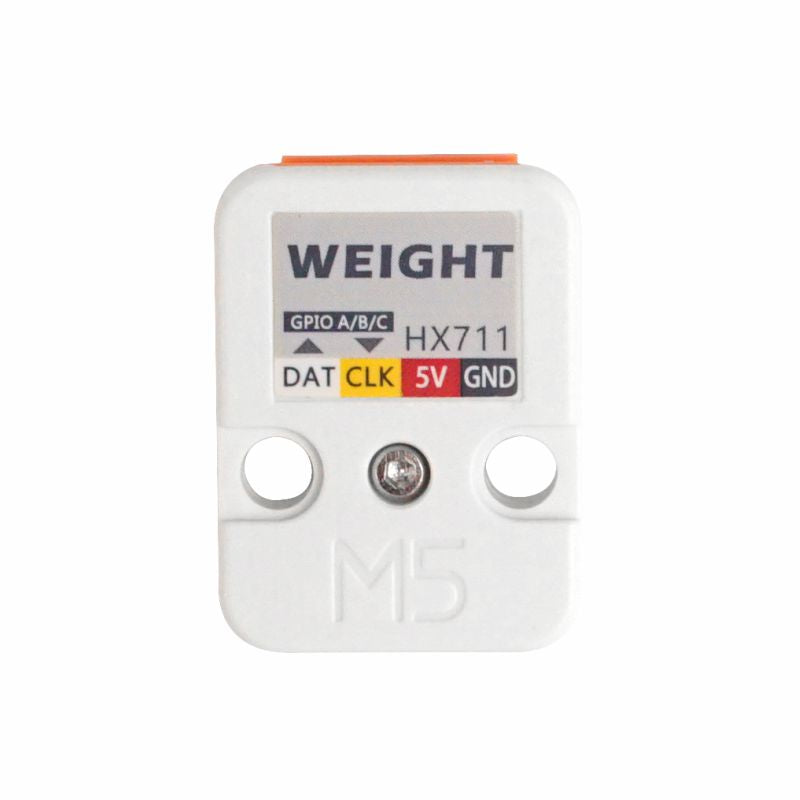

  • Clock and data interface through Grove
  • Reference output rate of 10 samples per second

The M5Stack Weight Unit converts the small differential output of an external strain-gauge load cell into digital data for miniature scales, force measurements, parts counting, dispensing systems, and education projects. Its HX711 low-noise 24-bit ADC uses Channel A with selectable gain of 64× or 128× and a reference output rate of 10 samples per second. Accurate weighing depends on load-cell selection, mechanical mounting, correct wiring, calibration, temperature control, filtering, and overload protection.

Weight Unit: Core Functions and Control

Digitize Bridge Signals with the HX711

The HX711 combines a low-noise programmable-gain front end and 24-bit converter for the millivolt signal produced by a strain-gauge bridge.

Select 64× or 128× Gain on Channel A

The two gain settings provide approximate full-scale differential ranges of ±40 mV and ±20 mV respectively.

Calibrate Zero and Scale with Known Weights

Firmware must store an unloaded offset and calculate a scale factor after the load cell and mechanical platform are installed.

Weight Unit Applications

  • Compact kitchen and ingredient scales
  • Parts counting and inventory bins
  • Force and compression measurement
  • Material dispensing and filling systems
  • Load-cell education projects

How to Integrate the Weight Unit

  1. Select a load cell with suitable capacity, sensitivity, geometry, and overload margin.

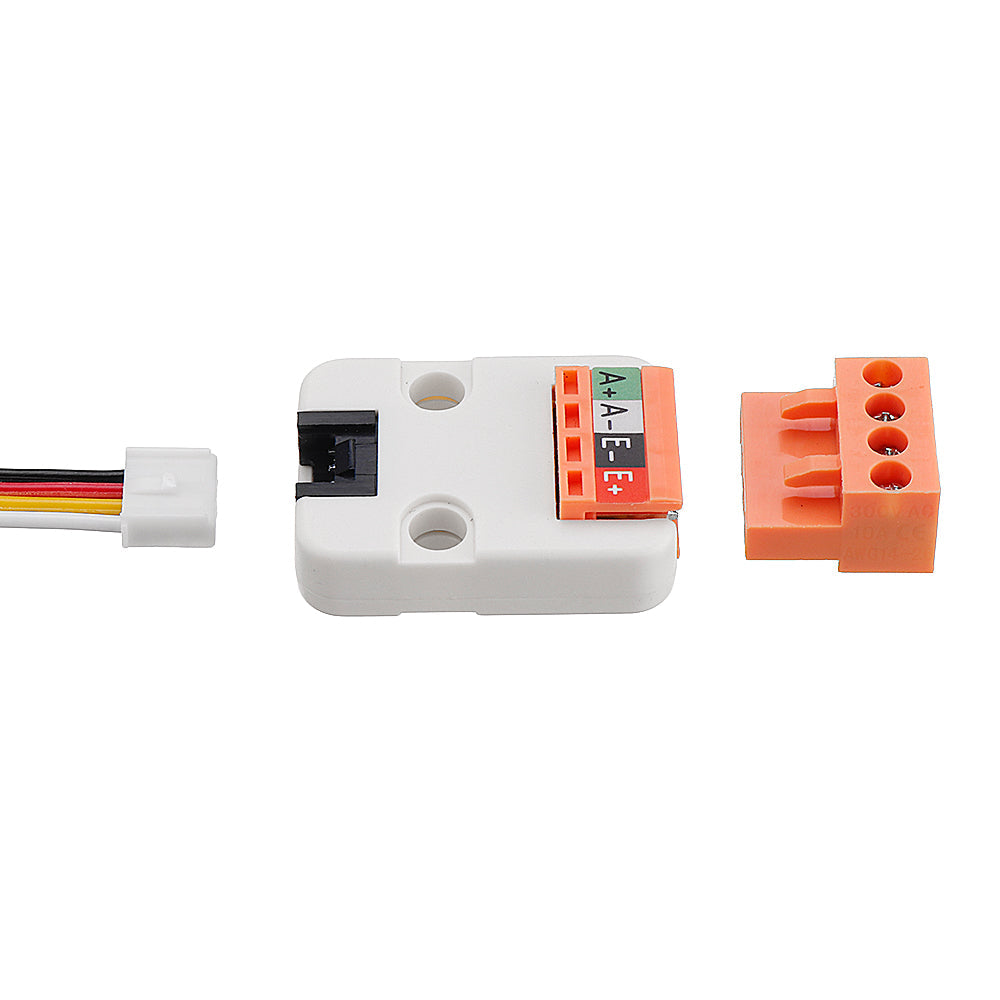

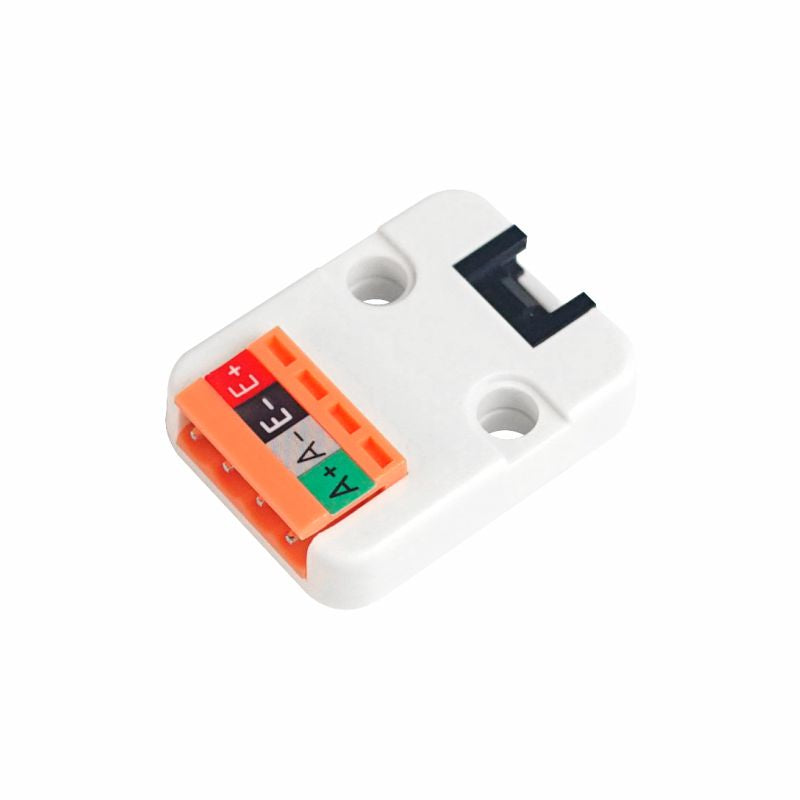

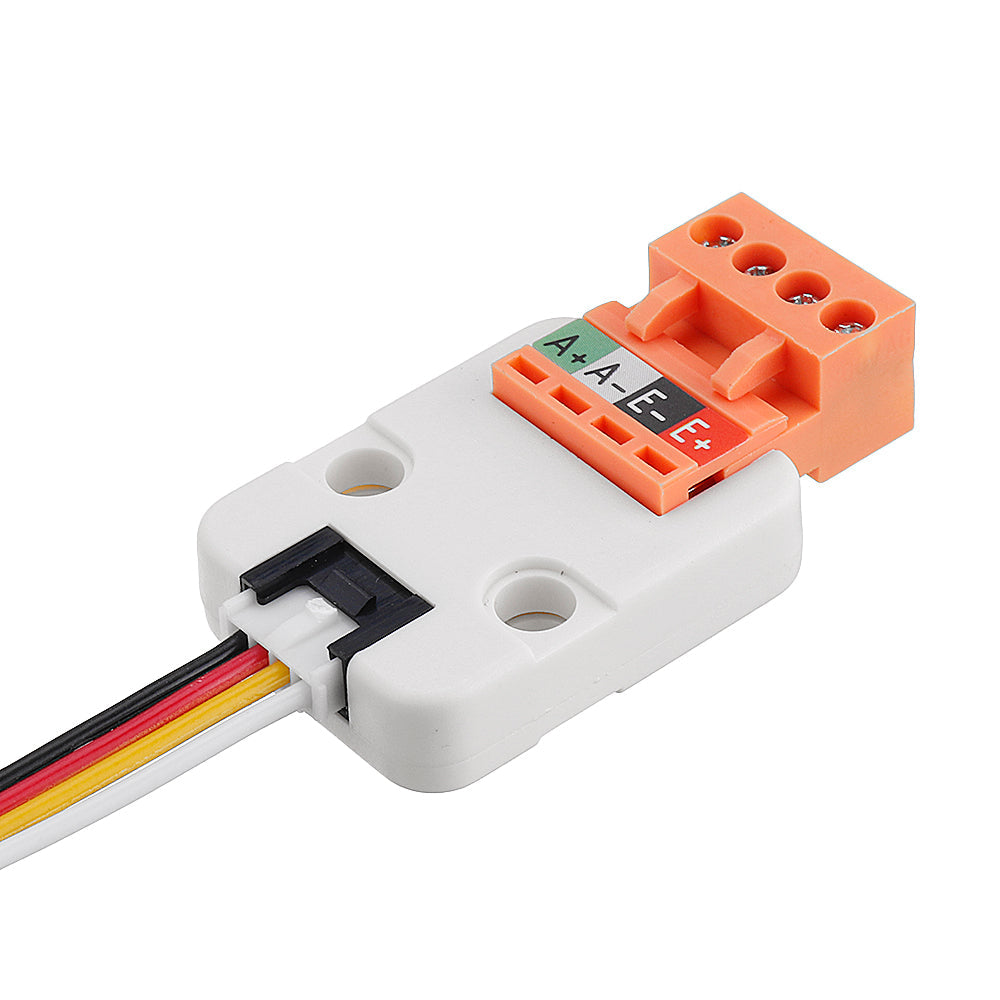

  2. With power removed, connect excitation and signal wires according to the load-cell datasheet.
  3. Mount the load cell without side loading, binding, or enclosure contact.
  4. Record the unloaded offset and calibrate with known masses across the working range.
  5. Apply stability detection, averaging, drift checks, and overload handling.

Weight Unit Deployment Notes

  • A load cell is not included.
  • 24-bit converter resolution does not equal guaranteed system accuracy.
  • Changing the platform, mounting, cable, or load cell can invalidate calibration.
  • Shock loading and overload can permanently shift or damage the sensor.
  • This unit is not a certified legal-for-trade or medical weighing instrument.
